******Important Note ( please read , and please read all descriptions carefully ) ************:
To let a booster work it needs conditions :

1. please be sure that signal outside of your house is good enough to enable booster to work , what good signal is:
a). stand there to check if you can make fluent call or not,if can ,then you buy ,otherwise please dont buy ;
b). Put your phone there to check its signal strengthness :
Android : setting-about phone-status-network ,dbm display shall be at -60dbm to -75dbm around ;
IOS : dial *3001#12345#*, dbm display shall be at -60dbm to -75dbm around ;

-80dbm to -100dbm means bad,so please dont buy

2. Please be sure the place where you are going to install is GSM 900MHZ 2g network AND 3g 2100MHZ , operator may use dcs 1800mhz for 2G network  .

3. Buy correct cable and anteana ,50ohm cable is recommended ,RG58 not recommended , for DCS ,3G,4G you must use 50Ohm cable ;
4. Install them correctly to avoid interference ( auto osillation ) with walls between indoor & outdoor antenna, when interference exist ,LCD will display full signal bar or signal LED normal on, but phone can not make call .

For avoiding unhappiness ,please do not buy before you are clear about the above .

Heavy and high cost product ,we will use only DHL or FEDEX to ship .So please do not choose aliepxress standard shipping .

Quality A   ,no interference to the base station ,

Band : GSM + 3G dual Band

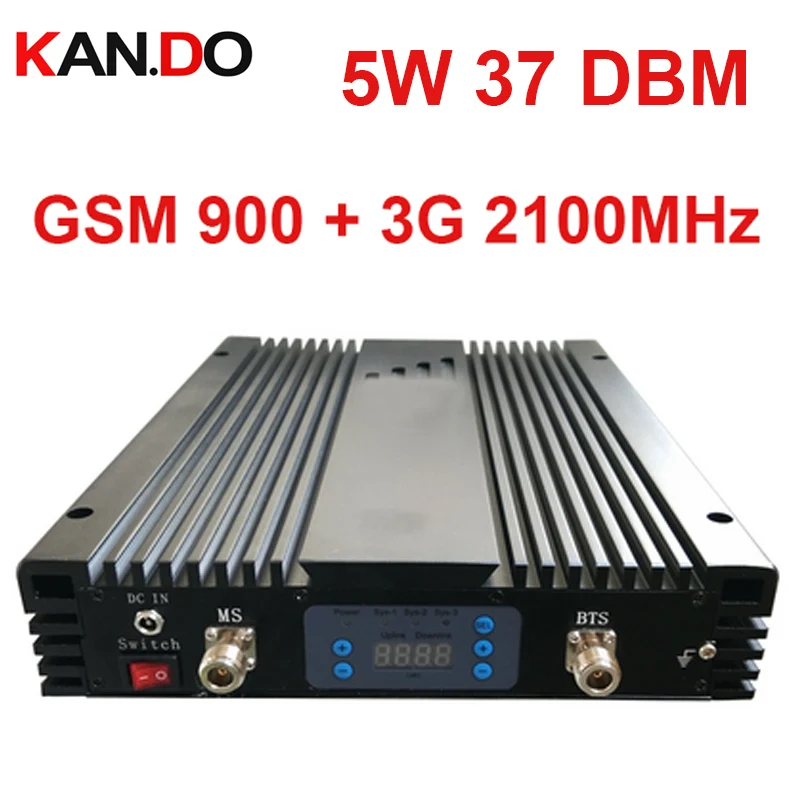

85dbi Gain adjustable  AGC / MGC 900MHZ+ 2100MHz  Cell Phone Signal Booster   Repeater

Specification & Feature :

1.Output Power: 37dbm
Gain : uplink : 80dbi ; downlink : 85db and adjustable

2.Work for  3G 2100mhz + GSM 900mhz   Signal improve

3.Coverage: cover about 500-1000sqm without barrier.

4.Frequency range :
 Band 1.  3G WCDMA :    UPLINK :  1930-1990MHz ;   DOWNLINK :2110-2180MHz

   Band 2.  GSM 2G :          UPLINK :  890-915mhz ;   Downlink: 935-960MHZ

Features :

1. Quality A Signal Repeater

2.There is no interference to the base station, opening of the original system and the base station no need to adjust parameters.

3.High linear design,AGC MGC function can adjust gain freely .

4.Improve your mobile signal,no more dropping calls,no more bad reception,

5.Provide ultimate solution in any area where signal is weak or unavailable eg.high building,countryside,basement,underground ect.

Gain adjustable :

Working System

GSM 900mhz+3G 2100mhz

Frequency Range

Band 1.  3G WCDMA :    UPLINK :  1930-1990MHz ;   DOWNLINK :2110-2180MHz
Band 2.  GSM 2G :          UPLINK :  890-915mhz ;   Downlink: 935-960MHZ

Gain

85db

Output power

37dbm

Ripple in band

less than 6db

Bandwidth

25M

Power supply

AC: 100-240V, 50/60Hz  DC:10V 6A

Power comsumption

less than 20 W

Inpedance

50 ohm

RF connector

N female

Matching Antenna type

N Male

MTBF

more than 50000 hours

Dimensions

350x270x60mm

Weight

7kg

Installation

wall

Environment conditions

IP40

Feature

Large Output Power, High Gain.

Shipping content :
1. booster x 1 ;
2. 110-220V Power adaptor x 1

Problems and solutions ( important ) , please read :

All booster will be tested before shipping to ensure quality , if you dont know any about booster and installation please start from 0 as below .

1. After power connected ,if LCD does not display or power LED is not on ,it means booster is defective ,kindly choose a friendly to solve it ,we accept to reship or refund. Andy dispute or negative will cause you on black list and an uncooperative solution ;

2. After you connet cables and antenna onto booster ,Lcd display 1-3 bars, you need to change your external antenna to a better place to gain stronger signal, if you use small pin antenna ,please upgrade it to a panel or a yagi ; If you can not find a place with good signal to enable booster with full bar display ,it means your outdoor signal is too bad ,booster will not work . So please kindly contact for a solution to return .

3. After you connet cables and antenna onto booster ,Lcd display full bar or signal LED is on ,but phone can not make call , it means big interference ( not booster quality problem ) which cause booster dead called auto osillation , so you need ( indoor and outdoor antenna can not see each other ) :
1). Use longer cable to enable outdoor antenna far away from booster and indoor antenna ;
2). Face outdoor and indoor antenna to different direction;
3). Get one or 2 walls between outdoor antenna and indoor antenna to ensure they are well insulated .
4). Check with your operator to ask what frequency are adopted in your area to ensure your booster matchs ( operator will use 900mhz in some area and use 1800mhz in an other area ) .

Detailed problems and solutions  :


If you still can not solve it yourself , you can friendly talk choose return or refund,
any dispute or negative mean buyer BAD !!

Below model ( IGC and ALC function ) may work under conditions :
1. bad outdoor signal at -80dbi to -85dbi around ;
2. No need wall to 100% insulate indoor and outdoor ( but if both antennas are too close ,it will not work too ) ,

http:/store/product/digital-display-gain-65dbi-Auto-Gain-Control-GSM-booster-GSM-repeater-900mhz-booster-mobile-phone-repeater/601777_2031233344.html

http:/store/product/digital-display-gain-65dbi-Auto-Gain-Control-GSM-booster-GSM-repeater-900mhz-booster-mobile-phone-repeater/601777_2031271457.html

http:/store/product/Auto-Gain-Control-GSM-booster-digital-display-gain-65dbi-GSM-repeater-GSM-900mhz-booster-kits-w/601777_2031465046.html

http:/store/product/Auto-Gain-Control-GSM-booster-digital-display-gain-65dbi-GSM-repeater-hone-booster-repeater-w-9/601777_2031466146.html

http:/store/product/Auto-Gain-Control-GSM-booster-digital-display-gain-65dbi-GSM-repeater-mobile-phone-repeater-w-9/601777_2031464919.html

http:/store/product/digital-display-gain-65dbi-Auto-Gain-Control-GSM-booster-GSM-repeater-mobile-phone-repeater-w-yagi/601777_2031271870.html

http:/store/product/Auto-Gain-Control-GSM-booster-digital-display-gain-65dbi-GSM-repeater-mobile-phone-repeater-w-yagi/601777_2031451606.html

Above models is only possible to work if outdoor signal is not good (-80dbm) ,does not mean 100% to work if really bad outdoor signal ( because a booster will take many conditions ) .

When you buy them it means that you just want to take try ,if does not work ,please be friendly to solve. If you are going to direct dispute or negative, please dont buy .
