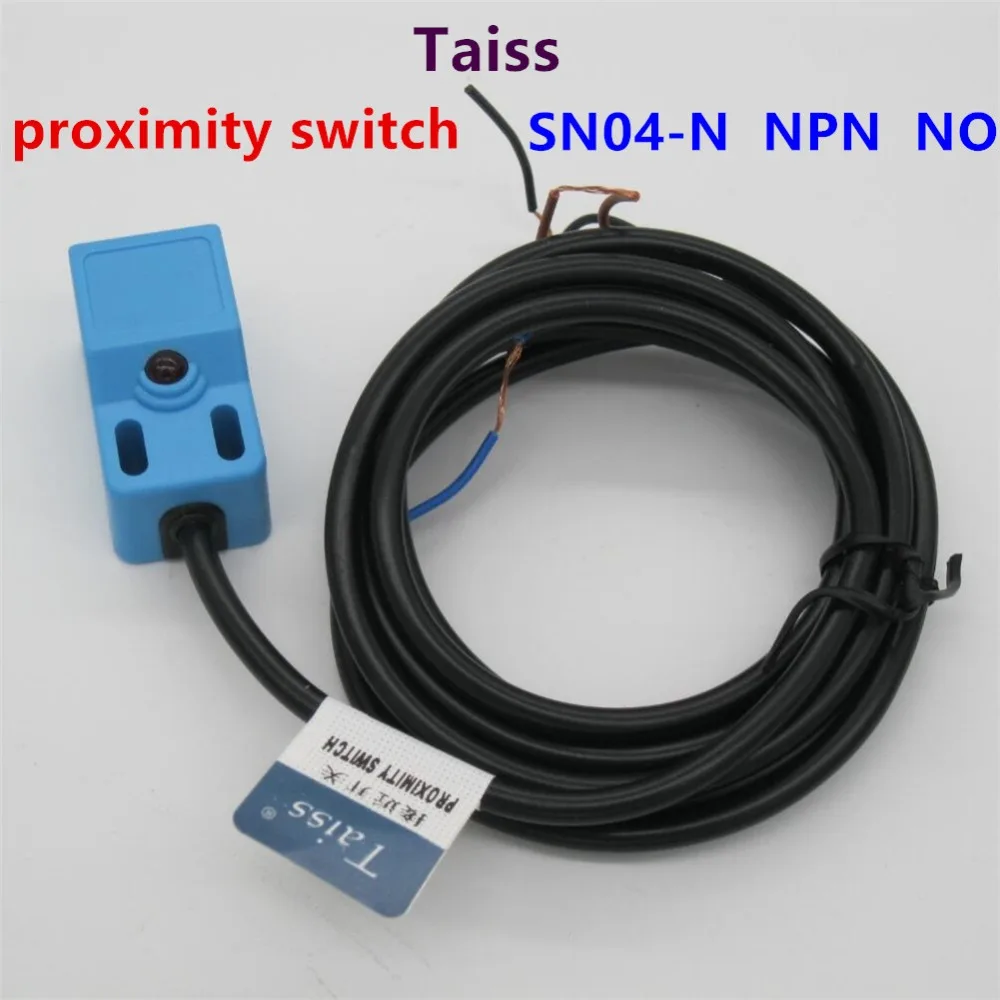

10pcs high quality Inductive Proximity Sensor SN04-N NPN 3-wire NO 18*18*36mm three-wire Switch | Обустройство дома

10pcs high quality Inductive Proximity Sensor SN04-N NPN 3-wire NO 18*18*36mm three-wire Switch | Обустройство дома

Note: some sellers with fake "ROKO "at very cheap

price (the fact that they are cheap because they

are fake, )Those products began to have no problem

, but not too long time will be broken

Our products are is of Chinese large companies in the production of high-grade quality goods.Is a genuine “Twidec” trademark.

The products we sell are cheap and beautiful，There are a large number of customers trial，Our photos are taken in kind, do not do any Landscaping.

The company's business philosophy: China's very cheap high-quality products sold all over the world, we also sell only high-quality products，"Service first, quality first" principle.

Model:

SN04-N :      (NPN NO/normally open)       DC 3 wires,                detect distance 5mm,

SN04-P:       (PNP NO/Normally open)      DC 3 wires,               detect distance 5mm

SN04-N2 :    (NPN NC/ Normally closed)  DC 3 wires,               detect distance 5mm

SN04-P2:     (PNP NC Normally closed)   DC 3 wires,               detect distance 5mm

General

Model number

Cable Length

SN04 series

about 0.65 meter

External dimensions

18x18x36

Installation type

Detect from front

Detection distance

5mm

Standard detected object

Mild steel (18x18x1mm)

Response frequency

NPN or PNP: 0.6kHz; Two wires of DC: 0.5kHz; Two wires of AC: 25Hz

Sensing object

Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)

Supply voltage

10-30Vdc;

Rated output current

N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA

Leakage current

N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max

Hysteresis

10% max. of sensing distance

Protection circuit-DC

Reverse connection protection, Surge suppressor, Short-circuit protection

Protection circuit-AC

Surge suppressor

Insulation resistance

50MΩ min (between charging part and housing)

Dielectric strength

1000Vac, 1min (between charging part and housing)

Temperature influence-1

±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C

Temperature influence-2

±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C

Voltage influence

±10% max. of sensing distance in rated voltage range ±15%

IP Rating

IP67

Material

Case: ABS; Sensing surface: ABS

Product Feature:

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching

When proximity switch is close to some target object, it will send out control signal.
