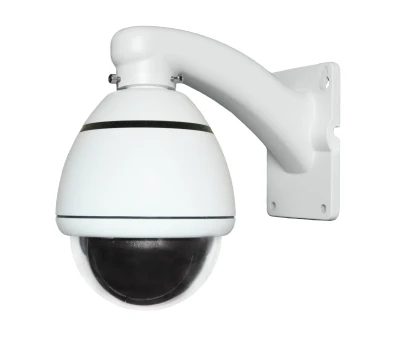

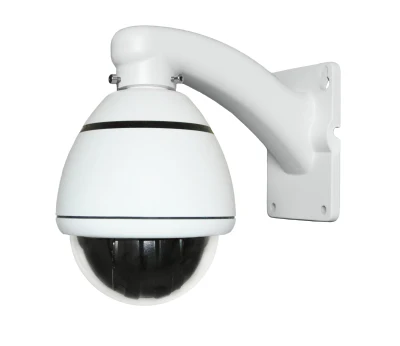

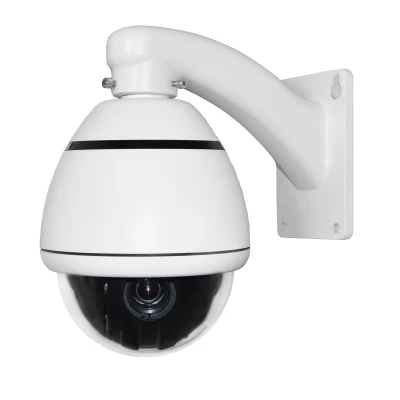

AM4RS-130 direct factory DEFEWAY HD P2P Channel CCTV System Video Surveillance DVR KIT Outdoor IR Night Vision | Безопасность и

AM4RS-130 direct factory DEFEWAY HD P2P Channel CCTV System Video Surveillance DVR KIT Outdoor IR Night Vision | Безопасность и

Function Characteristic:

.. Rotate 360°in horizontal direction,driven by exact engine,operate stably with Precise position-setting.

..The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance.

..Built-in OSD. Several control protocols are compatible and Baud rate is adjustable;

..Vertical 90°continuous monitoring after auto reversing 180°.

Parameter:

Model No .

CSJ-AM4RS-130

Image sensor

1/3" CMOS

Signal model

PAL/NTSC

Horizontal resolution

960P

Effective pixel

1280(Horizontal)x 960(Vertical)

Minimum illumination

Color to B/W, Color: 0.01Lux, B/W: 0.001Lux

S/N radio

>60dB(Enhanced)

Backlight compensation

On/Off

White balance

Auto

Electronic shutter

1/50~1/12000 seconds

Focus length

5~50mm

Optical focus

10X

Focus

Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function

Presets

256

Patrol track

4groups, each can record 200 actions

Cruise track

Total 30 presets can join cruise, can setting the presets' residence time

Other scan

Support Horizontal scan, deuce area scan, scan random

Rotation range

Horizontal 360°unlimted rotation, Vertical 90°,auto reversal

Rotation speed

Horizontal & Vertical Min 0.01°,Max 30°/S

Communications

RS-485, PELCO D, PELCO P

OSD

Yes

Temperature control

built-in

IR distance

35m

Power supply

DC12V/2A

Material

Aluminum shell

Work environment

-20°~+50°(select temperature control accessories), <95%RH
