2 in 1 Handheld Digital Oscilloscope Scopemeter + Multimeter Portable Meter Tester English Manual | Компьютеры и офис

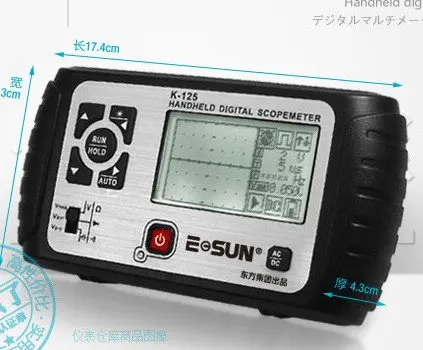

EM125 Handheld Digital Mini Oscilloscope

English Manual availble Now! please request upon order.



EM125 Series Handheld Digital Oscilloscope is a portable waveform measuring instrument. Replacement of analog oscilloscope and desktop digital oscilloscope and digital multimeter,  is the best tool for teaching and other observation areas.

It uses high-speed AD sampler, converting measured analog signals into digital signals 128 * 64 LCD display through high-speed CPU processing. High-speed comparators, get a good edge, stable display easy to observe. High-precision industial chip with 6000 counts, more accurate. Equipped with high-capacity lithium battery, rechargeable energy-saving design makes the machine one can work 10 hours or more. Charger using a standard mobile phone charger, so you can use anywhere.   Specification of scopemeter: Bandwidth(-3dB): 25MHz Sample: Max sample:100MSa/S Channel: 1 Couple: AC, DC Rising time: < 17.5 nS Input independence: 1M?,?20pF Max input voltage: 1x CAT III 300 VAC 10x, 100x CAT III 600 VAC Vertical resolution: 8bit Vertical sensitive: 50mV/div-20V/div Horizontal resolution: 10nS/div Horizontal sensitive: 10nS/div -5S/div Depth-sampling: 0.1K/Channel Trigger mode: AUTO, Rising edge, falling edge Fundmental specification: Screen size: 128(horizontal)×64(vertical);backlight:LED Battery: 3.7V Lithium battery 1200mAH charger: Input:100VAC-240VAC Output:5V±10%DC 1000mA size: 174*92*40mm wheight: 330g(host machine) Specification of multimeter: Measure count: 6000 Input: Max input voltage:600 Vrms CAT II, 300 Vrms CAT III On resistance: 25?(at the range of 600?), if less it beep Diode measure: >2V shows OL(overload) <0.25 beep Capacity measure: 6.000nF- 6mF 7range Resistance measure: 600.0?- 60.00M? 6range Voltage measure: 6V- 600V 3 range Specifications



Voltage: DC Voltage 6.000 V   0.5 ±8 60.00 V   0.5 ±8 600.0 V   0.5 ±8 AC Voltage 6.000 V ? 600.0 V 40 Hz ? 400Hz 1.0 ±10 400Hz ? 2 kHz 3.0 ±10 AC+DC Voltage 6.000 V ? 600.0 V 40 Hz ? 400Hz 1.0 ±10 400Hz ? 2 kHz 3.0 ±10 Resistance: 600.0? 1.0 ±5 6.000 K? 1.0 ±5 60.00 k? 1.0 ±5 600.0 k? 1.0 ±5 6.000 M? 1.0 ±5 60.00 M? 2.0 ±5 Capacitance: 6.000 nF 3.0 ±8 60.00 nF 3.0 ±8 600.0 nF 3.0 ±8 6000 nF 3.0 ±8 60.00 uF 3.0 ±8 600.0 uF 3.0 ±8 6.000 mF 3.0 ±8



 Package include:

20M (10:1) probe x 1 Test table pen, a pair Charger (with cable) x 1 Built-in 1200mAH lithium battery, 1 Warranty card User Manual"(in Chinese, English manual sent to mailbox) Carrying Case x 1
