 Factory supply flame cutting head with oversized working table/plasma cnc cutting machine

 ===>  Welcpome to JINAN UNICH MACHINERY CO., LTD

1. We are the factory of cnc laser for 12 year, we believe we can produce a good quality machine for every of our customer .
2. Quality is the life of our factory, We don't sell the lowest price machine, but we sell the best quality machine .
3. While we also supply free after-service forever, We have very experience engineer 24 hours online, so any doubts, just let us know, we will give you solutions as soon as possible.
4. We are the few supplier in china consider quality is First, If you only want the lowest price machine not consider the quality, maybe we are not the good choice, Because we need a long cooperation not only once.

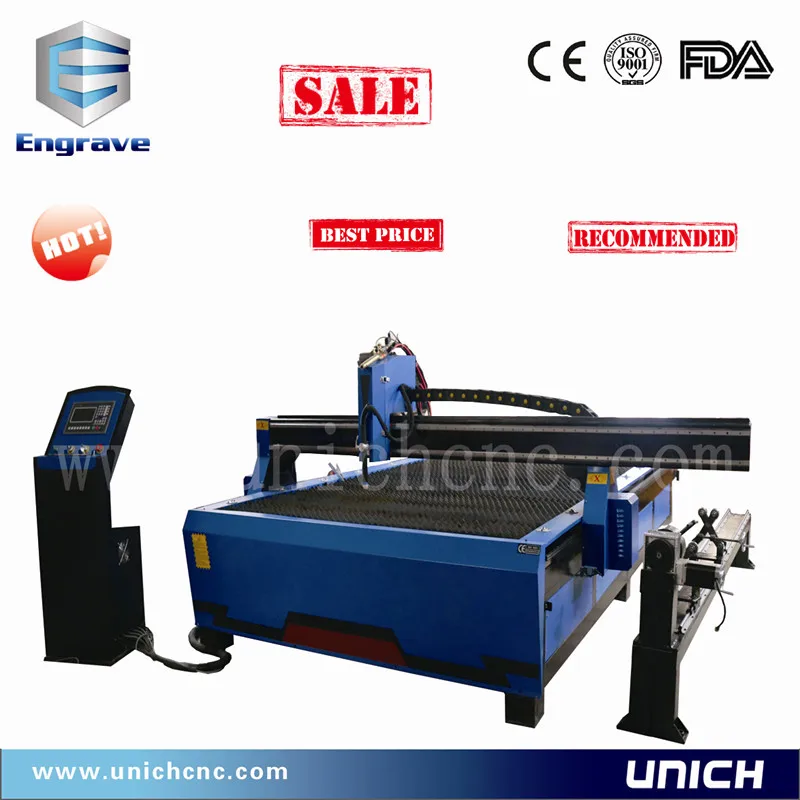

===>  Plasma cutting machine, The machine that you want!

This type of cnc plasma cutting machine use china made plasma source or hypertherm source, (flame cutting is optional), can cut thick iron and other materials, is mainly used in build and other metal die cutting industry, with thick materials cutting, use hyertherm plasma source imported from the USA, has the high precision and good cutting result, this cnc plasma cutting machine can be customized according to your requirements.

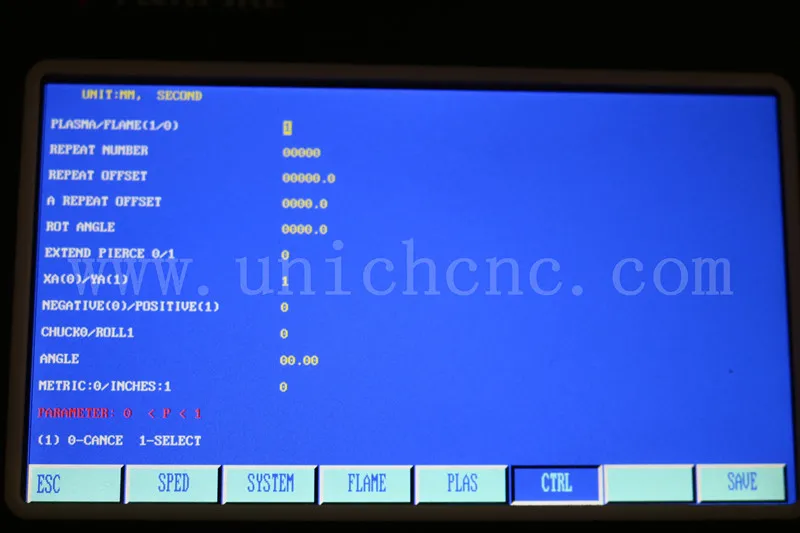

# STARFIRE contorl system, It has an independent control box, This system supports multiple languages, easy operation,
When you can be skilled in the operation of this software, you will find everything is no problem!

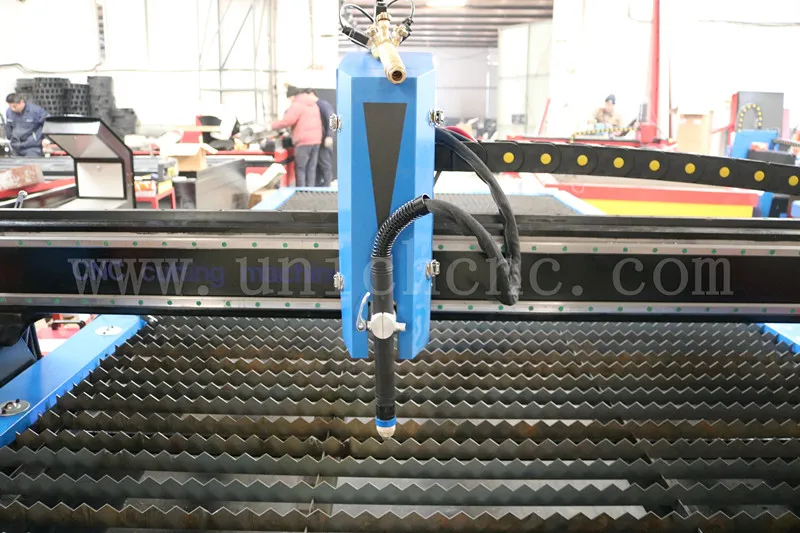

# Sawtooth working table, it can be better carrying the work materials, when the machine workinging, the point of strength dotted distribution, better protection of the table.

# The machine is equipped with a flame cutting head, When your material is relatively thick, you can first drilling holes, and further expand the machine can work the scope of the material! Extend the lifetime of the machine!

#  The drive system adopts USA chip control, and we adopt high precision motor, providing  AC power with big torque to ensure running smoothly under the high speed.

===> The machine parameters

Model

plasma cutting machine

Working size

2000x4000mm

Repeat positioning accuracy

±0.05mm

Traveling speed

0-24000rpm/min

Cutting speed

10-15m/min

Transmission model

Gear rack drive

Transmission system

X,Y Taiwan Hiwin high-precision,zero clearance increased linear

guide+ rack

Cutting system

Starfire controller

Driver

Ray plug drives 860
(Sino-us joint venture large drives

Plasma power supply

Imported US Haibao or Domestic Huayuan

Cutting thickness

0-30mm

Cutting type

Plasma/oxy-acetylene or propane

Input voltage

3 phase,220v/380v±10%

Mode of file transfer

USB Interface

Guide way

Imported square rail

Table-board

Steel blade saw tooth mesa

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.3mm/10m

Environmental temperature

-5~45°C

Humidity

 <90% No concreting

 ===> About our after sale

the warranty time of our machine is 2 years, most company's warranty time for the machine is only 1 year, if there is any part broken during the time(not man-made reason), we will change it for you freely. There is also professional after-sale service staff in our company who can speak English very well, she can make teamviewer to help you use the machine, also if you have any questions, you can talk with her on skype or whatsapp or by email.

===> Your choice, my responsibility!
