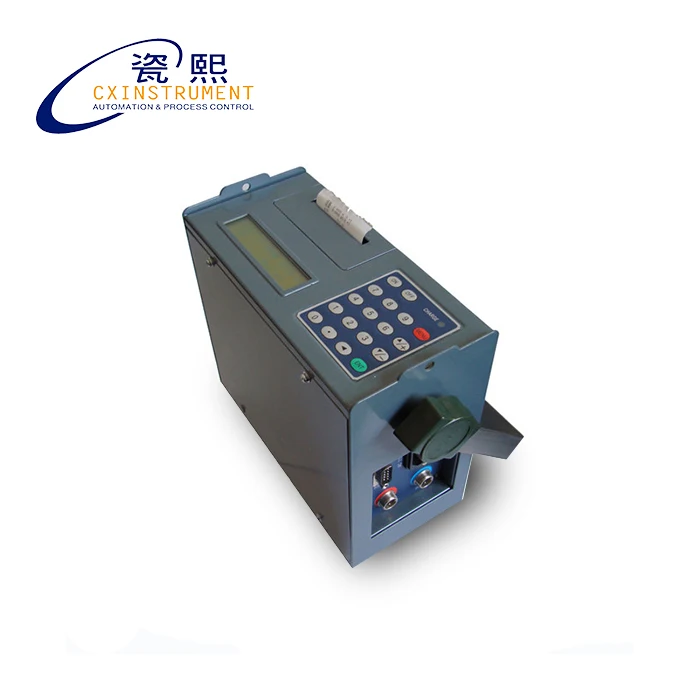

 DN50~DN700 With Print Function Ultrasonic flow meter for water

  The ultrasonic flow meter for water is the "speed difference method" for the principle of measuring the liquid flow inside the tube of the instrument. It uses advanced multi-pulse technology, signal digital processing technology and error correction technology, so that flow meters can adapt to the industrial field environment, measurement more convenient, economical and accurate. Products reach the advanced level at home and abroad, can be widely used in petroleum, chemical, metallurgy, electricity, water supply and drainage and other fields.

Techancial Parameters

Model

CX-HUFM

Medium

Liquid,water,sea water ,oil etc

Pipe size

DN50~DN700

Accuracy

+/-1%

Material

Aluminium alloy or special material

Frequency

1MHz

Communication

RS485

Temperature

0~70C

Protect grade

IP65

Repeatability

0.2%

Display

2line LCD display

Pipe line

Rubber,slurry,PP,PS,PTFE

function

With printerfunction and a operation box

Features

1) High accuracy up to 1%

2)Repeatability:0.2%

3)Easy to install outside of the pipe

4)4 line LCD display :Instantaneous,flow rate,Accumulate flow,Status

5)Standard interface RS485 for data output,and online operation

6)Self-diagnose to show the current status

7)Built-in Nickel-hydrogen cell supports 10 hours of operation

8)Many flow sensor such as the small bracket sensor ,middle sensor and large sensor for different pipe size

9)For different working temperature there are different sensor for you reference,the high temperature maybe 150C.

10)The portable ultrasonic flow meter with print function.
