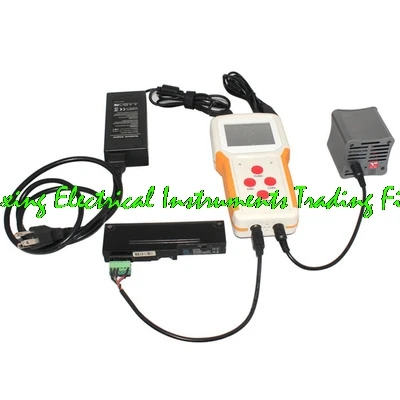

Function:
*Charge:Active, pre-charge, constant current and constant voltage are the stages of charging mode. The initial charging mode depends on the battery voltage, so active and pre-charge don't happen to every batteries.
*Discharge:Constant current discharge for double loads.
*Test:Testing time is 30 seconds and the purpose is to check both the charging and discharging performances.
*Capacity Correction: The battery capacity value in the battery management chip will different from the actual capacity after a battery goes through many recycling cycles. It will affect the use of the battery when the difference reaches a certain degree. Capacity correction is to deep discharge a battery and then fully charge, which will correct the capacity value in the battery management chip.
*50% Capacity:
CD50%: charge firstly, and then discharge to 50% capacity
DC50%: discharge firstly, and then charge to 50% capacity
*Online Functions:Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine.
*Monitoring:Battery information can be monitored via three windows.
*Control:Battery Manager can control slave machine completely. Right-click menu on the battery bar includes the related commands.
*Parameters:Users can set working parameters via set parameter window in Battery Manager.

Features:

*With one channel, supporting one intelligent battery
*Supporting charge, discharge, test, capacity correction, charge / discharge 50% capacity
*LCD for displaying battery informaiton
*LED for indicating working status
*With charge-key, discharge-key, backlight-key and function-key
*Pre-charge, fast charge and constant voltage charge for charging stages and the variation range of the values of the

constant current and the constant voltage is less than 1%
*Constant current for discharging
*With a USB port for connecting with computers, master machine can monitoring and control slave machine

Basic Parameters:

*Dimensions: 201 x 99 x 35 mm
*Weight: 333g
*Adapter
Input: AC 100 ~ 240 V
Output: DC 24V 2.65A
*Display mode
Segment LCD with white backlight + LED in red and green
*Discharging mode
Constant current discharge for double loads, inner load & external load
Maximum charging current: 3A
*Charging mode
Constant current + constant voltage. Active charge and pre-charge are available according to different battery voltage.
*Charging current
There is a connection between current intensity and charge mode. The details as below:
Nominal capacity Pre-charge current Fast charge current End charge current
>6000 400 mA 2500 mA 300 mA
>3500 400 mA 2000 mA 200 mA
else 200 mA 1000 mA 100 mA

*Standby power consumption
≤1W
*Working temperature
0~40°C 20%-90% RH (Non condensation)
*Storage temperature
-20°C~65°C 10%-95% RH (Non condensation)
*Maximum charging time
Time limit for charging: 8.8h
Time limit for discharging: 8.8h
Time limit for testing: 20s + 10s = chg + disc
Time limit for capacity correction: 8.8h + 20s + 8.8h = disc + pause + chg
Auto quit time for function menu: 10s

① segment LCD
② monochrome LED, red
③ Monochrome LED, green
④KeyFun: Function menu key
⑤ KeyDisc: Discharge key
⑥KeyChg: charge key
⑦KeyBL (KeyOK) where KeyBL (KeyOK) has a dual function: when the FCC location display function number, this key is the function of KeyOK, used to confirm the implementation of the selected function; KeyDisc, KeyChg invalid.

12 cooling holes

8 19V / 4.74A DC input
9 small USB communication port

10 battery connection
11 external load connection port

battery voltage

② battery current power
③ charge mark bit
④ charge / discharge current
⑤ discharge flag
⑥ current percentage of electricity
⑦ charge and discharge cycle times
⑧ battery total power: the general state of this position shows full charge. When a special function is executed, the function number is displayed
⑨ test flag
⑩ test success flag
11 test failure flag
12 battery status box

LED indication:
Red is being discharged;
Red flash is wrong; possible reason: no current charge; discharge without current; work overtime; activation failure;
Green is charging;
Green flash indicates that the task is complete.
operating
Power-on

(The left and right LEDs are on, the LCD is on for 1s, and the LCD is on, and the LCD is on, and the device is powered on. , Left and right LED off), and then try to communicate with the battery; if there is battery, the LCD display battery-related information, otherwise show all 0.

Connect the battery

Use a cable that matches the battery model and confirm that the interface is oriented correctly. Make sure that the cable is in good contact with the battery and the instrument and perform other operations. When the battery is normal and connected properly, the instrument will recognize the battery and display the relevant information on the LCD.
The battery may not be identified for possible causes
The connection does not match the battery;
Interface direction;
Bad contact
0V battery needs to be activated;
The battery model that the instrument can not recognize;
Instrument malfunction or battery is bad.

Charge

Press the recharge key to start charging. LCD "Chg" and HRL flashing; LCD real-time display battery information; LED green (this is the "green LED light" shorthand.
When the connected battery needs to be activated, press the toggle key to activate. Activation time of about 40s, after the activation is automatically transferred to the normal charge. Before the activation of the instrument can not get any battery information, including voltage, current. When activated, the instrument output voltage 8000mV, current limit 200mA.

Discharge

Press the discharge button to start the discharge. LCD "Disc" flashing; LCD real-time display battery information; LED red.

Function menu

Press KeyFunc to enter the function interface, press KeyFunc continuously to switch between functions; press KeyOK to confirm the execution of the selected function. The FCC location displays the function number being executed during the execution of the function. During function execution, you can press KeyFunc to view other function numbers. If you do not press the button for 10 seconds, the function number will be displayed.
F1 battery test
F2 power calibration
F3 stop
F4 CD50%
F5 DC50%
The specific meaning of each menu item, see "function introduction" section

Online

PC and USB drive (please refer to BM related documentation); connect the instrument and PC with USB cable; start BM, BM will automatically identify and communicate with the serial port connected to the instrument;
Please refer to the BM related documents for the operation after online.
 Precautions
 Please use the instrument equipped with the adapter. Too low / high voltage or function of the non-standard adapter will make the instrument can not work properly, and even lead to damage to the instrument and battery;
Please use it indoors to avoid direct sunlight.
Please use this instrument in dust free space;
Do not place heat-sensitive materials under the instrument to avoid hot air burns from the heat sink;
