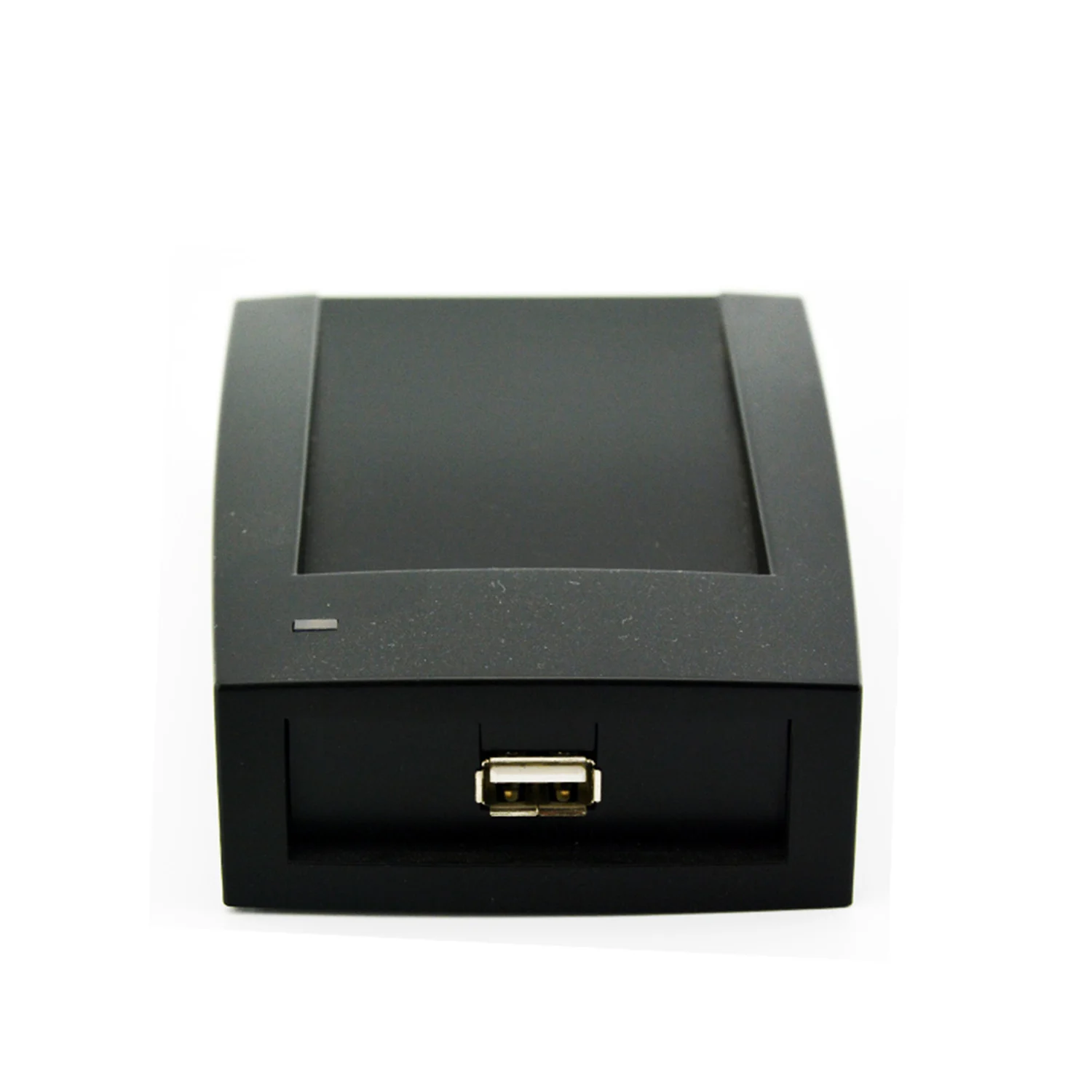

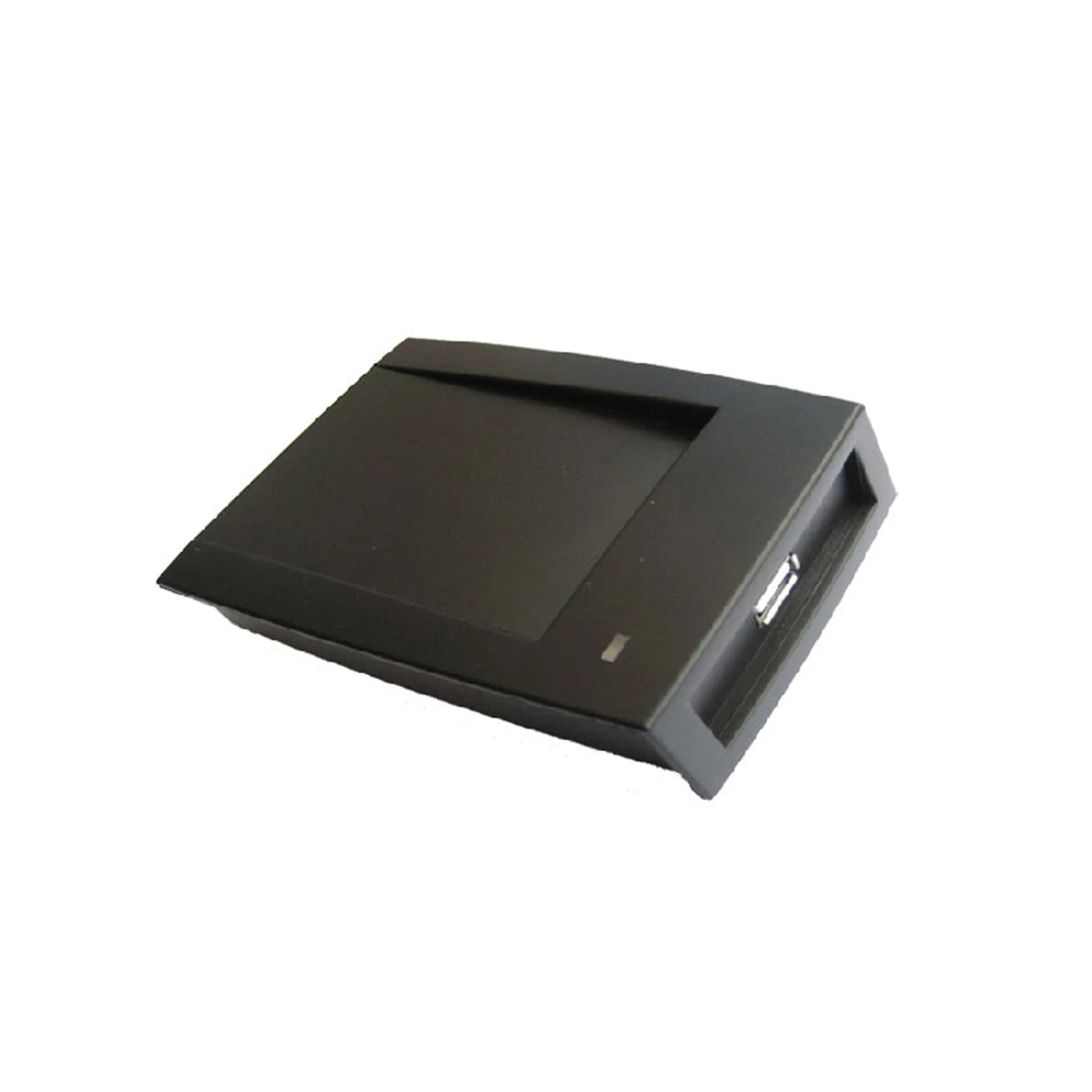

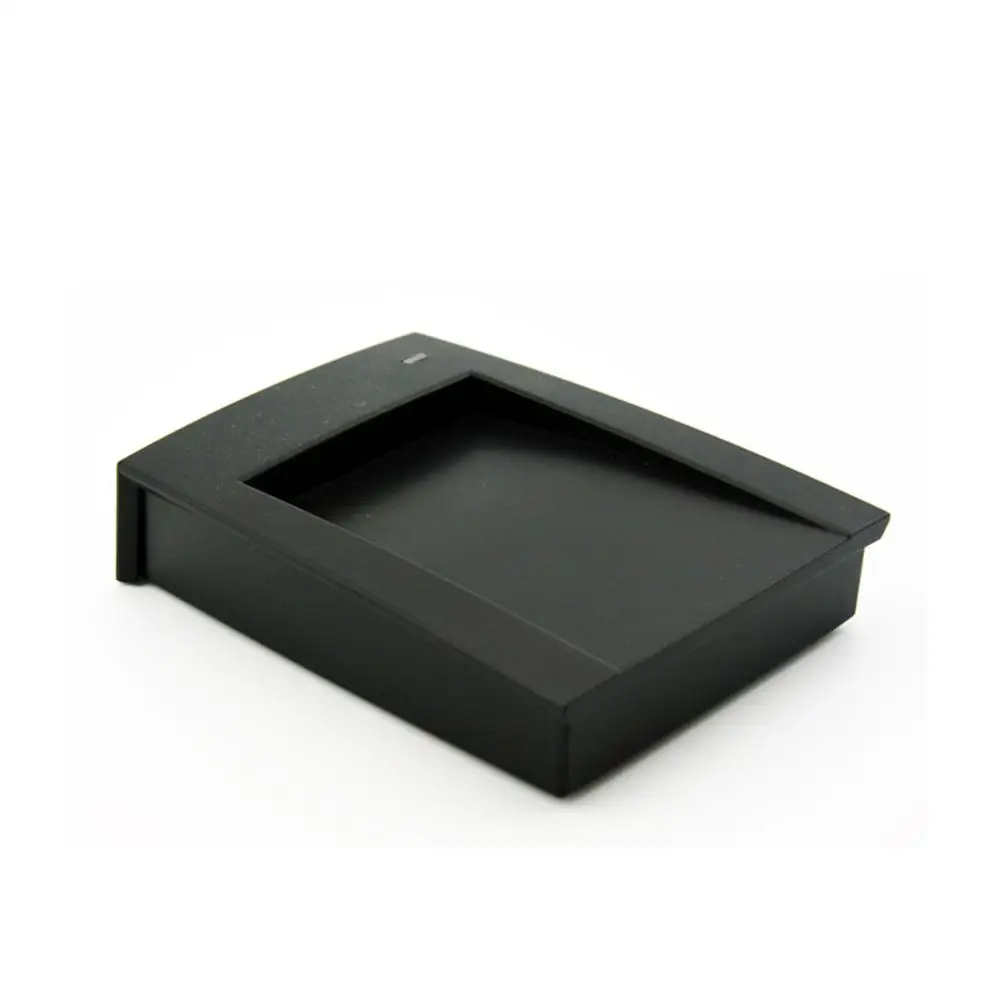

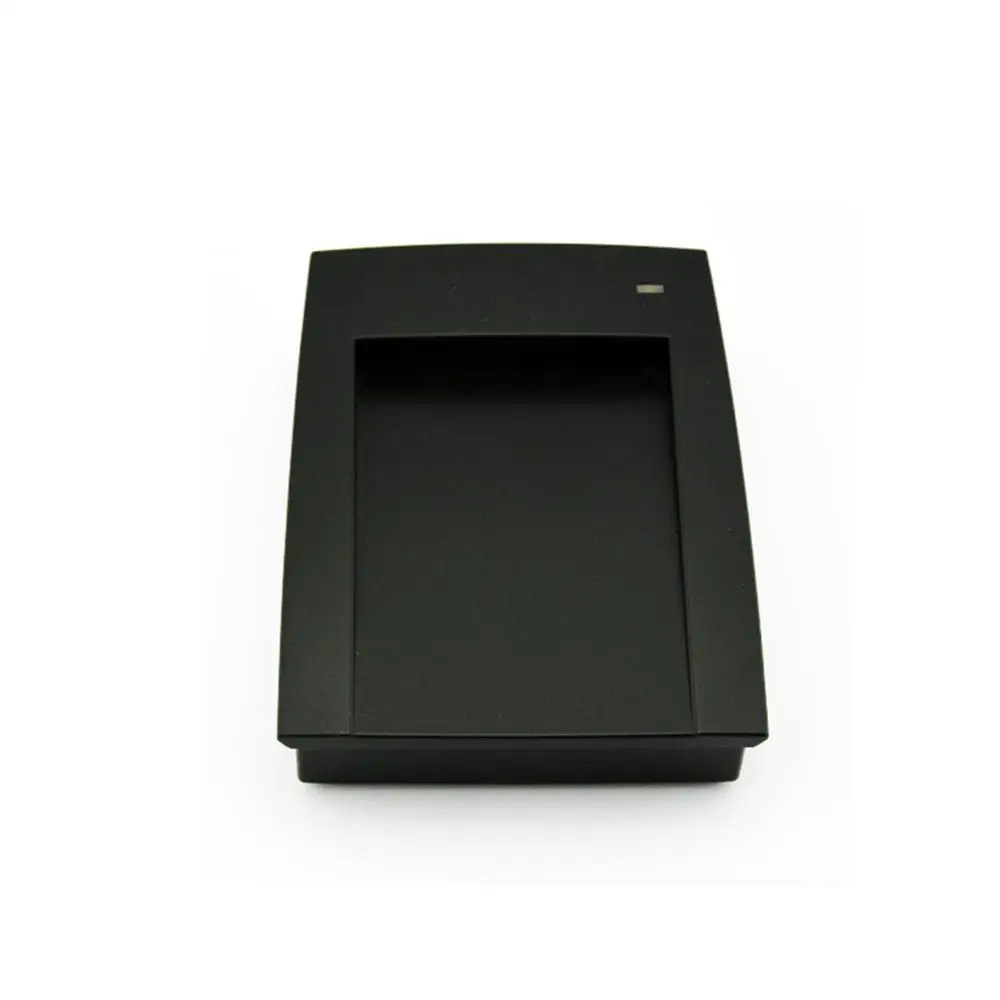

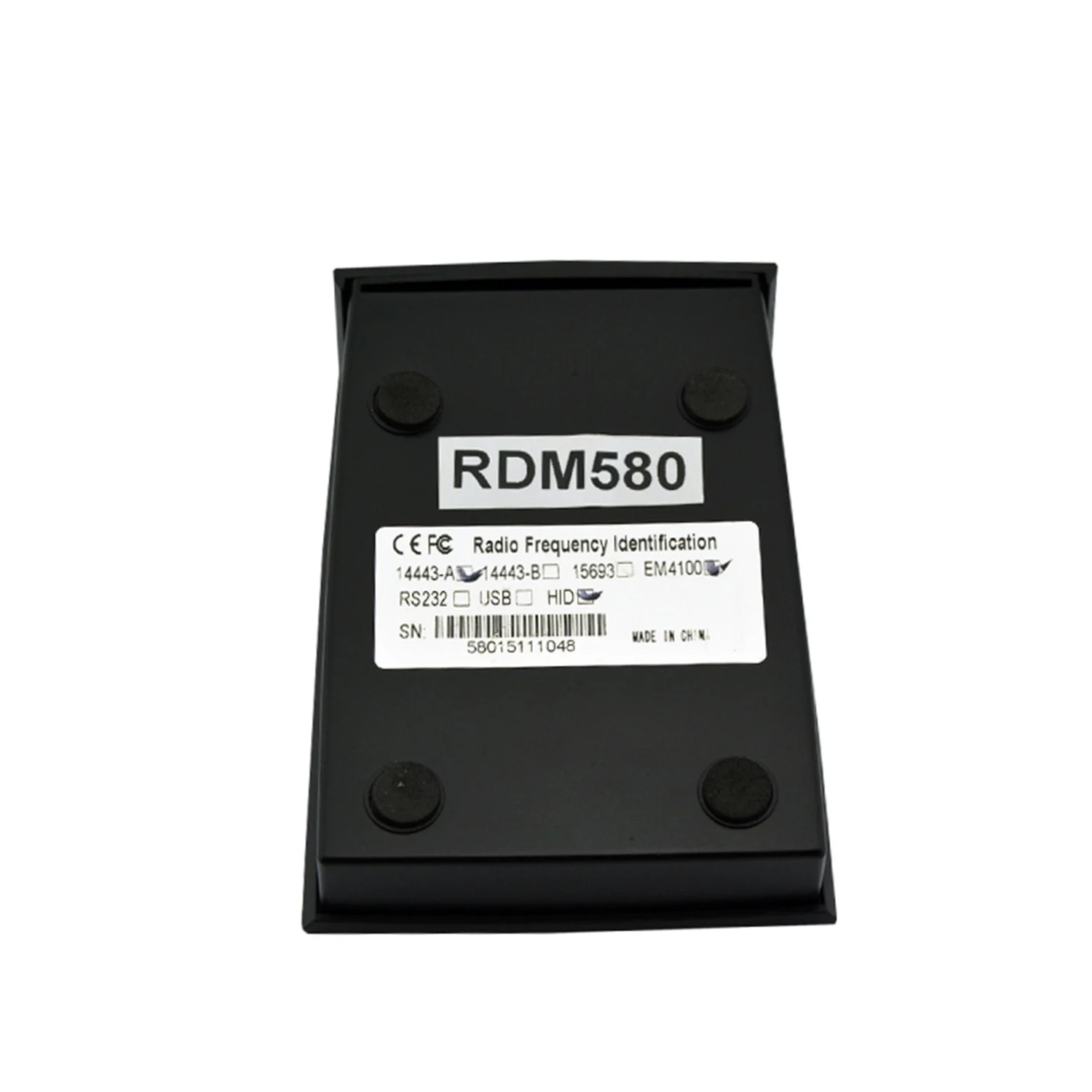

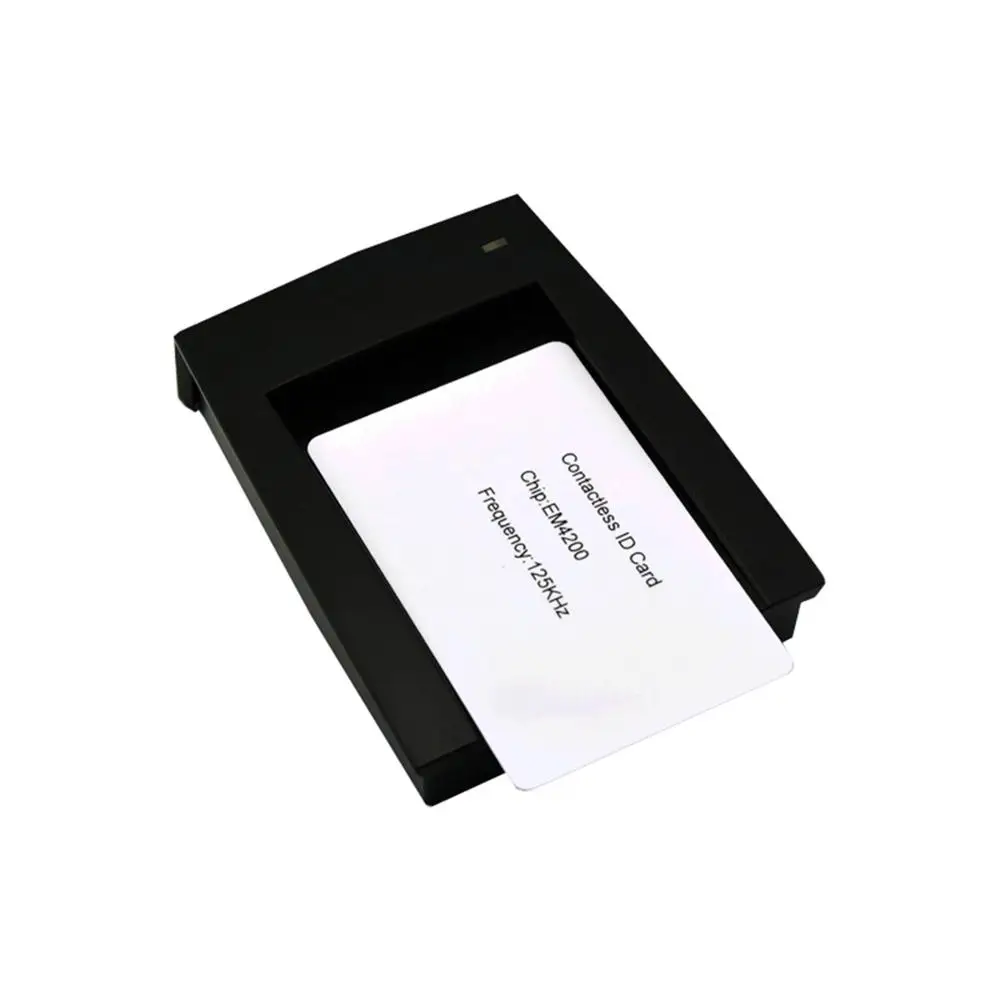

Smart Card Reader, Don't Need Software Also Read The Card Serial Number Reading Card Terminal RDM580

General

This dual frequency RFID reader RDM580(LF+HF) is an easy-to-use device that is compliant with the ISO14443A and 125KHz smart labels. With USB communication port, it is easy to get the device connected with other controllers or a PC with a typical reading distance up to 5cms.

Key Features

Available to 13.56MHz and 125KHz

Reads Mifare and EM labels

Designed with USB interface

High security and reliability

Specification

Frequency

13.56MHz & 125KHz

Standard

ISO/IEC 14443A

Interface

USB

Support Card

Mifare One S50, Mifare One S70, EM4100, EM4200 TK4100 etc.

Baud Rate

9600~115200bit/s

Power Supply

DC 5V(±5%)

Current

<120mA

Maximum Read Distance

5 cm(Tag dependent)

Audio/Visual Indication

Internal Dual color LED and buzzer

Housing Material

ABS Housing

Operating Temperature

-10~70

Storage Temperature

-20~80

Humidity

0～95%

Dimension

110mm*81mm*26mm(L*W*H)

Ordering information

To order, please use exact Model Number

Model Number

Interface

Descriptions

RDM580-H-ID/IC

USB-HID

Read ISO14443A Mifare and EM cards

RDM580-H-IC

USB-HID

Read ISO14443A Mifare cards

RDM580-H-ID

USB-HID

Read ISO14443A EM cards

Applications

Access Control /Time Attendance

System login/logoff

Production Authentication

Logistic systems

Guest Registration System

Express parcel management
