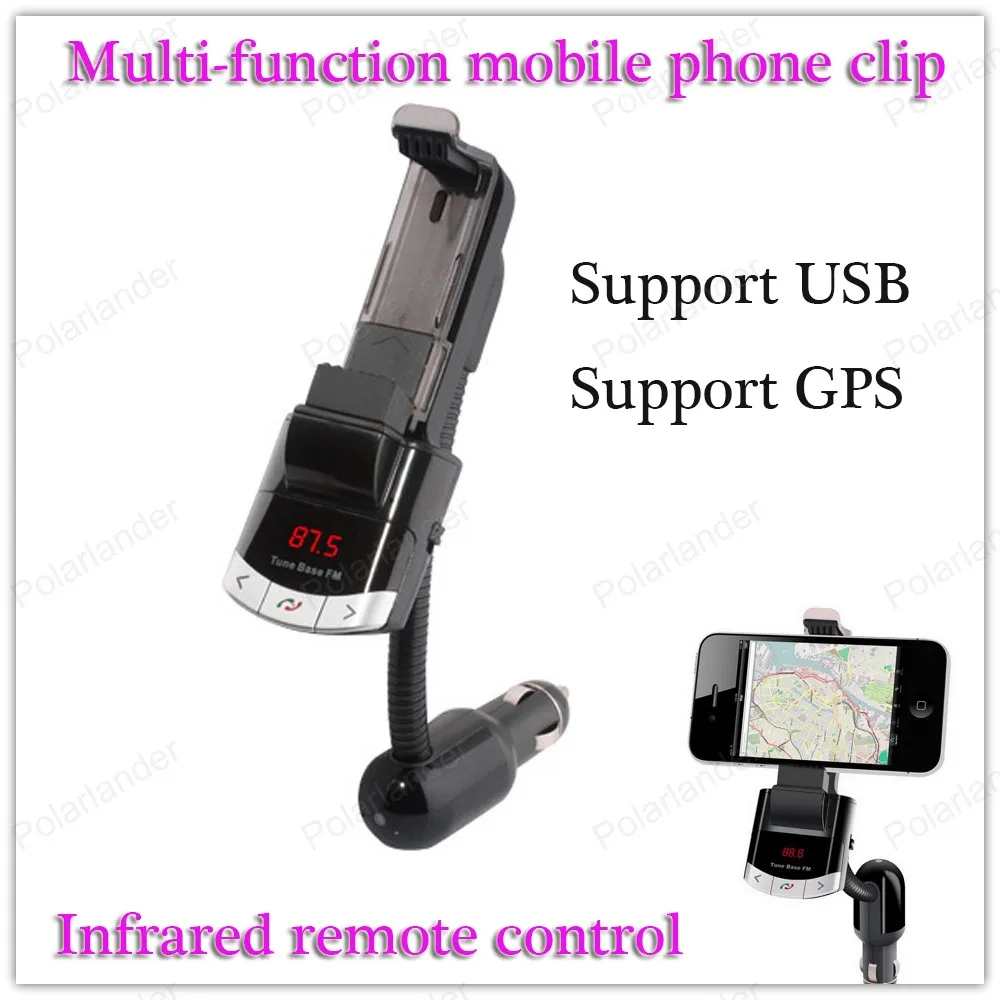

Multi-function mobile phone clip

                       user's Guide

A: BT900 is a smart phone for the car bracket, including the Bluetooth hands-free, GPS mobile phone sound amplification, mobile phone charging as one.

Second: product characteristics

L products directly into the car cigarette lighter, easy to install.

L DSP technology, full-duplex call, the software echo cancellation and noise cancellation technology

L voice prompts

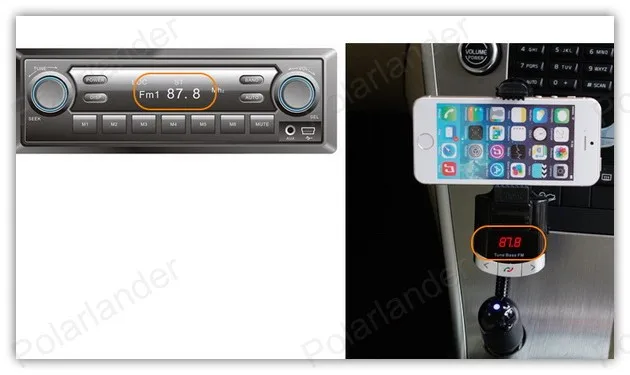

L 87.5-108.0Mhz full-frequency FM transmitter function

L answer / hang up / reject / hand-free function

Support U disk MP3 / WMA format song playback.

L Support AUX interface audio input

L USB can charge other devices

L Automatic power-off memory function

Infrared remote control

L Power on automatic connection

Built-in speaker 2W power output

three:

1.GPS navigation diagram, to expand the phone gps navigation sound, so that mobile navigation can be comparable with the car gps.

2. Car Bluetooth hands-free calling function and Bluetooth car music player.

3. Support their own speaker and fm launch switch, for fear of occupying the radio signal with its own speaker.

1: Basic operation

1.1 switch machine

Turn the power switch on the right to the ON position, LCD display "HI", the system boot. (If you do not use for a long time, please put the switch in the OFF state).

1.2 Bluetooth hands-free and mobile phone matching

When you first use your phone and Bluetooth hands-free connection, your phone needs to be connected with the Bluetooth hands-free for the code, the phone paired specific operations, please refer to the phone and Bluetooth device code on the code

1.2.1 Power on the Bluetooth hands-free state, the phone's Bluetooth device is set to open the state, and search to "BT8118" device, displayed on the phone.

1.2.2 Some mobile phones to enter the "0000" connection password.

1.2.3 in the phone menu, select "BT8118" and then select "Connect", and then select the connection to "hands-free configuration"

Four: product specifications

Bluetooth version: 2.1

L Bluetooth operating frequency: 2.4GHZ

L Mobile phone and hands-free connection distance: 0 ~ 15M

L The effective distance of microphone call: 0 ~ 50CM

L FM transmission frequency range: 87.5-108.0MHZ

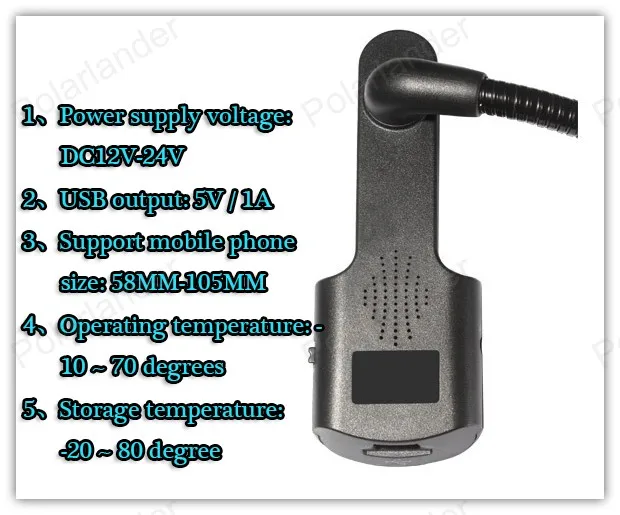

L Power supply voltage: DC12V-24V

L USB output: 5V / 1A

L Support mobile phone size: 58MM-105MM

L Operating temperature: -10 ~ 70 degrees

Storage temperature: -20 ~ 80 degree
