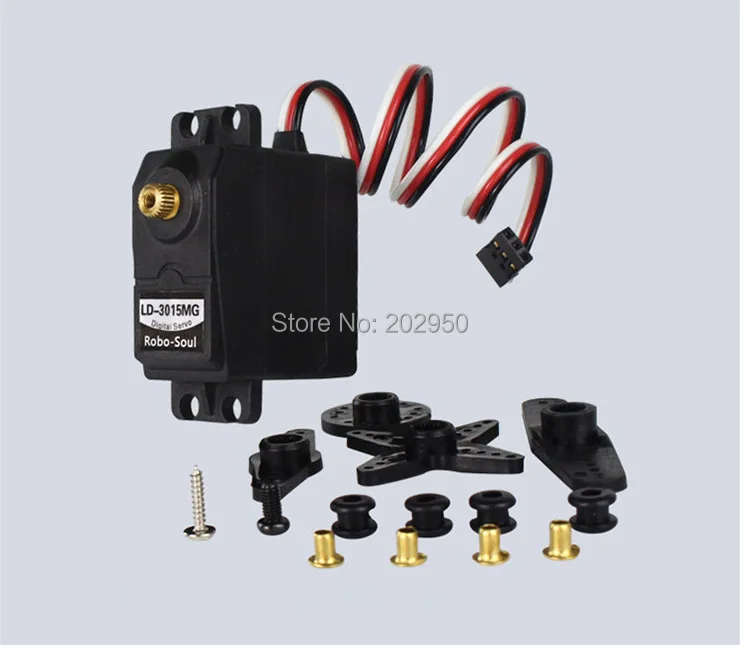

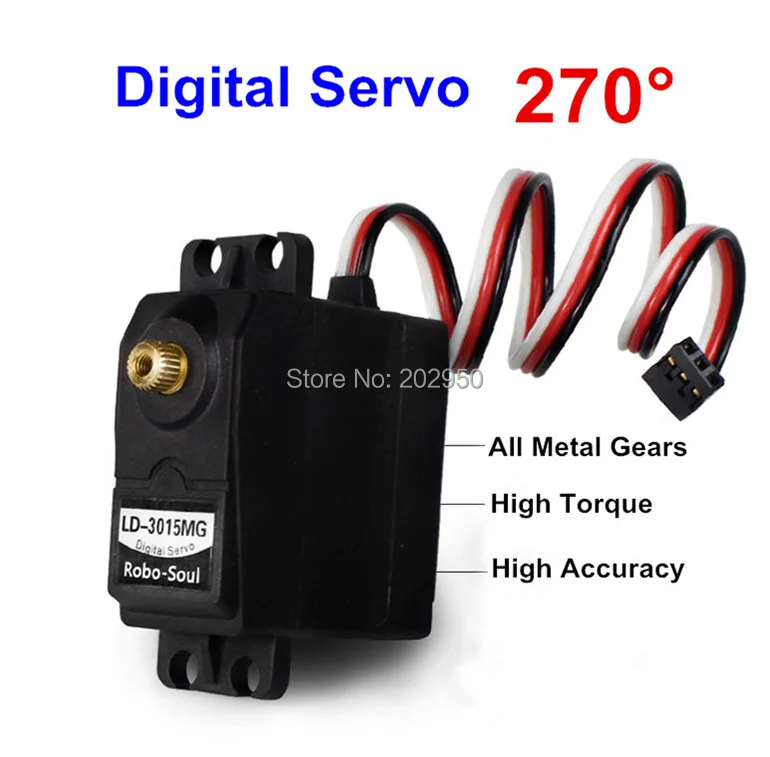

LD-3015MG Digital Servo 270 Degree Single Axis Servo for Robot Mechanical Arm

Description:
- Weight: 60g
- Size: 40*20*40.5mm
- Speed: 0.16sec/ 60degree 7.4V
- Stall torque: 15kg/cm 6V, 17kg/cm 7.4V
- Working voltage: 6-7.4V
- Unload current: 100mA
- Cable length: 30cm
Instruction:
PWM pulse width adjustment angle, the period is 20ms, duty cycle 0.5ms~2.5ms of the pulse width level corresponding to 0 degree -180 degree, that is a linear relationship. Usually the servo actuator controller uses 500-2500 value corresponding to the servo control of the output angle of the duty ratio of 0.5ms~2.5ms, so that the control accuracy of the LD-3015MG servo is 3us, the minimum control accuracy can reach 0.2 degrees within the 2000 pulse width!

Package:

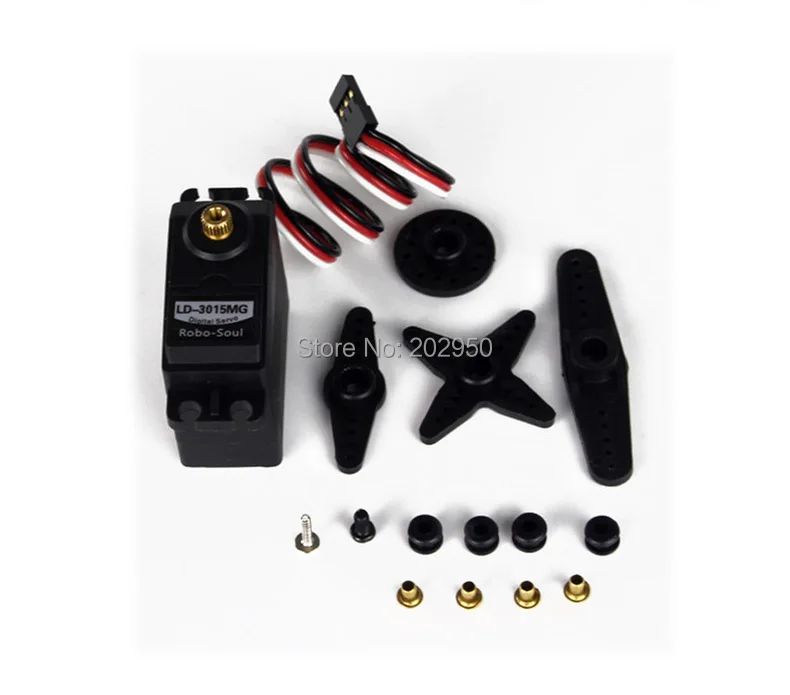

1*LD-3015MG Digital Servo (with accessories)
