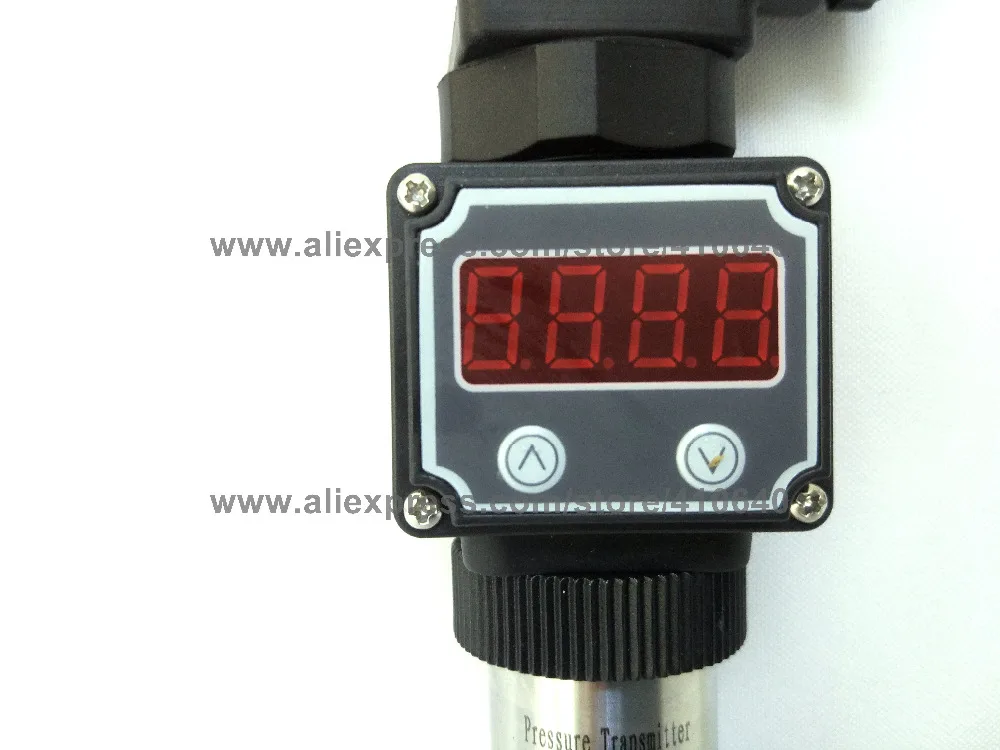

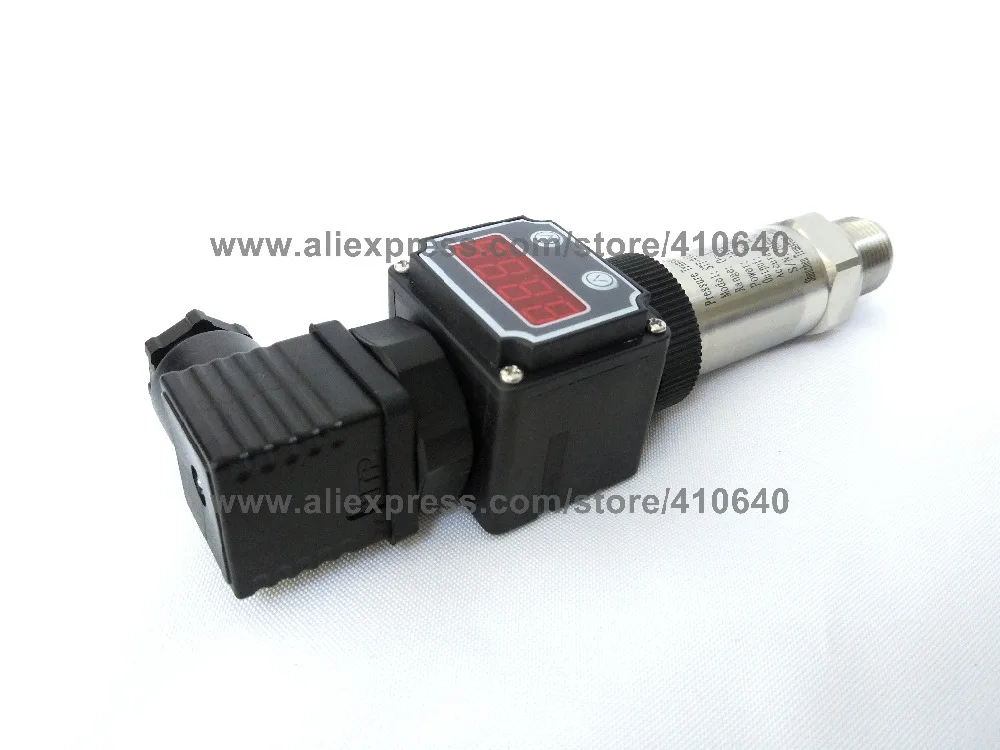

LED Diffused Silicon Digital Display Pressure Transducer Range 100Mpa

Output 4~20mA Power 15~36VDC Pressure Port M20x1.5

Important note before you order:

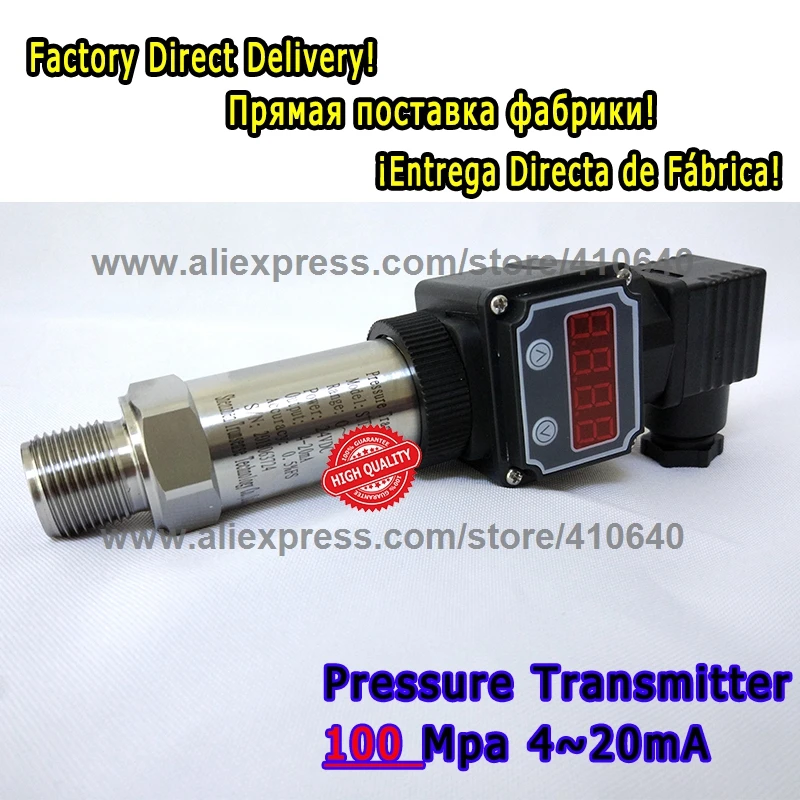

This link is for the pressure transmitter 100Mpa 4~20mA with display, based on the following specification,

Model: STT-93420IX

Range: 100Mpa

Accuracy: 0.5% FS

Power supply: 15~36VDC

Signal output:  4~20mA

Pressure port: M20x1.5

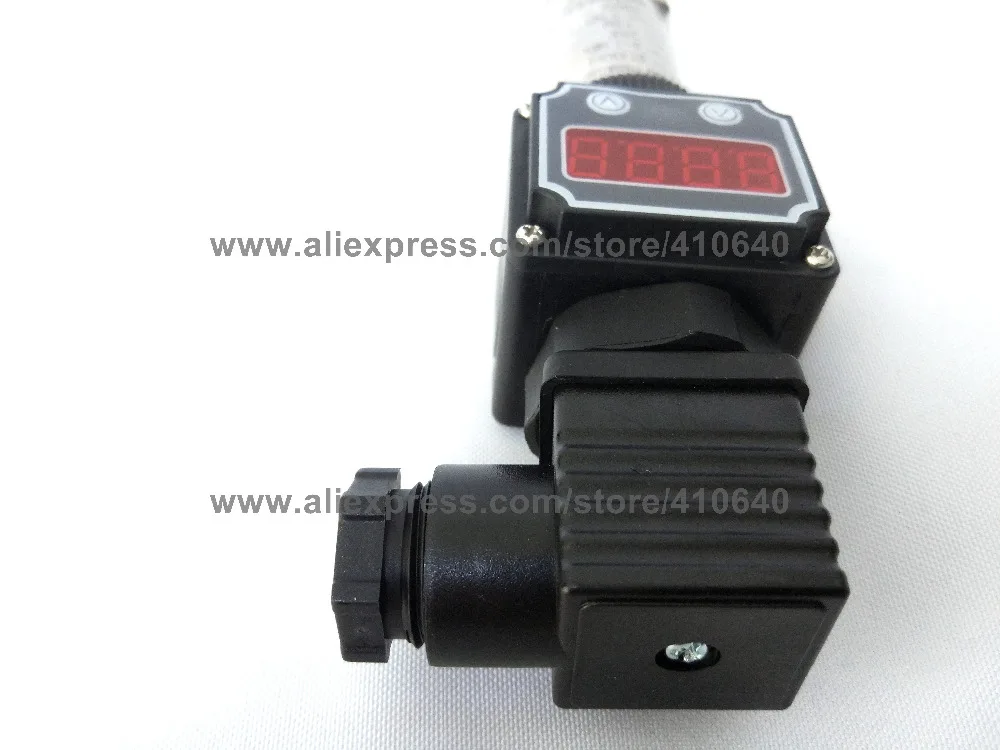

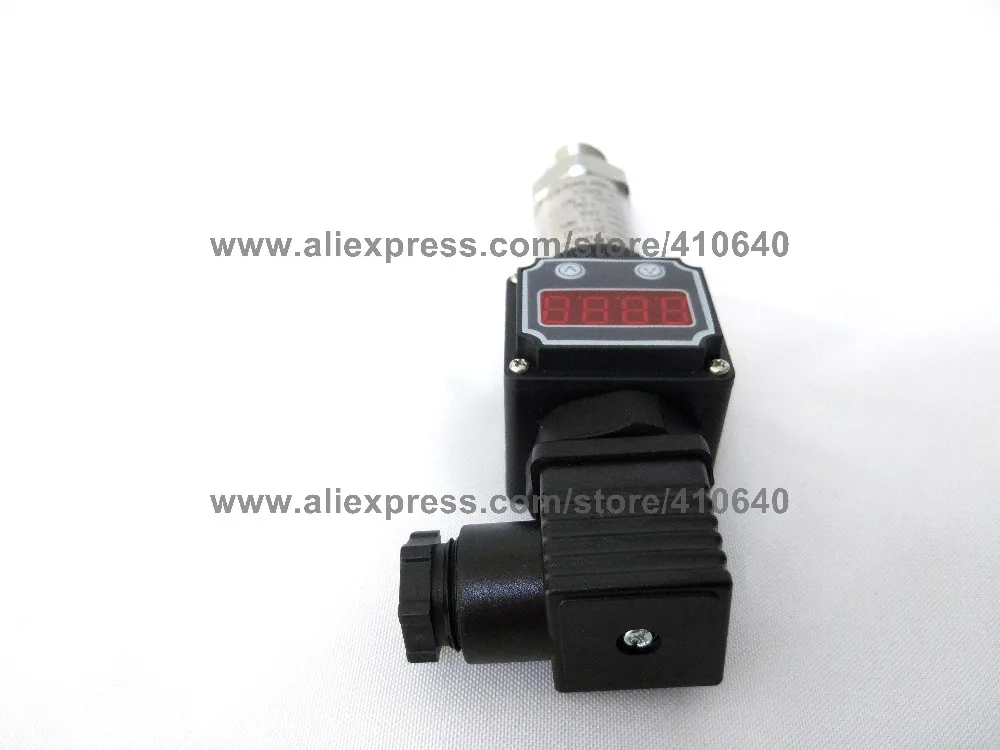

Electrical connection: Hirschmann

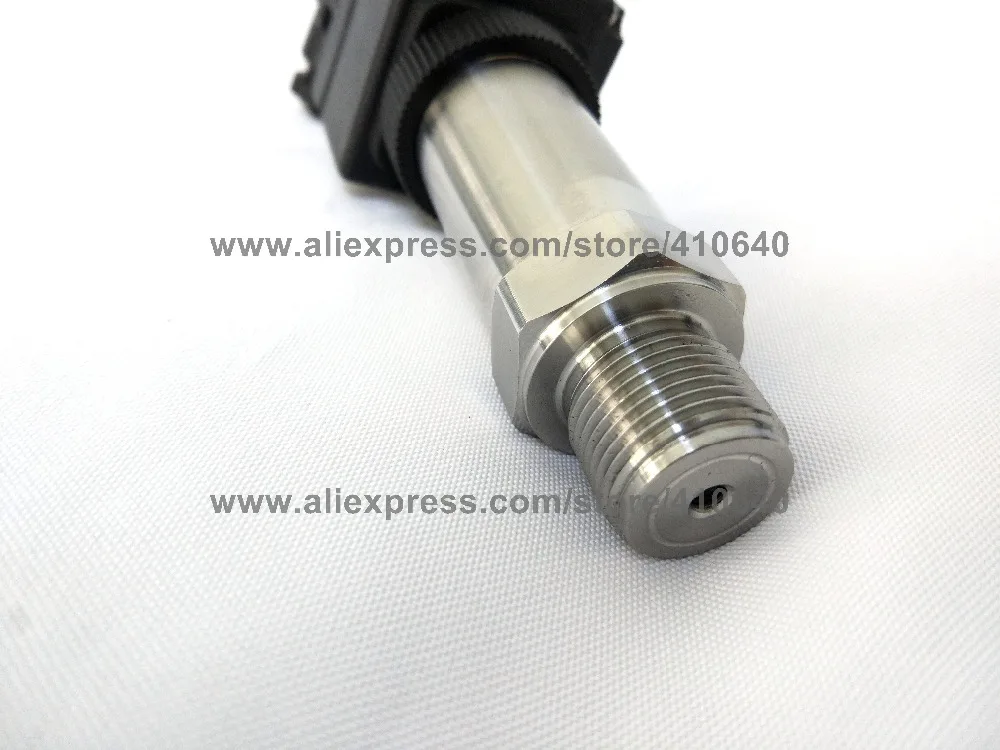

The connection is not flush membrane(flat film), the connection of STT-93420IX pls see below picture, if you need a flat film, pls contact us for a quote~

Multiple range in stock:

10Kpa; 20Kpa; 40Kpa; 60Kpa; 100Kpa; 0.2Mpa; 0.4Mpa; 0.6Mpa; 1.0Mpa; 1.6Mpa; 2.5Mpa; 4Mpa; 6Mpa; 10Mpa; 16Mpa; 25Mpa; 40Mpa; 60Mpa; -100Kpa-0. etc.

We can also customize pressure transmitters based on your parameters, pls let us know following if you need a customized one,

1: Accuracy?

2: Pressure port?

3: Electrical connection?

4: Signal output?

5: Pressure range?

6: Power supply?

7: Your working media?

8: Quantity?

Welcome your inquiry and order=)

Description

STT-93420IX pressure transmitter uses STT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance.

Feature

Wide measurement range, full stainless steel, Flush diaphragm.

Various output signal

Scene adjustable

Protection: IP65

Marking: ExiaIICT6;

CE certification

Application

Compatible with 316LSS, noncorrosive gases & liquids

Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

Specification

Measurement Range

-0.1...0~0.01...~100MPa

Proof pressure

Pressure type

Gauge, absolute ,sealed gauge

Accuracy

±0.25% (typical)  ±0.5%(Max.)

Long term stability

±0.1%F.S/year (typical)      ±0.2%F.S/year(Max.)

Temperature Error- Zero

±0.03%F.S/°C (≤100KPa)   ±0.02%F.S/°C (>100KPa)

Temperature Error -Span

±0.03%F.S/°C(≤100KPa)   ±0.02%F.S/°C (>100KPa)

Operating Temperature Range

-20°C~80°C

-40°C~120°C

Power supply

15~30VDC

Output signal

4~20mA    0~10/20mA   0/1~5VDC

Pressure port

 M20x1.5  G1/2 or customize

Housing material

1Cr18Ni9Ti  stainless steel

Diaphragm material

316L

O-ring

Fluororubber

Cable

polyethylene

Insulation resistance

100MΩ,100VDC

Protection

IP65
