24VDC 150mm working stroke 1250mm/min CNC Flame and Plasma Cutting Lifter Z axis +Standard  Clamp



model:

JYKB-150-DC24V-GH applicable to flame and plasma cutting . the motor inside is dc motor, if need nema23 step motor, please order another link, the price is a little higher.



Packing details:

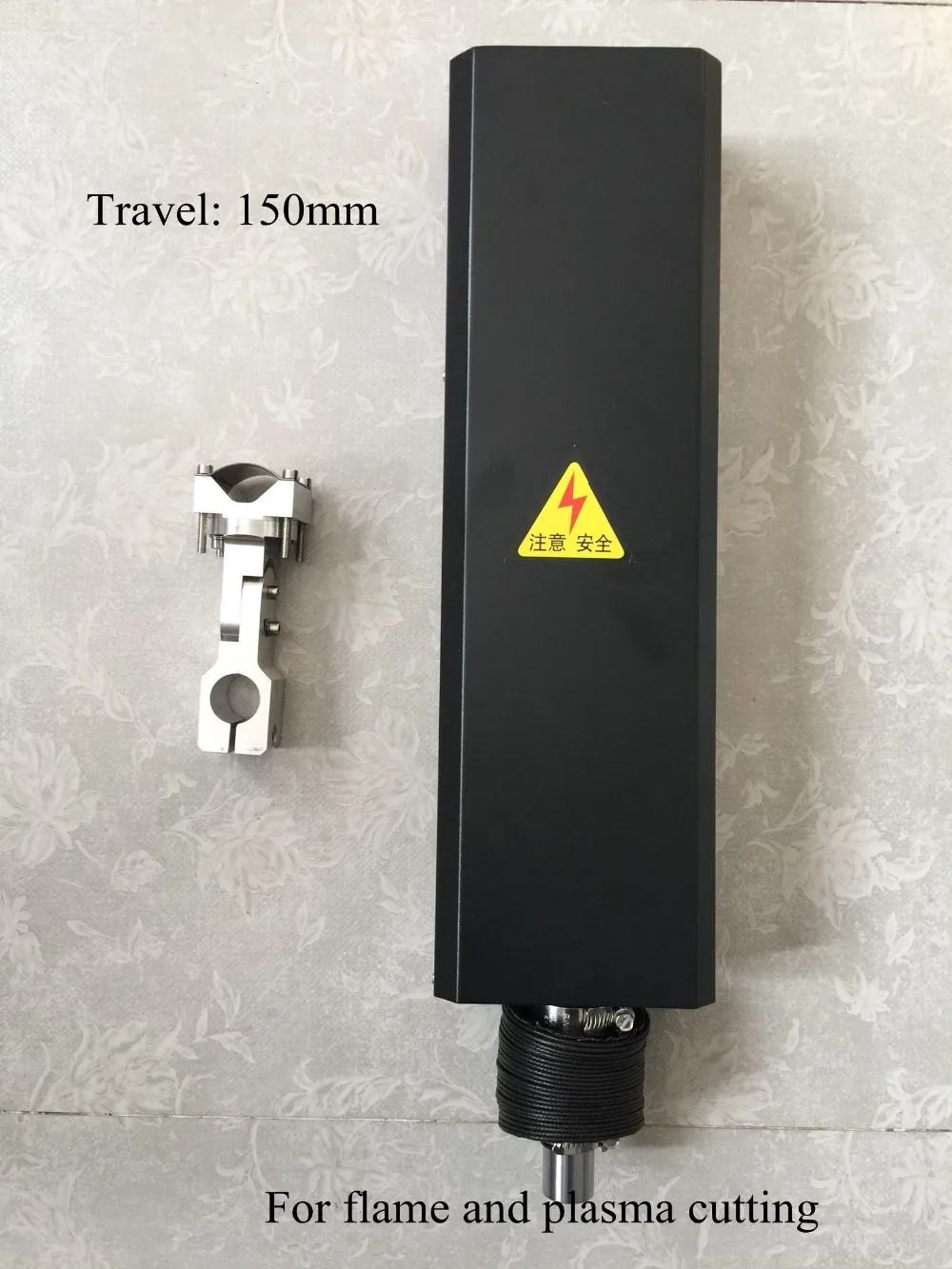

JYKB-150-DC24V-GH lifting body*1pc

4 pin plug*1pc

standard normal Clamp *1pc

  If need ARC torch height controller, click this link to order.



Specifications and features of CNC flame and plasma lifter- Z axis:   Taiwan TBI ball screw CNC flame and plasma collision avoidance gun function With plasma positioning micro switch Inside the lifting body 4- pin air plug The telescopic shaft is optical and the straight sliding block is stable Shell color: Black (spray) working speed: 1250mm/min Working travel: 150mm Working voltage: DC24V  Load Weight: 10 kg Clamp gun hole: 20mm-36mm (angle adjustable) Retractable cover: high temperature resistant material Size: L 445* W 130* H 80 Mounting hole size length 70*70*70 width 66



Definition of air plug: 1 foot --MOT+; (motor anode) 2 foot --MOT-; (motor cathode) 3 foot --Zero; (location normally open -zero signal output) 4 foot --COM; (location normally open -COM signal output) Note: the lifting body built-in limit (10A reverse diode) don't need you connection.
