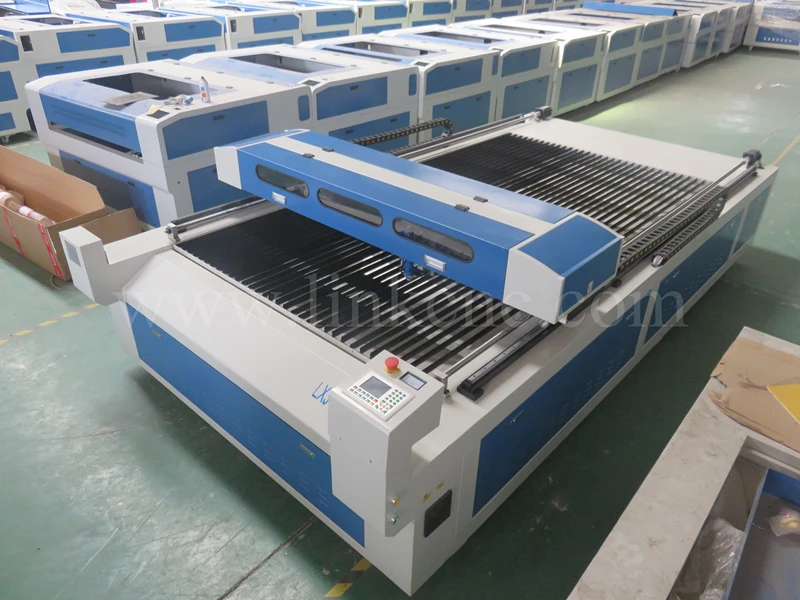

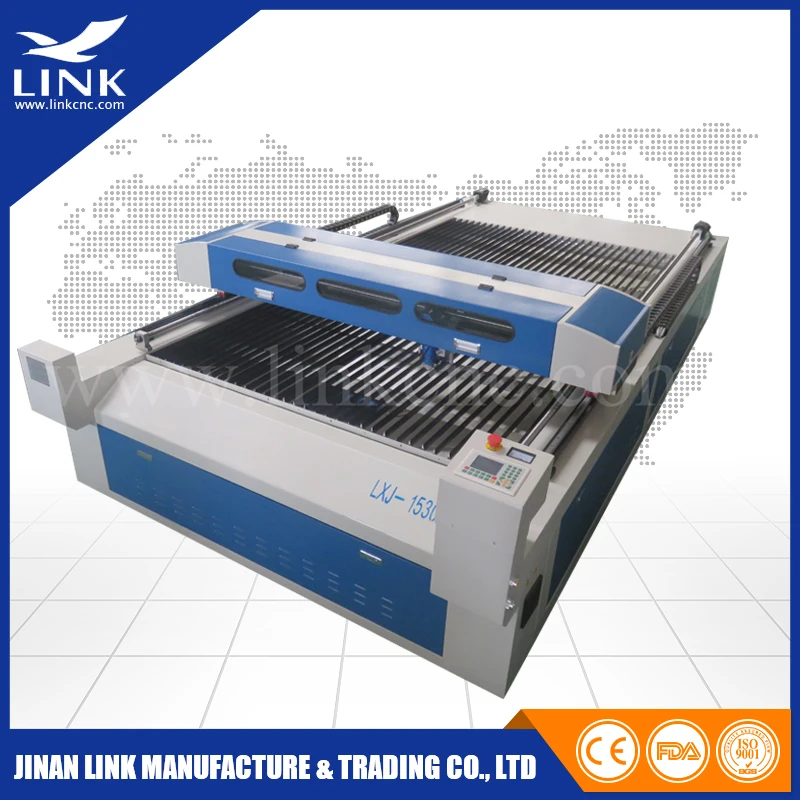

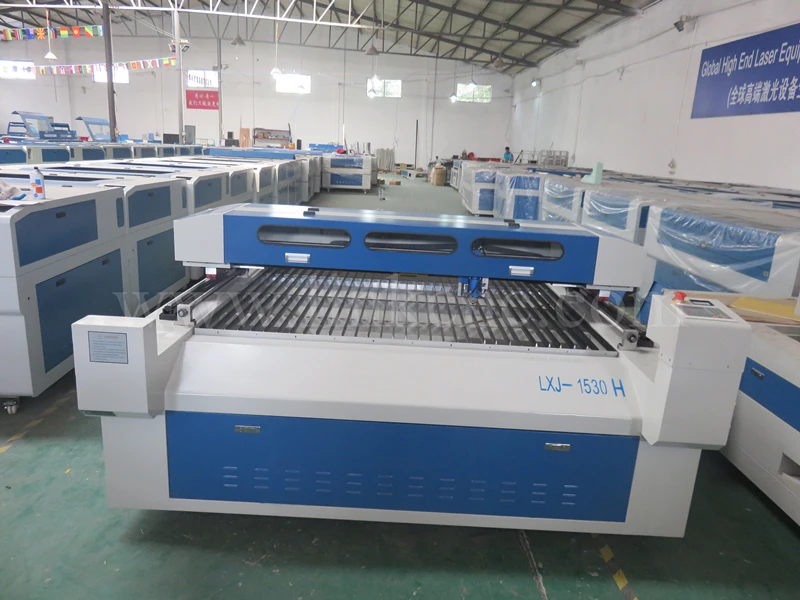

High performance laser cutter laser engraving machine / beijing reci 130-280w die board laser cutting machine

1.High speed laser cutting machine adopts the new high efficiency laser tube,the laser beam is

 more stable than the traditional type,and the life time of the laser tube is very long .

2.Compared with the ordinary laser machine,the series adopts more scientific design and high

strength steel frame structure,which increase the fuselage strength more than 40% to prevent the machine from dsitortion during long term work.

3.The humanized and mordem appearance shows  Machinery consistent humanity idea,

and it also makes the operation and maintenace quite easy.

4.Advanced Ruida control system,professional motion control chip,consecutive high speed

curve cutting and the shortest path selection function improve the working efficiency a lot.

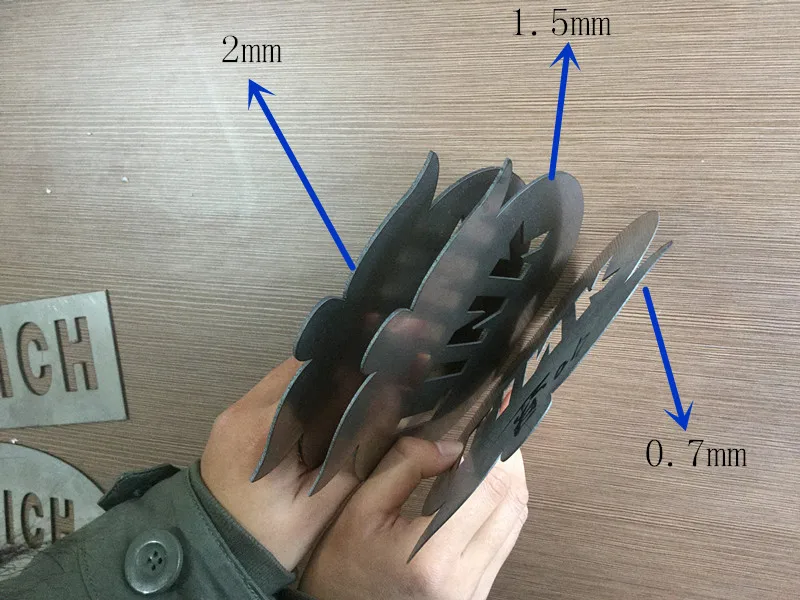

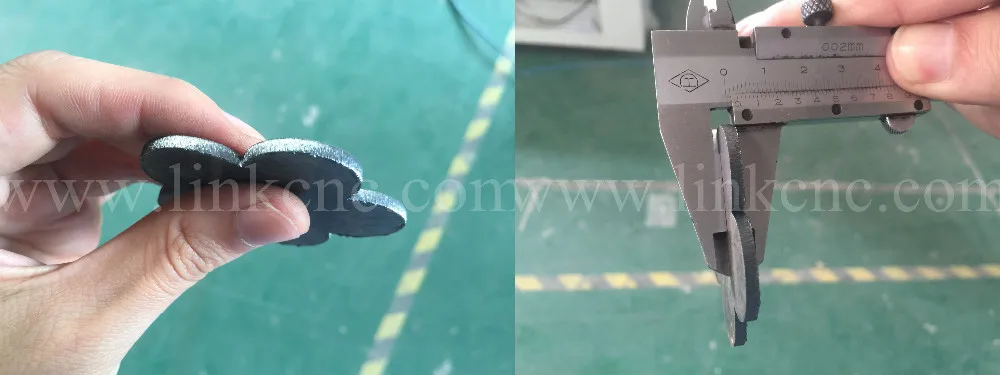

Cutting thickness

Parameters

NO.

Model

LXJ1325-H  laser metal cutting machine

Optional

1

Laser tube  brand

Beijing Reci w6

EFR / Yongli 260w

2

Working area

1300*2500mm

Can be made by your requirement

3

Working table

blade table

 honey comb  table
 /Up and down work table

4

Laser power

W6(130w-150w)

W8(150w-180w) / 260w

5

Guide rail

HIWIN linear square guide rail

 from Taiwan

6

Transmission method

Taiwan dongfeng belt

7

Drive system

Hybrid servo motor

yaskawa motor or stepper motor

8

Cooling system

Water chiller 5000W Water-cooling

Water chiller 5200w/6000w

9

Control  system

Ruida  controller

10

Graphic format support

PLT, DXF, BMP, JPG ,AI and etc

11

Control software

Coreldraw, Photoshop, AutoCAD,

12

Working environment

0-45°C

13

Operating Humidity

5-95%

14

Power supply

220v±10%/10A

15

Package size

3770*2220*1300mm

16

Gross weight

1050kg

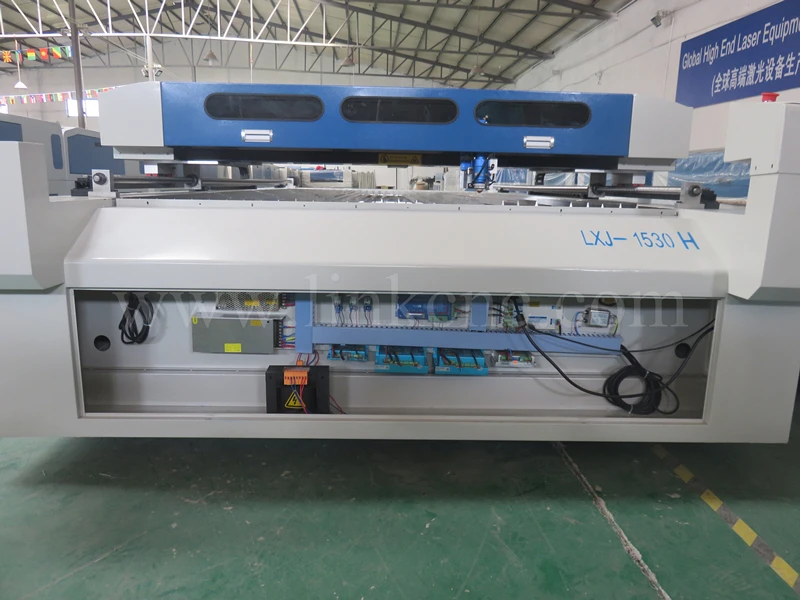

Machine Parts

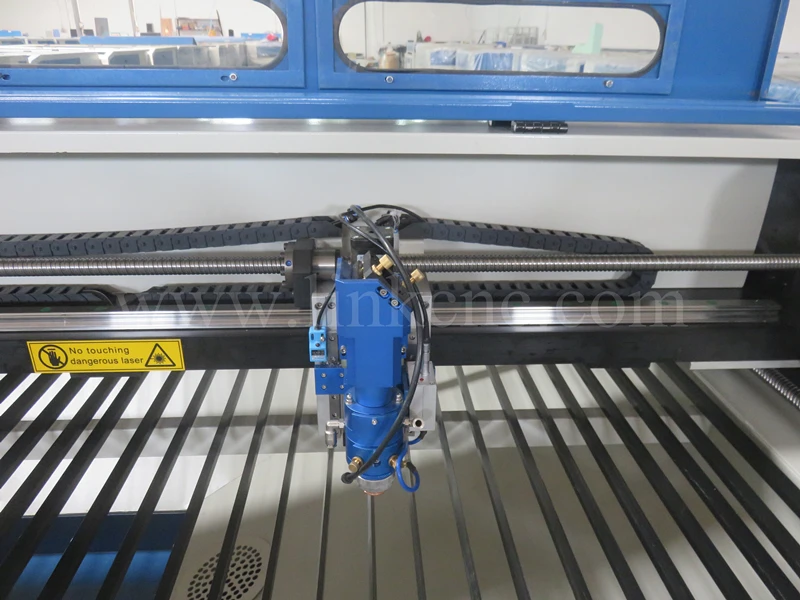

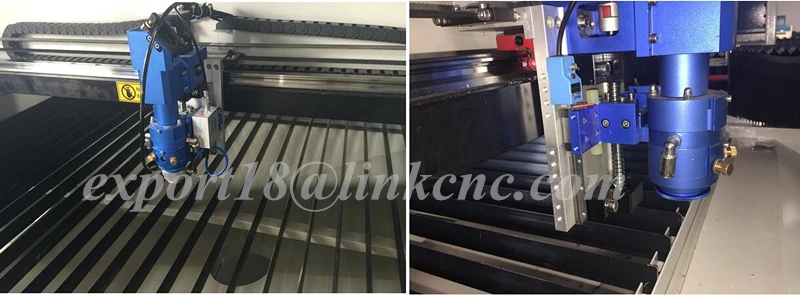

Mixed laser cutting head:

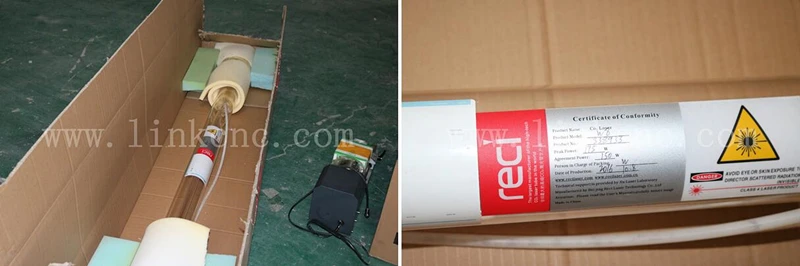

Beijing Reci laser tube (W serias (130W-150W) )

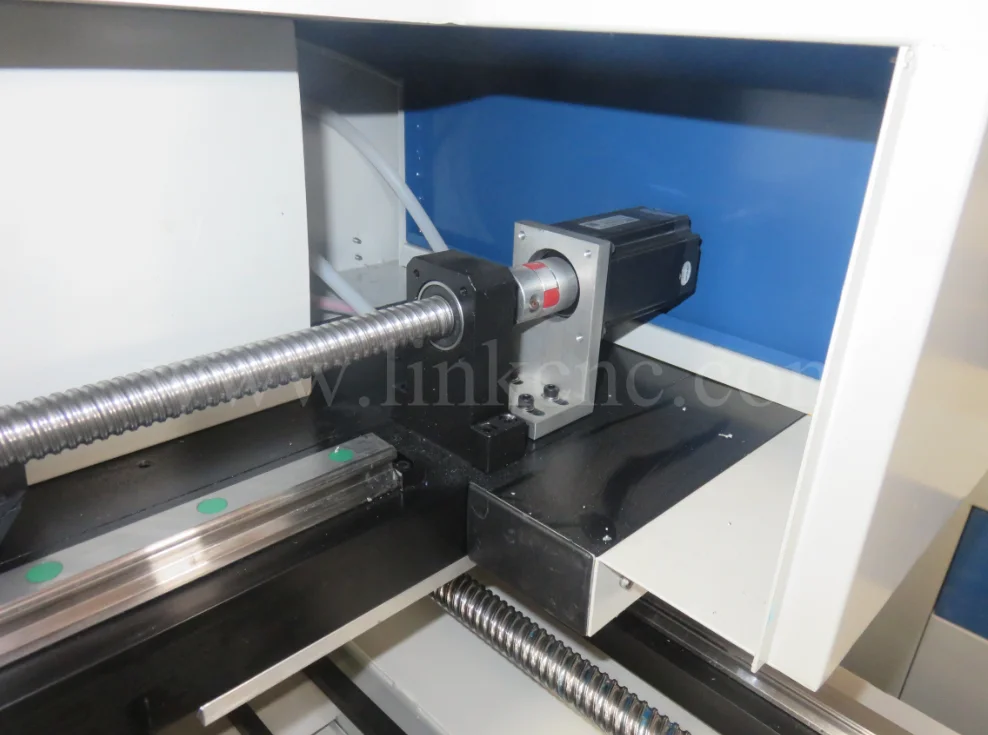

Servo motor and ball screw transmission

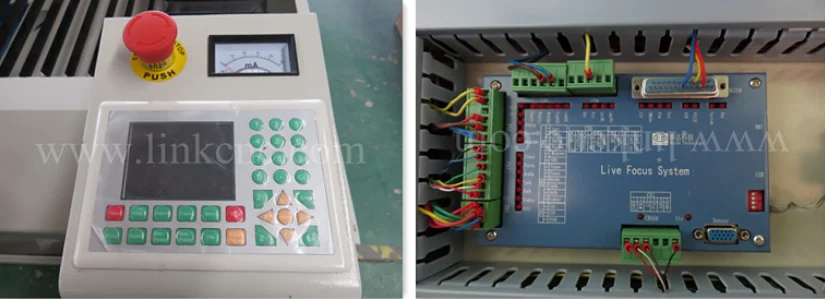

Ruida control system

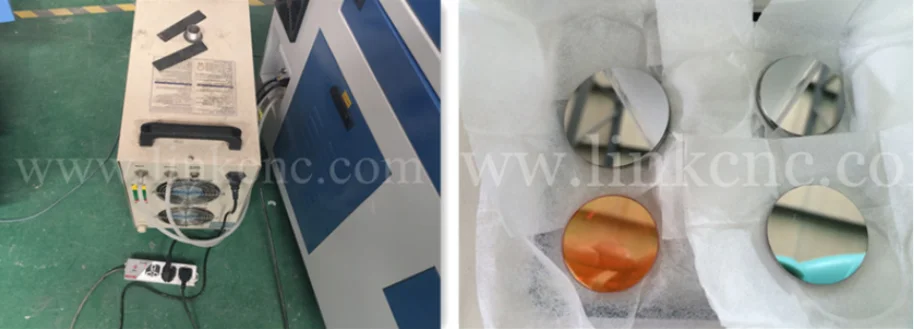

Water chiller used to cooling the laser tube:

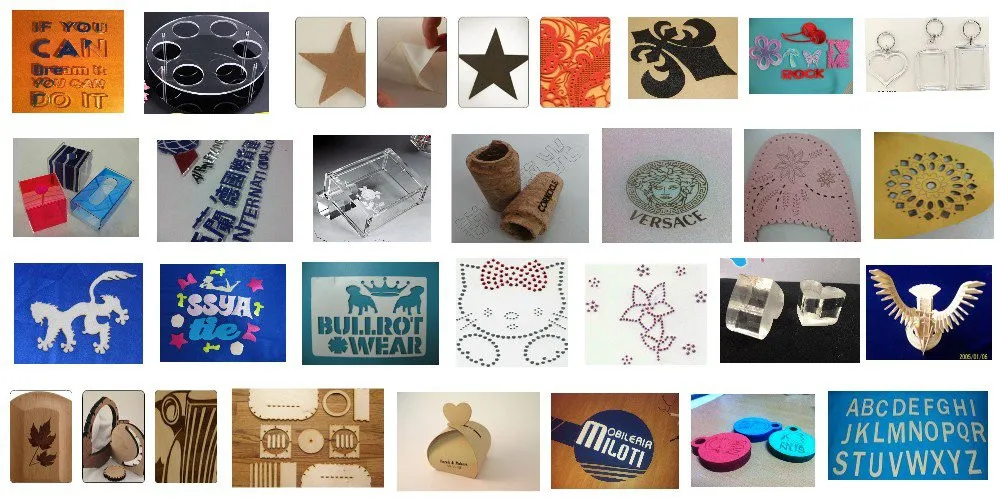

1. Applicable materials: Non-metal materials such as acryl, wood planks, organic glass, plastic, light planks, bamboo ware, double color sheets, cloth, paper, leather, shells, ox horns, resin, animal grease, ABS boards, lamp shade, etc.

2. Applicable Industries: For advertising, wood-working, plastic products, handicrafts, leather processing, paper cutting, etc.

Jinan Link Manufacture and Trading Co.,Ltd is a modern enterprise integrating reach and   development, manufacturing, sale and after sale service, located in Jinan , Shandong Province, China.

Our main products: large-scale (automatic tool change) cnc routers, cnc laser machine and cnc plasma machine. Also, our machine can be specially customized according to your requirement.
We offer the best quality machines and timely perfect after-sale service, please contact us.

1. Guarantee for 2 years (10 months for laser tube) exluding comsumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.

2. Free training course at our plant.

3. We will provide the consumable parts at an agency price when you need replacement.

4. 16 hours on line service each day, free technical support.

5. Machine has been adjusted before delivery, operation disk was included. If there is also any questions, pls kindly tell me.

7. We have manual instruction and CD (Guiding Videos) for Software's Installing and operation and Machine's Using and Maintaining.
