Maytech для серфинга высокой мощности dc мотор 6374 170KV и пульт дистанционного

  Product Description  Please Notice: The VESC50A speed controller is only recommended for e-skateboard application.  We do not cover warranty for following cases: 1. remove shrinkable tube,
2. change cable
3. change firmware,

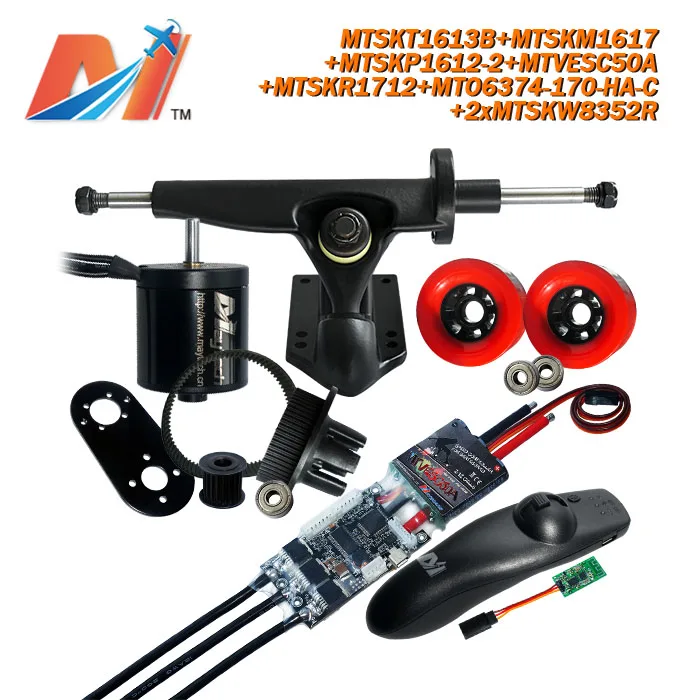

4. for other applications    Maytech FREE SHIPPING for surf board high power dc motor 6374 170KV and remote control receiver and mount truck and esc



Your parcel will be included in:  1pcs MTO6374-170-HA-C closed cover waterproof brushless motor for electric skateboard  1pcs MTSKT1613B back truck for electric skateboard  1pcs MTSKM1617 high strength steel mount  for electric skateboard  1set MTSKP1612-2 pulley system with bearing for electric skateboard  2pcs MTSKW8352 PU wheels for electric skateboard  1pcs MTVESC50A 12S 50A VESC for electric skateboard

1set MTSKR1512 Mini wireless remote for electric skateboard

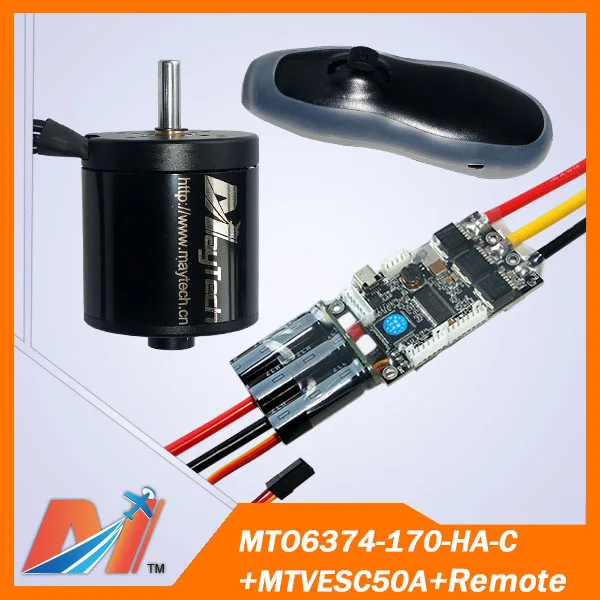

Part 1.: 1 pcs MTO6374-170-HA-C Closed cover outrunner motor for electric skateboard Maytech brushless closed cover outrunner motors are specially designed for electric skateboard. The motors come with low KV, high torque and efficiency.  All parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.   The closed cover enable motors have dust-proof and water-proof function   The hall-effect sensors inside tracks the motor's position. This information permits the controller to alternate power with the right timing and in the right sequence and, voila, it spins. Better efficiency means you get more mechanical energy per unit of power,   After a lot of development we have put together what we know works best for an electric skateboard or ebike motor and made it small and compact.     Product Name Maytech FREE SHIPPING for surf board high power dc motor 6374 170KV and remote control receiver and mount truck and esc  Company Name Maytech Idle Current 0.8A Max. Current

65A

Input Volt 2-12S Lipos Shaft 8mm Max. Output Watt 3550W Color Black closed cover waterproof and dustproof Rated Current 60A Internal Resistance 0.0402 Net Weight 840g Motor Dimension 62.5(+-1)x67.5(+-1)mm

Certificate

CE ROHS











Part 2.: 1 set MTSKT1613B front truck for electric skateboard

Maytech FREE SHIPPING for surf board high power dc motor 6374 170KV and remote control receiver and mount truck and esc







High quality electric skateboard downhill style long board trucks to build a stable high performance speed eboard.

Precision engineered TRUCK.

They are designed to offer maximum stability at high speeds whilst providing superior cornering & carving qualities.

MTSKT1613F

Skateboard Truck  (Backside)

Frame materials: 356-T6 alloy aluminum alloy

Suitable for 9-10inch decks

          Part 3.: 1 set MTSKT1613B front truck for electric skateboard

Maytech FREE SHIPPING for surf board high power dc motor 6374 170KV and remote control receiver and mount truck and esc

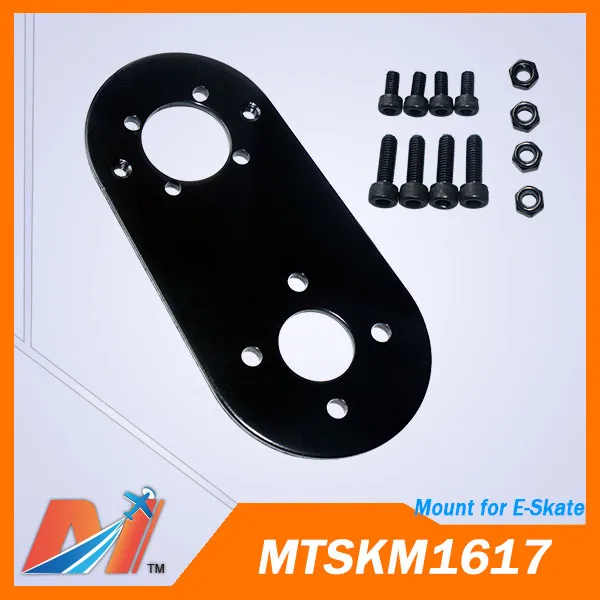

Carbon fiber & aluminium motor mounts & build a durable, reliable, high performance e-SKATEBOARD.

MTSKM1617

Weight: 162g/pcs

Compatible with Maytech MTO50, MTO63 series or motors with same drawing.





Part 4.: 1 set MTSKP1612-2 Pulley & belt system with bearing for electric skateboard

Maytech FREE SHIPPING for surf board high power dc motor 6374 170KV and remote control receiver and mount truck and esc



For Belt: 16mm wide belt for 33% extra torque transfer on singal drive system.

The pulley is made from hardened steel, this 20 teeth HTD5 motor pulley is the perfect match for any motor with an 8mm drive shaft.



High quality neoprene & fiberglass compound with a max 3000psi tensile strength to ensure your power ends up in the wheels for unsurpassed acceleration. It is a critical part for anyone building a high performance eboard

MTSKB1615 Belt for pulley

Width: 16mm

R: 255mm

teeth pitch: 3mm

weight: 9g/pcs



This wheel pulley is made from glass fibre reinforced nylon, offering maximum strength and minimal weight. The drive hub's unique design holds and centers the pulley securely in place allowing you to drive maximum torque through your custom made electric skateboard into the wheels. It has the feature of light weight, super fast, fool proof installation. The weight is just half of aluminium pulley. Also, no no screwing bolts or Tools needed when use it.

Pulley with 16mm tooth

60 teeth

With Ball Bearing NSK f608zz

Weight: 59g/pcs

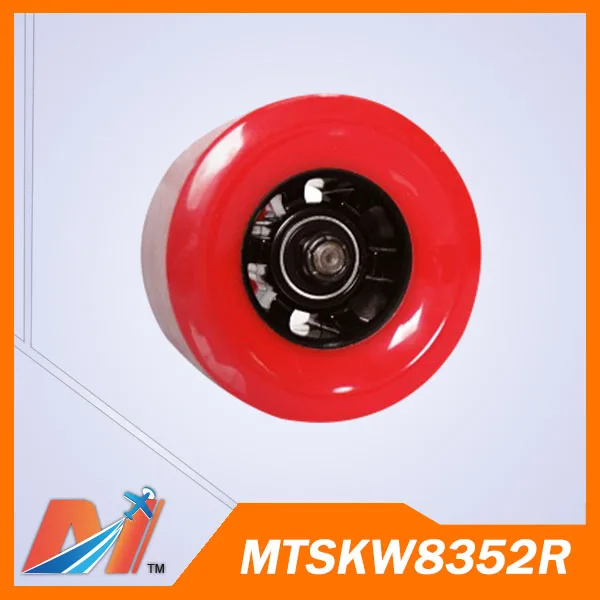

Part 5/6.: 2pcs MTSKW8352 PU wheels for electric skateboard

Maytech FREE SHIPPING for surf board high power dc motor 6374 170KV and remote control receiver and mount truck and esc





Skateboard Wheels Dimension: 83x52mm Hardness: 78A Wheel Materials: 85% rebound PU wheels ensure the best trafficability and shock absorption. Cental Part: PP materials Optional color: Blue, white, green red With 2pcs ball bearing NSK f608zz         Part 7.: 1pcs MTVESC50A 12S 50A HV VESC for electric skateboard

Maytech FREE SHIPPING for surf board high power dc motor 6374 170KV and remote control receiver and mount truck and esc

Model No. MTVESC50A VESC For Electric Skateboard Company Name Maytech Continuous Amp 50A Burst Amp 240A 10S Input Voltage 3-12S lipos SBEC 5V/2A Motor Supported Sensor&Sensorless Brushless Motor Hadware Version 4.12(open source) Firmware  Version2.18(open source) Capacitance 3x680uf 63V New Weight 300g Size(mm) 70x50x5mm Certificate CE&Rohs







Part 8.: 1set MTSKR1512 mini wireless remote for electric skateboard

Maytech FREE SHIPPING for surf board high power dc motor 6374 170KV and remote control receiver and mount truck and esc

Model No. MTSKR1512 Wireless Remote Control For Electric Skateboard Company Name Maytech Application For Electric Skateboard Frequency

2400M-2483MHZ

Frequance Channal

32 Channals

Channe

4 Channals TDM

Direction

Bidirectional Communication

Battery

ER10280 3.6V 450mah

Transmitting Distance

3-10M

Output Signal of REceiver

PWM

Pulse Width

1-2ms

MIdpoint Pulse Width

1.5ms

Other Function

Brake/Cruise Control

Certificate

CE Rohs















THE MAIN PARTS FOR PULLEY SYSTEM ELECTRIC SKATEBOARD







Maytech Electronics Co., Ltd. is devoted in designing and manufacturing Brushless ESCs, Brushless motors, Propellers, Analog and Digital Servos for RC models, such as RC aircrafts, Helicopters, Boats, Cars and Truggies.



Special design requirement, OEM and ODM orders welcome!
