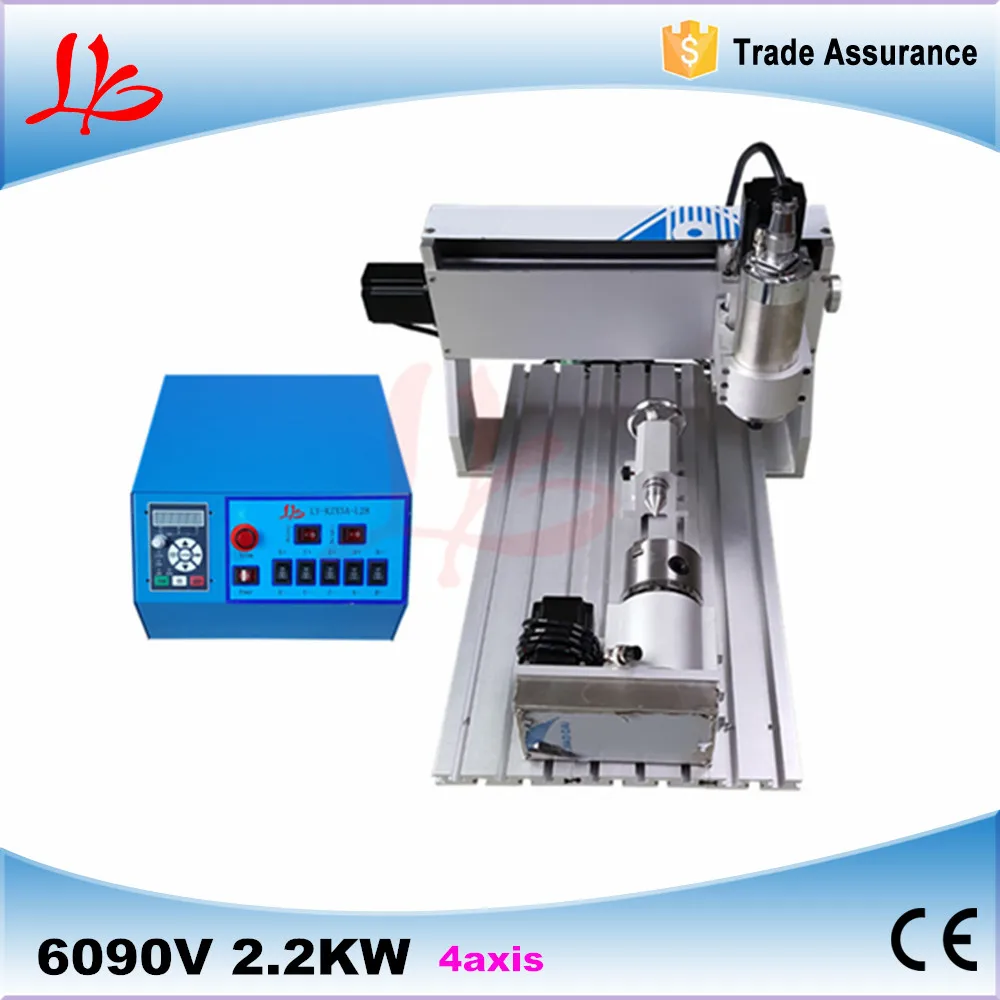

LY CNC 6090V 2.2KW 4 axis mini CNC router VFD control box grinder

Introduction

This is a very good area, in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you to save labor, improve production and processing efficiency, make more profit.

It can help you to make prototype products quickly, shorten the design cycle.

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty

Shipping by DHL, FEDEX, UPS,TNT with tracking number

Technical Parameters

CNC 6090V 2.2KW 4axis parameters:

Machine Dimensions

　1200X780X580mm

Rack material

　6061 and 6063 Hard aluminum alloy
　(The unique and dedicated mold extrusion profiles)

Max. working stroke

600X900mm

Acceptable material thickness

　≤100mm

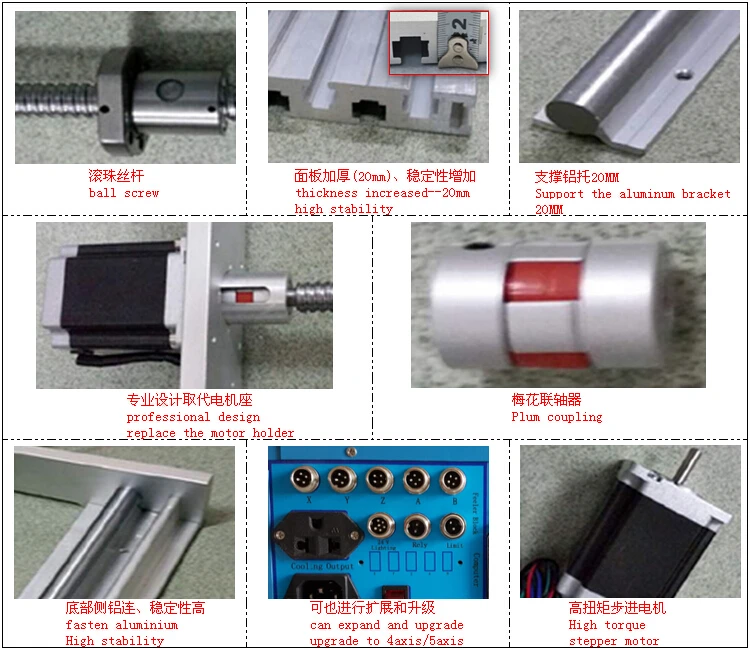

Rail type

　Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw

　XY is 2010 ball screw, Z is 1204 ball screw

Spindle motor

　2.2KW VFD water cooling spindle , 0-24000r/min

Collet type

　ER16,1/8"(3.175mm) Collet

Stepper motor and drive

　57BYGH78-3.5A two-phase 4 wire stepper motor

Maximum operating speed

　4000mm/min (Engraving speed :300-3000mm/min)

Repeat positioning Accuracy

　0.03mm

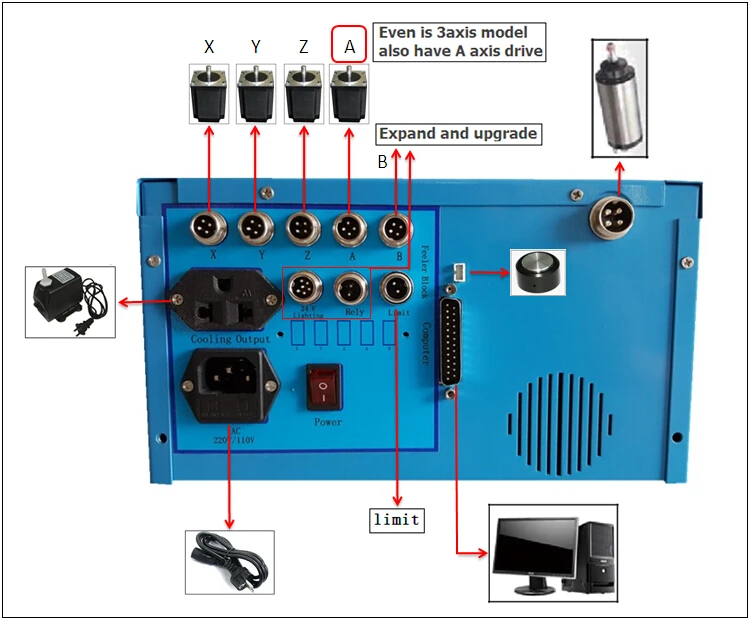

Communication interface

　Parallel port 25pin

System requirements

  Win-XP or WIN-7 operating system

Software Compatability

　Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

　G code/.nc/.ncc/.tab/.txt

Machine weight

　120kg

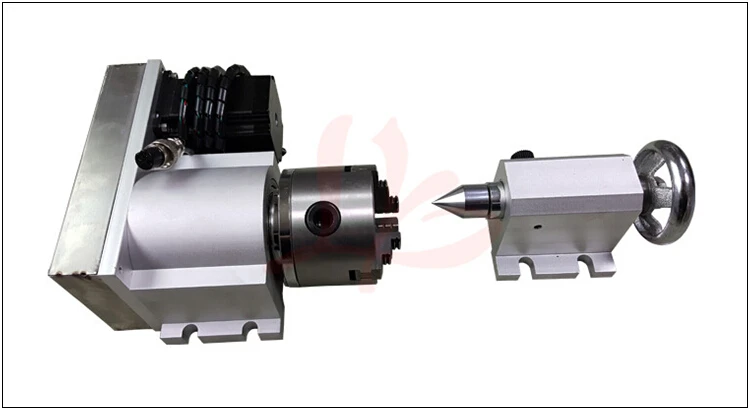

With Rotation Axis (4th Axis)

Description:

Center height: H=50mm

Maximum turning diameter: ≤100mm

Reduction ratio 6:1

Stepping motor: 57BYGH78-3.5A

Weight: 8kg

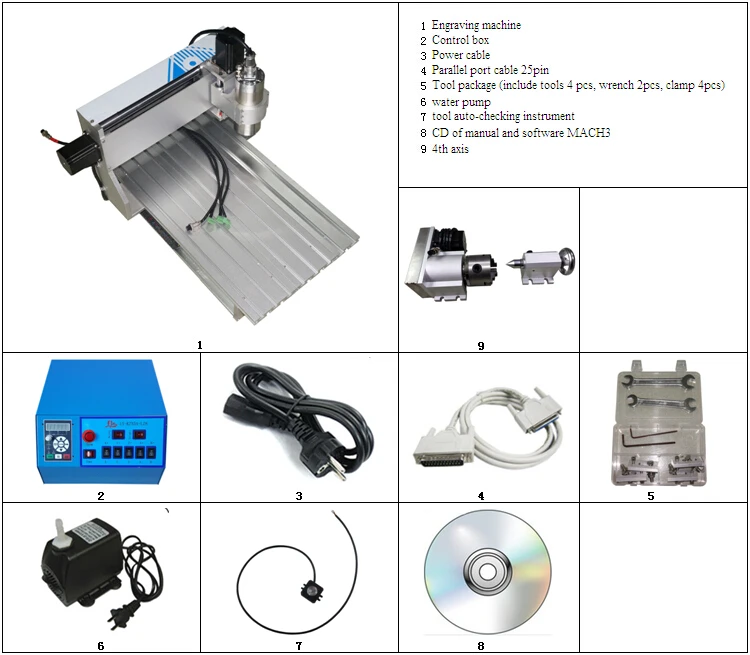

Packing list:

1× Engraving machine

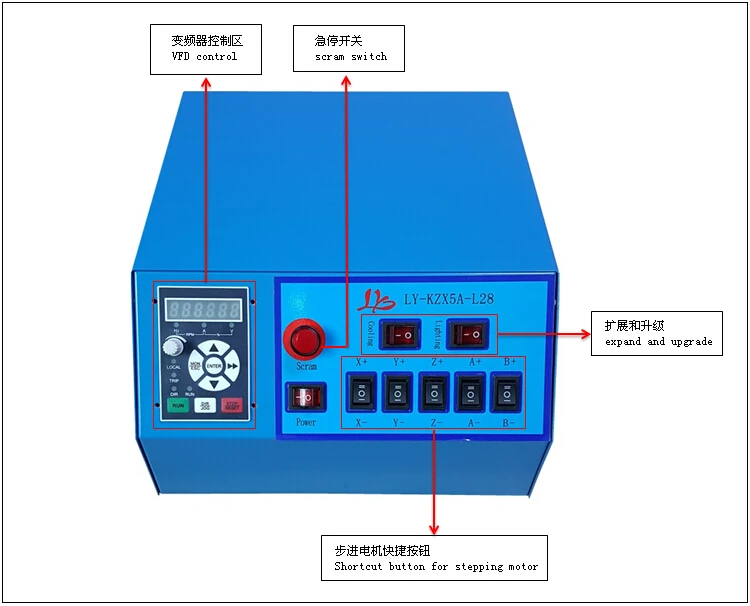

1× Control box

1× Power cable

1×Parallel port cable 25pin

1× Tool package (include tools 4 pcs, wrench 2pcs, clamp 4pcs)

1× tool auto-checking instrument

1x water pump

1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

1x 4th axis
