Plug and Play Mini 1/2/3 Swipe Magnetic Card Reader Msr Reader HCC750

Overview

The Universal Magnetic Swipe Reader can read Track 1 & 2 or Tracks 1,2, & 3 magnetic information with a single swipe in either direction. This reader accepts both high and low coercivity  magnetic cards, and can read all ISO 7811, AAMVA and California Driver's license.

Features

1. USB/RS232C/PS/2 interface; Bi-directional card reader

2. Reads credit cards, bank cards, driver's licenses and ID cards

3. All tracks are available (Tracks 1, 2 and 3)

4. Small in size, easy to handle

5. Reads low and high coercivity cards (300 to 4000 O e)

6. LED for status

7. Watch dog

Specifications

Interface

USB-keyboard; PS/2 ;Serial

Cable connector

USB: standard USB ;PS/2: standard PS/2 ; Serial: RS-232 DB9/ TTL 4pin

Operating

Standards: ISO/ANSI/AAMVA/CA DMV

Recording Method: Two-frequency coherent phase (F2F)

Message Format: ASCII

Card Speed: 10cm/sec. ~140cm./sec (5 I p s ~55 I p s)

MTBF: Electronics - 100,000 hours; Head Life - 500,000 passes

Environment

Operating Temp :  -10℃ ~ +60℃

Storage Temp : -20 ~ +65℃

Humidity : 10 ~ 90 % relative

Dimensions

Size: L 90 x W 27.5 x H 28  mm ;

Weight: < 250g ;

Color: Black

Mounting

Portable or Any surface

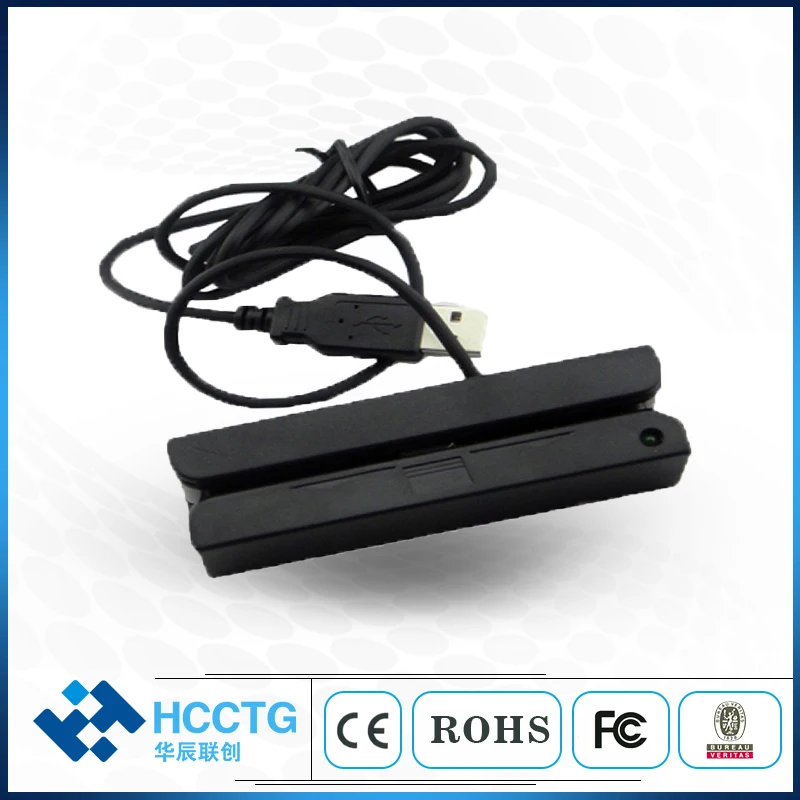

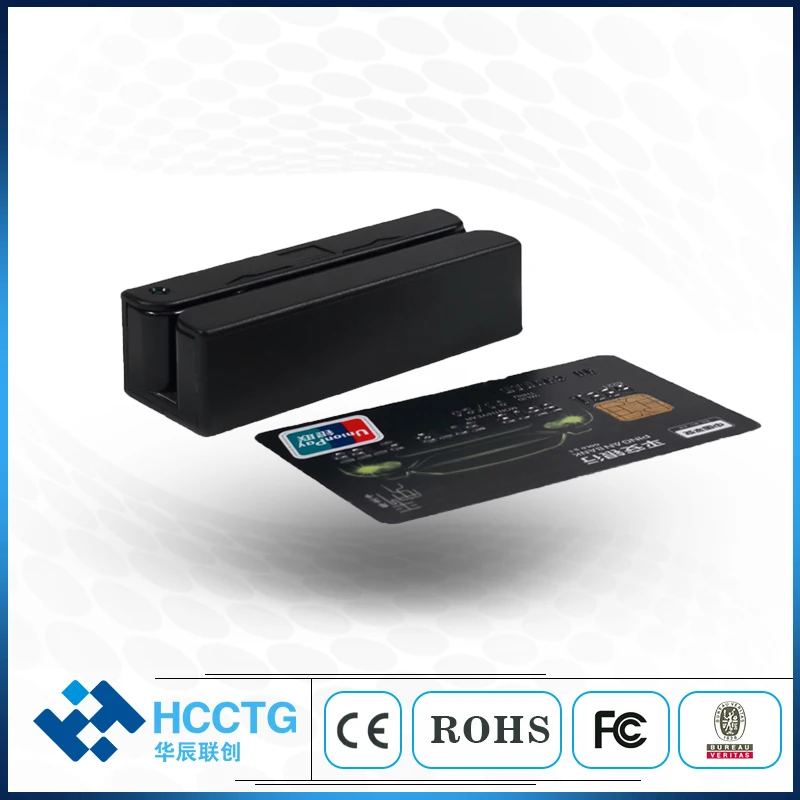

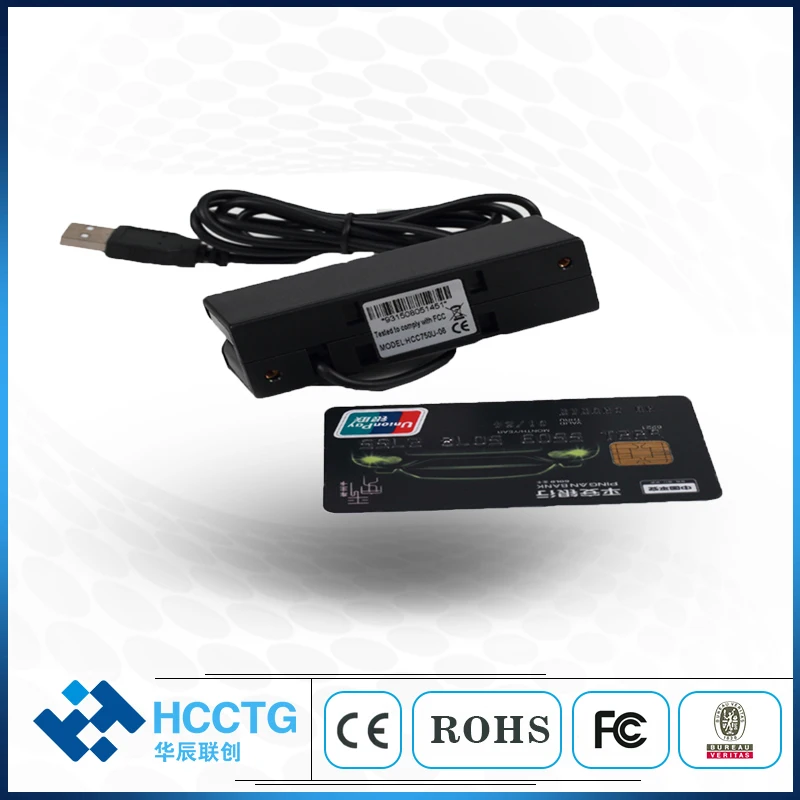

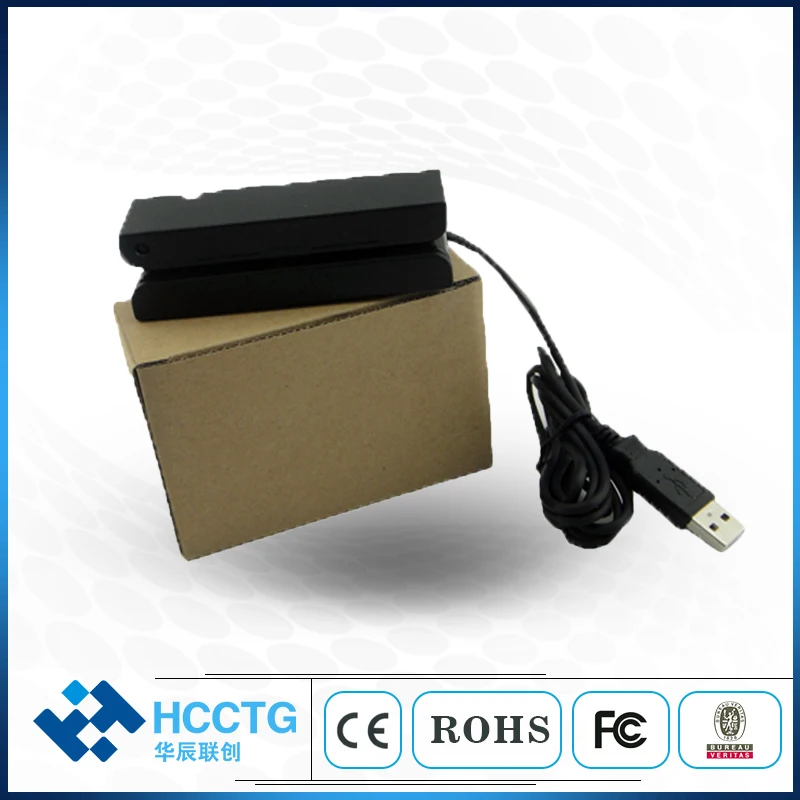

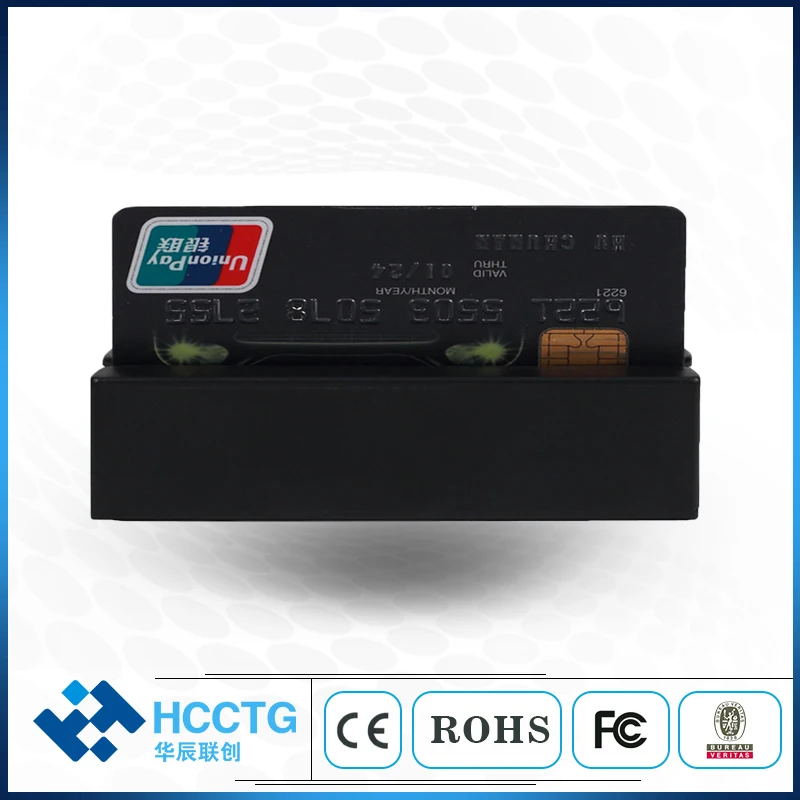

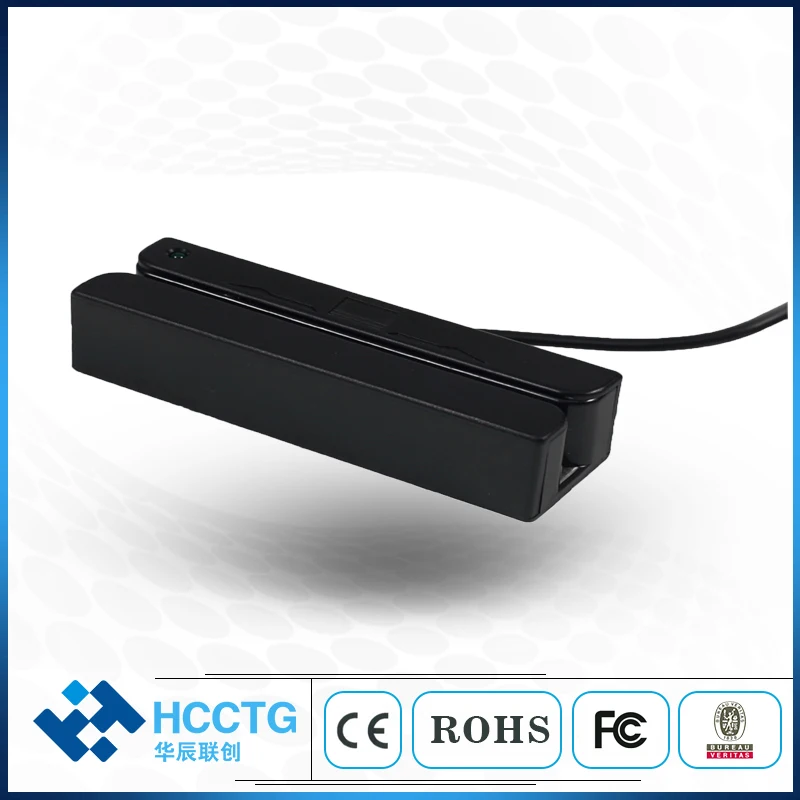

Pictures

FAQ

1.Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.

2. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

3. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

4. Can we get the free sample?

Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.

5. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba)  and so on.

6.Which way to deliver the goods?

By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.

By Sea: Inform us the Sea Port to check which ship line.

By Air: Inform us the Airport to check which flight.

Or pick up by the customers.

7. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 9 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.

8. What warranty for the products?

According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

9. What the after sale service?

a. Our all products will provide 12 months warranty;

b. Enough stock spare parts for guarantee;

c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
