Brief description:

This is a three-time controller into the evening (evening) working time ,an interval of rest or pause time,Dawn working time (morning light function),the user can according to their needs ,set a different time.

MPPT10 10A solar controller applied to the solar photovoltaic system which is used to coordinate solar panels, storage battery and load. It is a very important assembly in the photovoltaic system. It is different from other solar controllers that it is add the comprehensive protection function makes the whole solar photovoltaic system operate efficiently and safely.

MPPT10 10A solar controller can adjust automatically the working voltage of solar panels, which can make solar panels work consistently in the maximum power point of the V-A characteristic curve in a whole day. Compared with common solar controllers, it is equipped with temperature compensation function, can make the work efficiency of photovoltaic modules increased by 30%, and can observably prolong the life of the storage battery.

MPPT 10A Solar Panel Charge Controller Regulator Solar panel 130W/12V   260W/24V

Compatible with 260W(24v) solar panel with dark activated function, Max current is 10A

Timer Intigrated (Lighting function)

MPPT10 Series controller has the following features:
Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10%-30%
Solar LCD series a kind of intelligent,multipurpose solar charge and discharge controller
1, LCD screen display
2, Easy operation interface
3, MPPT+PWM charging mode （Controller Provided  MPPT Maximum power point tracking Function,charging mode is PWM)
4, Parameter user can reset,
5, A key to open and close the load,
6, A key to restore the factory settings,
7, Battery reverse discharge protection,
8, Battery reverse polarity protection
9, Battery under voltage protection,
10, Overload, short-circuit protection,

11, Automatic temperature compensation function,

12,Can charge and discharge at the same time, Always keep the battery in full status

Specification of MC4 M/F Double Seal Rings Waterproof Solar Panel Cable Connector:

Rated current: 25A (2.5-4.0mm2)

Degree of protection: IP2 * / IP67
Rated voltage: 1000V DC
Flammability rating: UL94-V0
Test voltage: 6000V (50Hz, 1min)
Safety: II
Overvoltage category / Pollution Index: CATIII / 2
Adapter Wire: OD4.5-7.0 (2.5-4.0mm2)
Connector contact resistance: 0.5mΩ
Insertion / Extraction Force: ≤ 50N / ≥ 50N
Connector conductor material: copper, tin
Connection: Crimp
Connector Insulation material: PPO or PBT

Operating temperature range: -40 ~ +90 ℃

Quality: 5 pairs

Package contents:

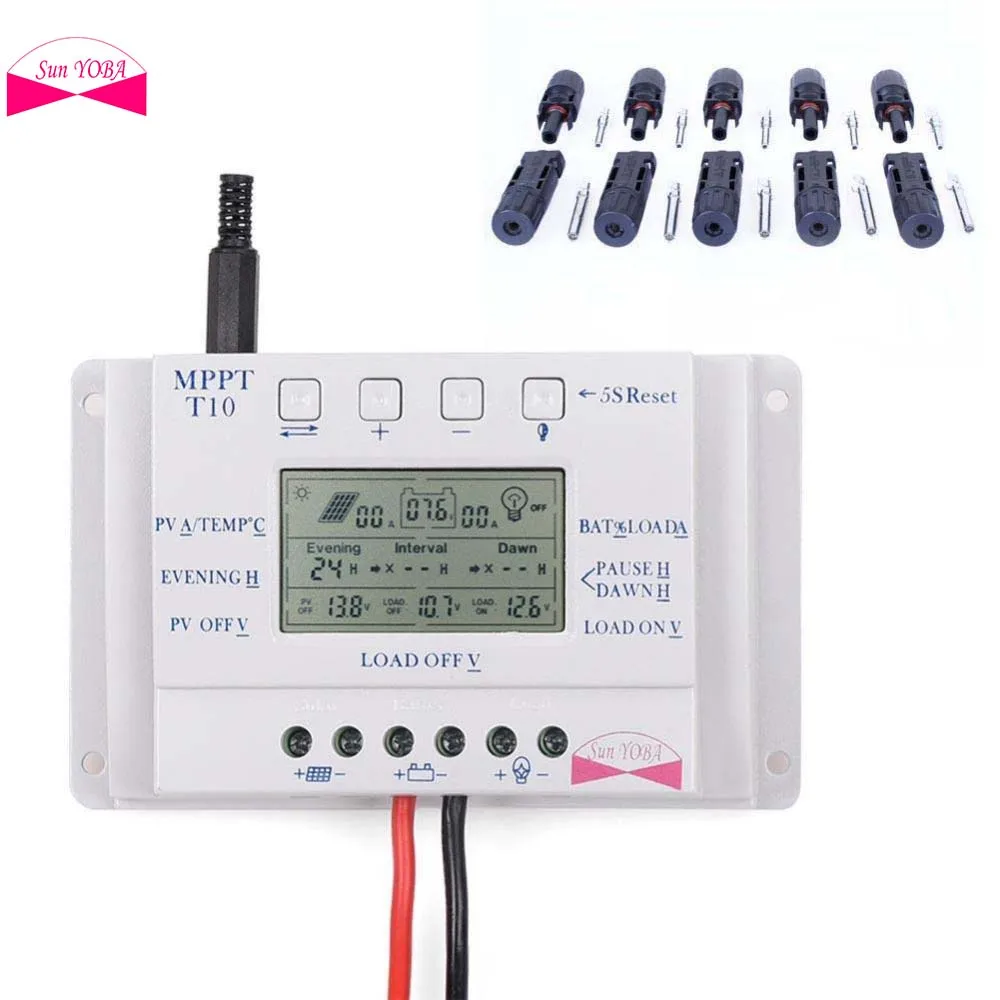

 1* MPPT T10  10A Solar Controller

 1* User Manual

 1* Temp Sensor

5 pairs MC4 Solar Panel Cable Connector

(Retail package is not included)
