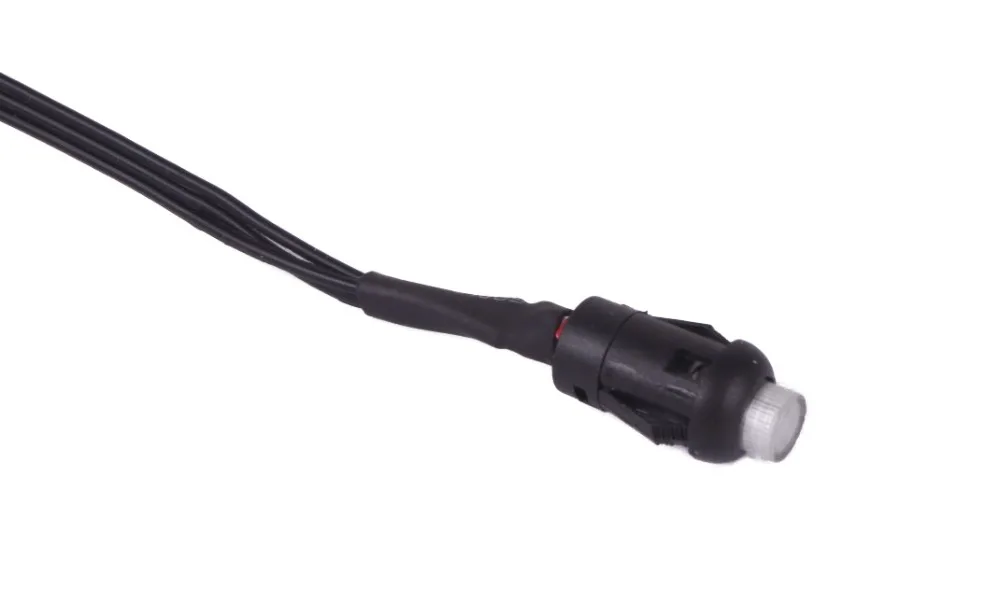

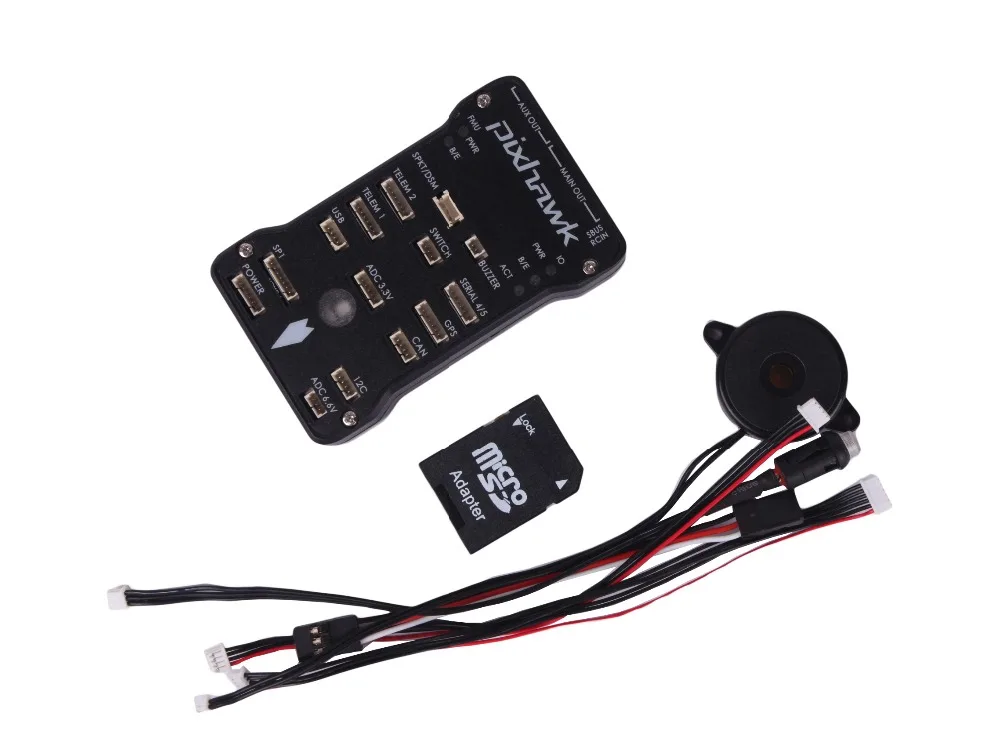

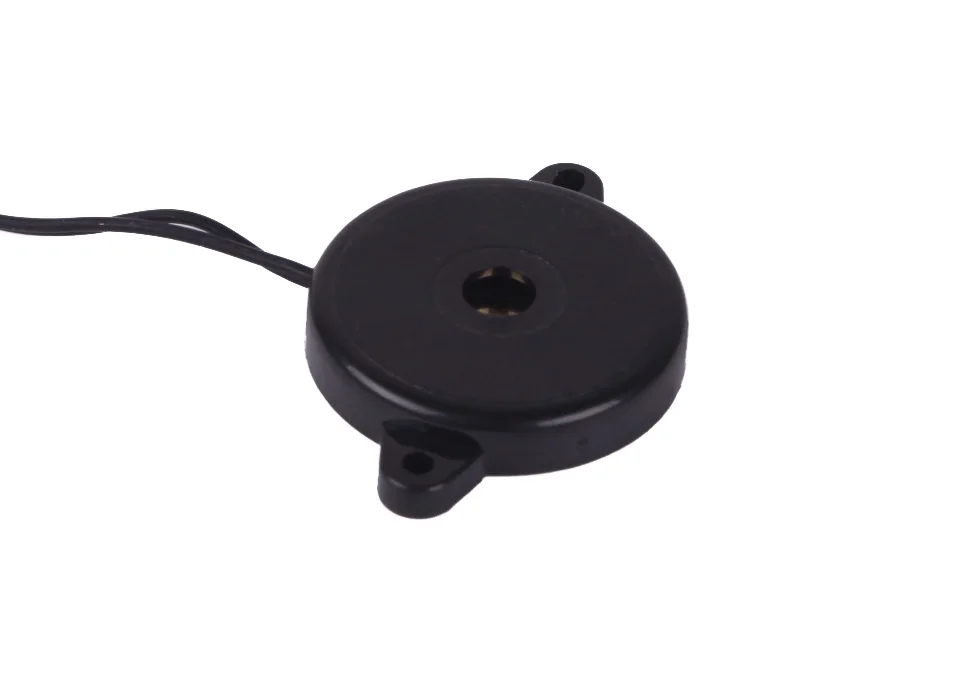

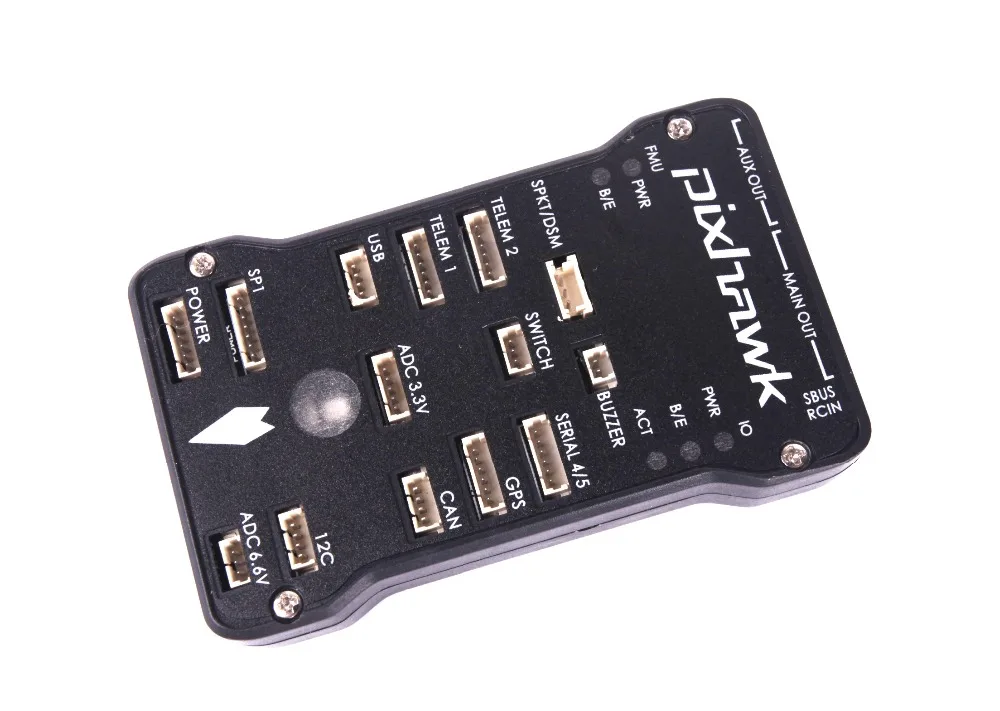

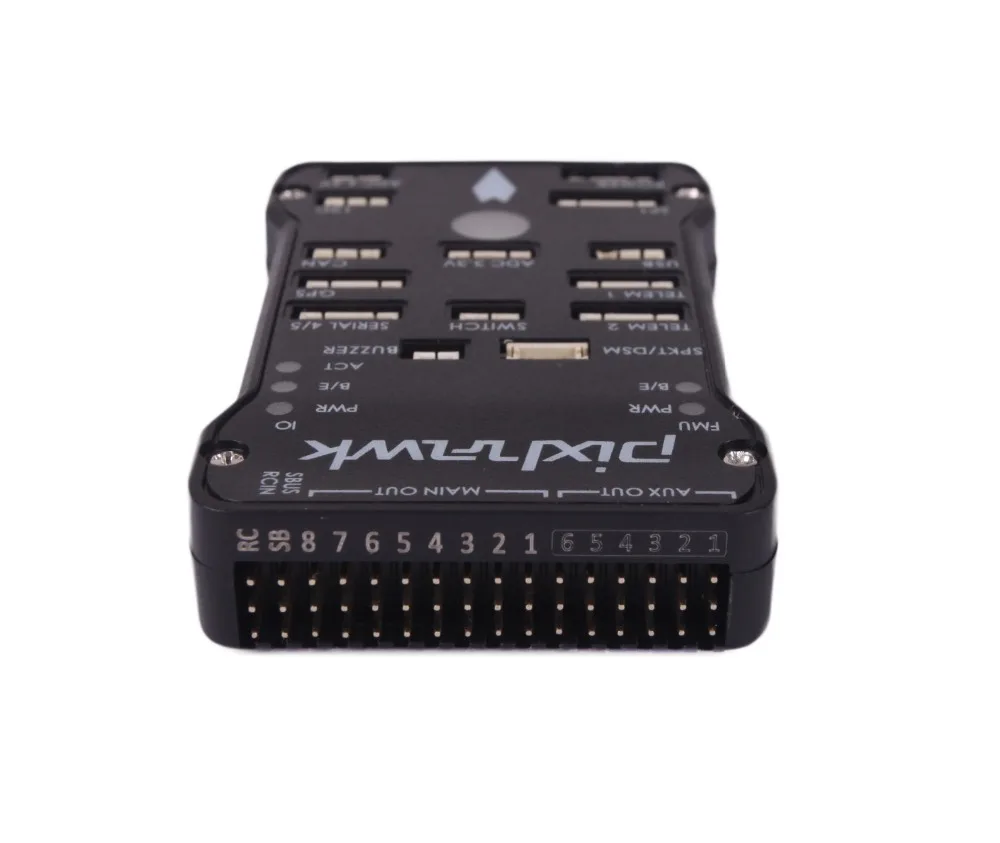

Полетный контроллер Pixhawk PX4 Autopilot PIX 2.4.8 32 бит ARM PX4FMU PX4IO Combo с кнопкой безопасности и сигнализатором для мультикоптеров.

Brand NameRCMOYOriginMainland ChinaMaterialComposite MaterialUseVehicles & Remote Control ToysRecommend Age12+yMeasurement unitpiece/piecesEach pack18 496,00 ₽8 496,00 ₽Add to CartBuy now8 496,00 ₽loaderReviews

4,0

3 reviews03000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalagungbp06 u.12 May 2023

ok

Show moreagungbp06 u.2 May 2023

ok

Show moreagungbp06 u.16 March 2023

ok

Show moreOpen 3 reviewsDescription  pecification: The board integrates with PX4FMU+PX4IO Pixhawk is with new 32 bit chip and sensor technology   Processor: 32 bit 2M flash memory STM32F427  Cortex M4, with hardware floating point processing unit Main frequency: 256K, 168MHZ RAM 32 bit STM32F103 backup co processor   Sensor: L3GD20 3 axis digital 16 bit gyroscope LSM303D 3 axis  14 bit accelerometer /magnetometer MPU6000 6 axis accelerometer / magnetometer MS5611 high precision barometer   Interface: 5* UART,1*compatible high voltage,2*hardware flow control 2*CAN For Spektrum DSM/DSM2/DSM-X satellite receiver compatible input Futaba SBUS compatible input and output PPM signal input RSSI (PWM or voltage) input I2C SPI 3.3 and 6.6VADC input External USB MICRO interface   Features: - Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system; - Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control; - Provide redundant power input and fault transfer function; - 14* PWM/ actuator output; - Bus interface (UART, I2C, SPI, CAN); - Provide automatic and manual mode; - Color LED lamp; - Multi tone buzzer interface; - Micro SD to record flight data;   Package included: 1 x 2.4.8 Pixhawk main control   1 x Safety switch   1 x Flight control shell 1 x Buzzer 1 x 6pin to 6pin line   1 x 4Pin to  4Pin line 1 x 3pin DuPont line

---
