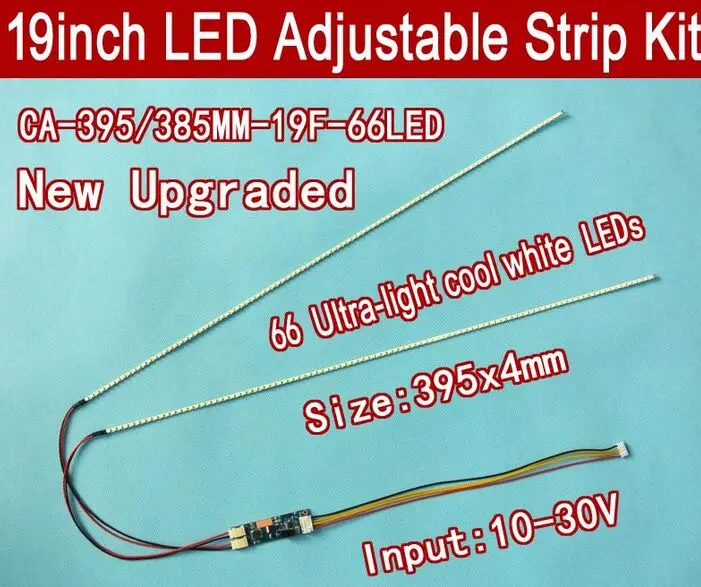

Free shipping 5pcs 19'' 395mm Adjustable brightness led backlight strip kit Update 19inch LCD ccfl panel to LED |

  Product Description   Free shipping 19\\\\\\\'\\\\\\\' 395mm Adjustable brightness led backlight strip kit,Update 19inch LCD ccfl panel to LED backlight     converter:7x2cm input:DC 10-30v   LED strip size:395x4mm     Package: 2x LED strip 1x converter 1x connection cable     Installation:   If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;   If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),   and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting   the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive   electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect   with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,   In the original high-pressure front to take power     VIN : voltage   ENA: on/off   DIM: ADJ adjust brightness   GND: connecting Ground   Hope this can help you ,this is DIY kit,we cannot replace you to do it all.Hope that you can understand it   If you donot know any repair skill,you"d better not choose this kit.       We have also these below sizes for your choice:     for laptop screen: 10inch Led backlight,length: 220mm 12inch Led backlight,length: 255mm 12inch-Wide Led backlight,length:268mm 13inch Led backlight,length:270mm 14inch Led backlight,length:290mm 14inch-Wide Led backlight,length:310mm 15inch Led backlight,length:310mm 15.4inch Led backlight,length: 336mm   for monitor screen: 15inch led strip kit: length:325mm 17inch led strip kit:length:355mm 19inch led strip kit: length:395mm 19inch wide panel led strip kit :length:425mm 18.5inch led strip kit: length:420mm 20.1inch wide led strip kit: length:455mm 22inch led strip kit:length:490mmmm 23.6inch led strip kit,length:530mm 24inch led strip kit: length:540mm                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                           2PCS 19 inch wide dual lamps CCFL with frame,LCD lamp backlight with housing,CCFL with cover       CCFL:419*2.4mm   FRAME:425*9mm   2pcs = 1 pair (A 19\\\\\\\'\\\\\\\' wide LCD screen need a pair of frame)   A frame include 2 CCF                                                                             2PCS 19 inch wide dual lamps CCFL with frame,LCD lamp backlight with housing,CCFL with cover       CCFL:419*2.4mm   FRAME:425*9mm   2pcs = 1 pair (A 19\\\\\\\'\\\\\\\' wide LCD screen need a pair of frame)   A frame include 2 CCF                                                 2PCS 19 inch wide dual lamps CCFL with frame,LCD lamp backlight with housing,CCFL with cover       CCFL:419*2.4mm   FRAME:425*9mm   2pcs = 1 pair (A 19\\\\\\\'\\\\\\\' wide LCD screen need a pair of frame)   A frame include 2 CCF
