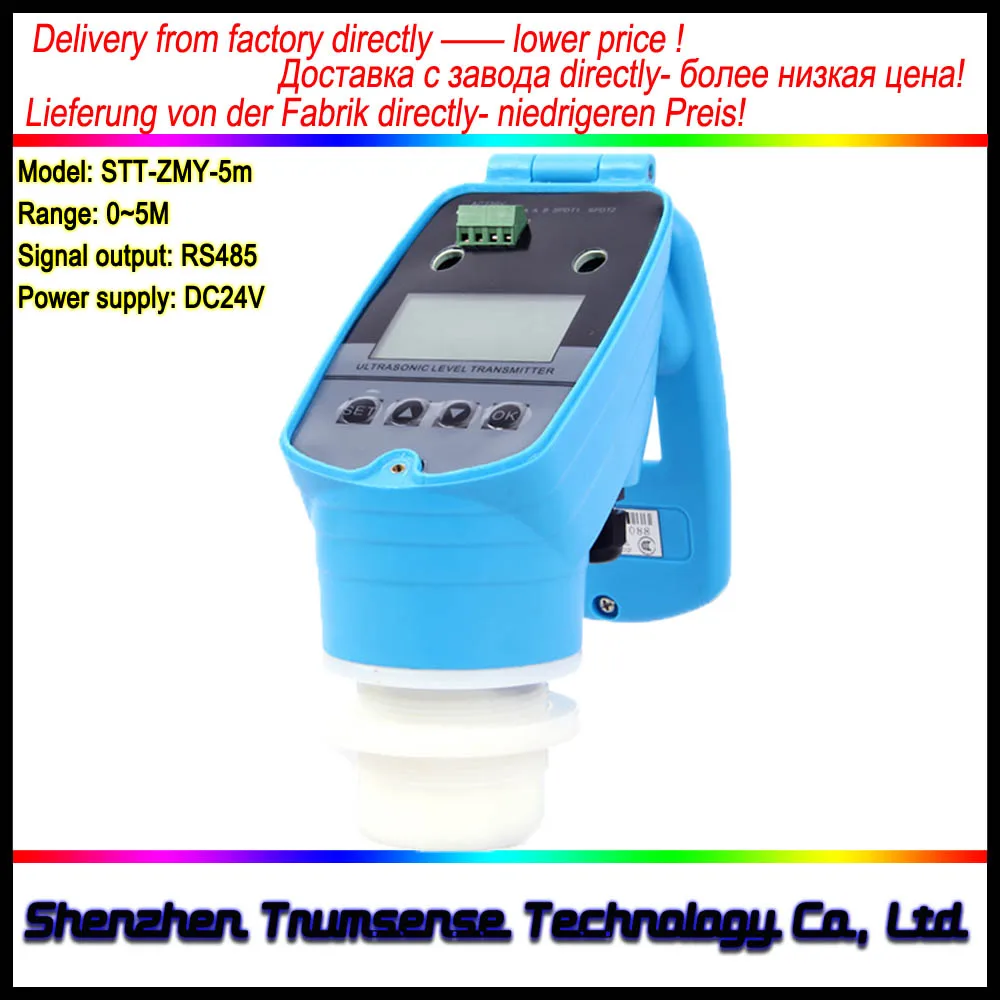

RS485 Output  Ultrasonic Level Meter/Transducer/Sensor

Range 5m 24VDC Power Supply

IMPORTANT NOTICE BEFORE YOU ORDER:

1: There are 2 colours for this ultrasonic level meter, blue and white, pls leave us a message which colour you require, the blue colour is the default sending if you do not remark in your order, thank you for your understanding.

2: This buying link is for specification"range(2m, 3m, 4m, 5m), 5m is default sending range, output RS485, power supply DC24V, working media: water"

3:We can customize different kinds of functions,  pls see below:

a: If you need a Teflon Probe, pls add extra +US$17;
b:If you need AC220V Power Supply, pls add extra +US$17;
c:If you need switch power, pls add extra +US$5;
d:If you need relay output, pls add extra +US$5;
e:If you need background light display,pls add extra +US$5;
f:If you need installation bracket, pls add extra +US$5;

g: If you need ultrasonic level gauge or ultrasonic material meter/gauge, pls add extra +US$60;

h: If you need the light meter below, pls add extra +US$17;

Product Description

The instrument contains a number of patented technologies, with a safe, clean, high precision, long life, stable and reliable, easy installation and maintenance, etc., for all sectors of acid, alkali, salt, corrosion and high temperature.
The instrument can be 4 ~ 20mA or RS485 (Modbus protocol or other custom protocols) connected to the display table or various DCS systems for automated operation of industry, providing real-time level data.

Product Characteristics
1: Circuit design since the power section from the power module on the selection of high-quality, high import component selection stable and reliable devices of the same type can replace imported instruments.


2: Sonic's patented intelligence technology software for intelligent echo analysis, without any debugging and other special steps, this technology has a dynamic thinking, dynamic analysis capabilities.


3: Our company has a smart patented sonic technology, greatly improving the accuracy of the instrument, level accuracy of 0.3%, resistant to all kinds of interference waves.
This instrument is a non-contact instrument, not in direct contact with the liquid, and therefore low failure rate. Instrumentation offers a variety of installation, the user can through this manual instrument calibration.


4: All input and output lines of the instrument have lightning protection, short circuit protection.



 Specification

Measurement range

0~5m (other range can be customized, pls contact us for a quote if your range is different)

Blind zone

0.25 ~ 0.6m

Accuracy

0.3% (in standard conditions)

Resolution

1mm

Pressure

normal atmospheric pressure

Instrument display

4 LED display scene shows the level or spatial distance

Analog output

4-20MA

Digital output

RS485, Modbus protocol, or customized protocol

Working voltage

DC24V, AC220V can be customized, with lightning protection device

Environment    temperature

-20C ~ 60C

Protection class

IP65

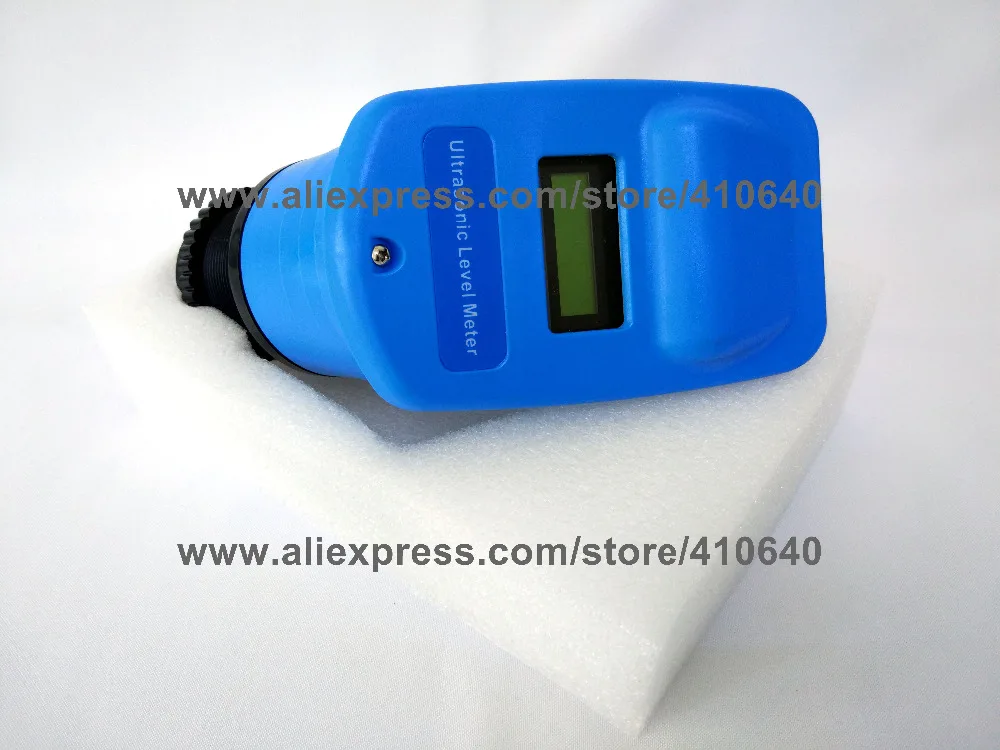

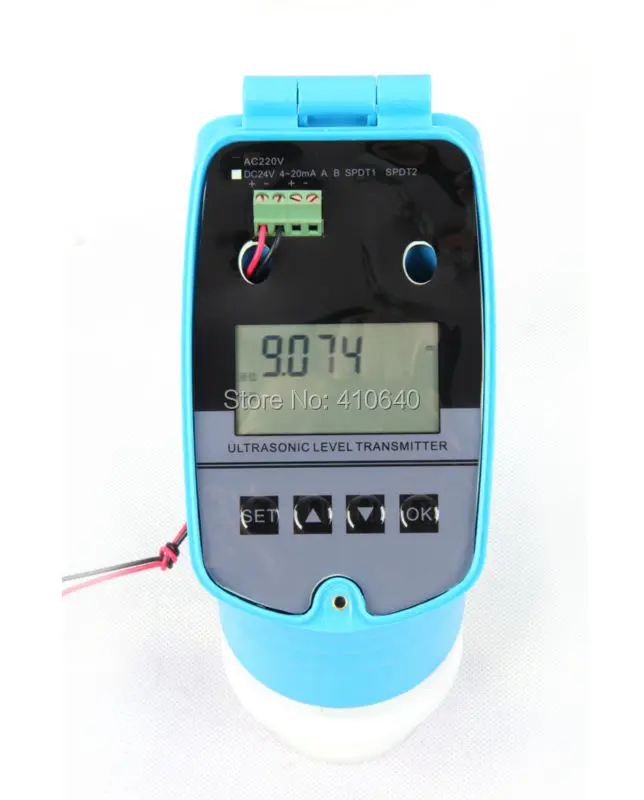

Product Display

Installation

Packing
