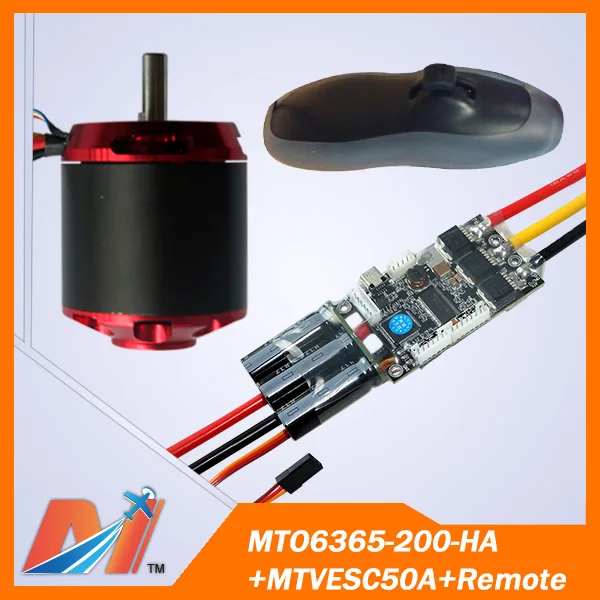

Model No.: MTVESC50A+MTO6365-200-HA+MTSKR1512

To make your order more convenient, the VESC and the 6365 Motor and remote control are sold together. It will save your shipping cost.

Item1: Maytech 50A Open Source Vedder's VESC for Electric Montain Board//longboard/ DIY Eboard/Standing Scooter/Elextric Bicycle

Current

VESC Benefits:

•The hardware and software is open source.

•Strong, Reliable and Progressive
•Start from a stop with Unsensored Motors as if it was Sensored
•Many Safety Features such as Current Control and Temperature Control Features
•Sensored and Unsensored (FOC) Field Oriented Control allows your electric bike/E-skateboard/rc car to run with barely any motor noise.

•Regenerative Braking
•Sensored or Sensorless operation
•Great start-up torque with sensorless motors

This series ESCs are selected as much more efficient and effective ESC to be used for your DIY Electric Skateboard/ rc car or e-Bike. High performance micro processor, best compatibility for all BLDC motors and highest driving efficiency

Item 2: Maytech 6365 Motor for Electric Montain Board/longboard/ DIY Eboard/Standing Scooter/electric Bicycle

Maytech brushless outrunner hall sensor motor are specially designed for electric skateboard. They come with low KV, high torque and efficiency. All parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.

Notice:

1.   Mount your motor with the included screws tightly on your front cover of model.

2.   Our motors provide high efficiency stator design.

3.   Small size, lightweight and long life.

4.   Maytech motors are designed for running clockwise or counterclockwise. To change the turning direction, you just simply exchange 2 of the 3 cables.

ATTENTION:

1.   Please make sure your motor has enough cooling while running.

2.   Keep motors away from moisture, dust, scrap and small items to avoid damages

Item 3: Maytech remote control for Electric Montain Board/longboard/ DIY Eboard/Standing Scooter

 The receiver description:

The remote controller come with the 2.4Ghz receiver and supports PWM signal. The receiver
can be powered by the BEC from the ESC. The 24V put-in and 24V put-out function are for
the sound or light in the future. It is not available at the moment.

How to do the Remote Pairing:

1) Turn off your electric skateboard.

2) On the remote control, press and hold the A button for 3 seconds to turn on the controller. The left light will become yellow and the right light will become green.

3) Press down and release the joystick (labeled the C button). The left light will blink green.

4) Press the B button 10 times in less than 10 seconds. All lights on your controller should turn off. If your controller has a yellow light on the left and green on the right (similar to when you first turned it on), check to make sure that your receiver is off (no red light), and if not, turn it off and start from step 3 again.

5) Turn on your electric skateboard.

6) Once the receiver turns on, your controller should have some combination of flashing lights. The two lights together tell you what frequency your on. The left is in terms of tens, and the right is the single digits. Simple add the two numbers together to determine which frequency you are on. The default frequency for this remote is 2. This should be changed if you are experiencing interference or if using multiple of these controllers in the same area.

Example: Left light flashes 2 times and the right flashes 4 times. 2 x 10 = 20 + 4 (from the right) = 24

To change the frequency, simply slide the joystick (Do not press the C button) up or down to increase and decrease the frequency.

7) Press and hold the A button to turn off the remote.

8) Turn off your electric skateboard.

9) Turn on both your remote and electric skateboard. The receiver should blink red and become solid red if pairing was successful.

How to use the Remote control:

Press A key on the remote control. The left red LED will flash for 3 seconds, then the Green
LED will flash. At this moment, release the A button, and the remote controller is powered on.
Toggle and rocker let PWM1 and PWM2 terminal of PWM signal output speed.
Press C button to cruise the speed. Press C button again, the speed can be changed.
Hold the B button to slow down when the skateboard is on downhill.
If you want to shut down the remote control, press A button and hold it for 3 seconds. Release
the A button after the left green LED is on.

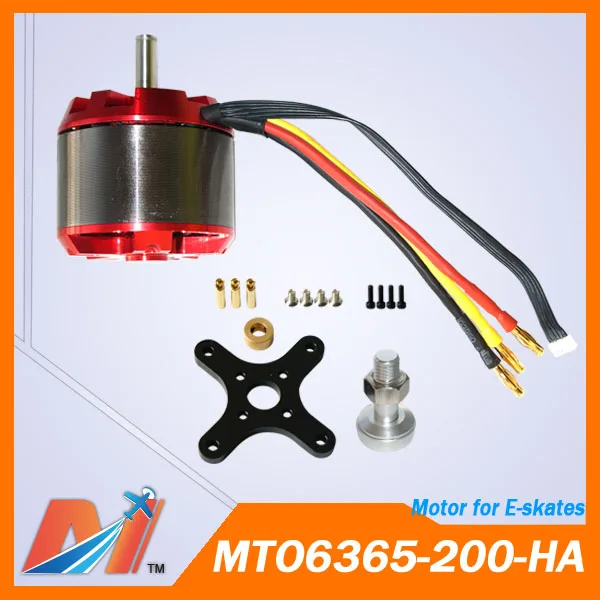

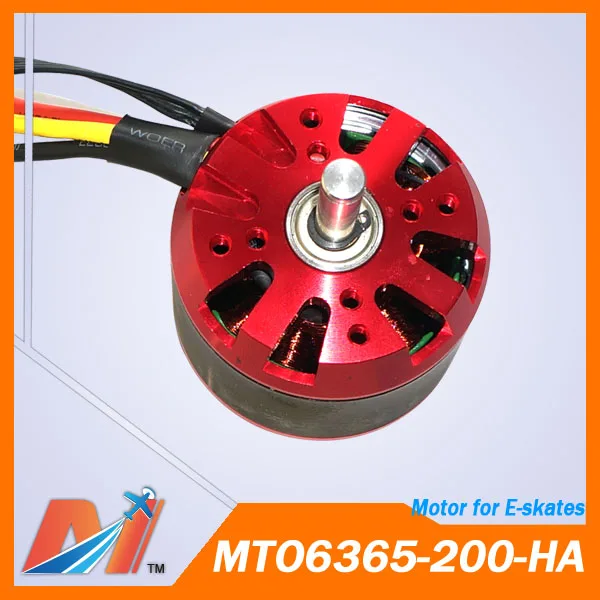

Pictures of 6355 electric skateboard Motor

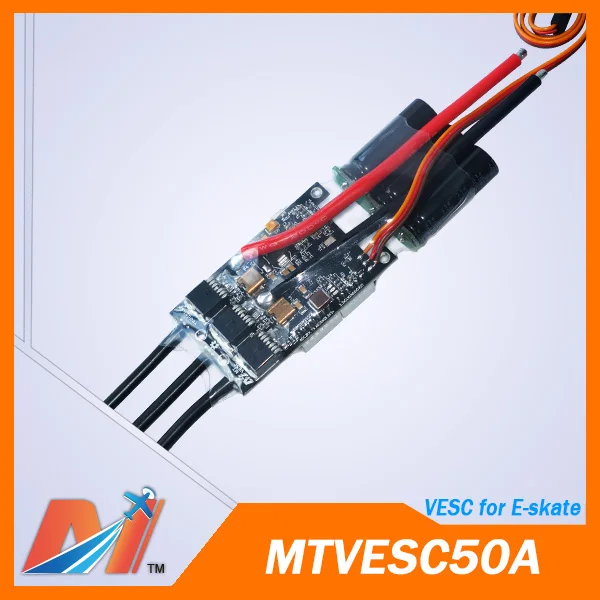

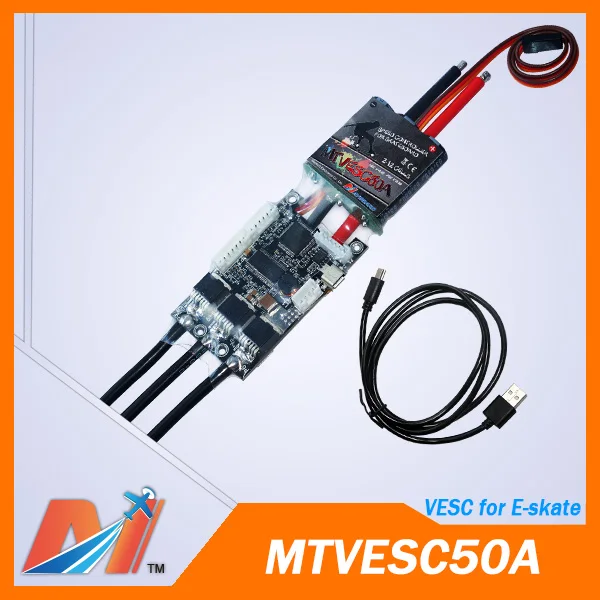

Pictures of Electric Skateboard VESC Controller

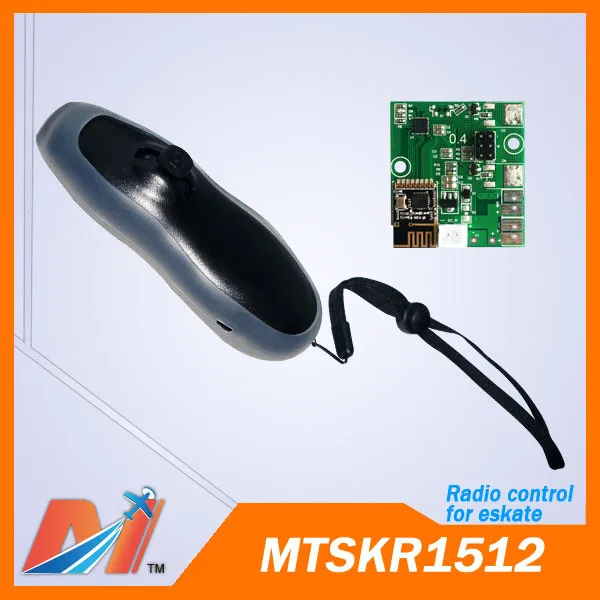

Pictures of Electric Skateboard Remote Control
