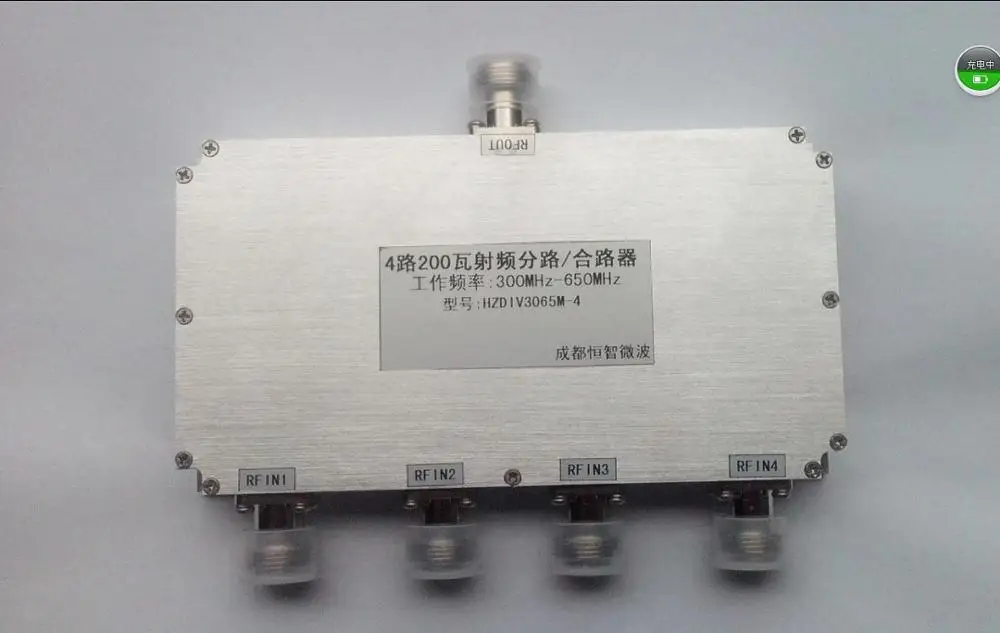

Three hundredMHz-650MHz wide band high power radio frequency power divider / circuit breaker

One point four

The main purpose of this product:

In the radio frequency receiver antenna port, the product will be 1 antenna signal is divided into 4 signal output;

In the power amplifier output power is not enough, you can use the power amplifier to power synthesis of multiple power amplifier to improve the output power; (the synthesis of each level can be increased by 1 times the power output)

Test amplifier of the third-order intermodulation ratio and need for multiple carrier synthesis path of output. With this power divider for a plurality of different frequencies of carrier combined into 1 output amplifier and sent to the test;

Technical index of the product:

Operating frequency: 300MHz-650MHz

Work style: 1 points 4 road

Withstand power: 200 WATTS

Insertion loss:0.5dB

Isolation between 1 and 4: <29dB800MHz;29.4dB2000MHz;26.8dB3000MHz

Bobbi: <1.1

Input / output impedance: 50 ohm;Withstand power: 200W

Interface mode: N-K

Outline dimension: 150*80*20

See the measured curve of the baby photo
