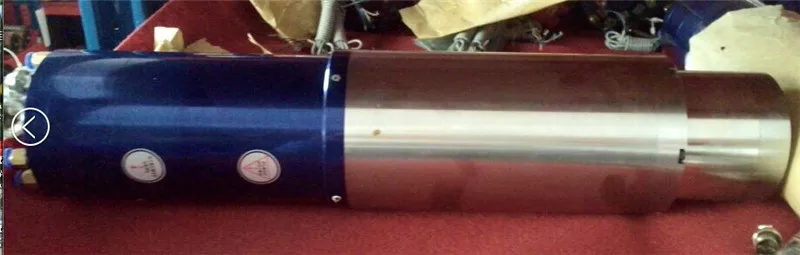

10HP 7.5KW 18000rpm BT30 Permanent Torque Automatic Tool Changes ATC Spindles SDS150-30-18Z-7.5 380V CNC Machine center

1, Spindle Specification

Model

SDS150-30-18Z-7.5

Product type

The Permanent Torque Electric Spindle for Machine Center

Feature

Pneumatic Automatic Tool Changer

Frequency(Hz)

600Hz

Speed (r/min)

18000r/min

Voltage (V)

380V

Rated power (KW)

7.5KW

Current(A)

14.9A

Pole Number

4

Lub

Grease

Cooling way

Water-cooled

Joint of nose

BT30 Taper Bore (self-provide)

Bearings type

2 x VEX40

2 x VEX30

Character

With sensor and Loose broach

Spindle Diameter

150mm

Spindle Length

478mm

Net Weight

47kg

Manufacturer& Origin

XingChen&China

2, Instructions

1

The electric spindle must be matched with the frequency converter. Frequency converter selection must be matched with the power, voltage, current, frequency and other parameters of the electric spindle. The use of electric spindle must first set the benchmark frequency of the inverter. The reference frequency of the frequency converter is set according to the highest frequency of the electric spindle. Inverter reference frequency conversion factory default settings 50hz. If the base frequency of the inverter is not set before the spindle motor is used, the spindle motor can be burnt down.

2

Before use, you should use the hand to turn the spindle motor, and confirm that it can rotate smoothly.

3

When in use, you must first connect to the spindle motor cooling water pipes, water pipes to ensure. Water flow is not less than 5L/min

4

If the electric spindle needs to be replaced with a new bearing,
Should be replaced by a certain professional and technical personnel. Supporting special tools. The spindle motor should be fully cleaned, the stator coil does not need to be removed.

3, The common faults and their elimination methods

The Fault

The Reason

The Solution

The electric spindle does not run after start

1.No output or wrong setting for the inverter

check the output and setting of the inverter

2.Plug not connected

check the plug and connection cable

3.the cable not connected

4.The stator winding burned

change the stator

Few seconds after start,the spindle stop running

1.water inlet

Drying stator

2.High temperature induced wire insulation damage

change the stator

3.Lack of phase operation caused over current protection

check the cable connecting of the spindle motor

4.Start-up time is too short

Extended acceleration time

Motor smoke or shell hair hot

1.The inverter output voltage, frequency is not match with the spindle motor

check the setting of the inverter

2.the frequency of the inverter is not set correctly

reset the frequency of the inverter

3.Air duct blockage

check the air duct

Nut loosening when start

Rotation direction error

recorrect the rotation according the instruction on spindle

Noise and vibration

1,bearing damaged

change bearings

2.Parts precision damage affect dynamic balance

Check dynamic balance

3.Large spindle runout

change spindle

Nut loosening when stop

Down time is too short

Prolonged deceleration time
