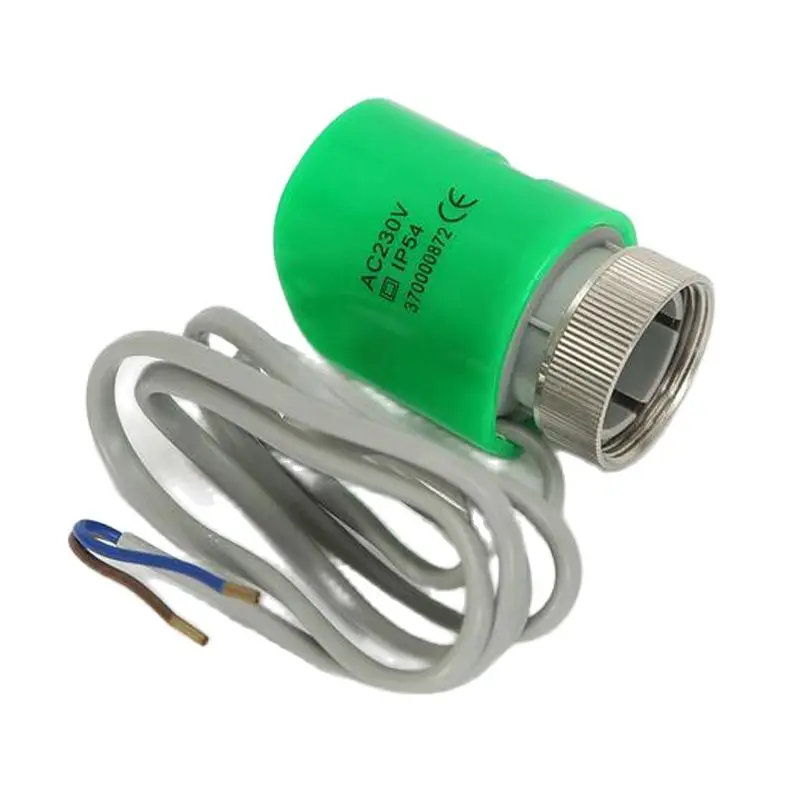

MC60 Electro-thermal Actuator

Introduction

The MC60.XX can be used with electrical on/off-controls to activate several types of valves and floor heating manifolds, the actuator is made for either 24V or 230V supply in normally closed.

Application

Fitted on manifolds or small valves for the control of warm-water (floor) heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…

Features

Wax-filled element
Reliable longtime operation
Noise-free operation
No mounting tools required
Position indicator on actuator
Normally-closed configuration

Technical data

Voltage: AC230V
Power consumption: 2W
Force: 110N
Stroke: 3mm
Running time: Open-3mins, close-5mins
Valve interface: Cap nut M30*1.5mm
Ambient temperature: -5~60°C
Cable Length: 900mm
Housing material: Self-extinguishing PC
(PA66 as internal components)
Protective housing: IP54
Mounting position: Vertical position to 90°declined
