AN10 Female Oil Cooler engine Adapter Fits For LSX BILLET LS1 LS2 LS3 VE HSV VZ DRAG RACE Blue / Silver Black |

RM23682655833488495



Title

Oil Cooler Adapter Fit For Billet LS1 LS2 LS3 LSX VE HSV VZ DRAG RACE

Application

For Billet LS1 LS2 LS3 LSX VE HSV VZ DRAG RACE

Specifications

Has 2 female AN10 (Dash-10) ports for the cooler lines







It is machined from a single piece of 6061-T6 aluminum and is black anodized






Designed to allow access to the oil system on the modern range of G M V8 engines as an alternative to a sandwich plate that will result in the oil filter being exposed below the base of the engine sump. This will then allow connection to an oil cooler. In addition it has two 1/8 NPT ports that allow for the fitting of temperature or pressure sensors and installing an oil take off for turbo or superchargers etc (no thermostat). It should be noted that any oil take off must be regulated or restricted either in line or at the application.










Include

1pcs

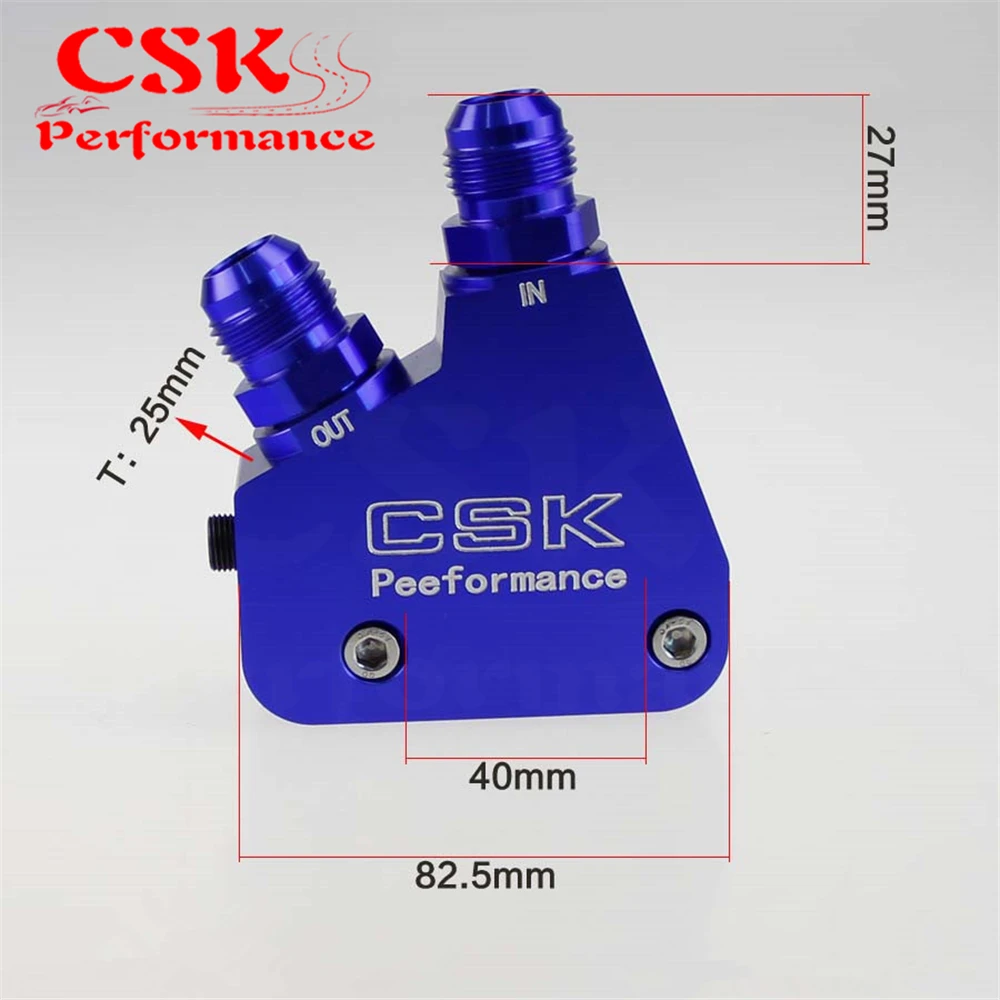

Size

SIDE PORTS: 1/8" NPT




NLET: -10 ( 7/8 x 14 )




OUTLET:
-10 ( 7/8 x 14 )


Tracking

Yes
