Unich china popular  fiber 300w 500w 1000w laser cutting machine/steel laser cutting machine

Doris sincerely service for you

Email:export01(@)unichcnc.com

skype:export04_6

whatsapp:8615863168592

Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed:  2-3 times than same power CO2 laser cutting.
3. Stable running: adopt top world import fiber lasers, stable performance, working times 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have 3 times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.

Fiber laser cutting machine application :

metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery,

engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator

manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil

machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration

advertising, laser surface treatment of foreign processing services, such as all kinds of machinery

processing industry.

Fiber laser cutting machine Application Materials:

Professional used to cut thin sheet metal, in a variety of high quality 0.5 -3 mm carbon steel sheet

cutting, can also be cutting stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic

plate, silicon steel, titanium alloy, aluminium zinc plate and other metal.

Fiber laser cutting machine parameter

Machine Model

1500*3000mm, 4.26*8.2(feet)

Laser power

300W/500W

Fiber laser Generator type

Famous brand Raycus ( Made in China )

Laser wavelength

1064nm

Laser Beam quality

<0.373mrad

Working Table

Sawtooth

Fiber Laser cutting head

Lasermech ( From U.S. )

Focus lens

Lasermech made in USA

Working life of fiber module

More than 100000 hours

Motors&Drivers

1500W Fuji servo motor made in Japan

Reducer

3 sets from Germany

Guide Rails

High accuracy PMI brand from Taiwan

Transmit system

Dual Rack & Pinion type

Rack system

Herion made in Germany

Chain system

Igus made in Germany

Water Chiller

TEYU( S&A) brand, CW6000

Control system

Professional laser control system--Cypcut

Position type

Red Dot

Cutting thickness

≤3mm(stainless steel)

≤6mm(carbon steel)

Max. Idle Running Speed

1400mm/s

Cutting Speed

300mm/s

Position Accuracy

±0.05mm/m

Position Speed

20m/min

Min. Line Width

±0.02mm

Power Consumption

≤12KW

Carry weight

700KG

Voltage

380V/50HZ,3PH

Auxiliary Gas for cutting

Oxygen, Nitrogen, Air

Compatible software

Autocad, Coreldraw, etc

Graphic format

Nc

Working method

PC control

Total power protection rating

IP54

Machine weight

About 4000KG

Machine size

4800*2600*1800mm

Warranty time

Whole machine for 3 years (fiber module 2 years )

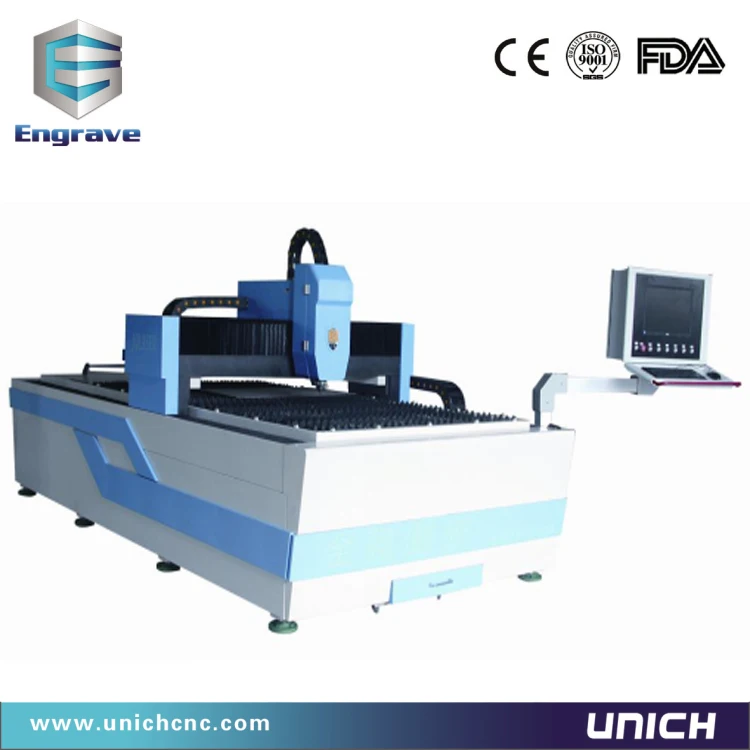

Fiber laser cutting machine pictures

Fiber laser cutting machine parts

1. laser head, under laser head is the smoke clear system

2.control box

3. Raycus fiber laser device 500W

Fiber laser cutting machine samples

1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.

Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

We offer

1).2 year warranty for the whole machine.

2). 2 years warranty for the fiber laser source.

3). Life-long maintenance.

4).In the warranty period,if it break down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced will be provided from seller for free(Except the quick-wear part).

5). After the warranty period expired,the buyer only need to pay the actual maintenance cost.

6).Some customer, we will pay a return visit for several times one year,and will provide technical support service anytime,and also provide spare parts anytime the buyer want.

7).After sales service response time: quick response within 8 working hours,after receive the repair call, our after sales engineer will reply as soon as possible.

Payment terms----------------------------------------------------------------

A:T/T:30% T/T deposite,70% before shippment.This is the most convinent payment terms for international trade

B:Alibaba trade assurance.It is a third party payment terms,

1) you pay money to alibaba,

2) we prepare your machine production

3) After your production,we would tell you timely,then you click the button"agree to ship",

4) We ship it.

5) After dispatch,we show documents to Alibaba,Alibaba would ask your agreements for money release to our company.

6) After your agreement,Alibaba would pay your money to us.

Your money is safe in alibaba before your agreement of money release.And During this process,alibaba stuff would contact you and us..

C: Pay-pal

D: Western Union: only small order
