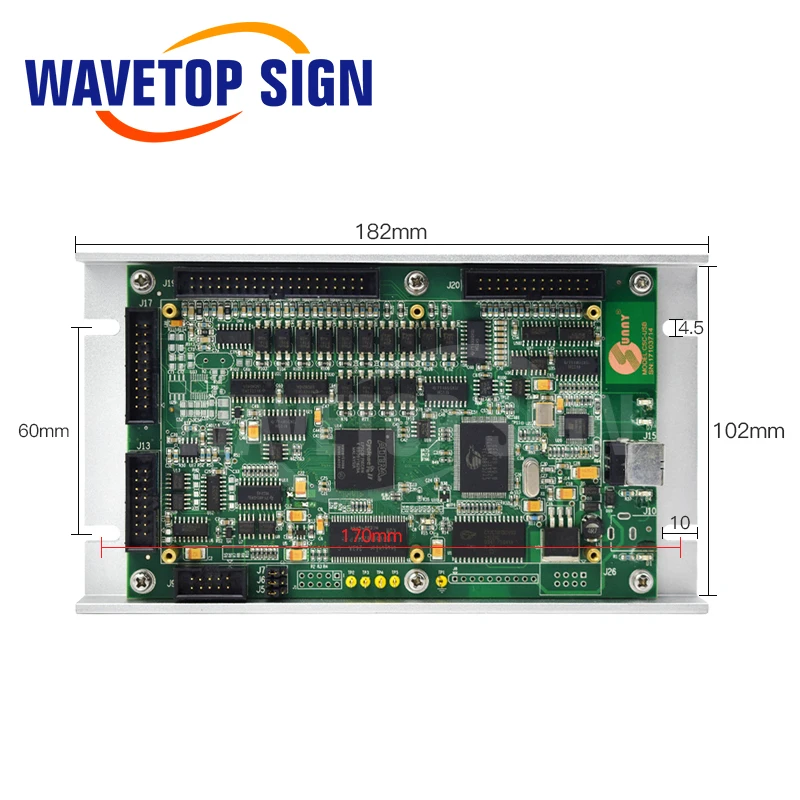

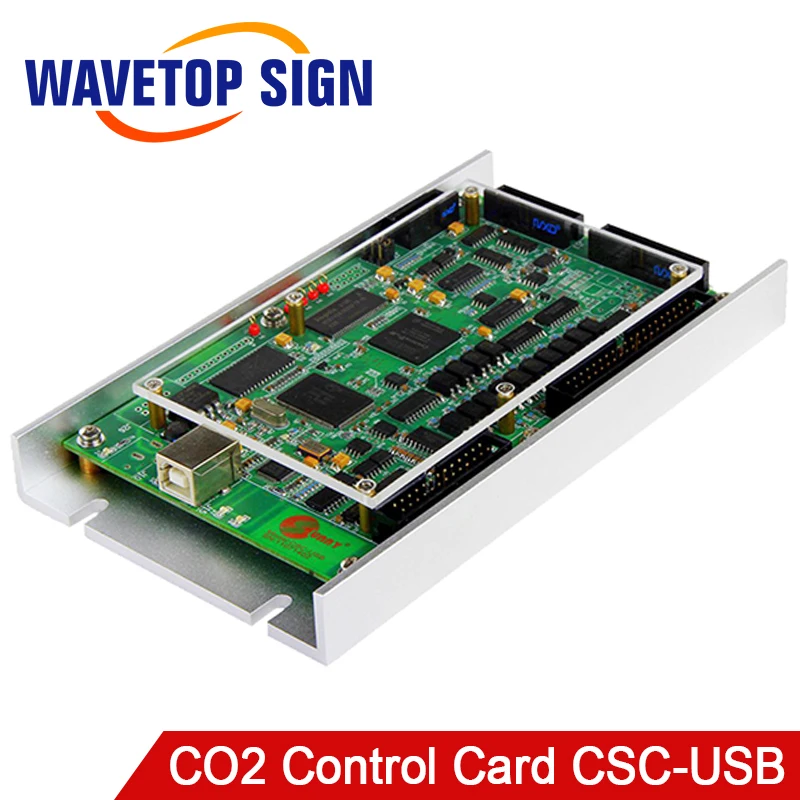

CO2 Laser Mark Machine Control Card USB Port Digital Signal | Инструменты

CO2 Laser Mark Machine Control Card USB Port Digital Signal | Инструменты

Product Specications:

1) USB 2.0 Interface                                                2) Power on reset automatically

3) Firmware update through USB Interface             4) 16-Bit positioning resolution

5) 10μs output period                                               6) Application to start and stop marking by external control

7) 1-Channel 16 bit A/D input                                   8) Two analog outputs with 10-bit resolution

9) One 8-bit digital output                                        10) Compatible with XY2-100 standard protocol

11) Supports four axes stepper motor X,Y,Z and R, Each with limit and zero switch

12) Software drivers（DDL）for 32/64 bit-Windows 7/ Vista / XP / 2000

13) Real-time status detection of scanner and laser

14) Multi-cards can running on one PC at the same time

15) Possess RS232 communication

Options:

1) Available spot-by-spot laser power control for 3D scanning systems

2) Compression of the first-pulse heavy dot under CO2 mode

3) Adjustable polygon delay function                                          4) Mark-on-the-fly function for moving objects

5) Various laser mode selectable（YAG , CO2, Fiber）            6) Quasi-vector bitmap marking

7) Patented high-accuracy correction function
