U3CMOS is an ultra-high performance USB3.0 CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.

U3CMOS hardware resolutions range from 3.0M to 14M and come with the integrated zinc aluminum alloy compact housing.

U3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The U3CMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

The basic characteristic of the U3CMOS cameras are as follows:

1）   Standard C-Mount camera with Aptina CMOS sensor;

2）   With hardware resolution among 3.0M to 18M;

3）   Integrated zinc aluminum alloy housing;

4）   USB3.0 5 Gbps interface ensuring high frame rate;

5）   With advanced video & image processing application ToupView;

6）   Providing Windows/Linux/Mac OS multiple platforms SDK;

U3CMOS Datasheet

Order Code

Sensor & Size

Pixel

(μm)

G Responsivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

U3CMOS10000KPA
TP110000A

10M/MT9J003(C)
1/2.3“ (5.98x4.58)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

7.2@3584x2746
24.5@1792x1372

1x1,2x2,4x4

0.4ms~2000ms

C: Color; M: Monochrome;

Other Specification for U3CMOS Camera

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB3..0 High-speed Port

Display:17” or Larger

CD-ROM

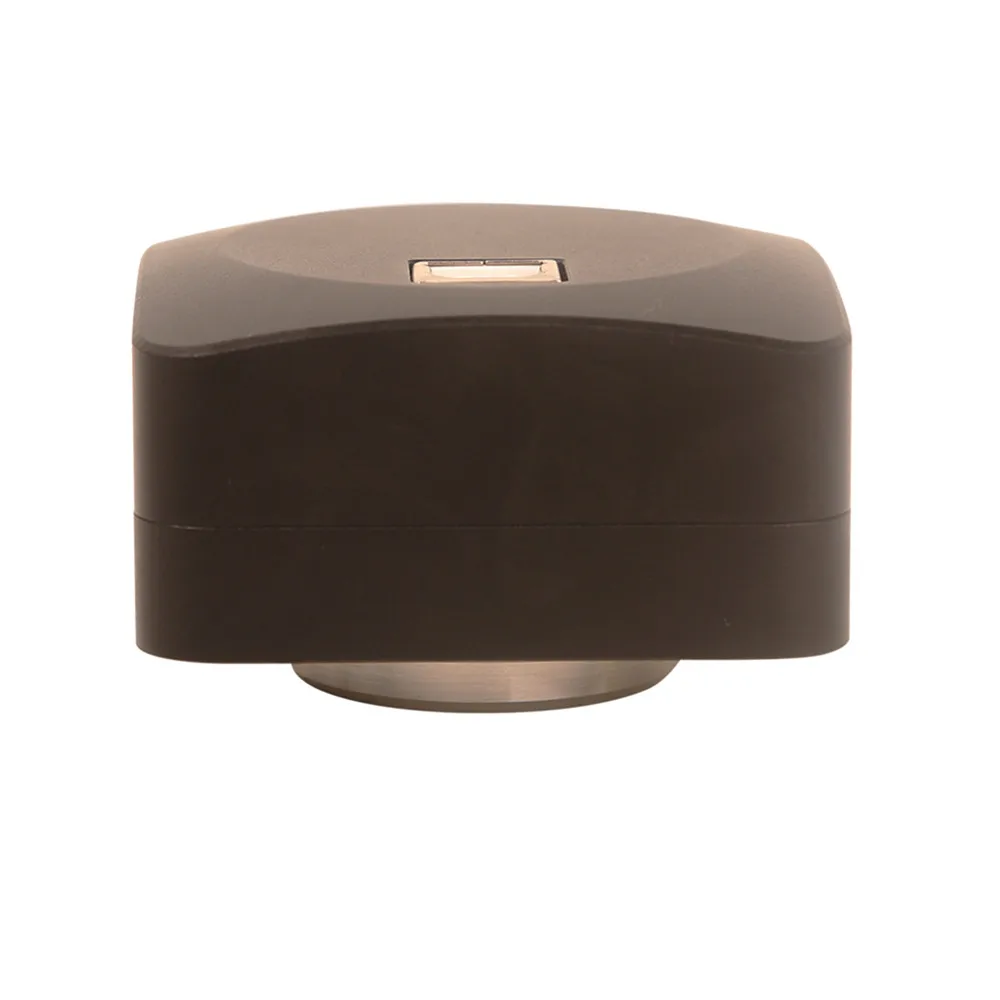

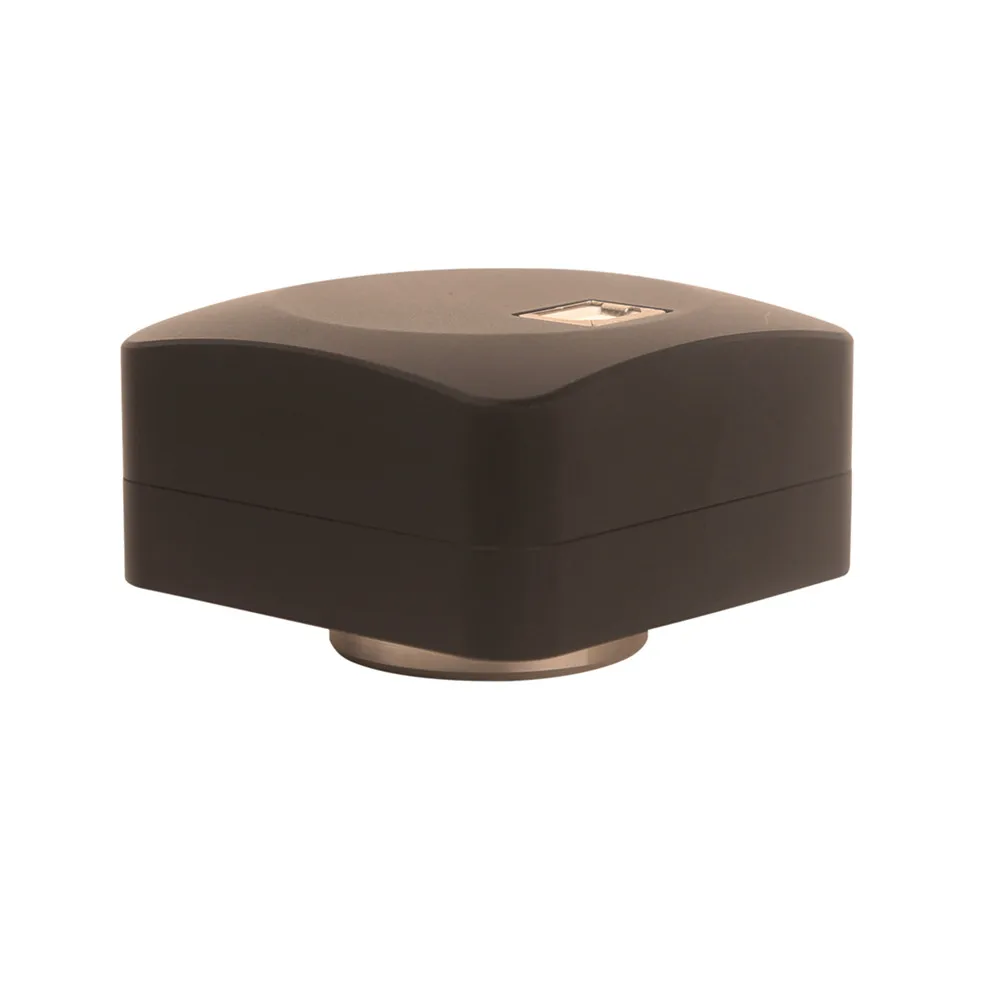

The U3CMOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

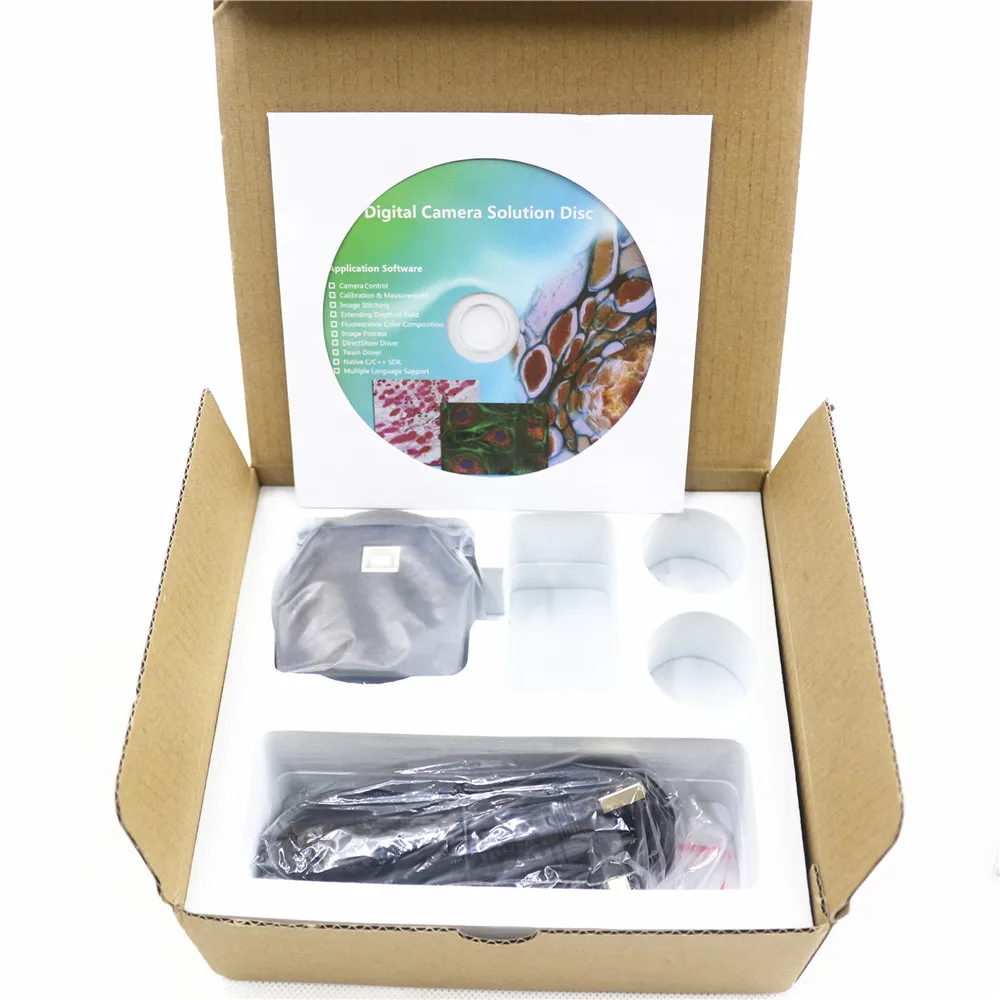

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)

C

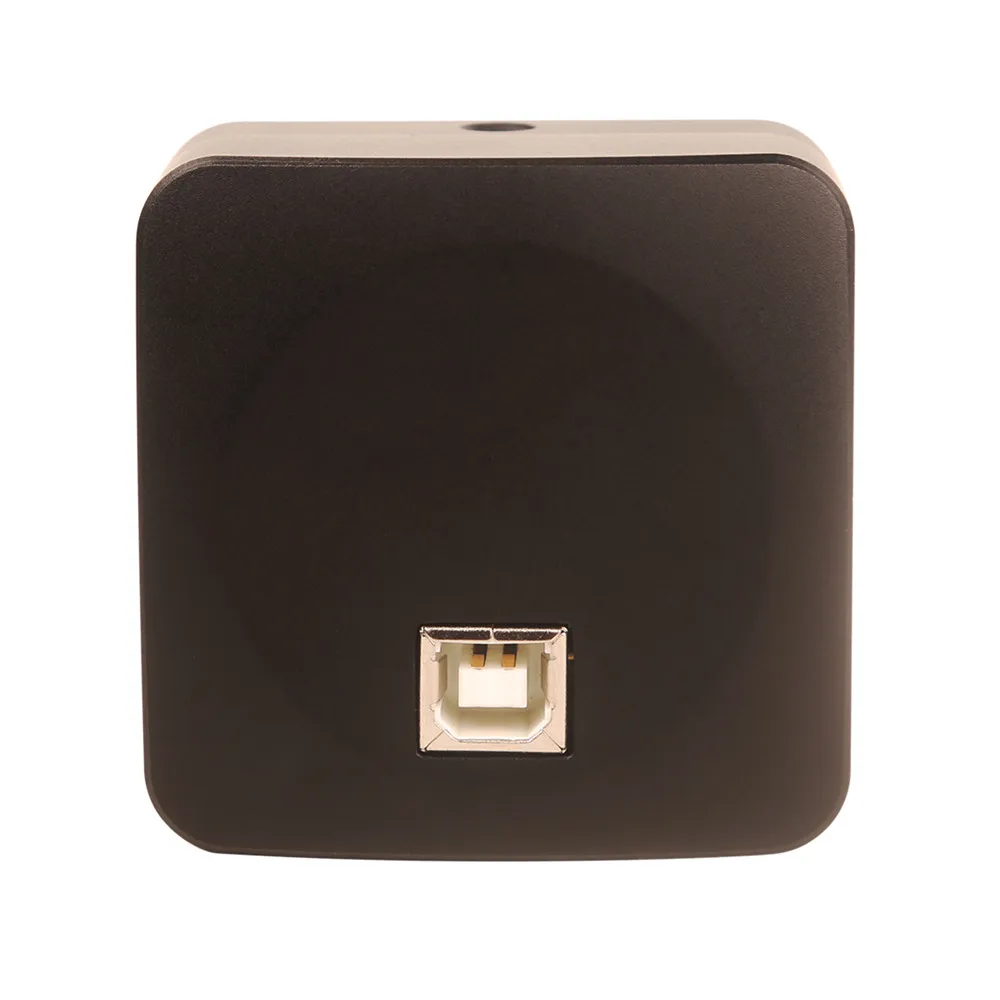

U3CMOS series USB3.0 C-mount CMOS camera

D

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens Adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

K

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
