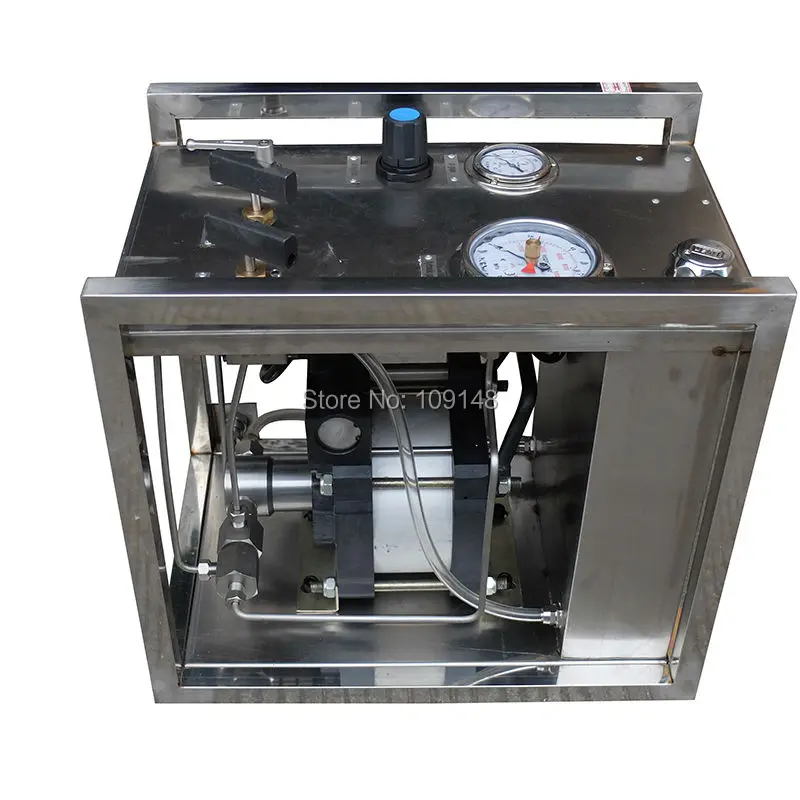

High quality model : WS-JS9   72 BAR Complete pneumatic liquid pump system ,Pneumatic oil

test bench ,pneumatic driven oil pump system , air hydrostatic testing equipment ,hydrostatic pressure System

Hydraulic Power Packs include WS-JS9 Model are complete hydraulic units ready for connection which are provided for

generating operating pressures up to 72Bar .It is suitable for powering a variety of medium,such as oil, water or corrosive liquids.

As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and waterseperator, pressure-regulating valve,pressure control gauge as well as manual relieve valve.In this operation,the pump will be Mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner.Pressure gauges, valves and  pressure regulators will be fitted on panel.   The desired operating pressure can be attained by adjusting the driving air pressure.When the driving air pressure and the output   pressure reach the balance,the pump stops filling pressure and the output pressure stays at the preset value. This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for othe functions   requiring a determined pressure.   The configuration of the systems include :  air pressure gauge , outlet pressure gauge ( On the first line of the Panel ) The hand ball ( For control the on/ff the system ) , air pressure regulator valve ( for control the air pressure  ) Outlet needle valve ( for control the output of High pressure ) ,Uploading needle valve ( For releasing the high pressure ) ,it is on second line  and also include 1 set JS9 air driven liquid pump , 10/12  Liters hydraulic tank  inside of the cabinet  and related pipeline Applications Hydrostatic and pressure tests for valves, pipe and tubes, pressure vessles, pressure switches,tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc. Hydrostatic and dynamic tests for aircraft components Calibration of pressure gauges and transducers Pressurization of pressure vessels for testing various components Emergency shutdown systems for oil and gas wells

Technical parameters

Type

WS-JS9

Air drive pressure

3-8bar

Max. outlet pressure

(at air drive pressure of 8bar)

72BAR

Generation of pressure

air drive liquid pump Model :JS9

Pressure ratio

9:1

Air consumption

0.5-1.0 m3/min

Operating medium

Oil, water, non-corrosive liquids

Driving medium

Compressed air

Oil /Water tank capacity

12 L

Dimensions (W x D x H)

500x350x530mm

 JS9 model ,Maximum filling flow rate is around :16 Liter per Min ,when pressure increase ,the flow rate comes down

Specification of the JS9Pump as bellow for reference ,this is also for Liquid system
