The  Brand New Microscope and Main components  are produced by the same technications on the same production line which producing for Nikon, Olympus , Leica , Zeiss Microscopes-- Well sold For EU , USA , High end Markets

 This model Metallurgical Microscope is designed  at  metallurgical industry.  it is used to identify & analyze the structure of various metal and alloys  ,suitable for being in factories, laboratories, etc to research and analyze the Casting quality, Materials and Metallurgical structure after treatment. The design meets with the ergonomics needs and makes you feel comfortable and relaxed in doing your job

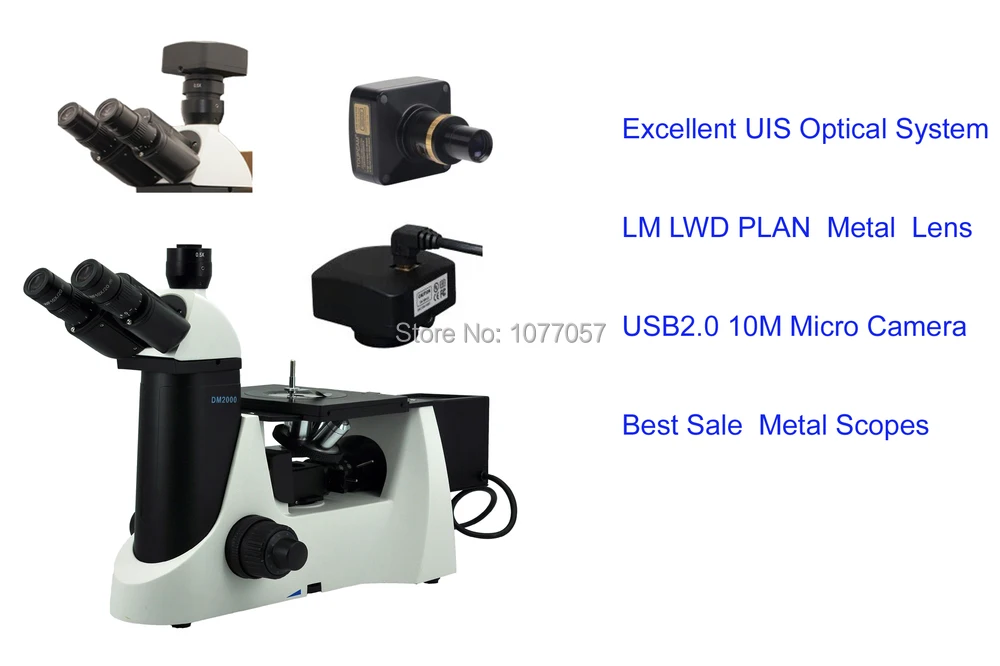

Hot sale---Excellent Inverted  Metallurgicalmicroscope  with 50x-1600X Magnification + 10M Pixel Microscope camera , For Factory or Institute--Trinocular system

Instruction:

Optical System: Excellent Corrected Infinite Optical System

Eyepiece :High Point WF10x eyepieces , FOV =20mm  1pair

WF20X  1pair

Viewing Head : Trinocular , inclined 30 degrees and rotatable 360 degrees

Nosepiece : Quintuple reverse bearing locating

Interpupillary distance adjustments : from 52mm to 75mm; diopter adjustment ±5

Excellent LWD lan  objectives: 5X,  10X,  20X,  50X,  80x

Mechanical stage: Double layer mechanical stage 180×155mm, Moving range 80mm×50mm

Polarizer and analyzer

built-in Green, Blue, Yellow, Green glass

 Adjustment :Coaxial coarse and fine focusing controls ,built-in focus stop and tension control

12V50W  Halogen  Lamp  Reflected  Illumination

10M USB2.0 Profesisonal Microscope camera

 About software :

We supply professional instrument, not just like simple magnifier with low cheap cost. (These are professional tools for your daily scientific work. So after your attend bidding, we will select a safe shipment to deliver at your side. )

FedEx, TNT, UPS, DHL are first selecting way.

China Post Air Main and EMS will be good for Asia, Australia and Russia.

Other Economics Air line Express will be also available for recommending.

We will select the best shipment way for you in order to save your cost.

Pls make sure to give us your correct full details of address.  Buyers from Brazil, pls leave us your CNPJ (CPF) Tax number, or please feel free to contact with us, we will supply additional service to support you to complete the whole process.

Package includings : 1 Set  DM2000 inverted metallurgical microscope with50x-1600x +10M Pixel Microscope camera

Specification

DM2000

Microscope Frame

YES

Trinocular Tube, Interpupillary distance 52-75mm, 30°inclined diopter adjustable.

YES

WF10X/20mm Plan Eyepiece, High eye-point up to 21mm

YES

WF10X/18mm Reticule Eyepiece, High eye-point up to 21mm

YES

Infinity Long WD Plan Achromatic Objective 5X

YES

Infinity Long WD Plan Achromatic Objective 10X

YES

Infinity Long WD Plan Achromatic Objective 20X(S)

YES

Infinity Long WD Plan Achromatic Objective 50X(S)

YES

Infinity Long WD Plan Achromatic Objective 80X(S)

YES

Mechanical Stage, 180mmx155mm; movement range: 80mmx50mm; with low-positioned X/Y coaxial control knob.

YES

Drop specimen holder(φ110)

YES

Specimen holder

YES

Quintuple Revolving Nosepiece

YES

Polarizer

YES

Analyzer

YES

Blue Filter(φ32)

YES

Yellow Filter(φ32)

YES

Green Filter(φ32)

YES

0.5X C Mount

YES

Metallurgical Micrometer(1/100mm)

YES

12V50W Osram Halogen

YES

250V/5A Φ5X20 Fuse

YES

Electrics for 12V50W Halogen

YES
