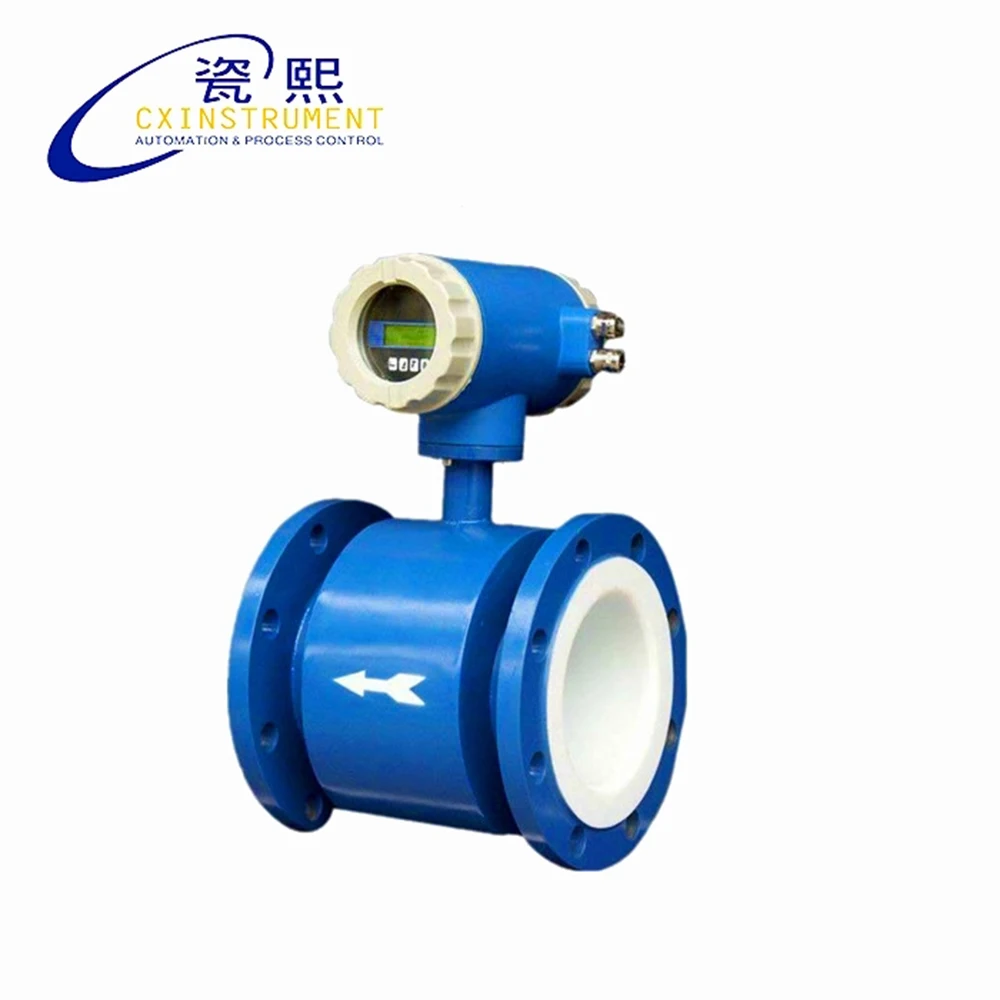

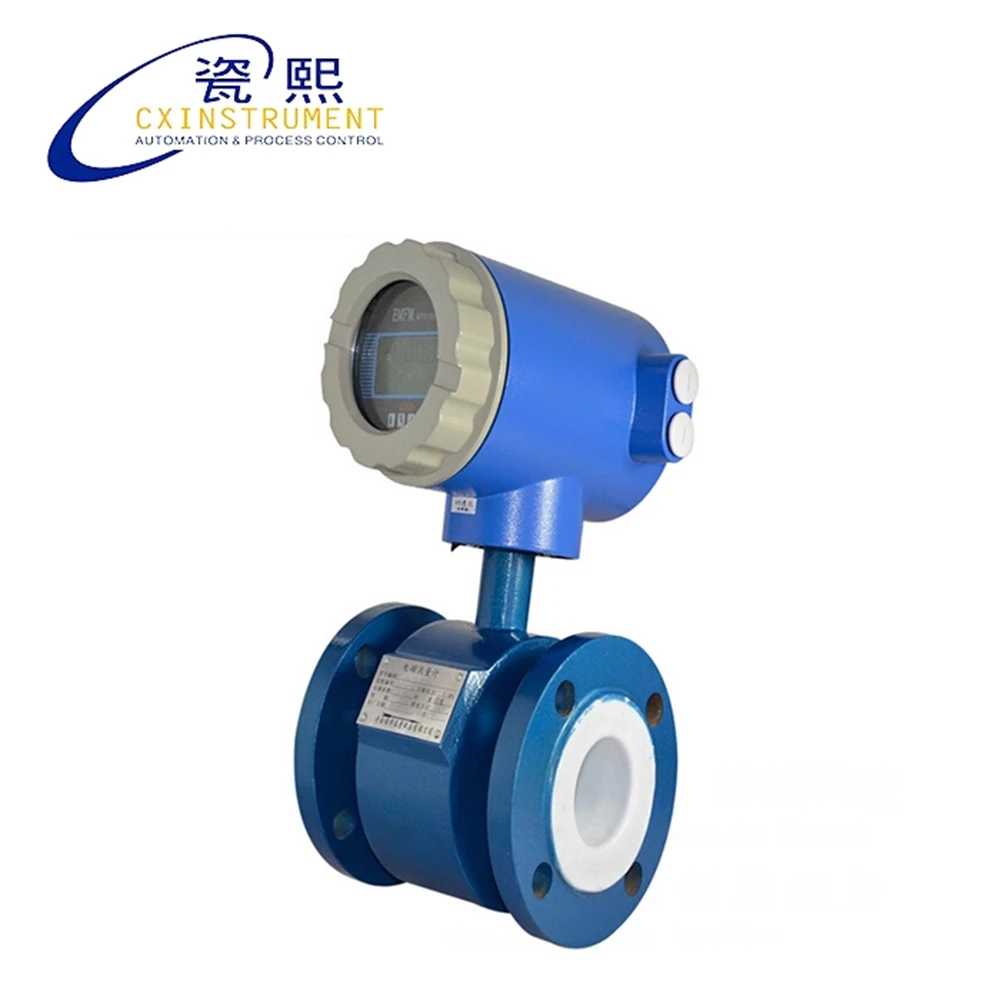

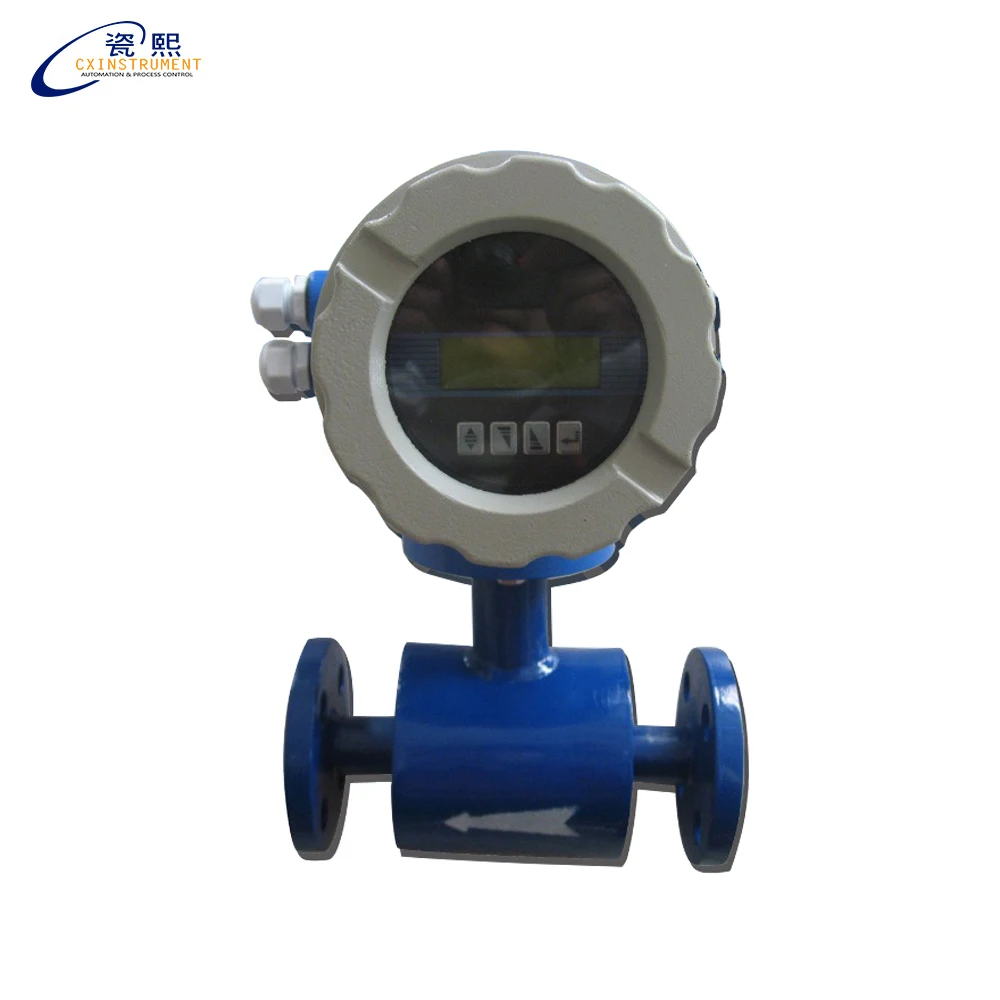

DN200 pipe size Cast iron material and 4~20mA Output electromagnetic flow instrument | Инструменты

DN200 pipe size Cast iron material and 4~20mA Output electromagnetic flow instrument | Инструменты

The Stainless steel 1...150 cm/s gasoline flow sensor

  CX-FS-FR11 series gasoline flow sensor,also known as differential thermal mass flow controller .The set range can be 1~20 m/s.Have repay output(230VAC.4A).Suitable for different kinds fluid.Concise and direct indicator,and with high reliable.

  Based on the principle of thermal theory,There are two resistances in the closed probe.One resistance was heated and regarded as detected tesistance,the other one was heated and regarded as standard resistance.When the medium is flowing,the heat on the heated resistnce will be taken away and the resistance'value will be changed.The differential resistance value is the basis of determining the flow velocity.

Techanical parameters

Skype:cixi_ru

Mobile phone(whatsapp):(86)18930776760

Pls send inquiry to email as watermark to get the best price.

1.it can measure all kinds of  electronic conductivity liquid, such as corrosive liquid , mud and slurry ,water etc.

2.The result cannot be affected by temperature, pressure, viscosity and density.

3.Flow sensor and intelligent converter compact or separately composes a complete flowmeter.

Main features

1.No move assembly, no abrasion

2.Measuring range rate: 1:100

3.No flow enhance equipment

4.Suits for various of electronic conductivity liquid

5.No affect from temperature, viscosity, pressure and density

6.Anti-corrosion

7.Measure both to and reverse flow

8.Huge display, easy operate

9.Long-term EEPROM to save data when lose power

10.Support MODBUS/HART communication protocol

11.Wide working volts range  or battery supply

12.Self diagnose

Technical parameters

Display

reaches 8 element liquid crystal display, current clock to indicate flow data. Units( m3 or L)

Structure

inserted style, compact type or separate type

medium

liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2

Range

0.05m/s~12m/s

Accuracy

range between 0.1m/s~10m/s can be 0.5%

DN

6mm~2000 mm

PN

PN6, PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420 optional

Output signal

4~20mA or frequency

Communication

RS485,support MODBUS protocol (not standard), support HART(option)

Connection

DN6~DN2000  flange connection

Connection standard

suits for all kinds of flange standard(eg:BS EN1092-1)

Standard

accuracy apply to EN1434-1:2003 standard

Protection grade

compact type for IP65,separately type for IP67or IP68(optional)

Power

AC86~230V or DC24V(optional)

Ambient temperature

5~55C

Ambient humidity

<85 % r.h (non condensation)

Workshop

Skype:cixi_ru

Mobile phone(whatsapp):(86)18930776760

Installation

Production line

Certificate

Pls check below parameters to raise formal quotation for you.thanks.

1) Where do you use it for ?

2) What’s the medium ?

3) What’s the flow range ?

4) What’s the connection size ?

5)  What’s the working temperature ?

After-sales service

1. Warranty: The warranty period is 12 months starting from the shipping date;

2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;

 4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Transportation
