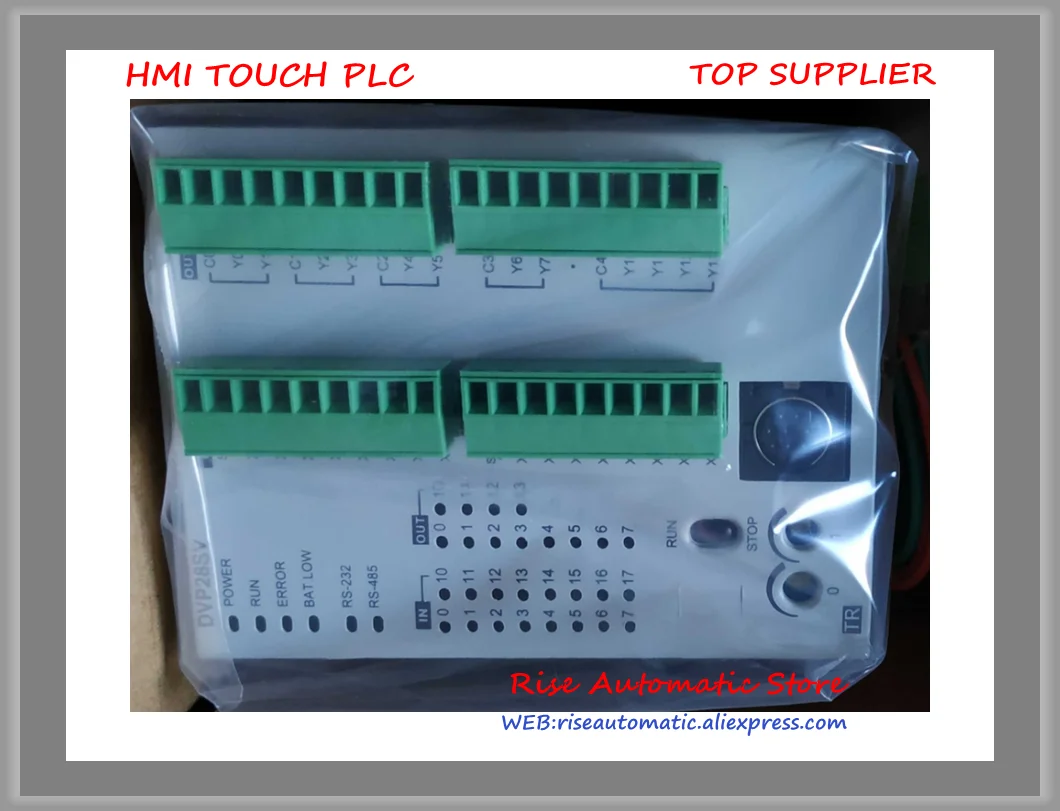

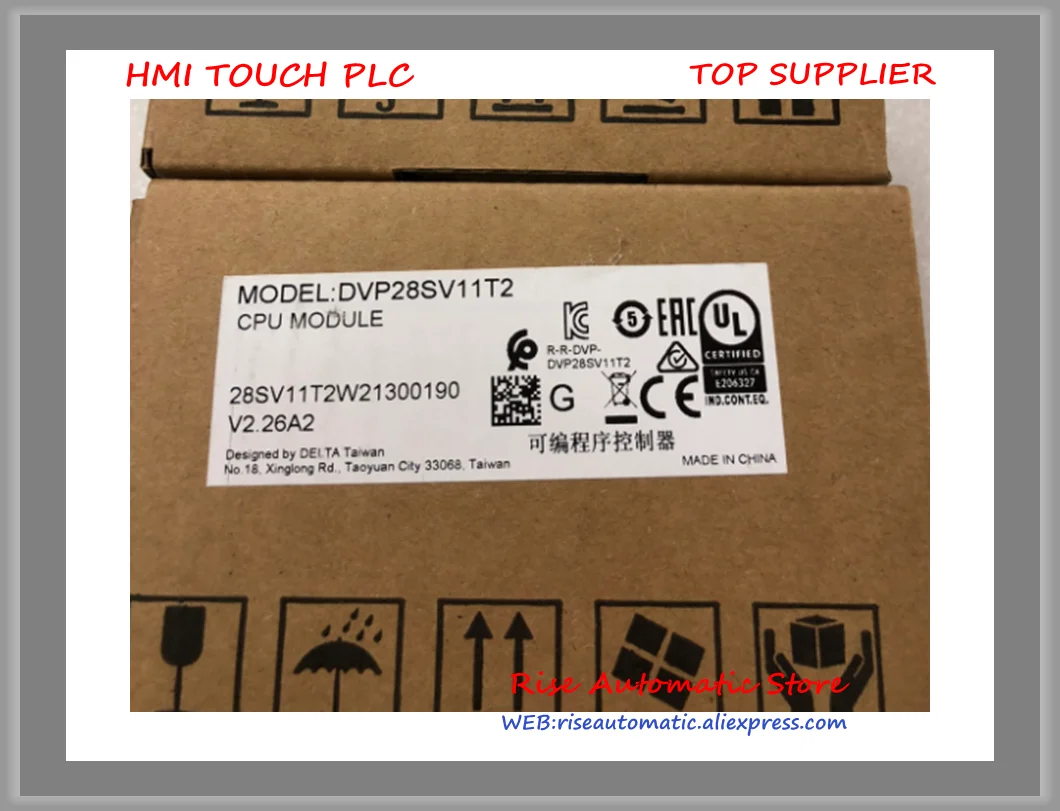

New Original PLC Module DVP28SV11S2 DVP28SV11T2 DVP28SV11R2 Controller |

New Original PLC Module DVP28SV11S2 DVP28SV11T2 DVP28SV11R2 Controller |

General introduction

The SV/SV2 is a 28-point (16 inputs + 12 outputs)/24-point (10 inputs + 12 outputs + 2 analog input channels) PLC

MPU, offering various instructions and with 16k (SV)/30k (SV2) steps program memory, able to connect to all Slim type series extension models, including digital I/O (max. 512 points), analog modules (for A/D, D/A conversion and temperature measurement) and all kinds of high-speed extension modules. 4 groups of high-speed (200 kHz) pulse outputs (and two axes which generate 10 kHz outputs in 24SV2) and 2 two-axis interpolation instructions satisfy all kinds of applications. DVP-SV/SV2 is small in size and easy to install.

Electrical Specifications

Model

Item

DVP28SV11R

DVP28SV11R2

DVP28SV11T

DVP24SV11T2

DVP28SV11T2

DVP28SV11S2

Power supply

voltage

24VDC (-15% ~ 20%) (with counter-connection on the polarity

of DC input power)

Inrush current

Max. 2.2A@24VDC

Fuse capacity

2.5A/30VDC, Polyswitch

Power

consumption

6W

Insulation

resistance

> 5M ohm (all I/O point-to-ground: 500VDC)

Noise immunity

ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge

EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV,

Analog & Communication I/O: 1kV

Damped-Oscillatory Wave: Power Line: 1kV, Digital I/O: 1kV

RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m

Grounding

The diameter of grounding wire shall not be less than that of the wiring terminal of the power. (When PLCs are in use at the same time, please make sure every PLC is properly grounded.)

Operation /

storage

Operation: 0ºC ~ 55ºC (temperature); 5 ~ 95% (humidity);

pollution degree 2

Storage: -25ºC ~ 70ºC (temperature); 5 ~ 95% (humidity)

Agency approvals

UL508

European community EMC Directive 89/336/EEC and Low Voltage

Directive 73/23/EEC

Vibration /

shock immunity

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)

Weight (g)

260

260

240

240

230

The communication cable, which connects Human Interface and PLC, isn't provided for free. If needed, please inform us of your HMI model, we will offer a best price.

Delta PLC programming software:ISPSoft V2.04 (196MB),Editing software for DVP series and AH500 series (Multilingual)
Note: please use with COMMGR for communication function

Operating System: 2000, XP, Vista or 7(32-bit/64-bit)

if necessary, to provide free

General introduction

The SV/SV2 is a 28-point (16 inputs + 12 outputs)/24-point (10 inputs + 12 outputs + 2 analog input channels) PLC

MPU, offering various instructions and with 16k (SV)/30k (SV2) steps program memory, able to connect to all Slim type series extension models, including digital I/O (max. 512 points), analog modules (for A/D, D/A conversion and temperature measurement) and all kinds of high-speed extension modules. 4 groups of high-speed (200 kHz) pulse outputs (and two axes which generate 10 kHz outputs in 24SV2) and 2 two-axis interpolation instructions satisfy all kinds of applications. DVP-SV/SV2 is small in size and easy to install.

Electrical Specifications

Model

Item

DVP28SV11R

DVP28SV11R2

DVP28SV11T

DVP24SV11T2

DVP28SV11T2

DVP28SV11S2

Power supply

voltage

24VDC (-15% ~ 20%) (with counter-connection on the polarity

of DC input power)

Inrush current

Max. 2.2A@24VDC

Fuse capacity

2.5A/30VDC, Polyswitch

Power

consumption

6W

Insulation

resistance

> 5M ohm (all I/O point-to-ground: 500VDC)

Noise immunity

ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge

EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV,

Analog & Communication I/O: 1kV

Damped-Oscillatory Wave: Power Line: 1kV, Digital I/O: 1kV

RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m

Grounding

The diameter of grounding wire shall not be less than that of the wiring terminal of the power. (When PLCs are in use at the same time, please make sure every PLC is properly grounded.)

Operation /

storage

Operation: 0ºC ~ 55ºC (temperature); 5 ~ 95% (humidity);

pollution degree 2

Storage: -25ºC ~ 70ºC (temperature); 5 ~ 95% (humidity)

Agency approvals

UL508

European community EMC Directive 89/336/EEC and Low Voltage

Directive 73/23/EEC

Vibration /

shock immunity

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)

Weight (g)

260

260

240

240

230

Features

The left-side parallel high speed extension interface on SV series is able to connect to all kinds of network interface, e.g. Ethernet, DeviceNet, ProfiBus, analog and temperature modules for the demand of immediate control. 16 special extension modules (digital, analog, axis control, communication, etc.) are connectable to SV series (8 on the left and 8 on the right). The built-in 200KHz 4-axis independent pulse output and the featured 2 groups of linear/arc interpolation motion control instructions offer an easy positioning control solution.

Specifications

MPU points: 28

Max. I/O points: 512

Program capacity: 16K Steps

Instruction execution speed: 0.24μS (basic instruction)

Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.

Data register: 10,000 words

File register: 10,000 words

High-speed pulse output: Supports 4-point (Y0, Y2, Y4, Y6) high-speed pulse output, 2-group (Y0, Y1) (Y2, Y3) A/B phase pulse output and 2-group (Y0 ~ Y3 & Y4 ~ Y7) 2-axis interpolation. All outputs can reach 200KHz.

Built-in 4 groups of hardware high-speed counters

*Bandwidth refers to the max. counting range of a single counter.

 Applications

2-axis servo positioning control, material cutting machine (high-speed servo control), main hoist of crane, material clip controlled by servo, equipments in the optoelectronics industry, semiconductor industry, textile industry, energy saving activities and automation in buildings.

Features

Thank you for choosing Delta DVP-SV #1 /DVP-SV2 #1. The SV/SV2 is a 28-point (16 input + 12 output) PLC MPU, offering various instructions and with 16k(SV)/30k(SV2) steps program memory, able to connect to all Slim type series extension models, including digital I/O (max. 512 points), analog modules (for A/D, D/A conversion and temperature measurement) and all kinds of high-speed extension modules. 4 groups of high-speed (200kHz) pulse output and 2 two-axis interpolation instructions satisfy all kinds of applications. DVP-SV/SV2 is small in size and easy to install.

Note #1: DVP28SV11R/T is represented by SV, and DVP28SV11R2/T2/S2 is represented by SV2.

Specifications

1.        SV series

l  MPU points: 28

l  Max. I/O points: 512

l  Program capacity: 16K Steps

l  Instruction execution speed: 0.24μS (basic instruction)

l  Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.

l  Data register: 10,000 words

l  File register: 10,000 words

l  High-speed pulse output: Supports 4-point (Y0, Y2, Y4, Y6) high-speed pulse output, 2-group (Y0, Y1) (Y2, Y3) A/B phase pulse output and 2-group (Y0 ~ Y3 & Y4 ~ Y7) 2-axis interpolation. All outputs can reach 200KHz.

l  Built-in 4 groups of hardware high-speed counters

Standard

Hardware high speed counter

1 phase 1

1 phase 1

1 phase 2

2 phase 2

Group

6

2/2

#Bandwidth

10KHz

200KHz/20KHz

Input point

X0-X5

X0 ~ X7/X10 ~ X17

#Bandwidth refers to the max. counting range of a single counter.

2.        SV2 series

l  High-speed pulse output: 4 sets of 200kHz pulse output

l  Supports max. 4 hardware 200kHz high-speed counters

l  Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning

l  Offers linear / arc interpolation motion control

l  Provides up to 16 external interrupt pointers

Complete Program

l  Auto backup function to prevent losing programs and data even when the battery runs out

l  Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged

l  Up to 4-level password protects your source programs and intellectual property

Supports DVP-S series left-side and right-side modules

     Add new ETHRW instruction for Ethernet communication

Electrical Specifications

MModel

Item

DVP28SV11R

DVP28SV11R2

DVP28SV11T

DVP28SV11T2

DVP28SV11S2

Power supply voltage

24 VDC (-15 to 20%) (with counter-connection on the polarity of DC input power)

Inrush current

Max. 2.2 A@24 VDC

Fuse capacity

2.5 A/30 VDC, Polyswitch

Power consumption

6W

Insulation resistance

> 5 M Ω (all I/O point-to-ground: 500 VDC)

Noise immunity

ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge

EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV,

Analog & Communication I/O: 1kV

Damped-Oscillatory Wave: Power Line: 1kV, Digital I/O: 1kV

RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m

Grounding

The diameter of grounding wire shall not be less than that of the wiring

terminal of the power. (When PLCs are in use at the same time, please

make sure every PLC is properly grounded.)

Operation / storage

Operation: 0 to 55°C (temp.), 50 to 95% (humidity), Pollution degree 2

Storage: -25 to 70°C (temp.), 5 to 95% (humidity)

Agency approvals

UL508

European community EMC Directive 89/336/EEC and Low Voltage

Directive 73/23/EEC

Vibration / shock resistance

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)

Weight (g)

260

260

240

240

230

Input Point

Spec.

Items

24VDC single common port input

200kHz

20kHz

10kHz

Input No.

X0, X1, X4, X5

X10, X11, X14, X15

X6, X7, X12, X13,

X16, X17

Input voltage (±10%)

24VDC, 5mA

Input impedance

4.7kΩ

3.3kΩ

4.7kΩ

Action level

OffàOn

> 4mA (16.5V)

> 6mA (18.5V)

> 4mA (16.5V)

OnàOff

< 1.5mA (8V)

< 2.2mA (8V)

< 1.5mA (8V)

Response

time

OffàOn

OnàOff

< 150ns

< 3.5μs

< 8μs

< 3μs

< 20μs

< 60μs

Filter time

Adjustable within 10 ~ 60ms by D1020, D1021 (Default: 10ms)

Output Point

        Spec.

Items

Relay

Transistor

High-speed

Low-speed

Output No.

Y0 ~ Y7, Y10 ~ Y13

Y0 ~ Y4, Y6

Y5, Y7, Y10

~ Y13

Y14 ~ Y17,

Y20 ~  #1

Max. frequency

1Hz

200kHz

10kHz

1kHz

Working voltage

250VAC, < 30VDC

30VDC #2

Max.load

Resistive

1.5A/1 point (5A/COM)

0.3A/1 point @ 40°C

Max. load

Inductive

#3

9W (30VDC)

Lamp

20WDC/100WAC

1.5W (30VDC)

Response

time

OffàOn

Approx. 10ms

0.2μs

20μs

<100μs

OnàOff

0.2μs

30μs

<100μs

#1: Please refer to “I/O Terminal Layout” for the max. X/Y No. on each model.

#2: UP and ZP must be connected to a 24VDC (-15% ~ +20%) power supply. The rated

consumption is 10mA/point.

#3: Life curves
