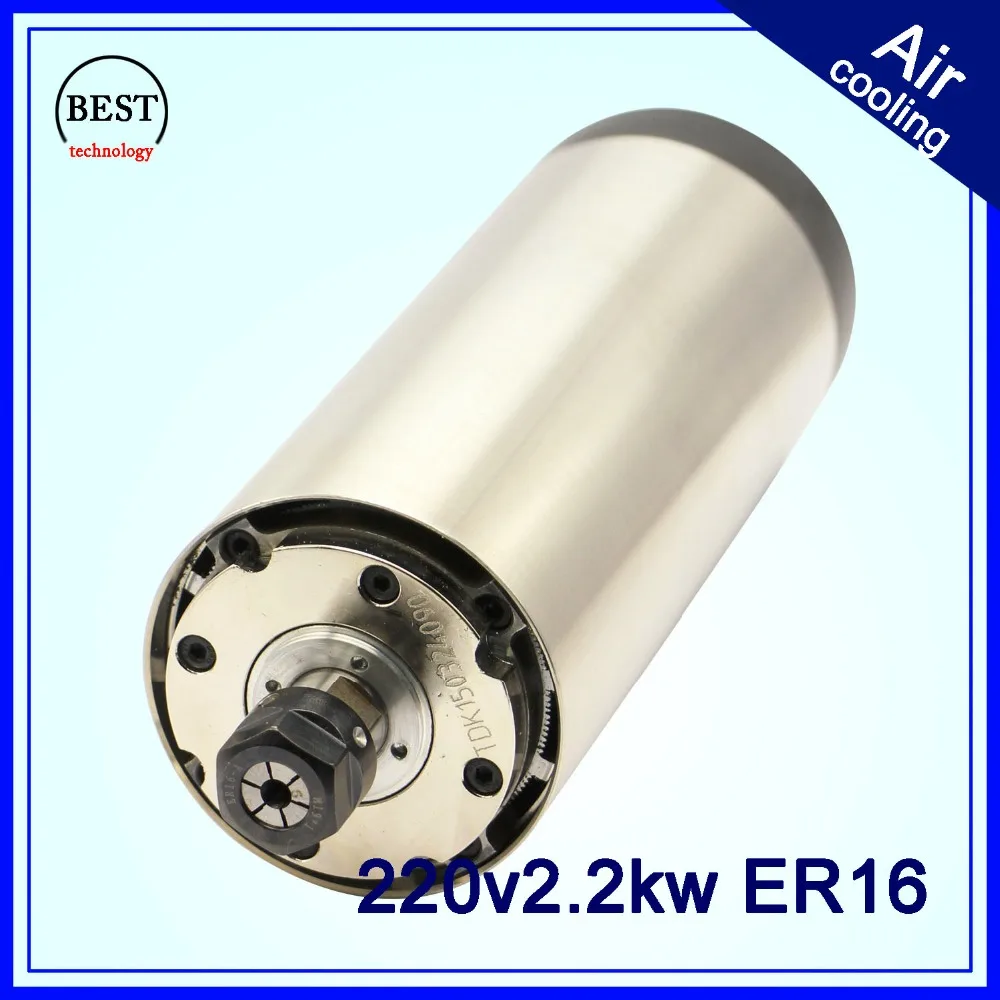

1 PCS X 220VAC 2.2KW ER16 Air Cooled Spindle Motor  New Design

New Design:

Basic parameters :

Size: 80x203mm(Middle body diameter:80mmxLength:203mm)

Material: Stainless steel jacket, copper coil.

Speed Ways: Through the inverter output voltage and adjust the operating frequency can be achieved 0-24000 stepless.

Cooling: Air cooling mode

Power Interface: Optional H20 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground

Power: 2.2KW

Voltage: 220V

Current: 10 A

Frequency: 0-400Hz

Speed: 0-24000rpm

Coaxial degree: 0.0025mm

Runout Off: 0.01mm

Diameter(mm): 80mm

Bearing Type: 4 bearing,P4 grade ,Angular contact bearings, 2X7004C P4 DT and 2X7002C P4 DT

Collet: ER16

Air Cooling ER16 collet chunk

Grease Lubrication

Main Application: Engraving for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.

Preparations before use

Use correctly

Care and maintenance :

Spindle frequency power supply connected rated voltage, frequency should be consistent with the technical parameters of the electro-spindle, spindle speed can be adjusted to change the frequency, and voltage is proportional to the change.

Spindle being not used, the application of compressed air to blow the pipes static coolant.To prevent rust, clogging water holes. Spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.

To replace the spindle bearings, certain professional and technical personnel should be replaced.Supporting special tools, bearings should be replaced fully cleaned without removing the stator coils.

Advantage:

Bearing is P4 grade,2×7004C P4 DT &2×7002C P4 DT,increase spindle life

High speed,high torque,low noise,low price.

High precision,runout  off less than 0.01mm.Coaxial degree less than 0.0025mm.
