FPV Combo System  5.8Ghz 600mw boscam Transmitter and Receiver and No blue HD monitor  Set for Gopro Dji Phantom   RC MultiCopter

5.8Ghz 600mW Boscam transmitter TS832 and receiver RC832 description:

Boscam has forged a reputation of quality and reliability and has been tested and developed by FPV pilots for FPV pilots.

The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 48 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 21g, it’s Perfect for a wide range of aircraft!

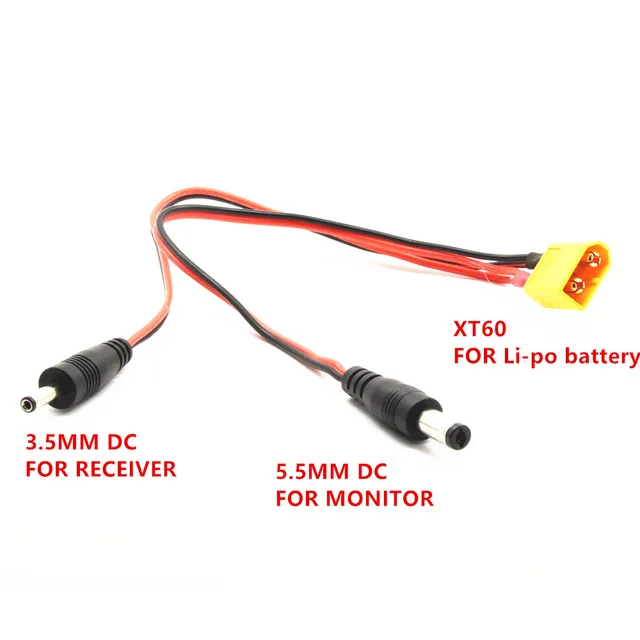

The RC832 plus Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn’t get any simpler than this.

*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory’s tab

Features:
• 48 channels: Cover A, B, E,F,H bands and L bands
• Two switching buttons for the band and channel
• Two digits display for  the band and channel
• Power off memory for last channel and band
• dual Independent video and audio signal outputs

Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)

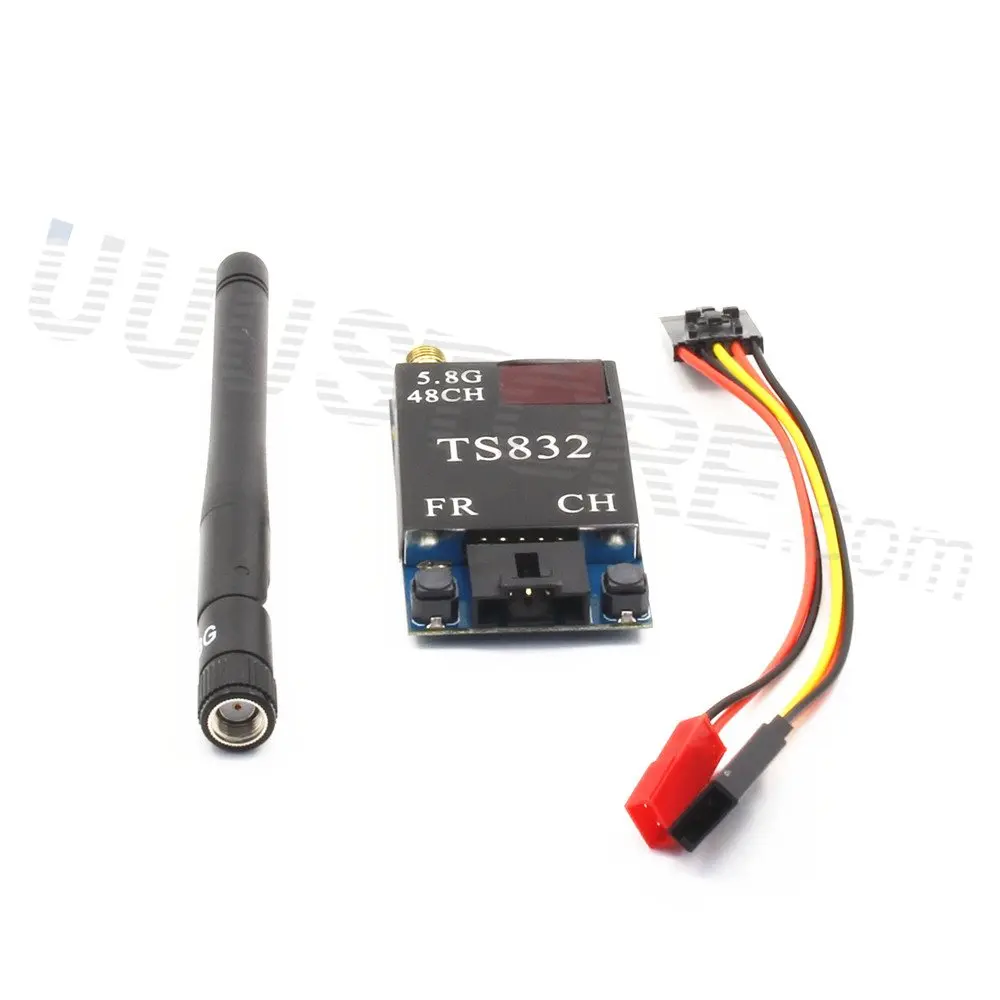

Transmitter TX TS832 specs:
Power input: DC 11.1V (3S battery)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 220mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 21g
Dimension: 54x 32x 10mm(excluding antenna)

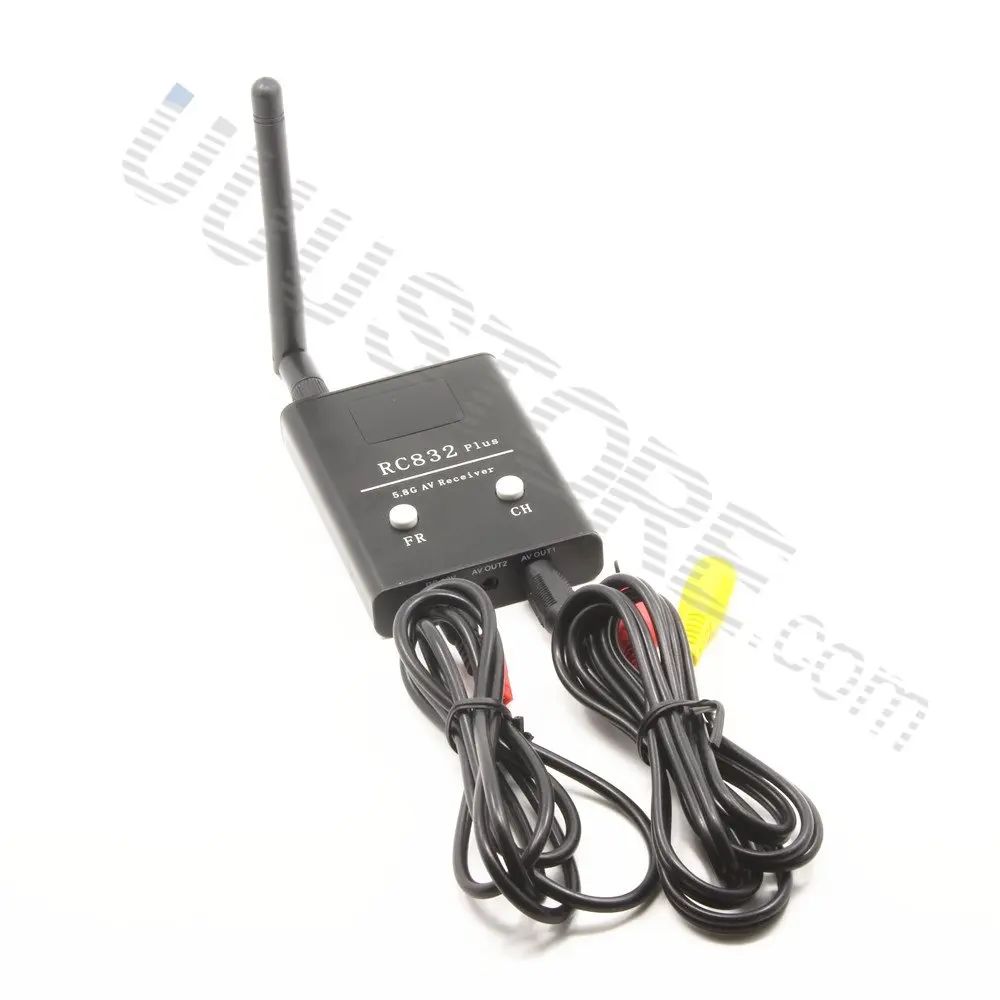

Receiver RX RC832 specs:
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g


Frequency range:

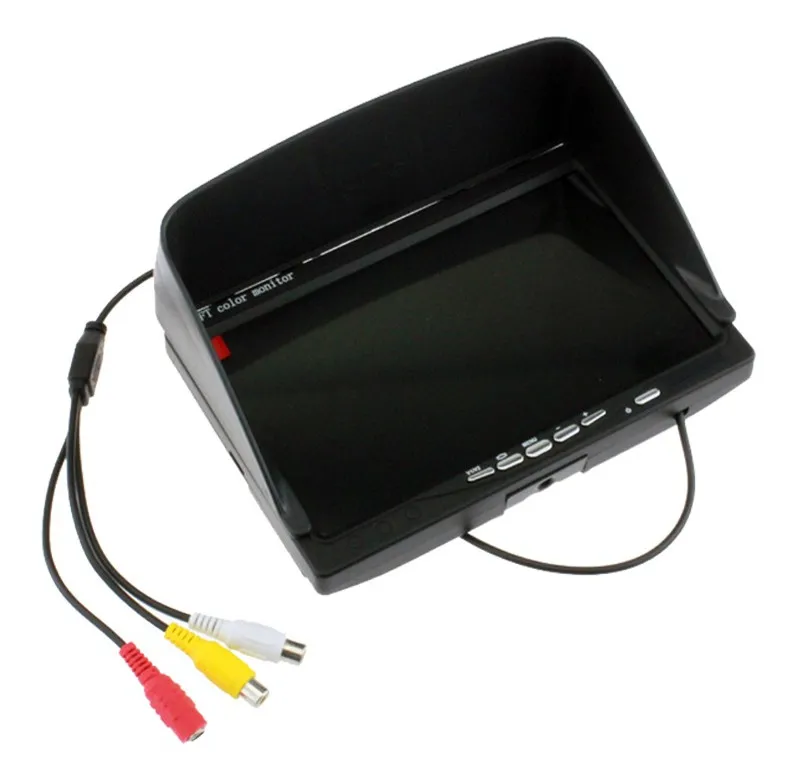

800x480 No Blue HD Monitor with sunshade description:it does not switch to the ''blue screen'' when the signal gets weak. (it is very important for FPV)
