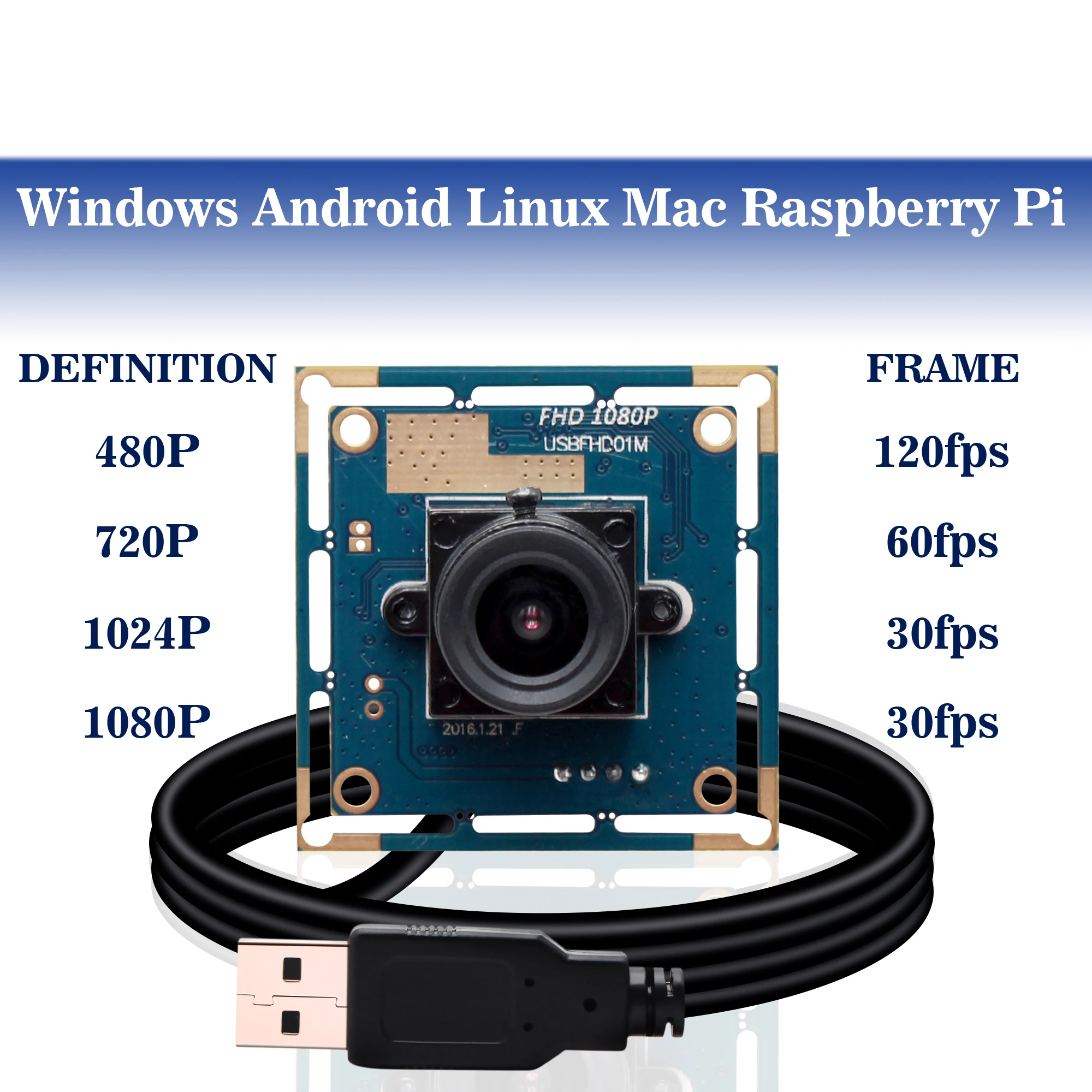

The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security
systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
OmniVision, one of the world leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

*High Speed1080PHD USB Camera
*Equiped with 8mmlens
*Can drive30fps@1080Pand60fps@720p
*CMOS 1080P sensor for high quality image and low power consumption.
*High speedUSB 2.0 interfacefor high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.

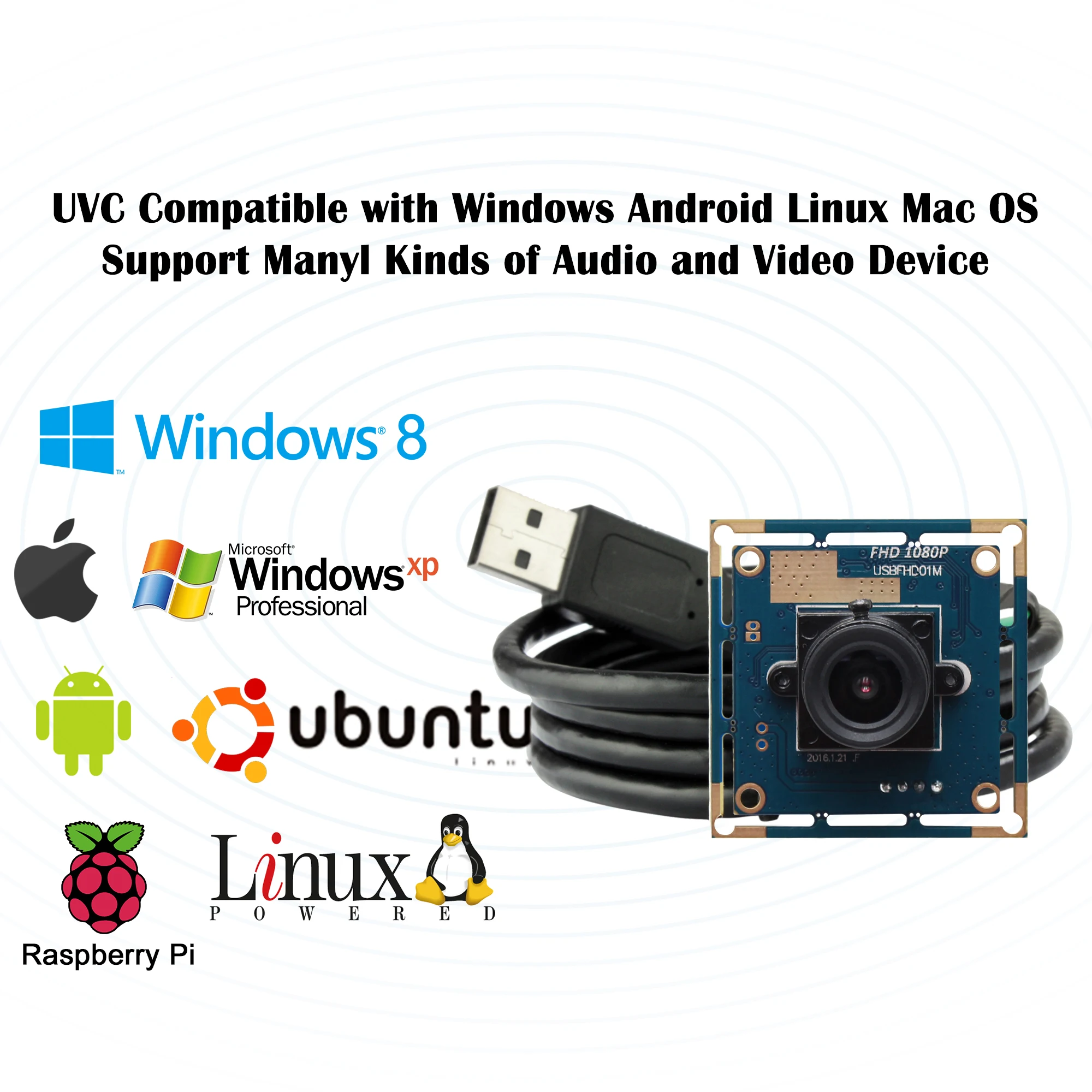

*UVC for use inLinux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Optional models

ELP-USBFHD01M-L80

Sensor

1/2.7" CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG /YUY2 optional

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps
1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps
800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps
640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps
352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps
320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

30-150 degree optional

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
