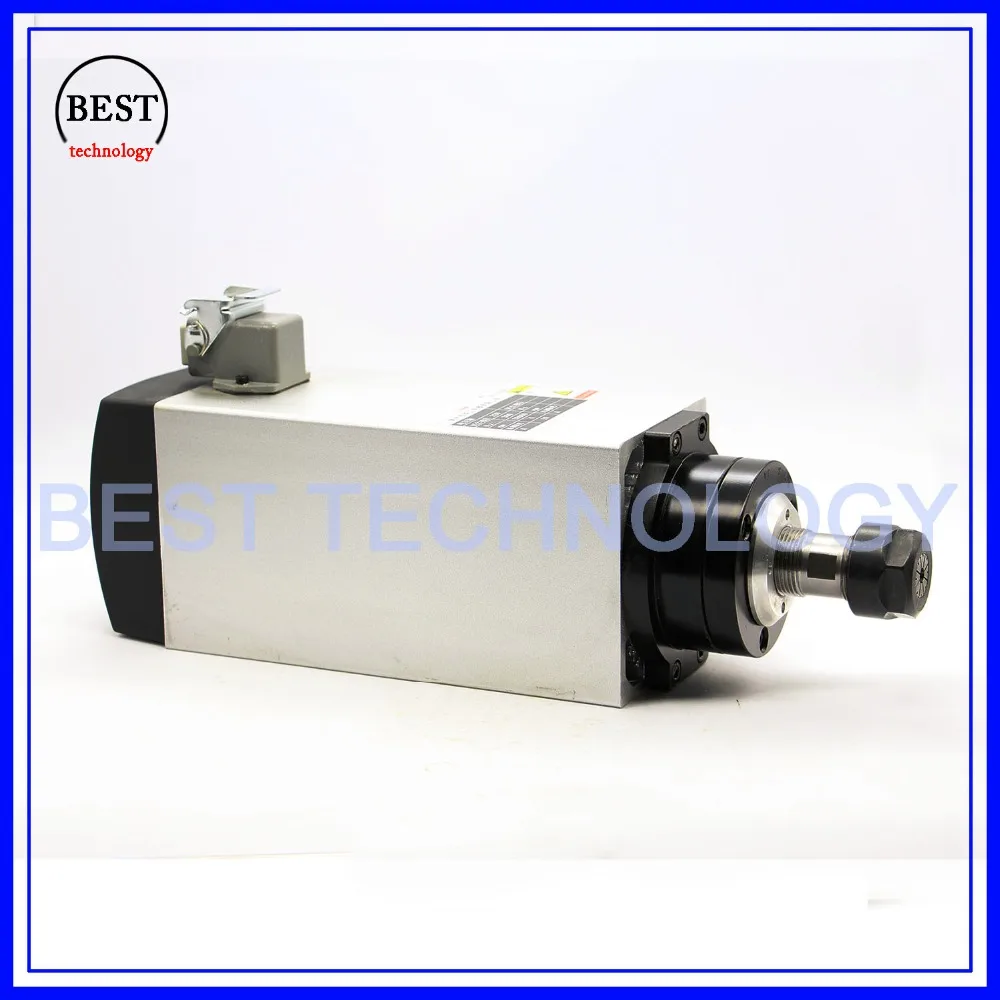

1pcs -- 220v AC 4 KW ER20 Air Cooled Square Spindle Motor

If you need 380v,pls contact us,tks.

Basic parameters:

Size: 88x310mm(Middle body diameter:88mmxLength:310mm)

Material: Stainless steel jacket, copper coil.

Speed Ways: Through the inverter output voltage and adjust the operating frequency can be achieved 0-18000 stepless

Cooling: Air cooling mode

Power Interface: Optional GX16 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground

Power: 4KW

Voltage: 220V -280v(220v or 380v)

Current: 12A

Frequency: 0-300Hz

Speed: 0-18000rpm

Runout off: 0.003-0.005mm

Diameter(mm): 88

Bearing Type: 4 bearing,P4 grade ,Angular contact bearings, 2X7005C P4 DT and 2X7003C P4

Collet: ER20

Clip Knifediameter: 3.175mm,4mm,6mm,8mm,10mm,12.7mm

Air Cooling ER20 collet chunk

Grease Lubrication

  Main Application:   Engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.

Advantage:

Bearing is P4 grade,2×7005C P4 DT &2×7003C P4 DT,Increase spindle life

High speed,high torque,low noise,low price.

High precision,runout  off less than 0.01mm.Coaxial degree less than 0.0025mm

Shipment within four days,there is no fake tracking number,make sure that you receive time

Structural features :

High-speed electric main bearings used in all C class high-speed angular contact ball bearings, axial pre-load feature, improved support stiffness and live spindle grinding accuracy under high-speed rotation.

Spindle speed according to different uses can be high-speed grease and oil mist lubrication two ways.

Spindle speed rotation temperature rise caused by the use of coolant circulation system eliminated.

Care and maintenance :

Spindle frequency power supply connected rated voltage, frequency should be consistent with the technical parameters of the electro-spindle, spindle speed can be adjusted to change the frequency, and voltage is proportional to the change.

Spindle being not used, the application of compressed air to blow the pipes static coolant. To prevent rust, clogging water holes. Spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.

To replace the spindle bearings, certain professional and technical personnel should be replaced. Supporting special tools, bearings should be replaced fully cleaned without removing the stator coils.

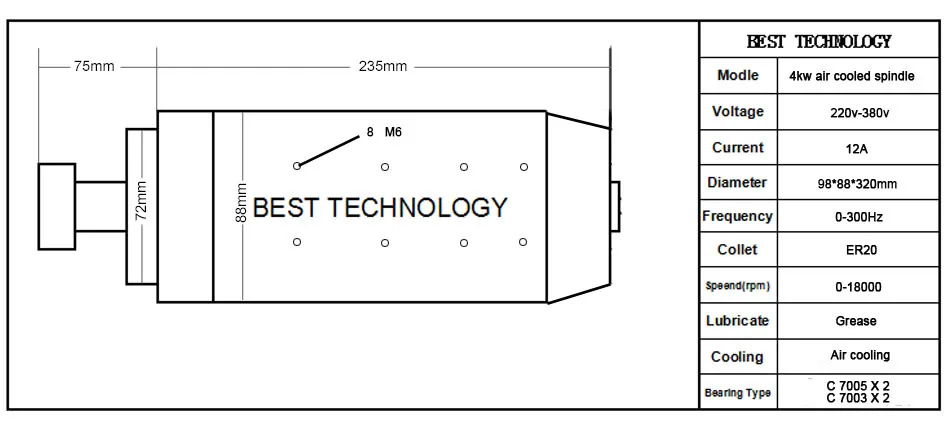

                        PARAMETER (AIR COOLED SPINDLE)

Spindle production process

Shipping terms:

Our products are sold worldwide.

But if your country is more difficult to transport goods, please contact us in advance to confirm shipping cost.

Payment:

We accept paypal credit, bank transfer, western union etc.

Payment must be made within 7days calendar days of the auction end time.

Problem and Feedback:

Please give us the opportunity to resolve any problem, we will try our best to help you.

Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.

Thanks very much in advance.

 Refund:

If you are not satisfied with our package like the products is damage, please do not sign it and contact us immediately.

If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.

Note:

We can produce the product according to our customer's design.

If you need something is very special, please contact us about it.
