HDMI to VGA with 3.5mm Jack Audio Cable Video Converter Adapter For Xbox 360 PS3 PC Laptop DVD 50pcs/lot |

HDMI to VGA with 3.5mm Jack Audio Cable Video Converter Adapter For Xbox 360 PS3 PC Laptop DVD 50pcs/lot |

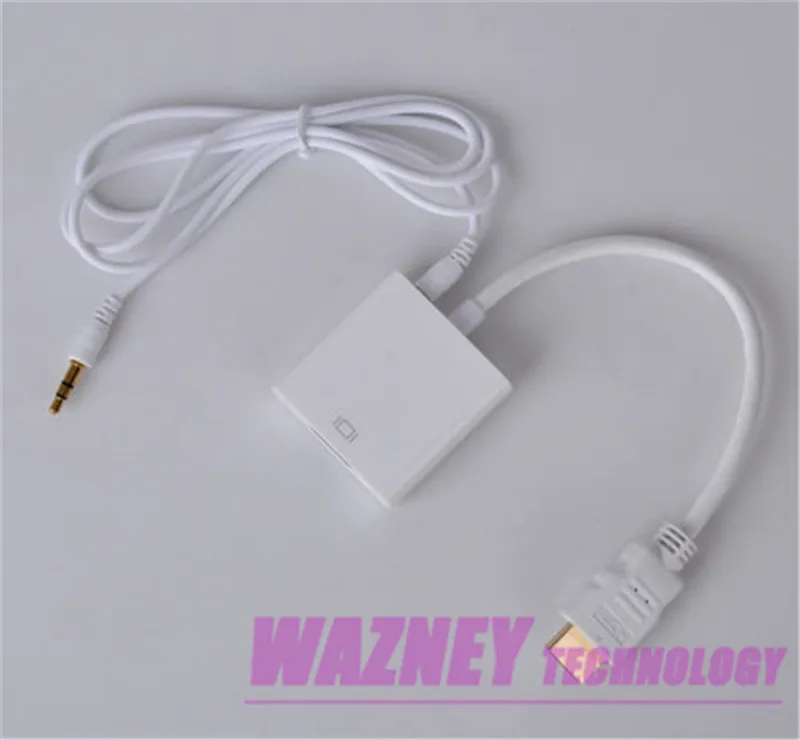

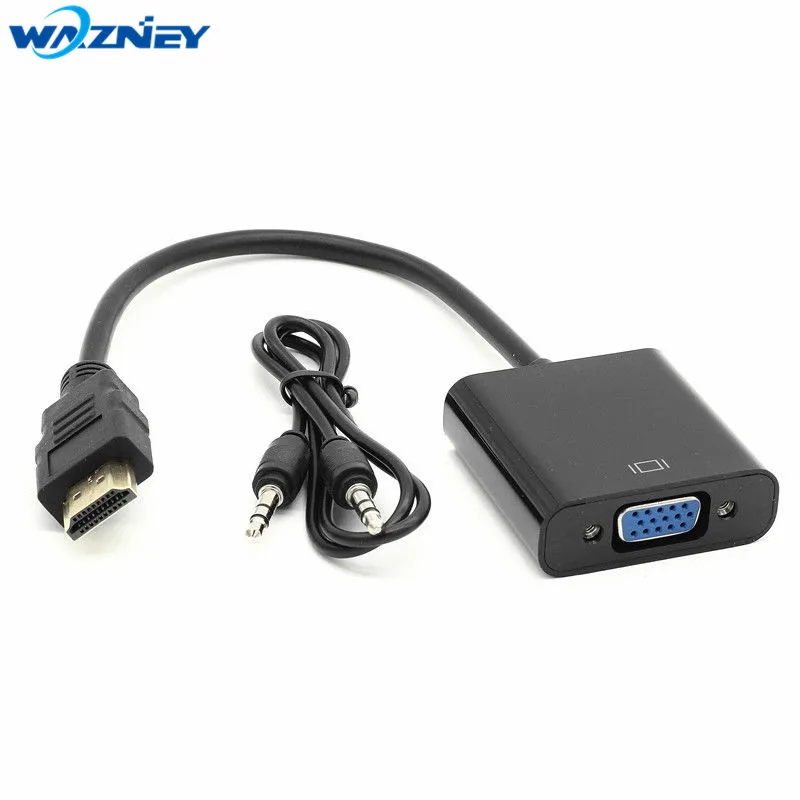

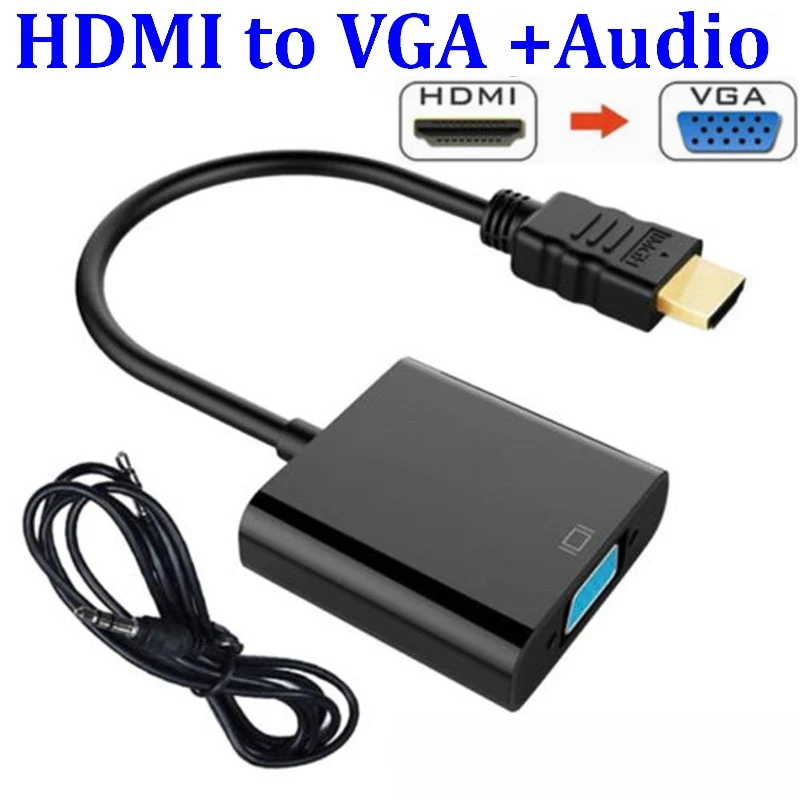

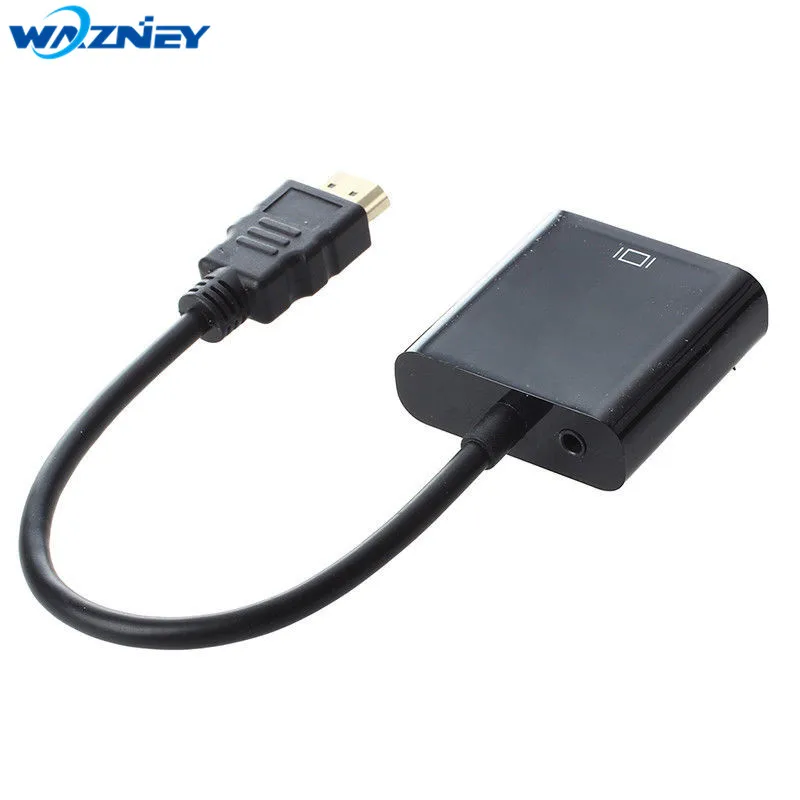

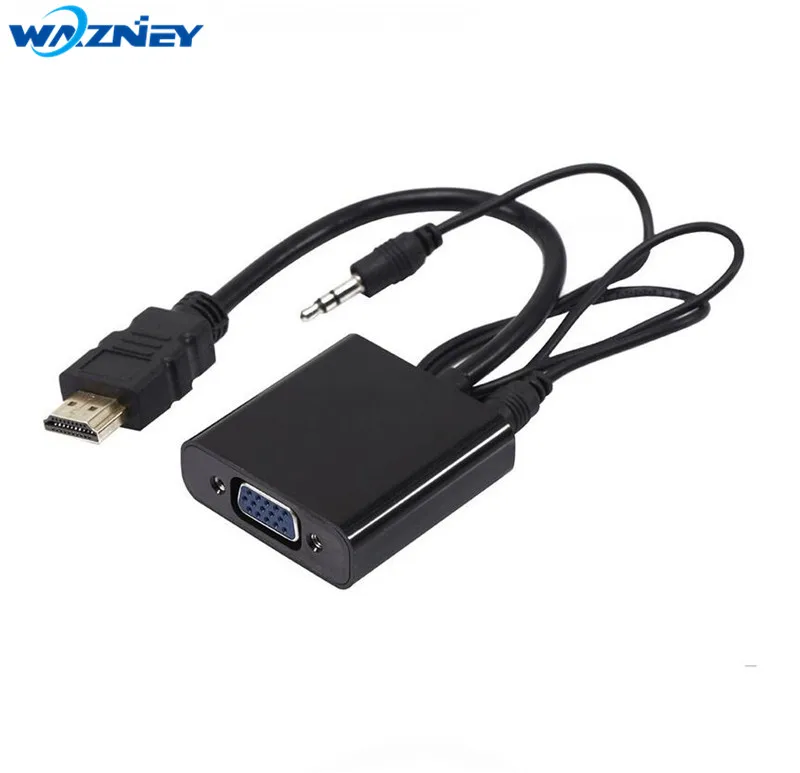

 This HDMI to VGA adapter allows you to connect your computer, DVD Player, Raspberry Pi, Digital set-top box , A pple TV, XBOX, PS3 to your TV, Monitor or Projector with VGA interface.

• It supports output up to 720p, 1080p and mirrored on a big screen.
• The adapter has a 3.5mm jack audio port, package includes 3.5mm jack audio cable to connect the adapter to the TV, R/L speaker, sound box.

• THIS CABLE WILL ONLY Convert Signal from HDMI to VGA,  IT CAN NOT convert signal from VGA to HDMI.
PC/X box/PS 3/DVD, etc. require a HDMI port for OUTPUT, and the TV/Monitor/Projector require a VGA port for INPUT.

Please check your devices before you buy.

Features:

- Designed For Use With Computer, Laptop, DVD, Apple TV, Raspberry Pi, XBOX, PS3, STB, etc.
- Built-in digital chipset, convert HDMI digital signal to VGA analog signal, can not convert from VGA to HDMI.
- Comes with 3.5mm audio jack cable.
- Supports video resolution up to FULL HD 1080p.
- Support HDCP 1.0/1.1/1.2/1.3/1.4.
- Support sound output via 3.5mm jack audio port.

- No external power supply required, simply plug and play!

Specifications:

• Colour: Black
• Input connector: Standard HDMI Male Type A x1
• Output connector: Standard 15Pin VGA Female x1, 3.5mm Jack Audio x1.
• Ouput Audio: R/L 2channel
• Power Mode: Portable devices
• HDMI input: 480i/576i/480p/576p/720p/1080i/1080p
• VGA output: 480i/576i/480p/576p/720p/1080i/1080p (1920x1080/60Hz)

Notes:

-  If you want to convert VGA signal to HDMI signal, please buy the " VGA to HDMI converter ".
-  To Raspberry PI customers who want to use this adaoter for Raspberry Pi, please follow instructions below:

There's a text file on the SD card that must be used to boot up a RPi, called "config.txt"
In there are 2 lines which are commented out normally, like this

#hdmi_group=1
#hdmi_mode=1

Just remove those 2 # symbols, then RPi will boot up fine with this adapter,
but it may be a relatively low resolution, say 800 * 600.
Once established it's working.
you can tried uncommenting 2 more lines

framebuffer_width=1280
framebuffer_height=720

to 1024 & 768 which worked ok with an monitor you want to use with RPi.
Several other combinations "work", It all depends on the monitor or tv being connected.

Each product Package Include:
