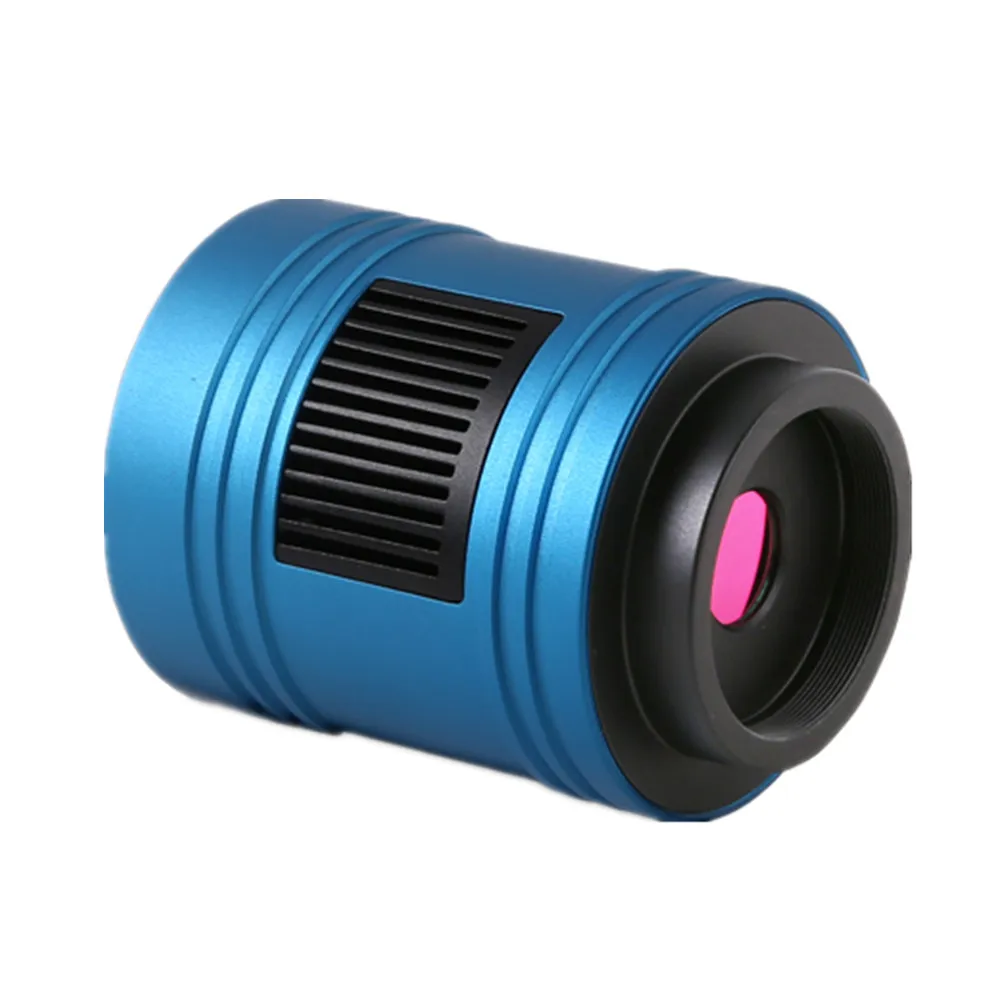

G3CMOS camera is an Astronomy camera that adopts SONY Exmor, Exmor R and Exmor RS CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface. High sensitivity and low noise to achieve the CCD quality image is the most well-known advantages of G3CMOS series cameras.

G3CMOS camera’s hardware resolutions range from 2.3M to 20M and come with the integrated CNC aluminum alloy compact housing.

G3CMOS camera comes with advanced video & image processing application (for astronomy application); which providing Windows/Linux/ OSX multiple platforms SDK and Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The G3CMOS camera family can be widely used in astronomy application due to their outstanding performance.

The G3CMOS ’ basic characteristic of G3CMOS camera is as follows:

l SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;

l Super high sensitivity;

l Ultra low noise and low power dissipation by using column-parallel A/D conversion;

l Rolling shutter or global shutter CMOS sensor;

l Resolutions range from 2.3M to 20M;

l External fan cooling, controllable;

l Unique internal cooling structure to help heat radiation;

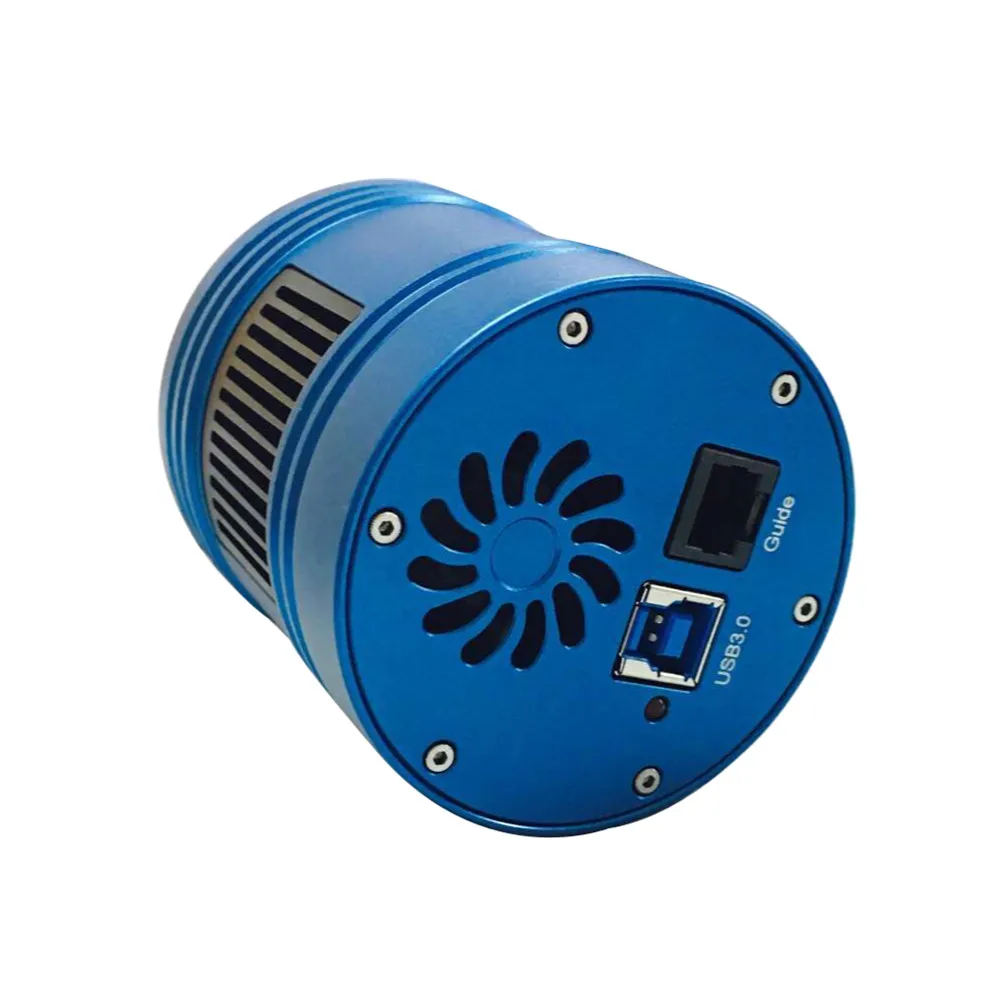

l Guiding port for mount guiding;

l Standard M42+1.25” mount camera;

l CNC aluminum alloy housing;

l Real-time 8/12/14/16bit depth switch(depending on sensor);

l Long time exposure supported up to 1000s;

l USB3.0 5 Gbps interface ensuring high frame rates;

l With advanced video & image processing application;

l Providing Windows/Linux/Mac OS multiple platforms SDK;

l Native C/C++, C#/VB.NET/VB.Net, DirectShow, Twain, LabView;

Order Code

Sensor& Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

G3CMOS20000KPA
GP12000A

20M/IMX183(C)
1 “(4.8x3.6)

2.4 x2.4

462mv with 1/30s
0.21mv with 1/30s

17.5@5440x3648

26@2736x1824

26@1824x1216

1x1,
2x2,

3x3

0.1ms~1000s

G3CMOS01200KPA

GP101200A

1.2M/IMX224(C)

1/3”(6.09mm)

3.75x3.75

2350mv with 1/30s
0.15mv with 1/30s

120@1280x960

240@640x480

1x1

2x2

0.244~1000s

G3CMOS02300KMC

GM102300C

2.3M/IMX174(M,GS)
1/1.2” (13.4mm)

5.86x5.86

1016mv with 1/30s
0.15mv with 1/30s

30@1920x1200

1x1

0.244~1000s

G3CMOS06300KPA
GP106300A

6.3M/IMX178(C)
1/1.8” (8.92mm)

2.4x2.4

425mv with 1/30s
0.15mv with 1/30s

51@3072 x2048
35@1536 x 1024

1x1

2x2

0.244~1000s

G3CMOS06300KMA
GM106300A

6.3M/IMX178(M)
1/1.8” (8.92mm)

2.4x2.4

380mv with 1/30s
0.15mv with 1/30s

51@3072 x2048
35@1536 x 1024

1x1

2x2

0.244~1000s

G3CMOS16000KPA
GP116000A

16M/MN34230PLJ(C)
4/3“ (17.6x13.3)

3.8x3.8

2413LSB

89.1LSB

(Gain = 0dB)

22.5@4648x3506
43.0@2304x1750
48.0@1536x1168

1x1

2x2

3x3

0.06ms~1000s

G3CMOS16000KMA
GM116000A

16M/MN34230ALJ(M)
4/3“ (17.6x13.3)

3.8x3.8

2650LSB

89.1LSB

(Gain = 0dB)

22.5@4648x3506
43.0@2304x1750
48.0@1536x1168

1x1

2x2

3x3

0.06ms~1000s

C: Color; M: Monochrome; GS: Global Shutter

Other Specificationfor G3CMOS Camera

Spectral Range

Depends on the response of sensor (with cover glass, default configuration)

380-650nm (with IR-cut Filter, optional)

White Balance

ROI White Balance/ Manual RGB Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTMColor Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Electric fan

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft®Windows®XP / Vista / 7 / 8 / 10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port: USB3.0 High-speed Port

Display: 17” or Larger

CD-ROM

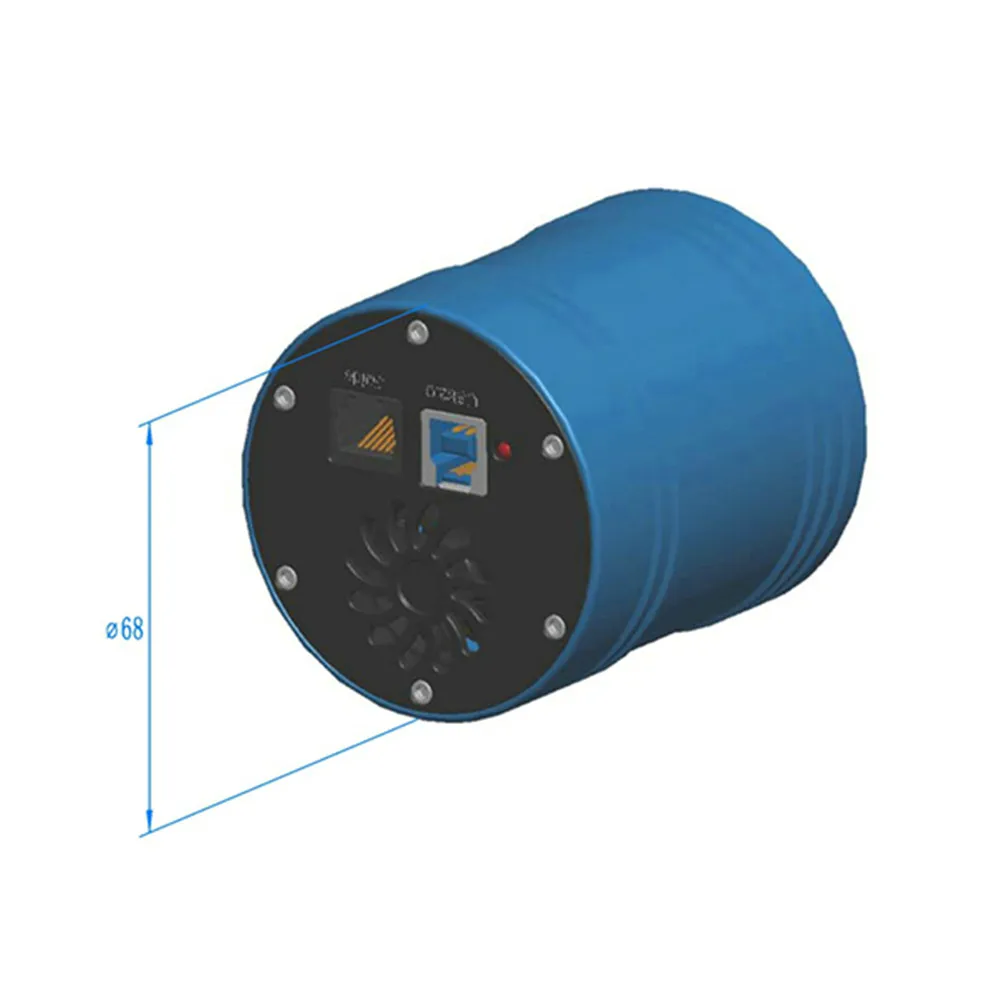

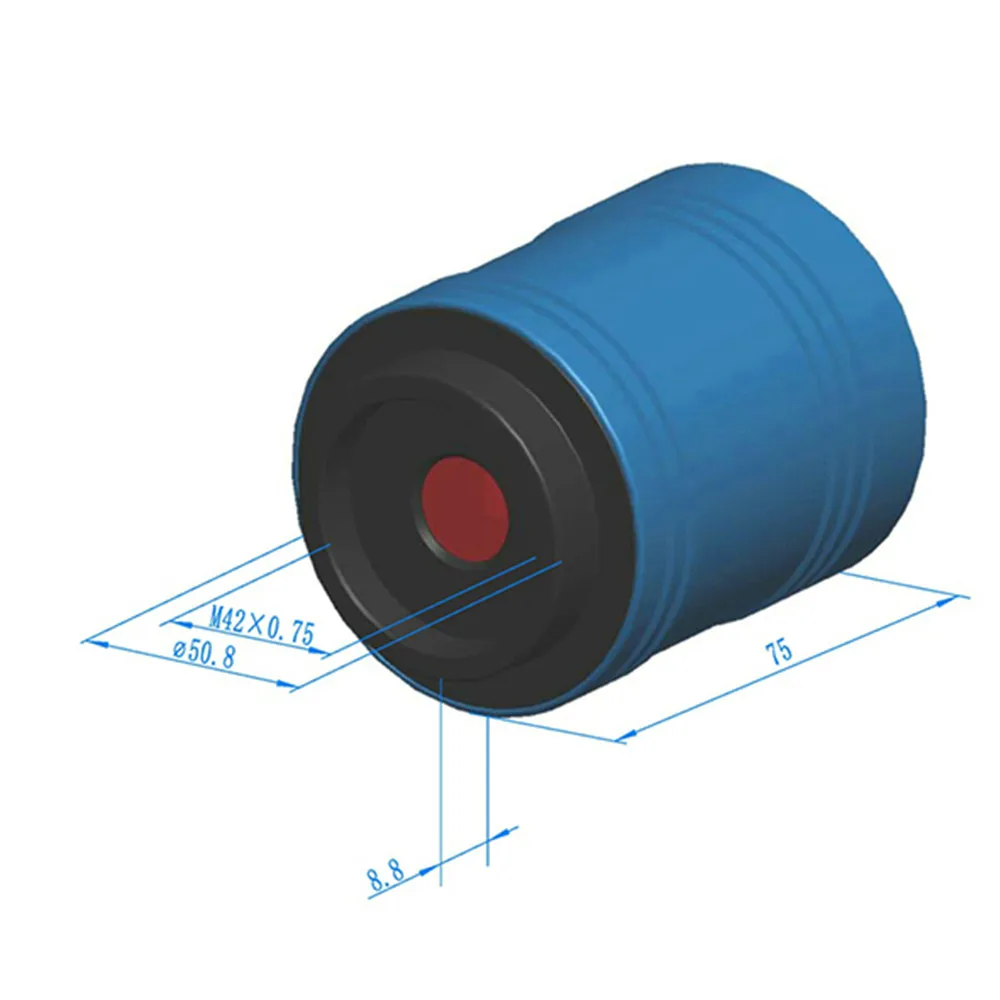

The G3CMOS body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality cover glass to protect the camera sensor(IR-cutter filter is an optional). No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

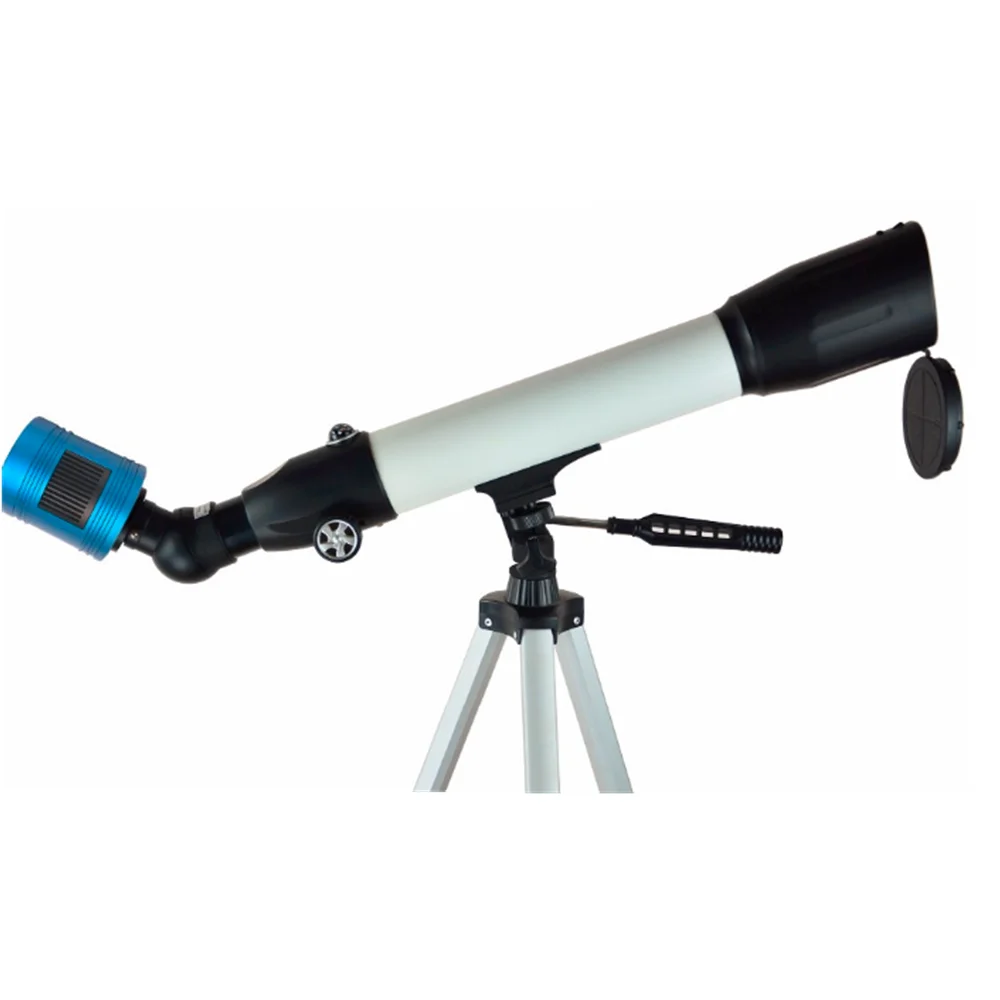

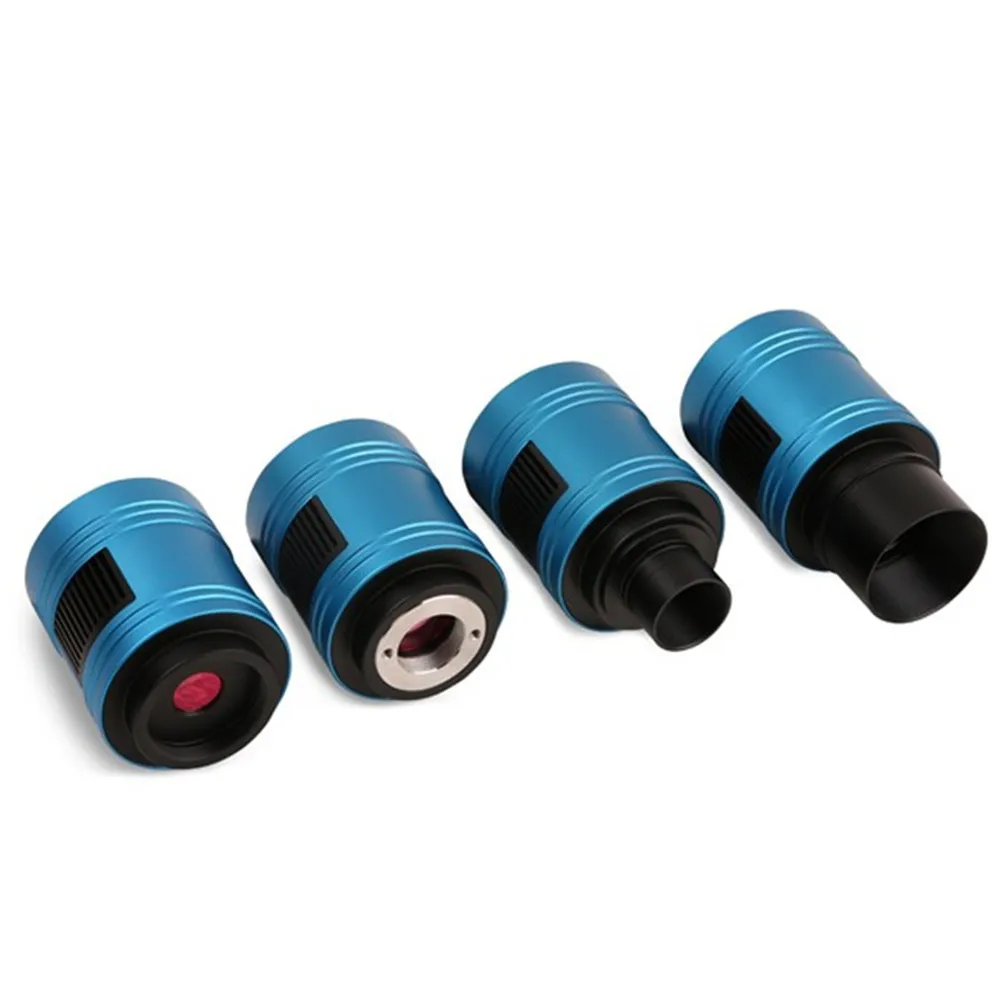

There are 2 methods to connect the camera to telescope:

1. Directly with 2” telescope (not suggested);

2. Directly withM42x0.75 male thread telescope;

3. “G3CMOS +M42x0.75 to 1.25” adapter” and 1.25” telescope;

4. “G3CMOS +M42x0.75 to 2” adapter” and 2” telescope ;

Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box)

C

G3CMOS series camera

D

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

E

2.0m guide cable

F

1.25 inch nosepiece

G

Cover of the G3CMOS camera

H

CD (Driver & utilities software, Ø12cm)
