Дешевый ISO 18092 FeliCa 14443 USB Смарт-бесконтактный NFC кардридер записывающее устройство

Дешевый ISO 18092 FeliCa 14443 USB Смарт-бесконтактный NFC кардридер записывающее устройство

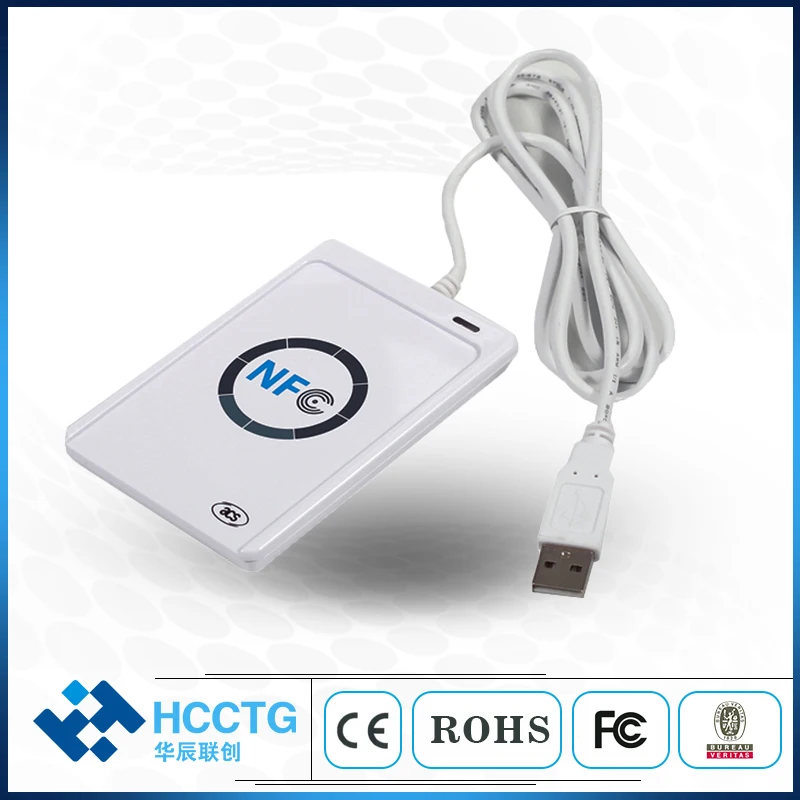

USB NFC Reader ACR122U-A9

General

ØThe ACR122U-A9 NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless
(RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO 14443 A and B cards, but also all four types of NFC tags.

ØACR122U-A9 is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U-A9 can also read and write more quickly and efficiently. The proximity operating distance of ACR122U-A9 is up to 5 cm, depending on the type of contactless tag in use.

ØIn order to increase the security level, ACR122U-A9 can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U-A9 NFC
Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

ØThe ACR122U-A9 NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions.Other applications of the ACR122U-A9 include access control, e-payment,e-ticketing for events and mass transit, toll road fare collection and network authentication.

Specification

Dimensions

98 mm (L) x 65 mm (W) x 12.8 mm (H)

Weight

70 g

USB Interface

Power
Source

From USB
port

Protocol

USB CCID

Speed

USB Full Speed (12 Mbps)

Connector
Type

Standard
Type A

Cable
Length

1.0 m, Fixed

Contactless Smart Card
Interface

Protocol

ISO 14443-4
Compliant Card, T=CL

MIFARE® Classic Card, T=CL

ISO18092, NFC Tags
FeliCa

Standard

ISO/IEC
18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa

Built-in Peripherals

LED

1 bi-color: Red and Green

Buzzer

Monotone

Certifications/Compliance

EN
60950/IEC 60950
ISO 18092
ISO 14443
USB Full Speed
PC/SC
CCID
VCCI (Japan)
KC (Korea)
Microsoft® WHQL
CE
FCC
RoHS 2
REACH

Device
Driver Operating System Support

Windows® CE
Windows®
Linux®
MAC OS®
Solaris
Android™

FAQ

1. Are you manufacturer?

Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 10 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.

2. Would you provide SDK for me?

Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.

3. What warranty for the products?

According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

4.What is the minimum order?

We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

5. Can we get the free sample?

Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.

6. Do you accept Paypal?

Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.

7. What's the delivery time?

Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?

By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line. By Air: Inform us the Airport to check which flight. Or pick up by the customers.

9. What the after sale service?

a. Our all products will provide 12 months warranty;

b. Enough stock spare parts for guarantee;

c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;

d. As for the returned failure products, we will fix it and return to the customers in one week after we received it.
