Promotion Price 1000w 2000w 3000w CNC Tube Fiber Metal Laser Cutting Machine For Metal Steel Pipe

 Tess Zhang

email:            export08@acctekcnc.com

WhatsApp&Wechat:+86-15098931027

CNC Tube Fiber Metal Laser Machine Description

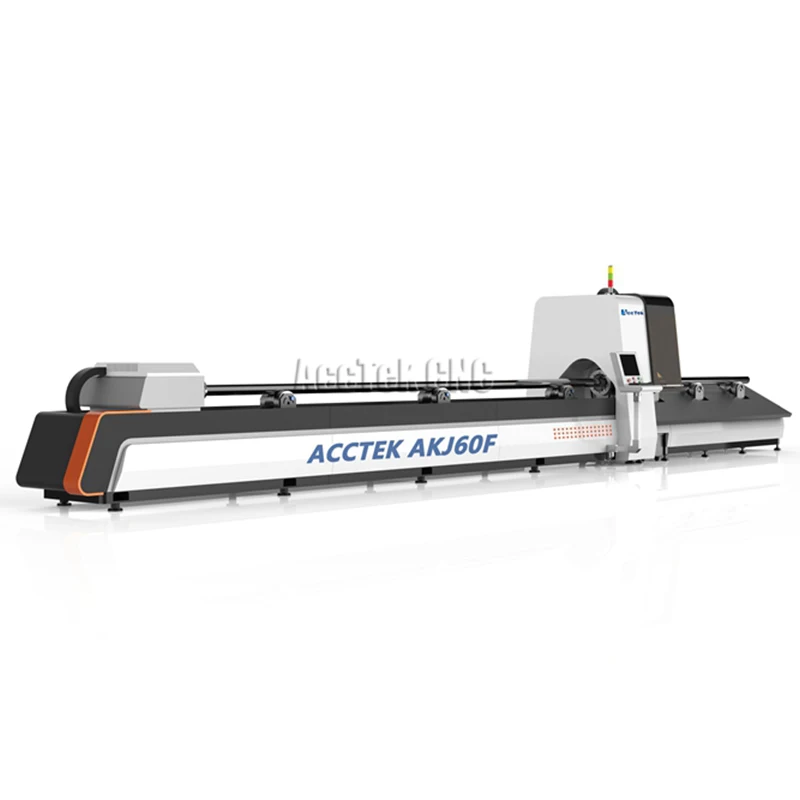

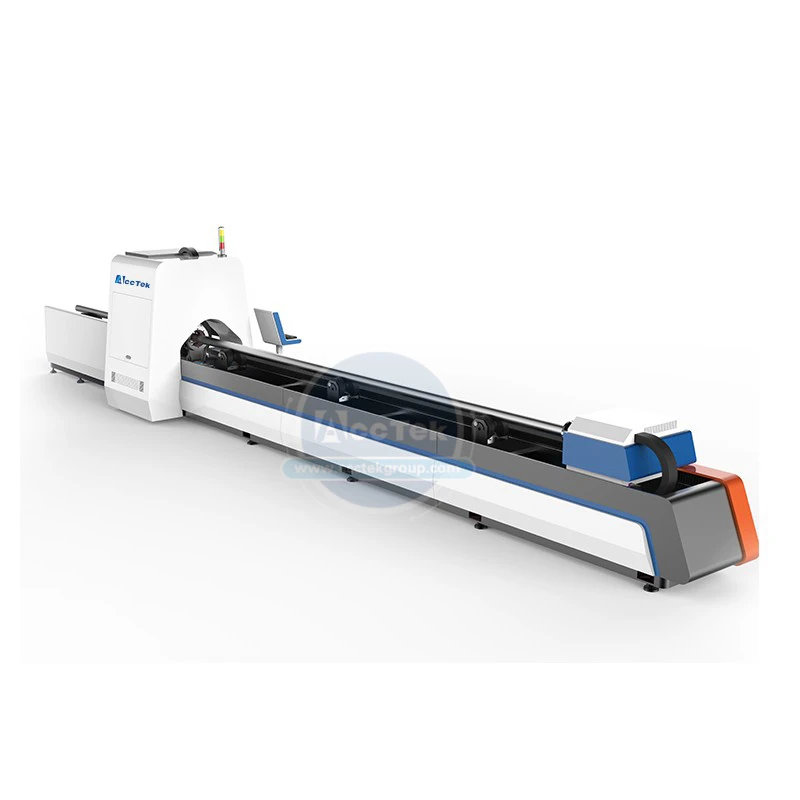

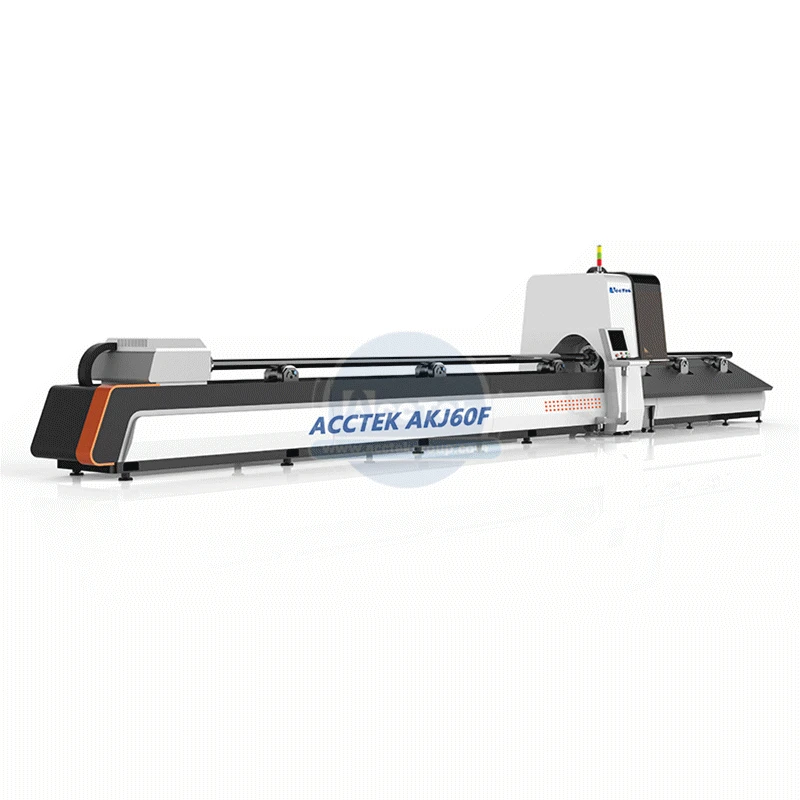

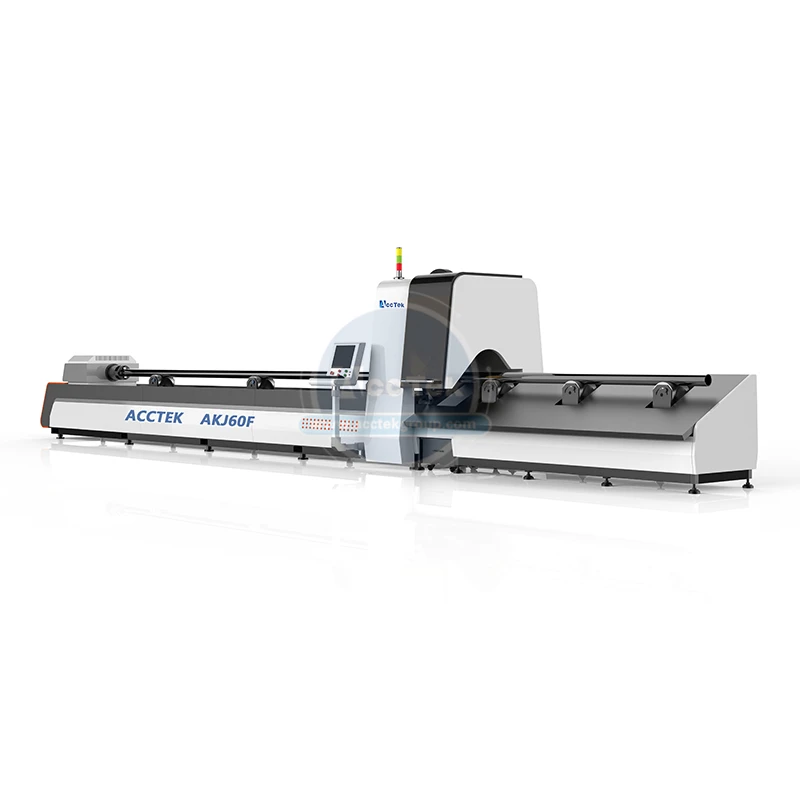

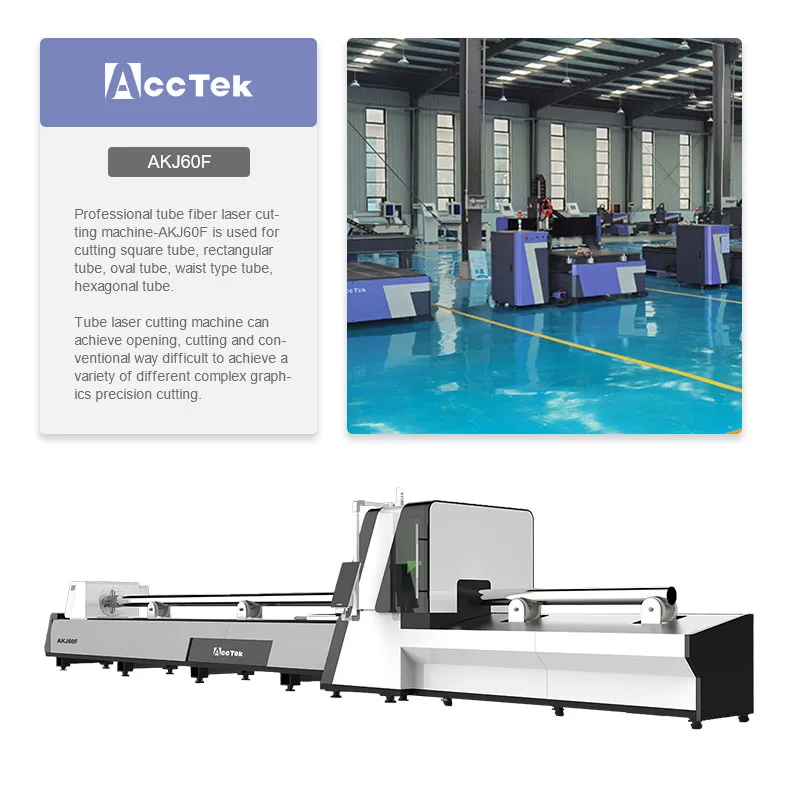

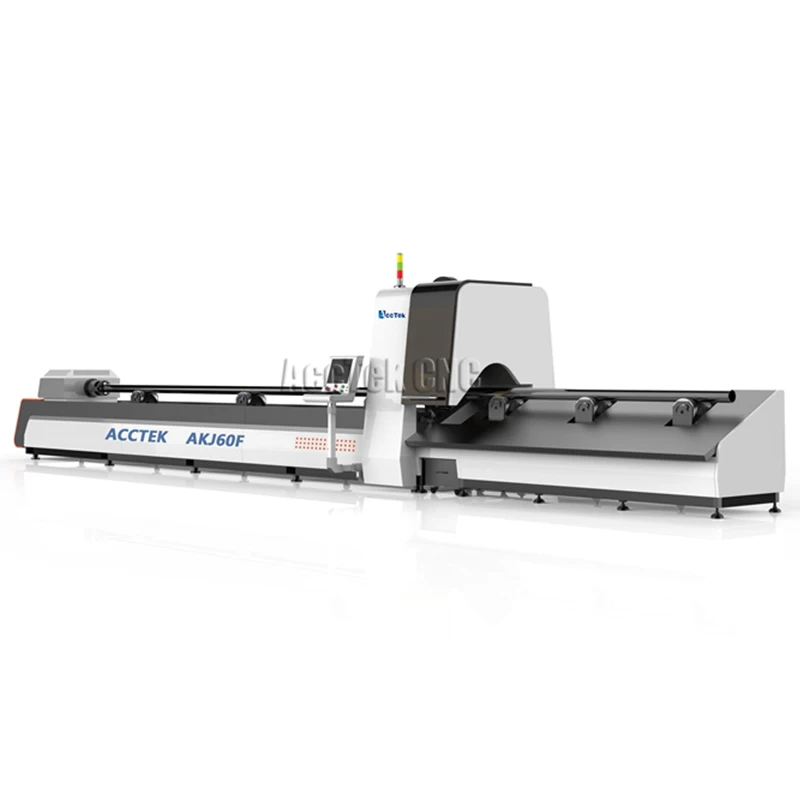

Professional tube fiber laser cutting machine-AKJ60F is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; Pipe laser cutting machine can achieve opening, cutting and conventional way difficult to achieve a variety of different complex graphics precision cutting.

NO

Descriptiom

Parameter

1

Woking area

200x6000mm

2

Control System

Cypcut controller system

3

Laser head

Raytools

4

Guide rail

Taiwan HIWIN Linear guide rail 25mm

5

Transmission

Y axis gear and pinion; Z axis ball screw

6

Electronic Components

French Schneider

7

Motor

YASKAWA/ Panosonic

8

Max Cutting Speed

35m/min

9

X axis max speed

65m/min

10

Y axis max speed

100m/min

11

Z axis max speed

30m/min

12

X axis max acceleration

1G

13

Y axis max acceleretion

1G

14

Cooling Way

Water Cooling

15

Min Line width

0.1mm

16

Power Requirements

380V,50/60HZ,16A

17

Continuous Working Time

24Hours

CNC Tube Fiber Metal Laser Machine Detail Show

Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically.
The diagonal adjustable range is 20-200mm ( Optional:300mm ) .

Raycus laser generator

Raycus has an efficient and professional R&D and production team.
The single module CW fiber laser series not only can meet diversified demands of customers to the greatest extent, but also provide personal customization service.
Now laser output connector is QBH, with multiple control modes.

Raytools brand cutting head

The Raytools Laser Cutting Heads are released based on Switzerland RAYTOOLS, which are suitable for medium and high power fiber lasers in industrial applications.
It adopts imported closed-loop motor, high-speed perforation and cutting of various material thickness, and the repeating precision is 0.01mm.

HIWIN Guide rails

Rail works with slider, drive the machine move, with good bearing capacity.

Japanese Yaskawa Servo Motor

The Yaskawa servo motor has the highest amplifier responsiveness in the same industry, which greatly shortens the setting time, realizes acceleration and deceletation at high speed, and has fast response.
It has resonance suppression function to ensure that the machine runs smoothly at high speed.
Strong anti-interference ability and strong anti-overload capability.

CNC Tube Fiber Metal Laser Machine

Application materials:

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube,Alloy Steel Tube, Spring Steel Tube, Iron Tube, Galvanized Tube, Aluminum Tube, Copper Tube,Brass Tube, Bronze Tube, Gold Tube, Silver Tube, Titanium Tube, Metal Tube,etc.

Application industry:

This Fiber Laser Cutting Machine is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts,automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing,adornment, advertising, metal foreign processing various manufacturing processing industries.

Why Choose Us

Feeback from Our Clients

Our service

Pre-sale
1)Professional sales team and engineer team provide professional technical Support
2)24 hours of online service each day,you can contact us
   by email, Whatsapp, Skype, Wechat, Phone number, and so on.
3)Test video and Sample support
4)OEM support
5)Certificate support: CE

In-sale Service
1)In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish, our engineer will make 24 hours test constantly and ensure the machine reach the best performance.
2)Shooting working video and machine pictures for customers' confirmation.
Shoot delivery video, parts pictures in every detail, and save on file so that our after-sale team can help customers solve questions faster.

After-sale
1) Three years quality guaranty (1.5 years for laser generator),
   the machine with main parts(excluding the consumables) shall be changed free of charge
   when if there is any problem during the warranty period.
2) Lifetime maintenance free of charge.
3) Free training course at our plant.
4) We will provide the consumable parts at an agency price when you need replacement.
5) 24 hours of online service each day, free technical support.
6) Machine has been adjusted before delivery, operation disk and manual was included.
