MT6820-B MT6820B Universal LVDS LCD Monitor Screen Driver Controller Board 5V 10 Inch-42 Inch Laptop Computer DIY Kit |

MT6820-B MT6820B Universal LVDS LCD Monitor Screen Driver Controller Board 5V 10 Inch-42 Inch Laptop Computer DIY Kit

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 100% brand new and high quality
Practical and useful
Have stable performance
Applicable models for LCD screen of 10-42 inches width.

Input Voltage: 5V
Max Resolution: 1920x1200
This board support 80%-90% 17 inch-42 inch LCD monitor
Board Size: Approx. 2.44x2.16 inch / 6.2x5.5cm
30 Pin Cable Length: Approx. 9.84 inch / 25cm
12 Pin Cable Length: Approx. 9.64 inch / 24.5cm
Material:Glass fiber + electronic components
colour:Photo Color

Package Contents:

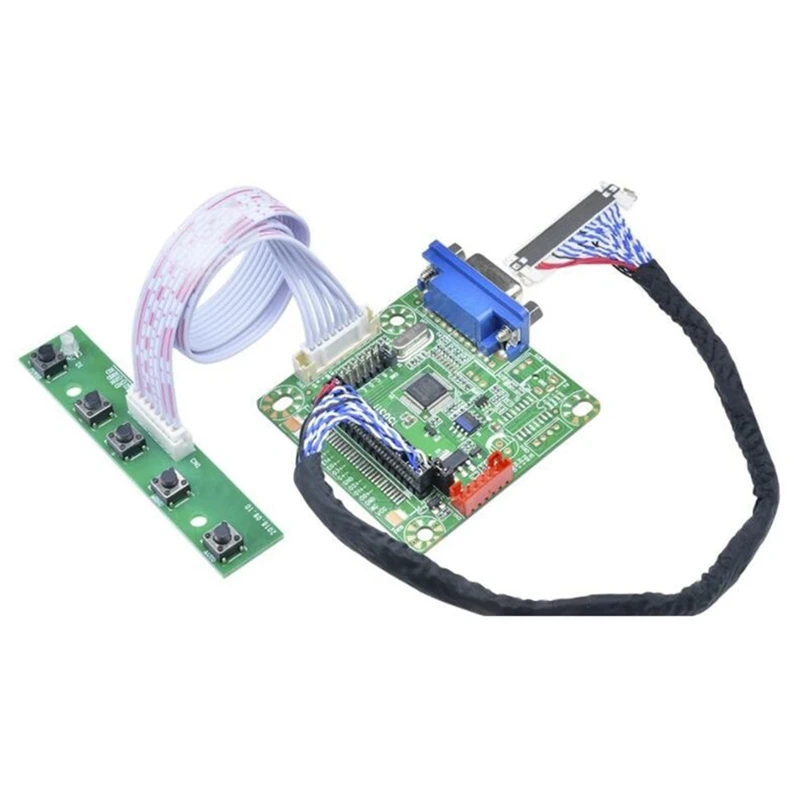

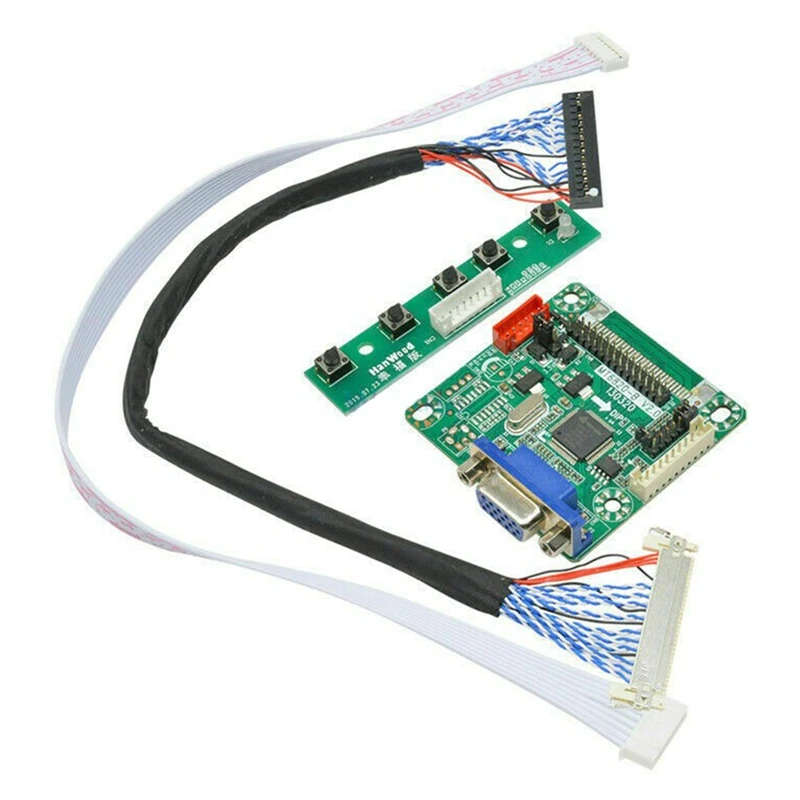

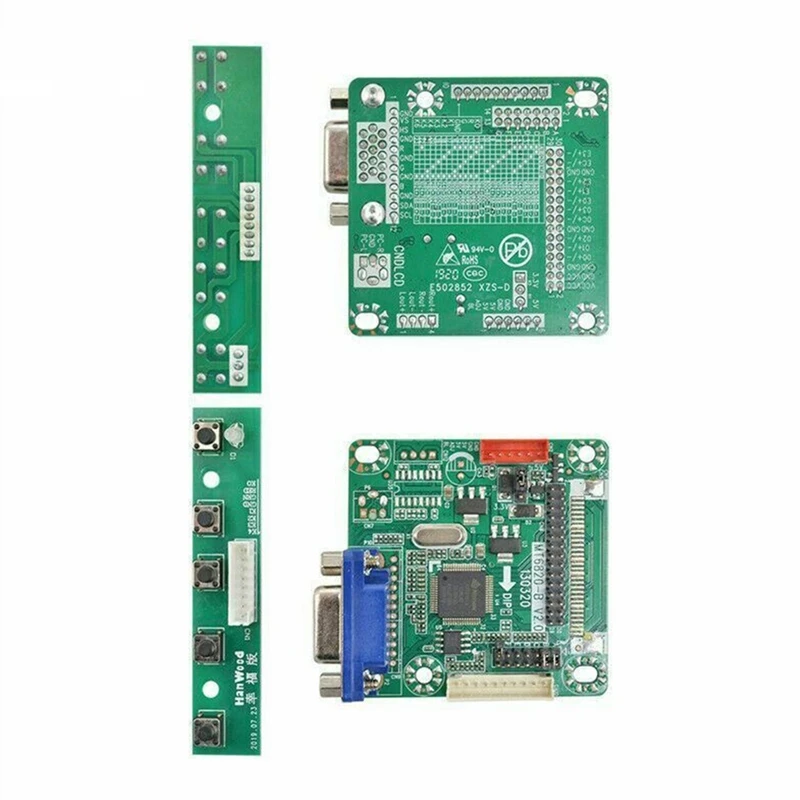

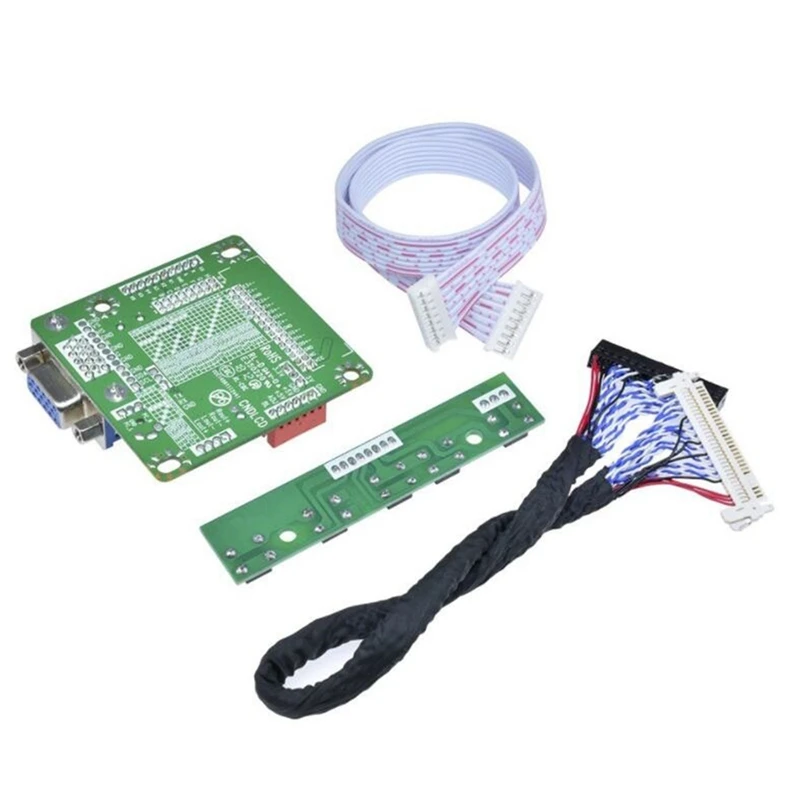

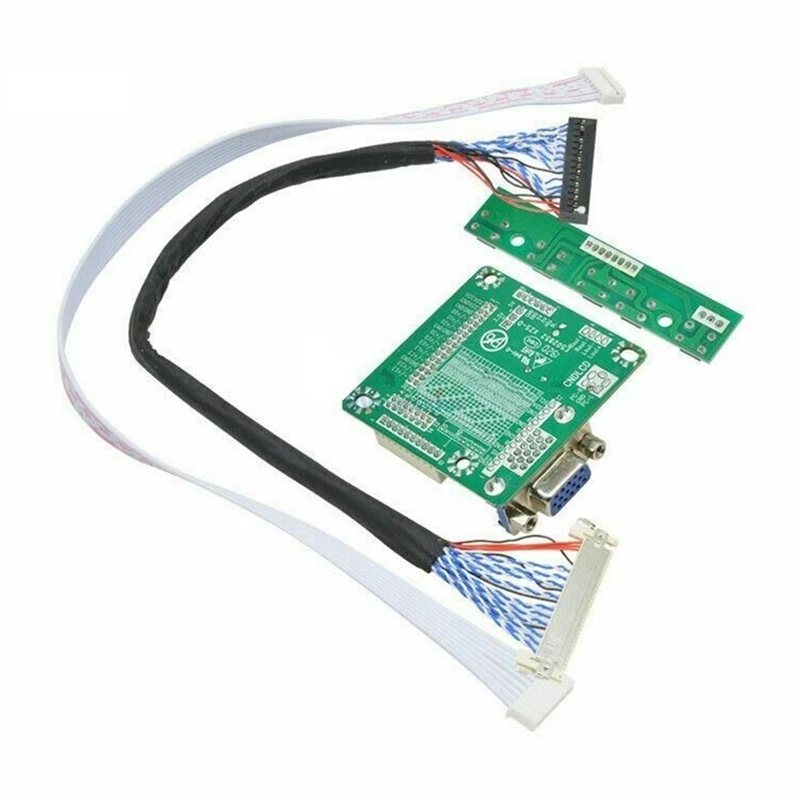

1 * MT6820-B Controller Board
1 * 30 Pin Winding Displacement
1 * cable
1 * 5 Key LCD Control Panel

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
