1.28Inch 240X240 Round LCD Display Screen Module SPI Interface 65K RGB Colors For Arduino STM32 / Raspberry Pi RPI 3B Plus 4B

Specifications

Operating voltage:3.3V / 5V
Resolution : 240 × 240 pixels
Communication Interface: 4-wire SPI
Display size: Φ32.4mm
Display Panel : IPS
Pixel size:0.135 × 0.135mm
Driver: GC9A01

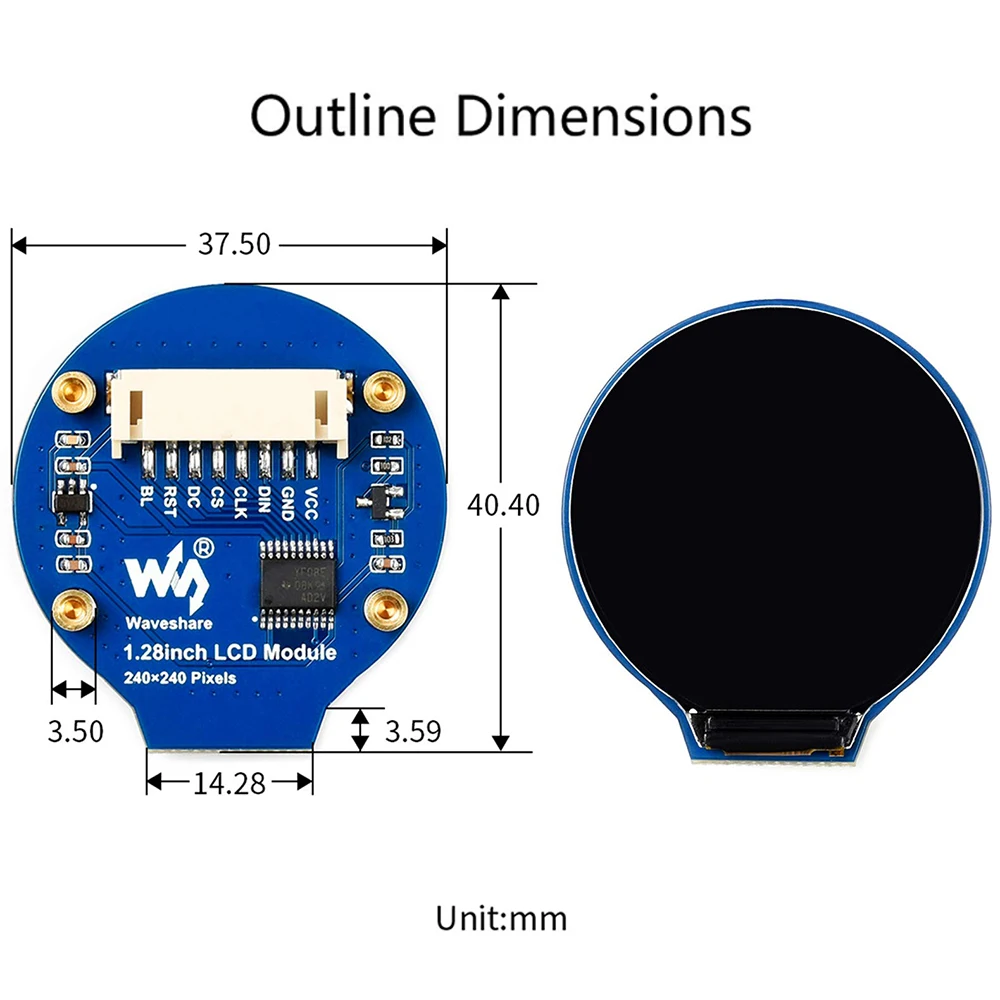

Dimensions : 40.4 × 37.5mm Φ37.5mm

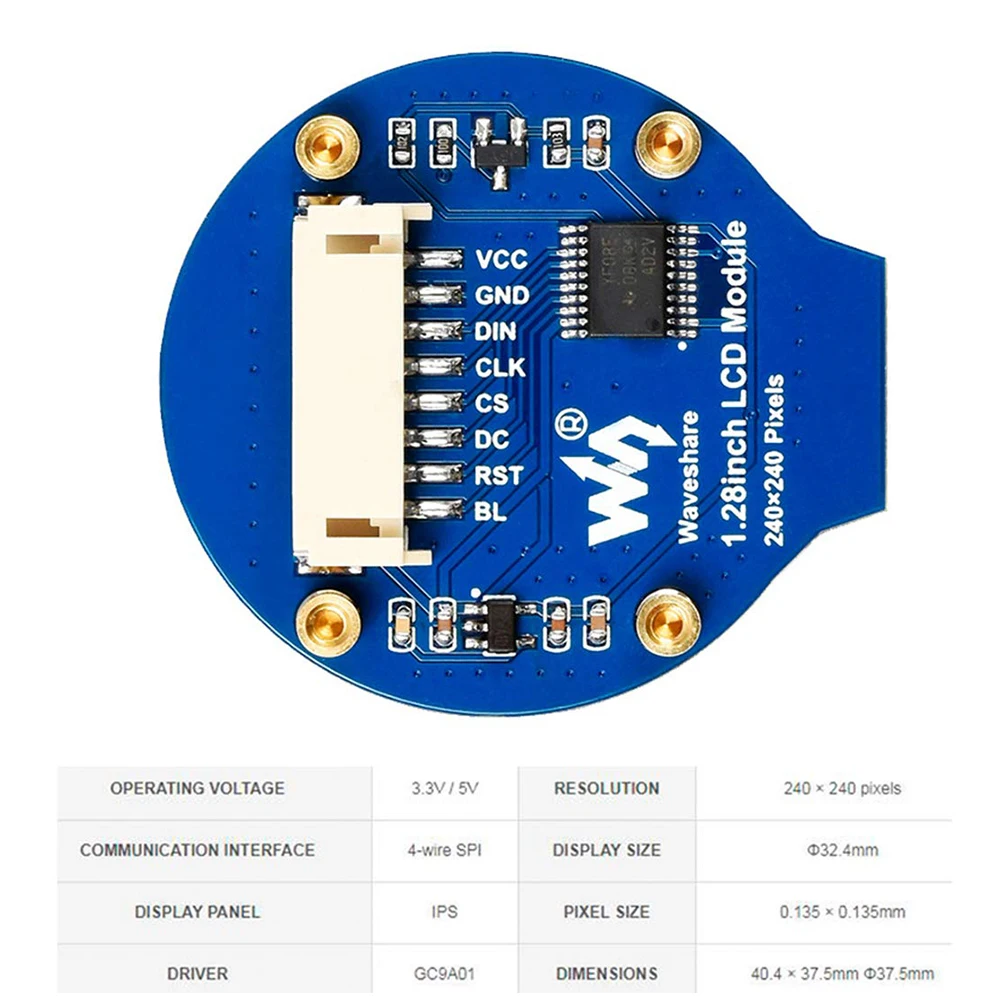

Controlled via SPI Bus
VCC: Power (3.3V / 5V input)
GND : Ground
DIN: SPI data input
CLK: SPI clock input
CS : Chip selection, low active
DC:Data/Command selection (high for data, low for command)
RST: Reset, low active
BL: Backlight

Product Description

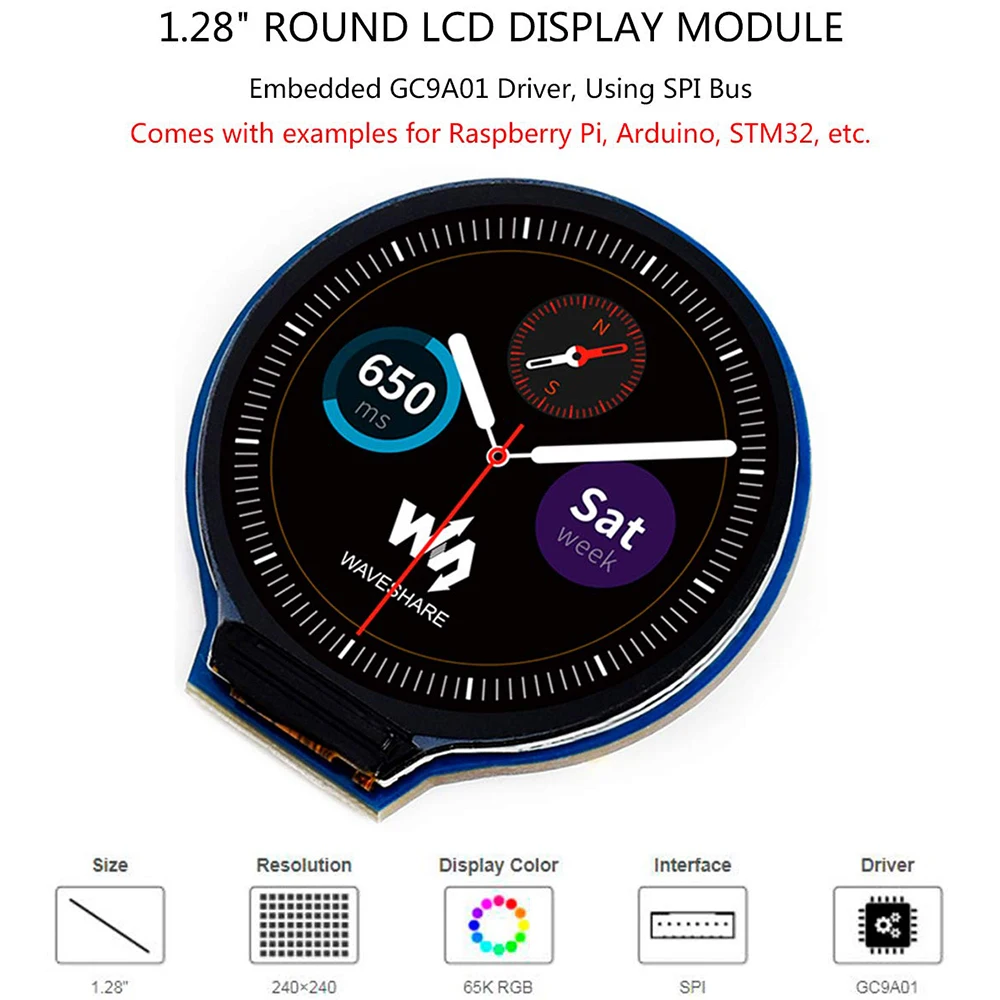

1.28 inch LCD expansion board, built-in GC9A01 driver chip, SPI interface communication

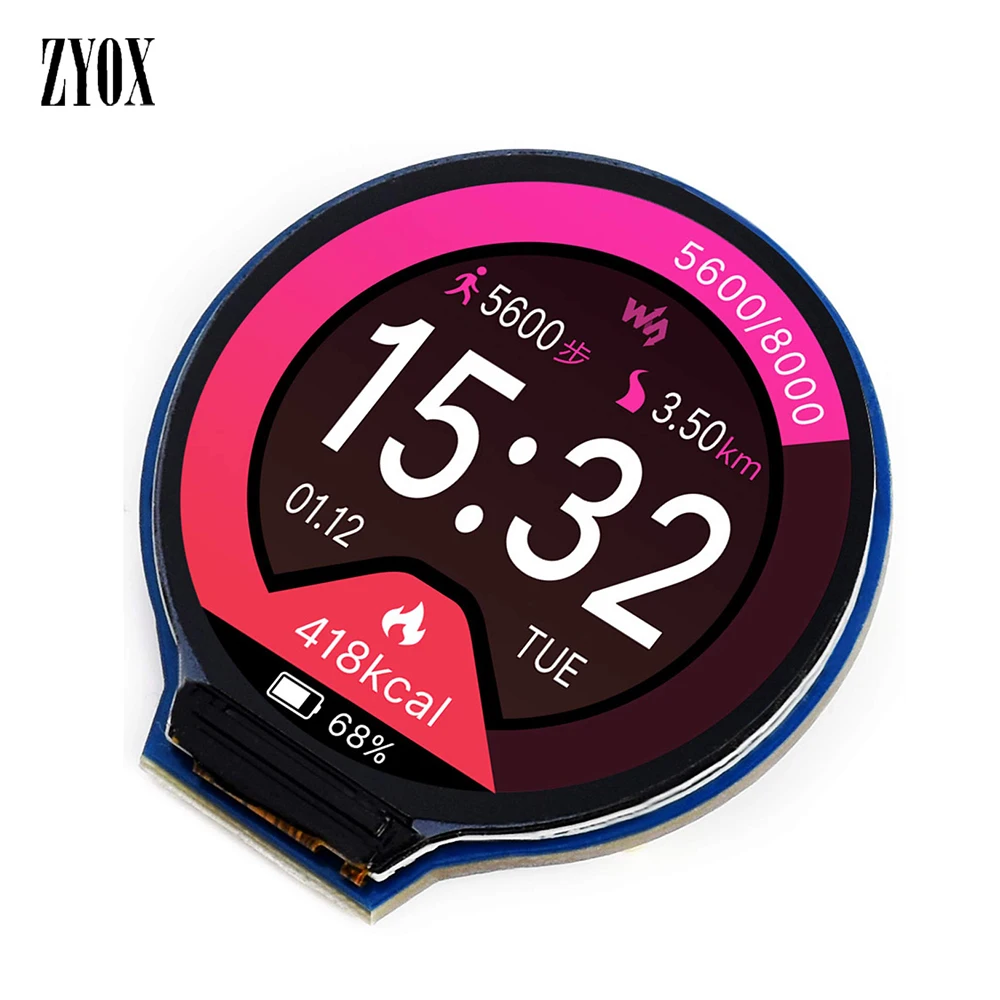

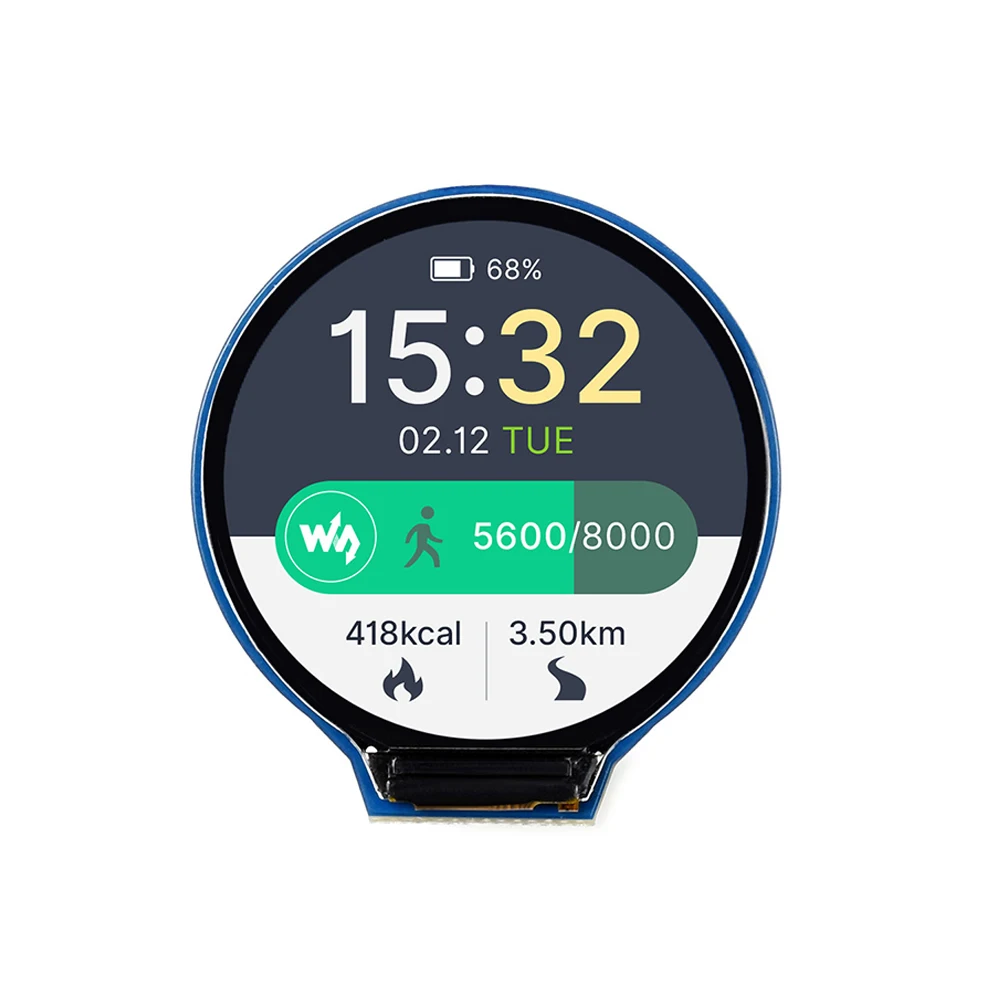

240 x 240 resolution, RGB 65K color, can display color pictures clearly

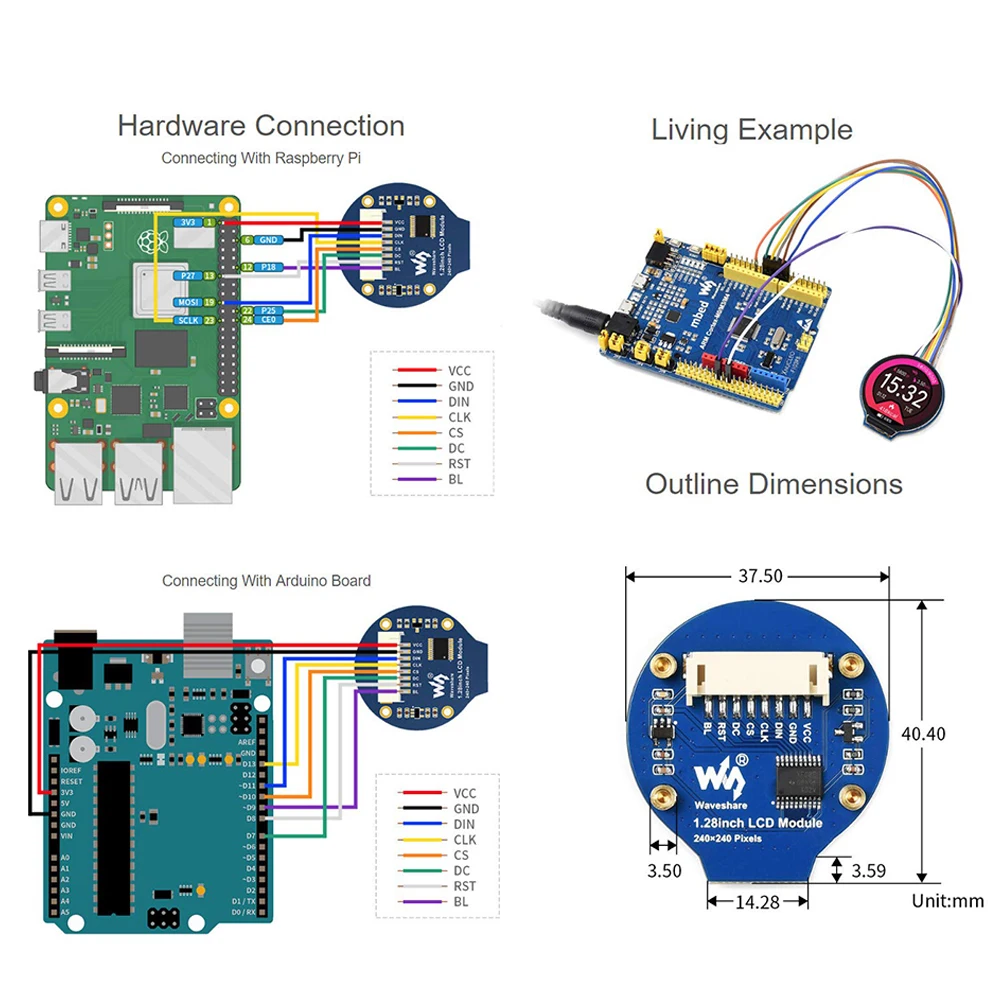

SPI control interface, can be connected to Raspberry Pi/Jetson Nano/for arduino/STM32 and other main control boards

Provide complete supporting information manual (Raspberry Pi /for arduino / STM32 and other sample programs)

Note

★ Please allow slight dimension difference due to manual measurement.

★ Please consider the actual sizes in the listing as the pictures are generally enlarged to show detail.

★ Due to the light and screen difference, the item's color may be slightly different from the pictures. Thanks for your understanding.

Package Includes:

1* 1.28inch LCD Module
1* PH2.0 20cm cable
