Vertical Rotary Electric BBQ Household Grill Stainless Steel Automatic Very Healthy and Easy to clean barbecue | Дом и сад

Vertical Rotary Electric BBQ Household Grill Stainless Steel Automatic Very Healthy and Easy to clean barbecue | Дом и сад

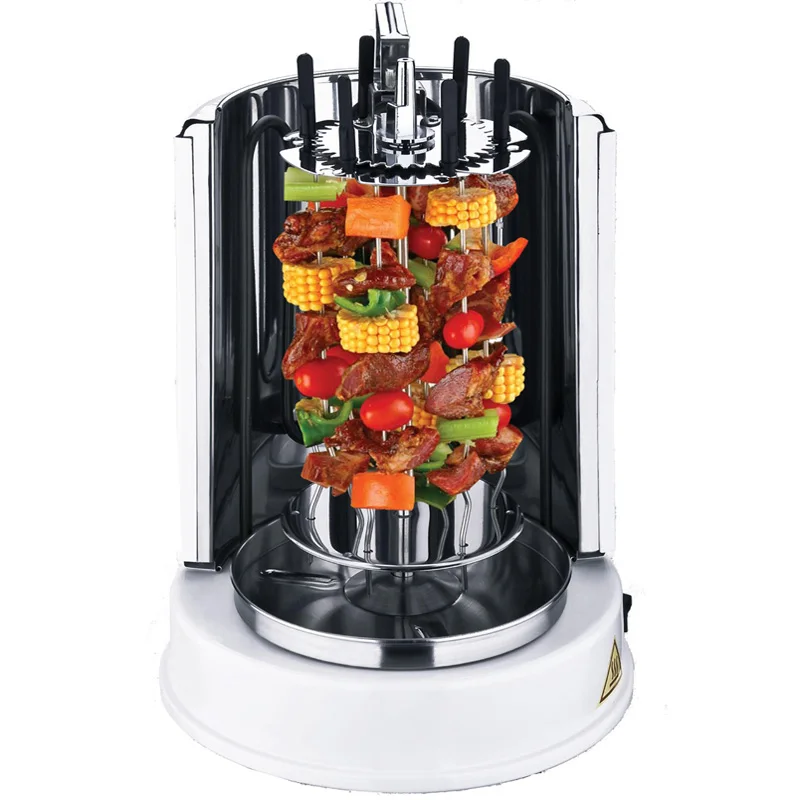

Item:Vertical Electric Grill

Descriptions:

1. An open structure of heating elements with half round stainless steel , reflectors for an optimal use of energy.
2. The Gyros will change direction automatice, if there is a force.
3. Removable and detachable parts for easy clean.
4. The particular broiling result is obtained by alternating heating and cooling down .Very healthy
5. The vertical grill allows broiling meat layers, shashlik, party sausages,poultry and fish with few attachments.
6.The Skewers and Gyros go in opposite direction so that food
could be heated more well.
7. Power: 1400W,220-2400V, 50Hz

Packing:1pc/ box
Box:29*29*38CM

IMPORTANT SAFEGUARDS

When using the vertical grill, please observe the following safeguards:

Please read these instructions carefully before using the appliance.

Check that your mains voltage corresponds to that slated on the appliance.

Never immerse the appliance in water Of any other liquid for any reason whatsoever. Never place if into the

dishwasher. The removable pails in stainless steel such as the skewers, the Grease residues tray and the reflector can be put in the dishwasher.

Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.

Unplug the vertical grill when it is not in use or when you want to assemble or disassemble it.

Do not use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must

be replaced by a competent qualified electrician (*).

Never use accessories that are not recommended by the producer. They could constitute a danger to the user

and risk to damage the appliance.

Do not have power cord dangle [Tom working surface and avoid its contact with hot objects.

De not use the vertical grill near sources of heat (cooking tops, grill, oven).

Never use the appliance outside and always place it in a dry environment.

Stand the appliance on a table or flat surface.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the

cord around the appliance and do not bend it.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never try to repair the vertical grill by yourself. All repairs should be made by a competent qualified electrician or

by our repair service.

The skewers of this appliance is very sharp. Be extremely careful when cleaning the appliance, as otherwise

you might get injured!

You must keep this appliance clean, as it is in direct contact with food.

Do not use the appliance together with a clock timer or a separate telecontrol system.

*The temperature of accessible surfaces -may be high

when the appliance is operating.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Keep these instruction perciously

DESCRIPTION

Gyros is a pile of meat layers that is broiled by continuous rotation.

The particular broiling result is obtained by alternating heating of approximately 120' and cooling down. This brings a constant inner flow of gravy, comparable to the gravy obtained when roasting meat. The meat fibres do net harden, and the gravy is flavoured by the spices.

This cooking mode results in very healthy meat.

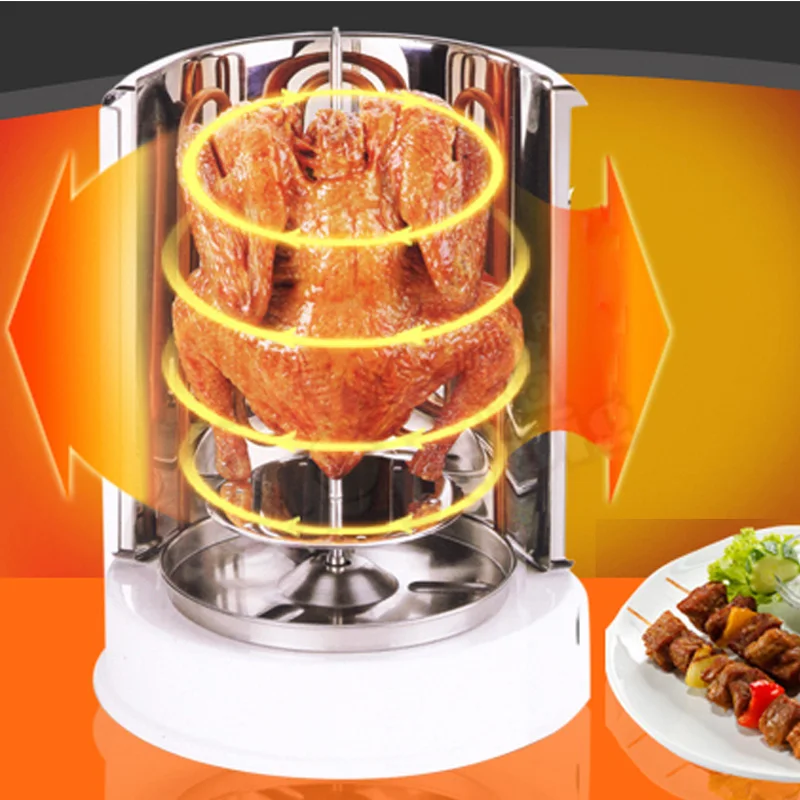

The skewers rotates in front of an open structure of heating elements with half round stainless steel reflectors for an optimal use of energy.

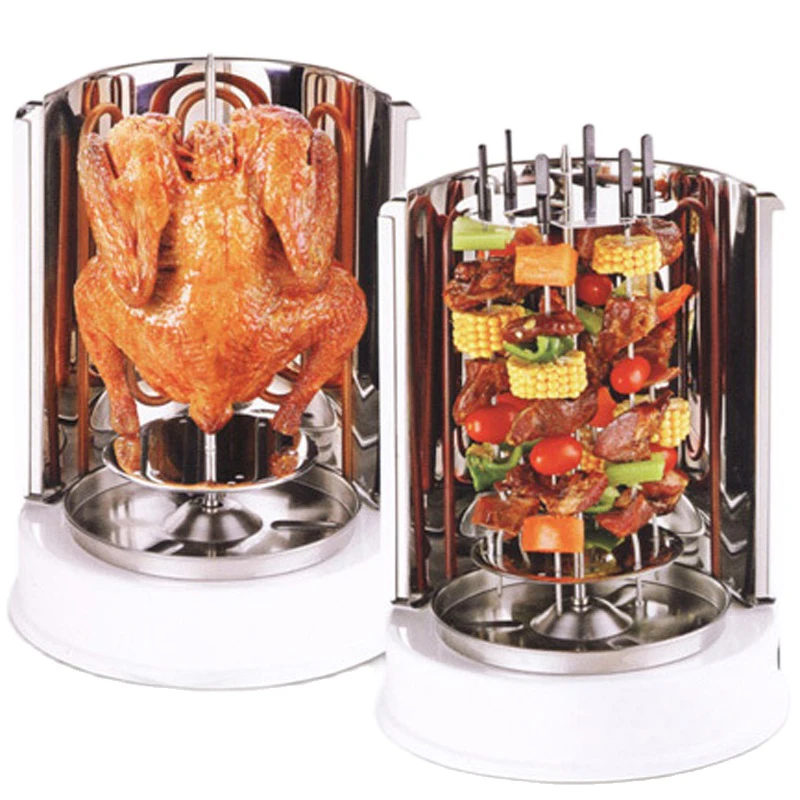

The vertical grill allows broiling gyros meat layers, shashlik, party sausages, poultry and fish with few attachments. The meals are easy to prepare, must simply be put on the main skewers, and removed by cutting the meat info pieces, or by removing the whole in once. To operate the appliance, only few and often very obvious instructions need to be followed.

This appliance is also suitable for frozen foods !

OPERATION

1. Take off the outer package parts of the appliance and clean the accessories with a wet cloth before using the appliance.

2. Before the first broiling you should heat up the appliance about 5 minutes. This preheating could decrease the production and packaging residues.

3. Plug in the appliance and switch it on. The heating system cleans itself every time you use the appliance.

4. After this first time preheating, switch off and unplug the appliance.

5. Position the Grease residues tray.

6. Stick the food into the main skewers and skewers,

7. Insert the main skewers into the body

8. Insert Gear and shaft parts

1). insert the gear into main skewer
2). fix the shaft end into the body back plate
3). fix the shaft another end into the gear
4). rotate the screw to lock the shaft into gear

During the operation, if skewer could not rotate well, please repeat this assembly and Make sure the shaft is fixed well into the gear and body back plate.

9. Insert the skewers, who has been attached with food, into Skewers holder.

10. Plug in the appliance and switch it on. Your food is under cooking now.

CAUTIONI Never use the appliance without reflector, Make sure it is positioned correctly before each operation.

HINTS FOR USE

The figures given in the recipe booklet are guide figures, but some variations might occur according to the food and your personal taste, The broiling time is based upon fully defrosted food and the recommended quantity. Broiling meat around a table during a party is a very attractive way of preparing the food in a pleasant way.

Although the appliance hardly splashes during use, it is advisable to put it on a stable surface which is easy to clean.

Do not put the appliance on a flocky or weak surface. Do not move the appliance when it is in use.

CLEAN

You could disassemble this Grill as follow, please sure the appliance is cool down.

1. Disassemble “ Gear and shaft parts” from the top of body

1) unfix the screw

2) move the shaft towards right side and let the shaft out of gear

3) pull out the shaft from the body back plate.



2. Disassemble below parts for detailed clean

1. Grease residues tray

2. Skewers holder

3. Gear and shaft parts

4. Skewers

5. Heating Element

As after frequent use grease residues might burn on the reflector, we advise you to cover the latter with tinfoil. However, make sure that the foil does not come into contact with the heating elements. The tinfoil can be changed according to the use frequency, which allows you to keep the reflector clean.

Environment

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.
