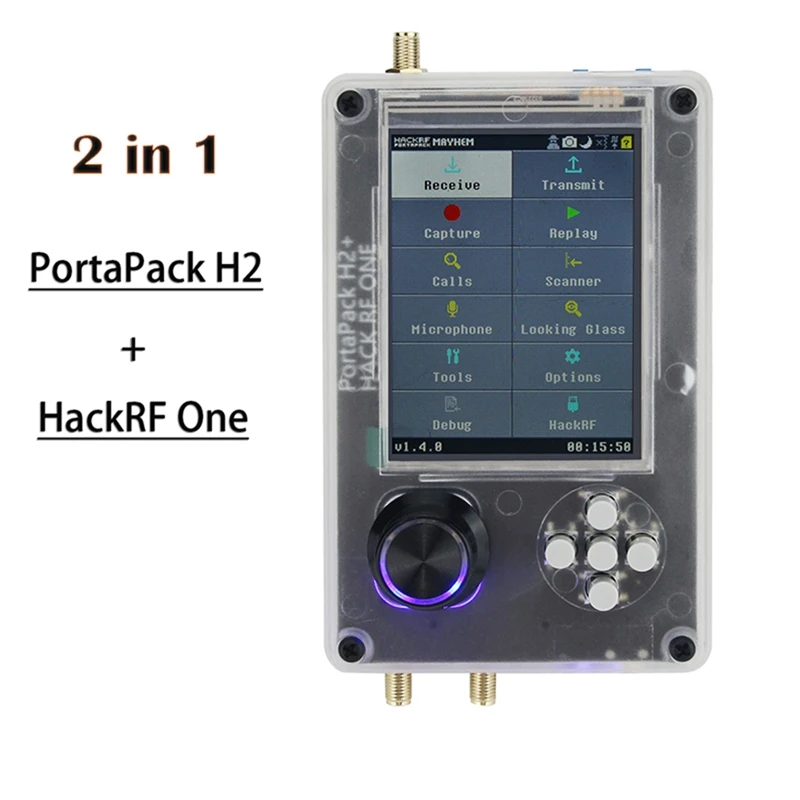

For HackRF One and PortaPack H2 2 in 1 0.5Ppm TXCO SDR Raido with Plastic Shell Battery Inside Assembled Antenna

The official firmware created for the PortaPack has several decoders and transmitters built into it, but the third party "Havoc" firmware is really what you'll want to use with it since it contains many more decoders and transmit options.
Microphone TX: Using the 3.5mm audio jack for the Portapack can also be used as a standard Push to Talk or voice activated walkie talkie radio. With a microphone plugged into the audio jack simply hold down the right button to push to talk. If required you can also enable multiple CTCSS tone options, as well as tones that look like they enable transmission to wireless headphones
Other Transmitters: There are universal OOK transmitter which can be programmed with custom data. This mode might be useful for experimenting with simple key fobs, or things like home, automation switches. There are numerous transmit modes implemented that are questionable in most countries and could get you into huge trouble. These transmitters are purely to be used for internal testing with a faraday cage!
Receivers: By connecting speakers to for the Portapack's 3.5mm audio jack you can easily listen in on standard NFM and WFM audio signals. ADS-B reception can be easily enabled on for the PortaPack by selecting the inductor and lightning-Pattern symbol on the top right. With the bias tee enabled you can receive aircraft.

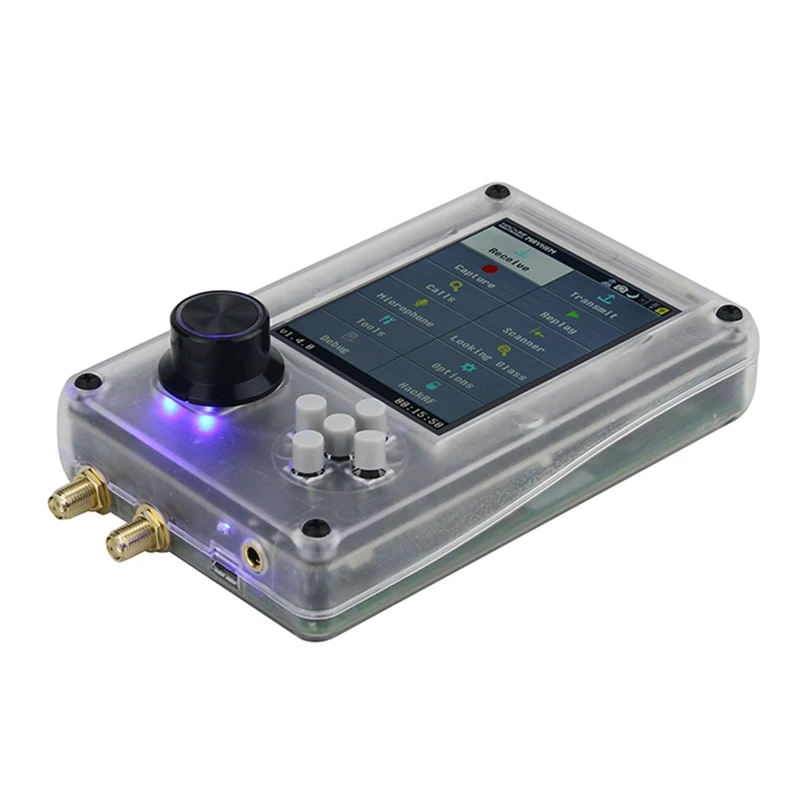

Hardware Configuration: 3.2-inch TFT240x320 screen; Navigation switch; Audio output; Note: It is assembled and ready for use.

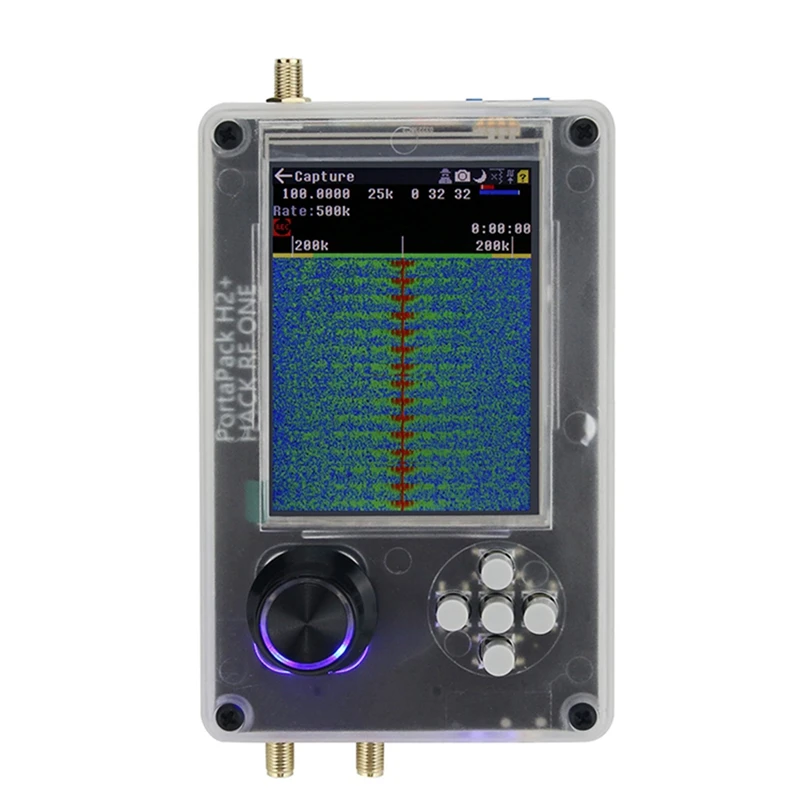

Catching and Replay:One of the best things about for the PortaPack is that it makes catching and replay of wireless signals like those from ISM band remote controls extremely easy.To create a catching. You just need to enter the "Catching" menu, set the frequency of the remote key, press the red "R" Record button and then press the key on the remote.Then stop the recording to save itto a SD Card.Now you can go into the Replay menu, select the file that you just recorded and hit play. The exact same signal will be transmitted over the air, effectively replacing your remote key.
colour: black
Material: metal + plastic

Package Contents:

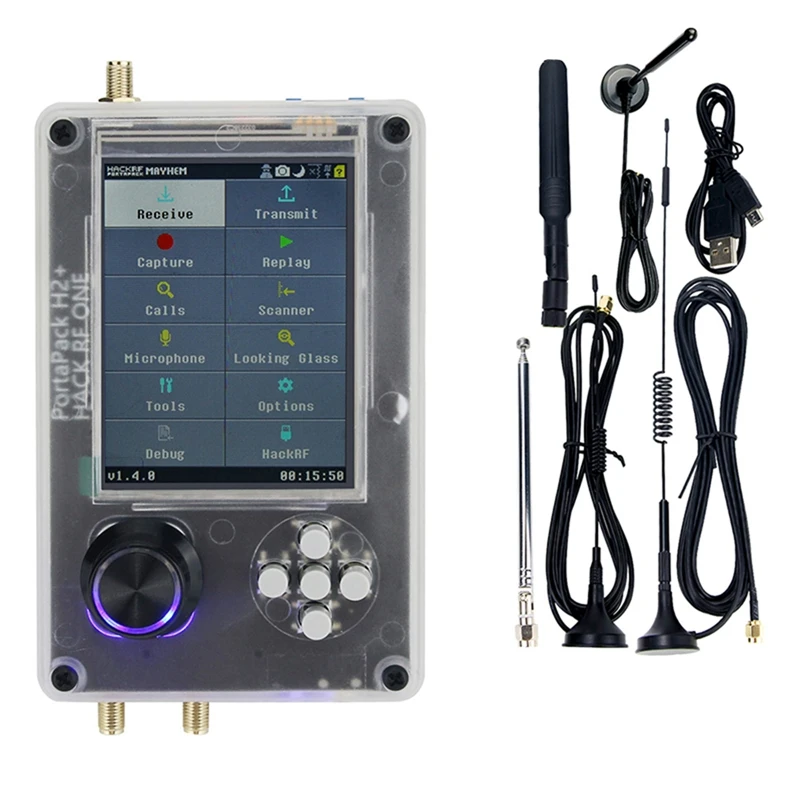

1 x SRD Radio set (for Upgraded PortaPack H2+HackRF One)

Only the above package content, other products are not included.
