Input voltage: 110V/220V ±15%

Efficiency: >80%

Output adjustable voltage range: ±5%

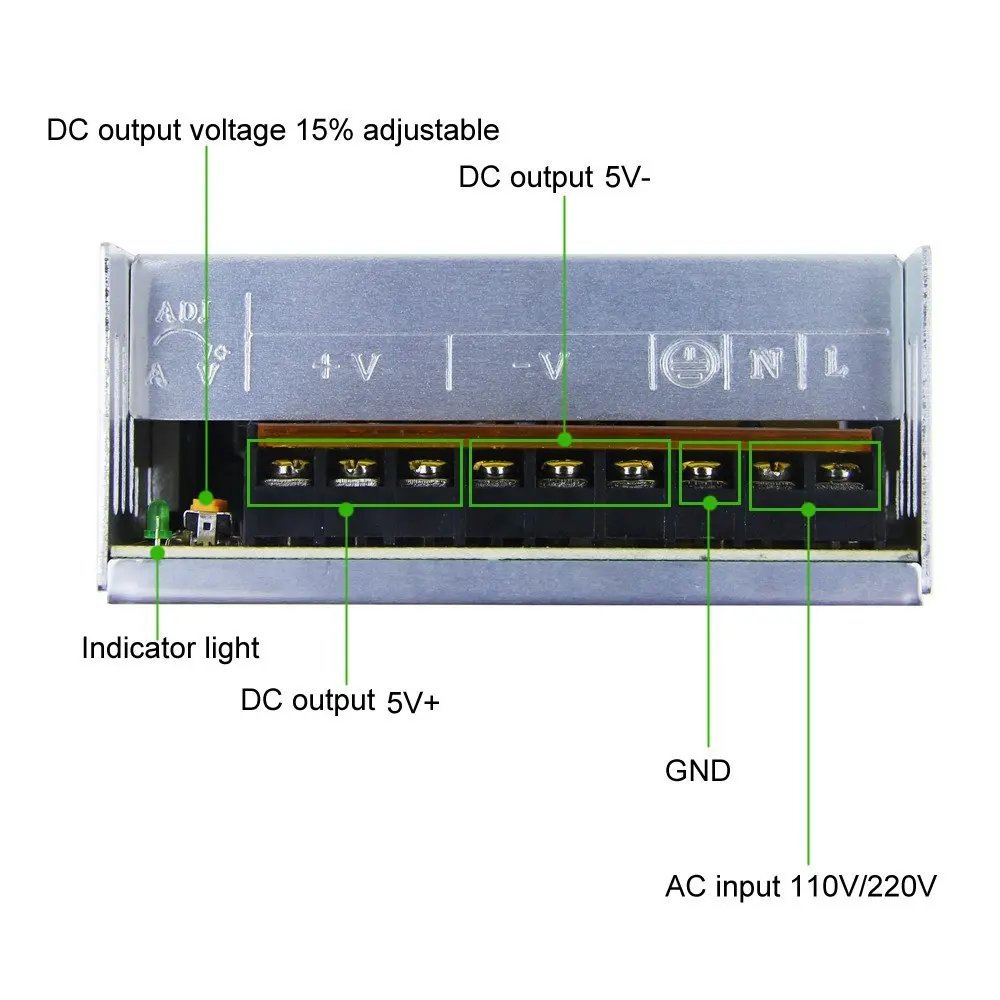

Link line description

L: fire line (input)

N: zero line (input)

G:Ground wire

+ V: positive pole (output)

- V: negative electrode (output)

Notice:

·Not a constant current power supply! The output current depends on the device you connect.

·Not suitable for pressure regulating equipment!

·Such as: dimmable LED plant growth light, voltage regulating numerical control module, speed regulating motor, PWM motor, battery charging module...

·24*7 hours work, the power used should not exceed 40% of the rated power.

·Halogen lamps, stepper motors, brushless motors: 2 times the operating power = SMPS rated power.

·It is strongly recommended to ask a licensed electrician to install!

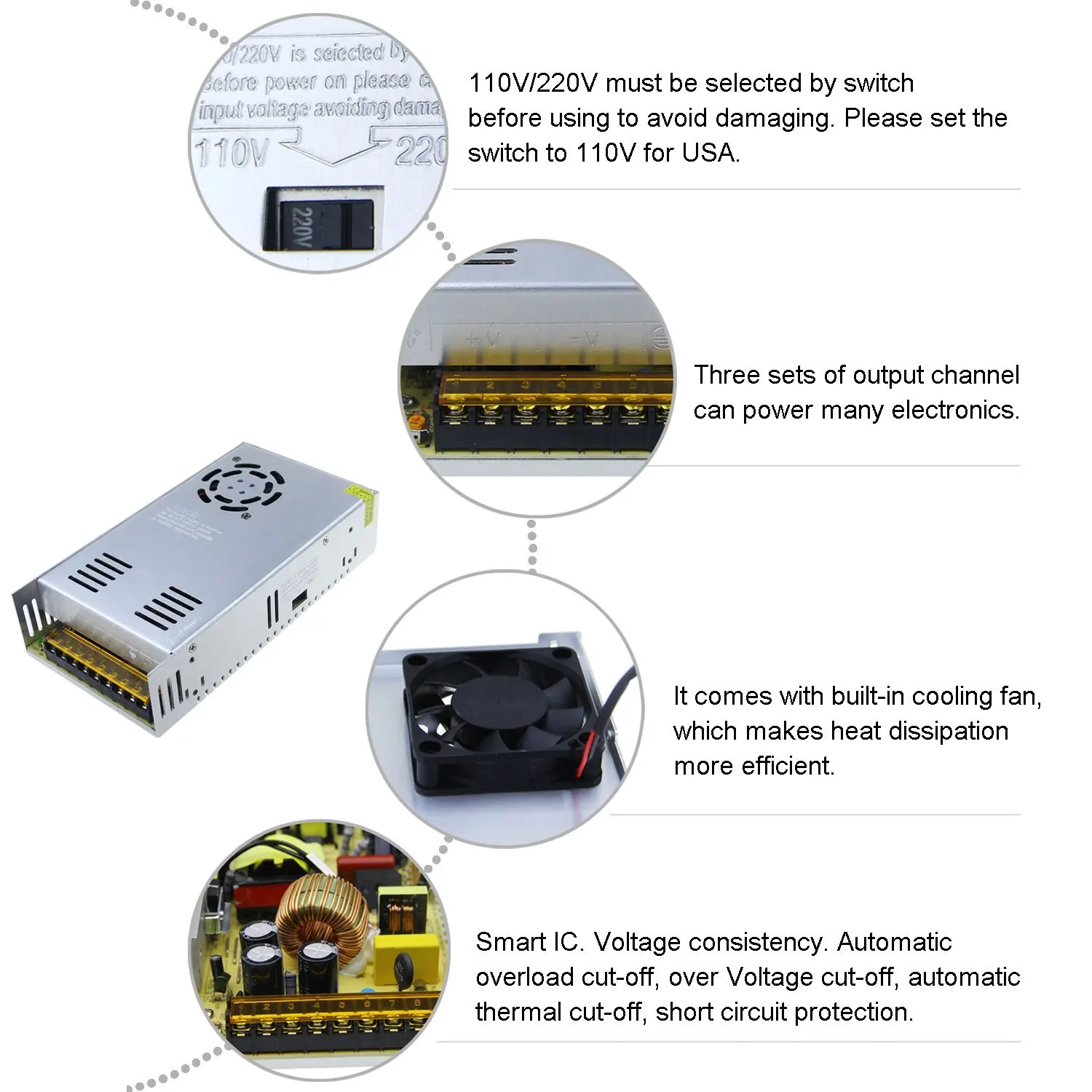

Input voltage 110V/220V before use, need to set the input voltage of the power supply, please check the input voltage. Avoid damage to equipment

Do not disassemble the power box, dismantle the power without authorization, do not guarantee it.

Please use it indoors, not waterproof

Our company specializes in the production of transformers, switching power supply, industrial power supply, monitoring power supply, motor power, LED drive power, LED band, industrial lights, home lights, etc

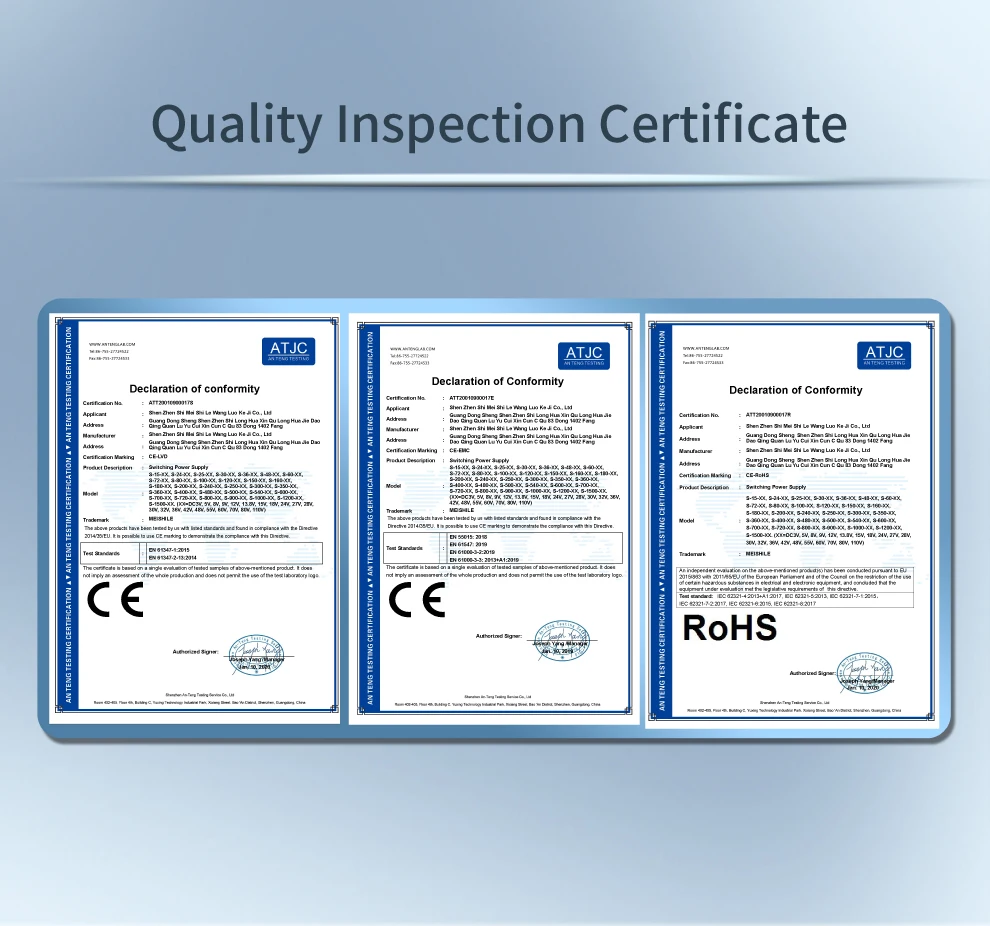

All products through CE, FCC certification, large quantity, more affordable price, welcome to consult and negotiate
