Buyers please note！！！

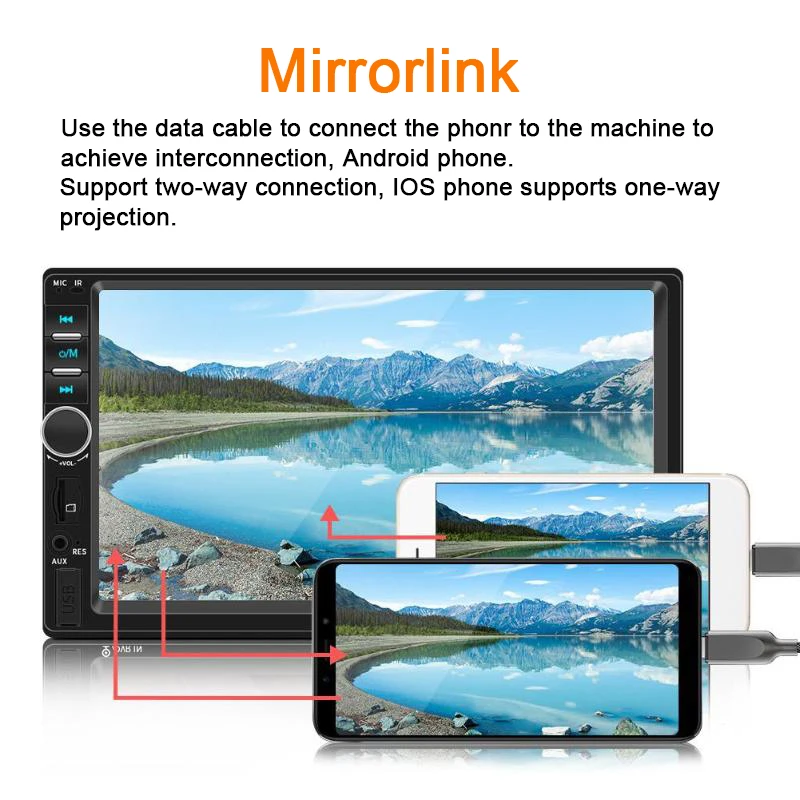

The mirror link function applies to Android Version 5.0 ~ 10.0. (Some of Android 4.4 and Samsung phone might not be able to fit perfectly)It does not apply to iPhone.

If you choose to ship it from China, it supports Android 11.

The freegift of car wheel remote control is only shipped from China warehouse. the freegift IS NOT shipped from Russia Spain,France,USA,Italy warehouse, So If you need the freegift please select ships from China.

Autoradio 2 Din General Car Models 7'' inch LCD Touch Screen Car Radio Player Bluetooth Car Audio

Item specifics

Special Features:Radio Tuner,MP3 Players,Bluetooth,FM Transmitter,Touch Screen,Mobile Phone

Radio Response Bandwidth:87.5 - 108MHz

Out Power:40W*4~60W*4

Item Size:17.80 x 10.00 x 5.50 cm

OSD Language:English

Item Weight:0.72kg

Material Type:Other

Voltage:12V

Placement:In-Dash

Display Size:7"

Resolution:440 * 240Car Maker:Hummer,Mercedes-Benz,Mercury,Nissan,Saturn,Scion,Tesla,Universal

RAM:256Mb

Frequency response:20Hz - 20KHz

Loudspeaker impedance:4 - 8 Ohm

FM frequency:87.5 - 108MHz

Sensitivity:25dB

Selectivity:60dB

Separation:35dB

Support 13 languages menu:English Spanish German French Russian Portuguese Italian Japanese Chinese and ect

Features:

Bluetooth Specification: V2.0

Supports advanced audio distribution profile

Off time display function

Digital high-quality FM stereo radio

Preset 18 stations ( frequency: 87.5-108 MHz )

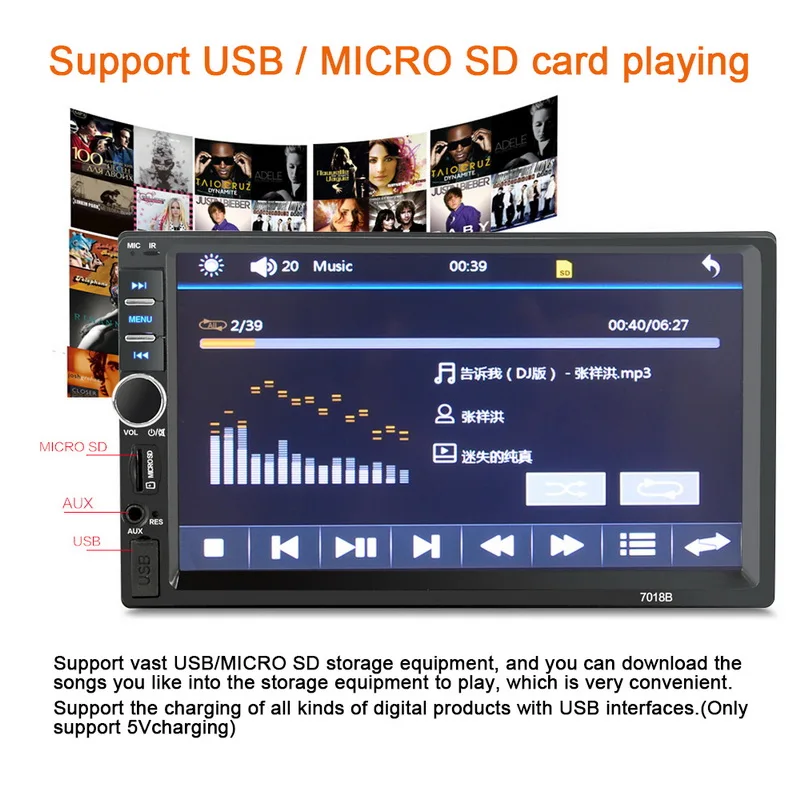

Support USB / SD / MMC card reader

Support Audio: MP3 / WMA / APE / FLAC / WAV etc.

Support folder function

Support breakpoints and ID3 Play

Support remote control

Rotary volume control

MP3 randomized, 10 track up / down playback

Electronic control volume treble, bass, balance and fader

Multiple EQ scene selection: Jazz, rock, pop, classical, etc.

Mute and loud control

L / R RCA audio output jacks

4-channel high power output ( 4 loud speaker )

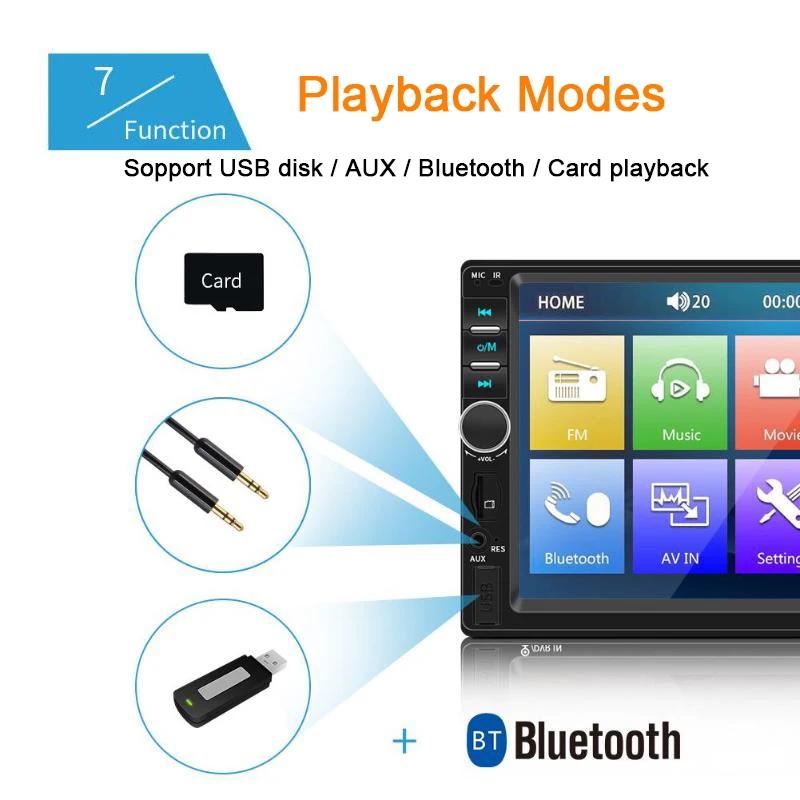

Support modes: BT / APE / WAV / WMA / MP3 / FM

The remote control battery (not included): CR2025 3V

Power Supply

12V Machine: 11 - 16V

The mirror link function applies to Android Version 5.0~10.0.(some of Android 4.4 and Samsung phone might not be able to fit perfectly)
It does not apply to iPhone.

If you choose to ship it from China, it supports Android 11.

Note: This machine is 12V machine, not according to the 24V power supply

The following conditions may cause the machine to burned:

1. Can not use the original car plug directly connected to our new machine, do not match will lead to the machine burned, part of the machine can be shared please consult customer service.

2. If you buy a 12V voltage product do not install to 24V voltage models, otherwise it will cause the machine burned.

3. When wiring, speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to boot or machine without sound.

Packaging Details

Unit Type: piece

Package Weight: 0.722kg (1.59lb.)

Package Size: 20cm x 15cm x 8cm (7.87in x 5.91in x 3.15in)

Frequently Questions: (Car Radio)

Q1. Why can't the car radio be turned on?

1>Please check the car radio voltage: DC 12V

2> When testing this car radio, you can connect the red wire and the yellow wire to the positive pole of the power supply, and the black wire to the negative pole of the power supply.

3>Replace the same type of insurance test car radio.

Note: Please be sure to use our power cord to connect our car radio, can't plug the original car plug directly into our machine.

Q2. Why does the car radio display "No Signal" when reversing?

>Please check if the cable of the camera is properly connected to the car radio.

>Note: The video interface of the rear camera must be inserted into the "CAMIN" interface of the car radio.

Q3. Why does the camera display "!" when using USB to watch videos, and "Can't watch videos while driving"?

> Please turn off the "Video Warning" function in the settings, that's it.

Q4. Why does the car radio display the time after it is turned off?

>The punch card is a function of the car radio and cannot be removed

> If you don't need this, you need to unplug the power supply plus and minus.

Q5. Why is there no sound from the car radio when playing music?

>1. When you do not use our original audio cable, please check if your audio cable is suitable for our camera.

>2. Please check if there is any conflict between the lines.

>If the wires are connected, there is no sound when the speaker wire touches the speaker wire, and there is no sound when the power wire touches the speaker wire.

> If the problem persists, use a single speaker to connect a set of audio cables to test the car radio. Connect the four speaker wires separately to see if there is any sound.

Q6. Why can't I find FM?

>1. No radio antenna is plugged in.

>2. Please check that the radio antenna is plugged in properly. Please insert the antenna several times to make it make good contact.

>3. The signal at your location is not good. Please go to a better place to retest.

>4. The radio antenna on the car is broken/no effect; please replace the radio antenna and test again;

Q7. Why can't I connect to the Bluetooth of the car radio?

>1. Open the phone settings interface, turn on Bluetooth in the Bluetooth function, search for Bluetooth devices, and find the Bluetooth model of the player to be paired; if you need a pairing code, please enter 0000; if not, please try 1234 or 123456.

>2. Please try to test this function with other mobile phones. All methods are correct, still can't use bluetooth, please unplug the back of the player and plug it in after 3 minutes.

After sales question

! ! ! If the following problems occur, please do not open a dispute or leave a bad review. If it does not match the facts, it will be detrimental to you.

Please contact customer service in time, and we can give you more compensation.

Q1. The screen UI interface is different than expected.

If you choose to ship from overseas warehouse, the machine version may be old, you can try to upgrade the firmware or you can choose to ship from China, the machine will be a brand new version.

Q2. The received goods have damaged packaging.

Please remember to save the parcel of the express delivery note , snap the picture of the outer packaging, and the picture of the package for us to check, take a photo and record a video to contact customer service. It is best to ask the logistics provider for a certificate of damage. If the logistics problem is confirmed, we will compensate you or reissue it.

Q3. There is a stripe problem during the use of the screen.

There are generally two reasons for this. One is the screen failure caused by extrusion during logistics and transportation. If this is the reason, please refer to above. Second, there is a problem with the screen of the machine itself, you can contact customer service to compensate or reissue the screen.

Q4. Important notice before installation: Please read carefully!!!

Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function.

Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply.

Blue line connected lift the antenna or subwoofer REM control line, if not have do not connected, wrapped up with rubberized fabric.

The remaining eight wires(gray white green purple) are speaker line, a group of colors corresponding to a pair of speaker lines (positive and negative).

Please pay attention to check whether the original car speaker cable if contact iron (the original car speaker wire welding to the metal, or a speaker only a line thow out, called contact iron). contact iron will cause our high-power machine without sound, please test it with a multimeter before install, if contact iron, please disconnect and then install.

Q5.The following conditions may cause the machine to burned:

1. Can not use the original car plug directly connected to our new machine, do not match will lead to the machine burned, part of the machine can be shared please consult customer service.

2. If you buy a 12V voltage product do not install to 24V voltage models, otherwise it will cause the machine burned.

3. When wiring, speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to boot or machine without sound.

Q6. The camera equipped with the purchase does not work.

Please confirm whether the camera is wired incorrectly. You can refer to the picture below for wiring, or search for a video reference on how to wire the 4led camera on the YouTube. If there is no problem with the camera wiring, please contact customer service to reissue the camera.
