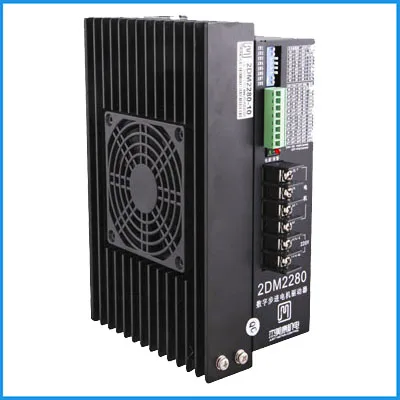

JMC 2DM2280 is new digital stepper motor driver which adopts latest 32-bit DSP control technology and built-in microstepping technology. Users can set microsteps within 25600step/rev, and any current value within rated current range. 2DM2280 driver greatly improves stability and reduces noise under low subdivision. Automatic parameter tuning is integrated inside this driver, can help driver automatically adjust to best operation parameters to maximize performance of different stepper motors.

The new 32-bit DSP technology

Optically isolated differential inputs

Extra-low noise and anti-resonance

The range is 2-128 micorsteps

Built 500 high octave microstep ( selected microstep value)

Current can set between rated value alternatively

Stationary current is automatically halved

Pulse frequency response up to 200KHz

Overvoltage, undervoltage, short circuit protection

Alarm output function I / O ports

Offline protection input ENA

CNC cutting/engraving, lazer, textile machine, etc.

Wiring:

Remark:* VCC is compatible with 5V or 24V;

          R1(3~5K) must be connected to control signal terminal.

Dimension：
