Оригинальный радиоприемник Radiolink R6FG R6F R4FGM R8EF R7FG с гироскопом 2,4 ГГц, используется с RC4GS RC6GS T8S T8FB RC пультом управления.

Оригинальный радиоприемник Radiolink R6FG R6F R4FGM R8EF R7FG с гироскопом 2 4 ГГц используется RC4GS RC6GS T8S T8FB RC пультом управления.

Item: Radiolink R7FG R6FG R6F R4FGM R8EF Receiver

Parameters:
R7FG :
Channels: 7
Gyro inside: Yes
Signal output: PPM / PWM / S-BUS, 2.4 GHz
Control distance: more than 600 meters
Model application: RC car / boat
Spread Spectrum: FHSS
Channel resolution: 4096
Operating voltage: 4.6-10V DC
Operating current: 30mA
RF power: <10dbm
Antenna length: 20.5cm
Size: 3.5 * 1.8 * 1.4cm
Weight: 6g

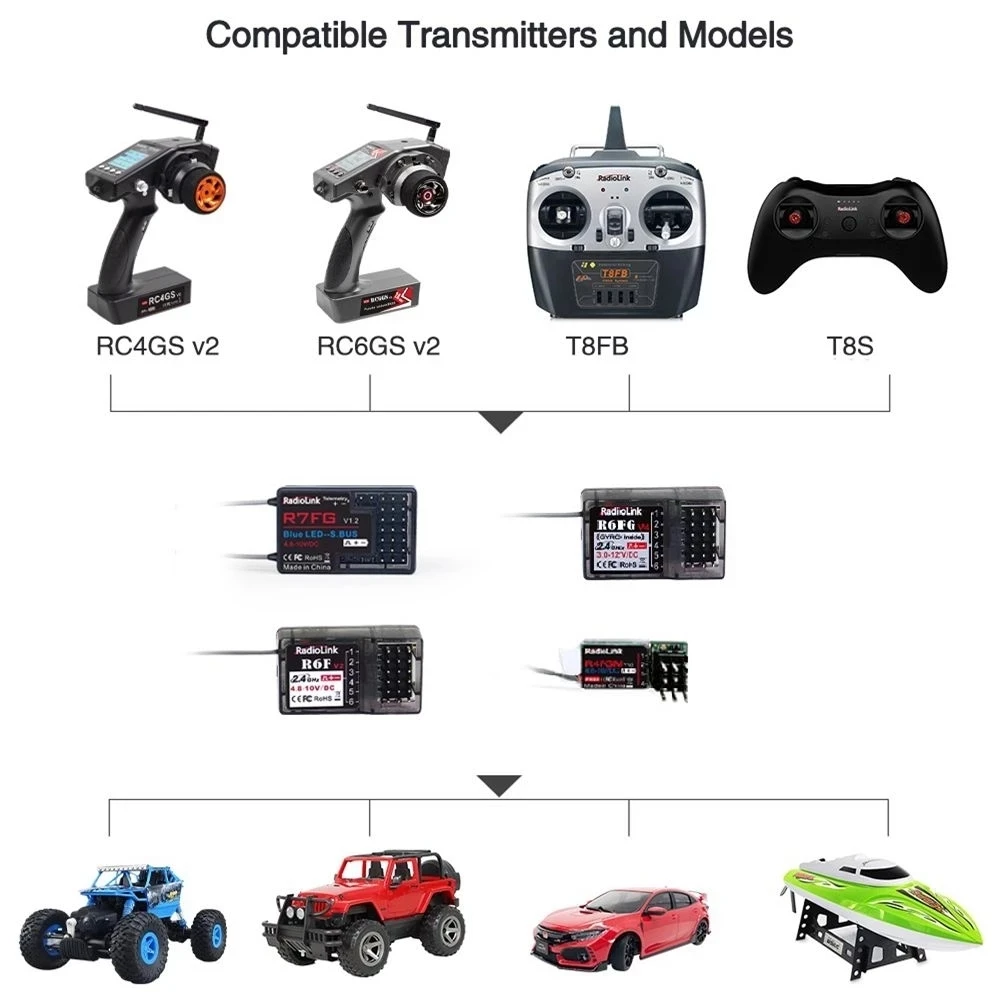

Compatible Transmitter: RC4GS / RC6GS / RC6GS V2 / RC4GS V2 / T8S / T8FB

R6FG:
Channels: 6
Gyro inside: Yes
Signal output: PWM, 2.4 GHz
Control distance: more than 400 meters
Model application: RC car / boat
Spread Spectrum: FHSS
Channel resolution: 4096
Operating voltage: 3-12V DC
Operating current: 30mA
RF power: <10dbm
Antenna length: 20.5cm
Size: 3.5 * 2 * 1.3cm
Weight: 6g
Compatible Transmitter: RC4GS / RC6GS / RC6GS V2 / RC4GS V2 / T8S / T8FB

R4FGM :
Channels: 4
Gyro inside: Yes
Signal output: PWM, 2.4 GHz
Control distance: more than 400 meters
Model application: RC car / boat
Spread Spectrum: FHSS
Channel resolution: 4096
Operating voltage: 4.6-10V DC
Operating current: 30mA
RF power: <10dbm
Antenna length: 20.5cm
Size: 2.5 * 1.3cm
Weight: 6g
Compatible Transmitter: RC4GS / RC6GS / RC6GS V2 / RC4GS V2 / T8S / T8FB

R6F :
Channels: 6
Gyro within:
Signal output: PWM, 2.4 GHz
Control distance: more than 400 meters
Model application: RC car / boat
Spread Spectrum: FHSS
Operating voltage: 4.8-10V DC
Operating current: 30mA
RF power: <10dbm
Antenna length: 20.5cm
Size: 3.5 * 2 * 1.3cm
Weight: 6g
Compatible Transmitter: RC4GS / RC6GS / RC6GS V2 / RC4GS V2 / T8S / T8FB

R8EF:
Channel: 8ch
Operating voltage: 10V maximum.
Operating current: 19-25mA (input voltage 5V)
Size: 48.5 * 21 * 11mm
Weight: 7g
Section Accuracy: 4096
Signal output: S-BUS, PPM and PWM
PWM signal mode: Green LED, 8 channel PWM signal output.
SBUS / PPM signal mode: Red and green LED on, CH1 S-BUS output signal, PPM CH2 output signal, CH3 to CH8 output PWM signal at the same time.

Features:
R7FG :
【Excellent anti-interference】: With FHSS pseudo-random algorithm, which makes R7FG have excellent anti-interference ability, control distance up to 1900 feet (600 meters).

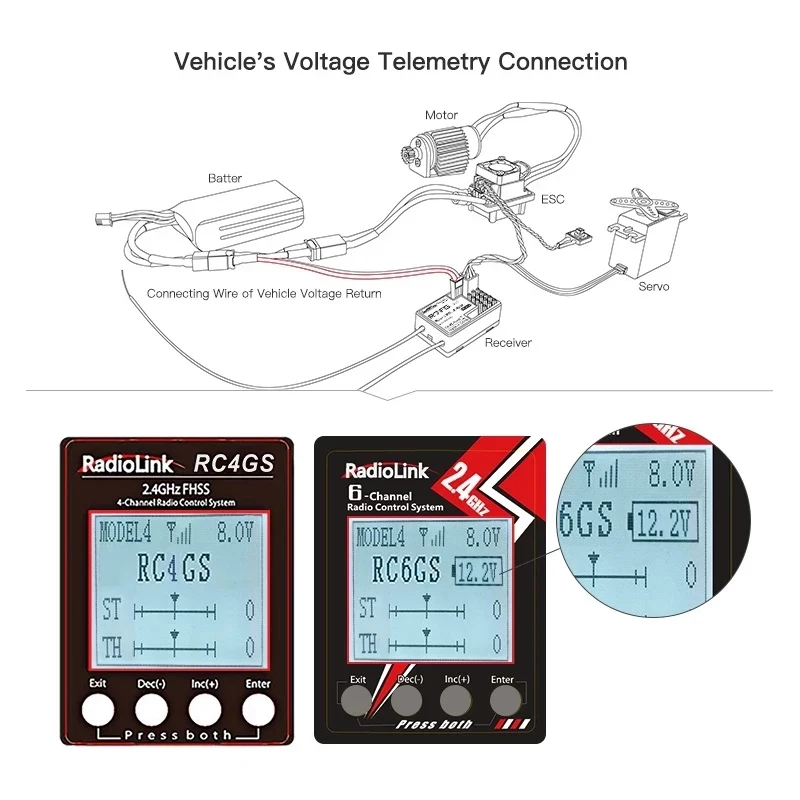

【Real-time Telemetry】: Telemetry function can provide vital real-time information such as vehicle battery voltage, RSSI signal and more, preventing over-discharge and battery damage.
【Built-in gyroscope】: The built-in gyroscope can keep the vehicle in a straight line, and the gyroscope sensitivity can be adjusted with the transmitter, which fits for drift and road cars.
【Push to Pair】: No need to plug and no adjustment, just press the bind button for 1 second after turning on the controller and receiver. 4096 high resolution ratio, stable signal and fast response.
【Anti-polarity Protection】: With reverse polarity protection, it will not damage the receiver even if you insert wrong polarity. 4.6-10v DC supports high voltage servo.
【Small size with compact case】: Only 30 * 18.5 * 11.5mm in small size and 6g in light weight.

R6FG:
【Excellent Anti-interference】: Pseudo-random algorithm FHSS communication technology makes R6FG have a stable signal and an outstanding range of more than 1300 feet (400 meters).
【Built-in gyroscope】: The built-in gyroscope can keep the vehicle in a straight line, and the gyroscope sensitivity can be adjusted with the transmitter, which fits for drift and road cars.
【Super Fast Response】: High resolution ratio of 4096, stable signal output to provide quick response for rock crawler, RC truck, tank, buggy, drifting, etc.
【Compact Case】: Its small size effectively saves space and works well for most rc car receiver boxes.
【Simple Binding】: Easy to use link button, only 1 second to bind with your RC4GS / RC4GS V2 / RC6GS V2 / RC6GS / T8S / T8FB radio

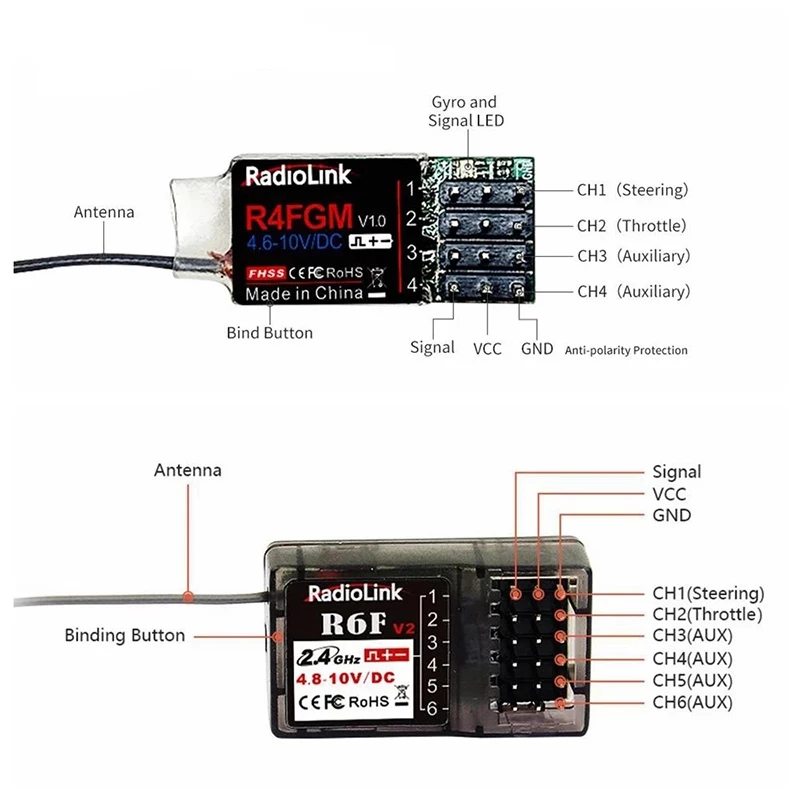

R4FGM :
【4 Channels】: Mini size 0.98 * 0.51 inch, light weight 0.1 oz, can be used for 1:28 and 1:54 scale mini RC cars.
【Excellent Anti-interference】: With FHSS pseudo-random algorithm, which makes R4FGM have excellent anti-interference ability, control range up to 1300 feet (400 meters) on the ground.
【Built-in gyroscope】: The built-in gyroscope can keep the vehicle in a straight line, and the gyroscope sensitivity can be adjusted with the transmitter, which fits for drift and road cars.
【400 meters Control Distance】: The stable remote control distance is up to 400m on the ground. Control with camera and display screen / glasses makes FPV fun and cool.
【Reverse Polarity Protection】: Even the polarities are mistakenly connected, the receiver is not damaged. 4.6 ~ 10V power supports high voltage servo.
【Link mode and single switch】: No need any adjustment on the controller when R4FGM joins the radio, press 1 second to bind. Shot press 3 times within 1 second to turn on / off gyro mode.

R6F :
【6 channel】: 6 channel receiver suitable for RC4GS / RC4GS V2 / RC6GS.RC6GS V2 / RC4G / T8FB / T8S transmitter.
【FHSS signal spread spectrum】: Adopt FHSS spectrum anti-interference technology, keep signal stable, size is only 35 * 20 * 13mm.
【Long Distance Control】: R6F receiver with incredible distance control, more than 400 meters on the ground. (The actual control distance depends on the environment).
【Support HV servo】: R6F receiver for rc car and boat support 4.8 ~ 10.0V DC servo.

How to tie with the transmitter:
1. Place the transmitter and receiver close to each other within 50 cm.
2. Turn on the transmitter, then turn on the receiver.
3.There is a black button on the side of the receiver, press the link button in one second until the receiver light starts to flash and release, after about 8 times flashing,. Match the code correctly when the receiver signal LED is always on, and the signal tower appears on the transmitter screen.

Attention: The gyro receiver (R7FG, R6FG, R4FGM) by default has not turned on the gyro function. Make sure the R7FG stays motionless when power on, because the R7FG will do the self-test. R7FG with two indicator LEDs, the green LED on indicates a normal operating mode while the green LED and red on indicate the gyro function operating mode.

Failsafe:
When the receiver can not receive the signal from the transmitter within 1 second, the receiver will output the signal: zero throttle, other channels keep the last signal from the transmitter.
