Low-cost carbon fiber heating cable, carbon fiber heating wire, heating wire, new infrared heating cable


Technical data:

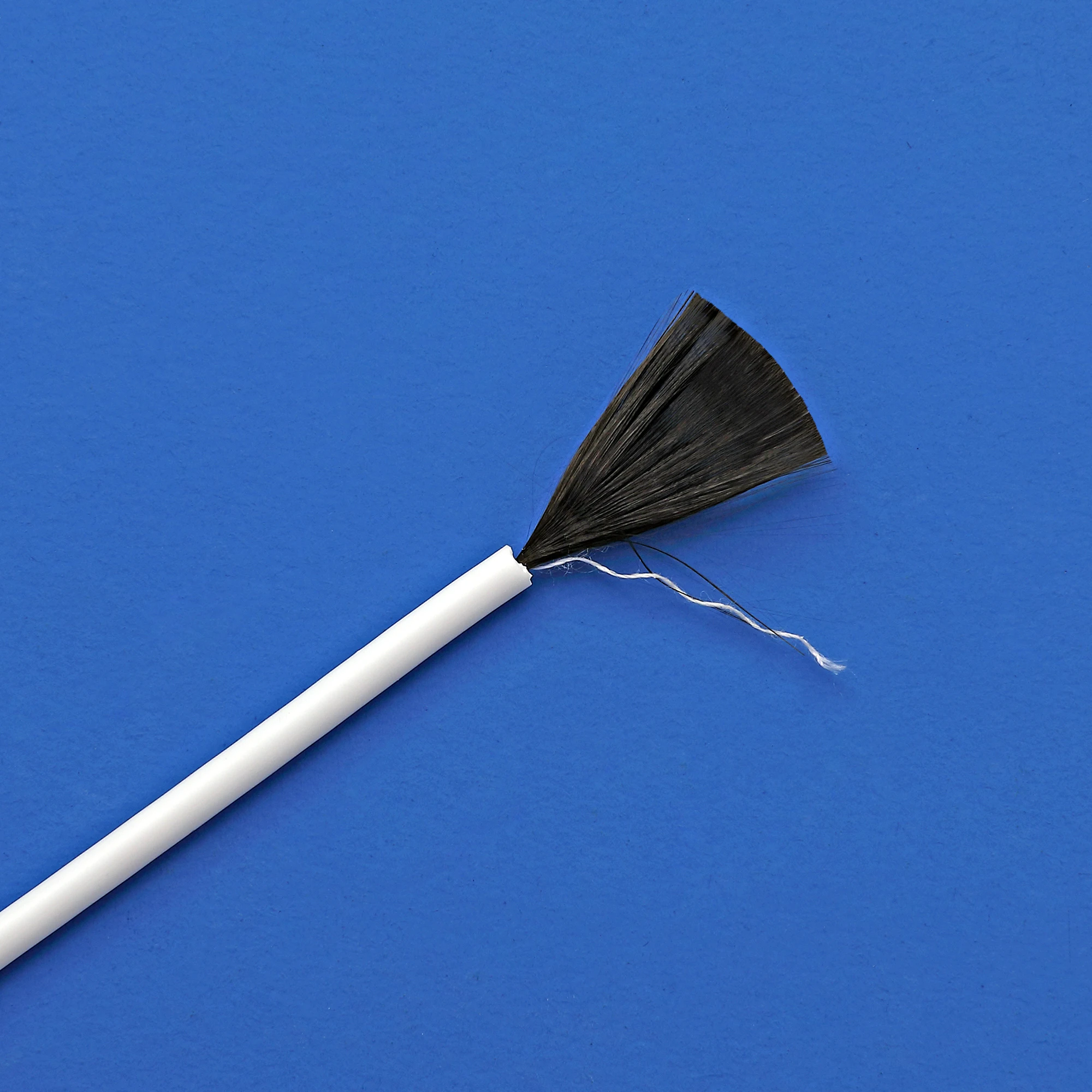

Product name: carbon fiber heating wire


Insulation material: Silicone rubber


Maximum temperature resistance: 200C degrees


Heating temperature: According to the length of use


Heating element: 12K


Leakage current: 0.05mA/m


The product can withstand the maximum power: 25W/M


Diameter: 2.0±0.2 MM (thicker and safer
)


color: White


Infrared wavelength: 8UM-18UM


Conductor resistance: 33±10%/m

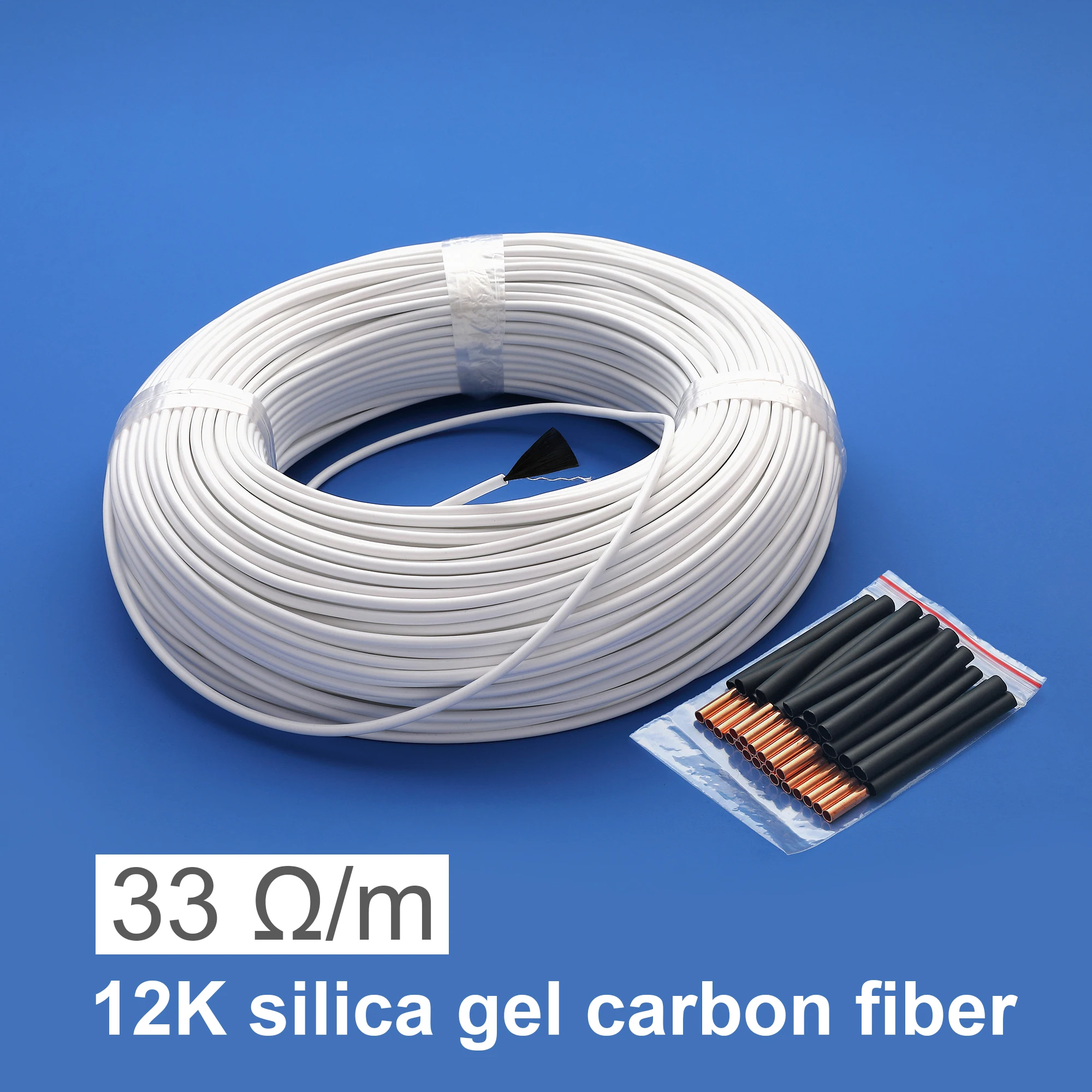

The package includes:

1. Purchase 100m = 100m cable + 20 copper pipes + 20 bushings


1. Buy 50m=50m cable + 10 copper pipes + 10 bushings


1. Buy 30m=30m cable + 6 copper pipes + 6 bushings


1. Purchase 20m = 20m cable + 4 copper pipes + 4 bushings


After the product is installed, there will be a strange smell when it is used for the first time. What's the matter?

During the product manufacturing process, a small amount of raw material debris will remain on the surface of the product. This is a normal phenomenon. After installation and testing, you must remember to open the window for ventilation


How to calculate power?


Voltage * voltage ÷ resistance = electric power


12K=33 ohm/meter


For example, using a 10m 12K carbon fiber cable on 220V, the power is:


220V*220V÷10m*33=150W


E.g,
use
15m 12K carbon fiber line 220V, power:


220V*220V÷15m*33=100W


The longer the length, the lower the power and the lower the heating temperature.
