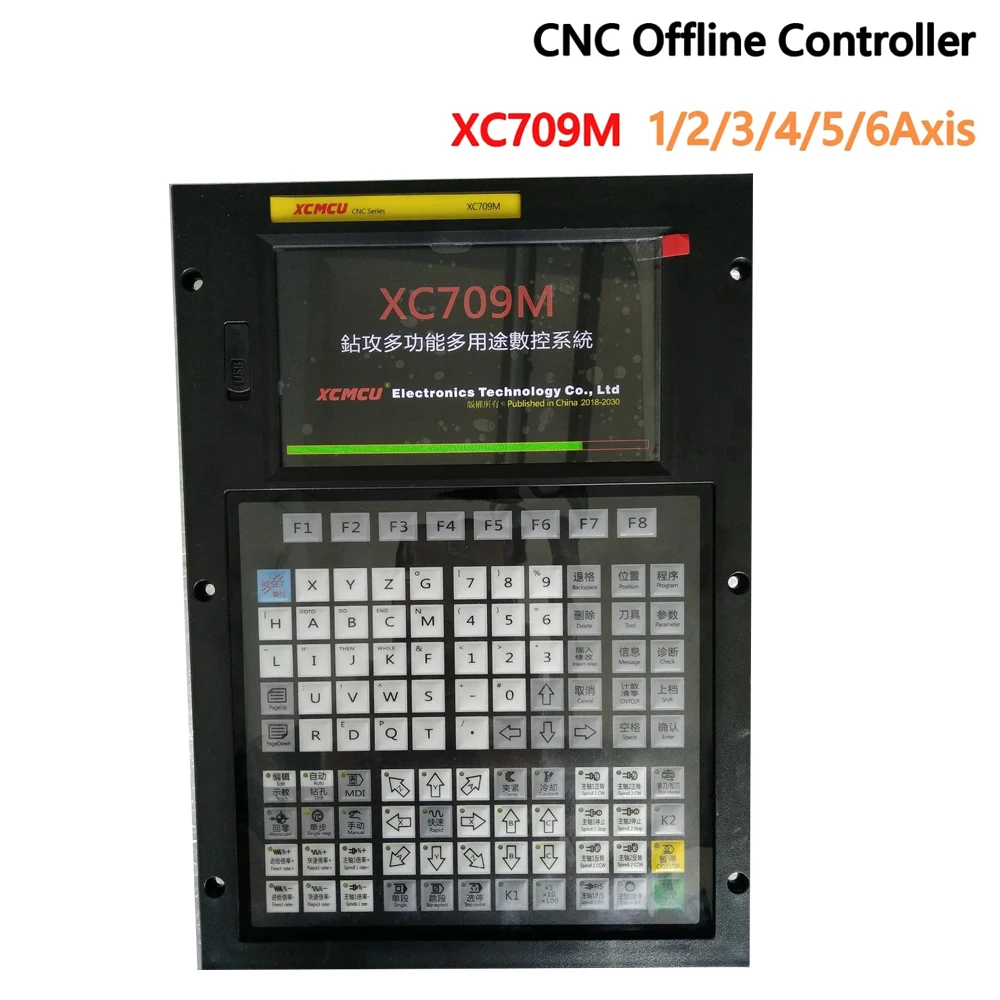

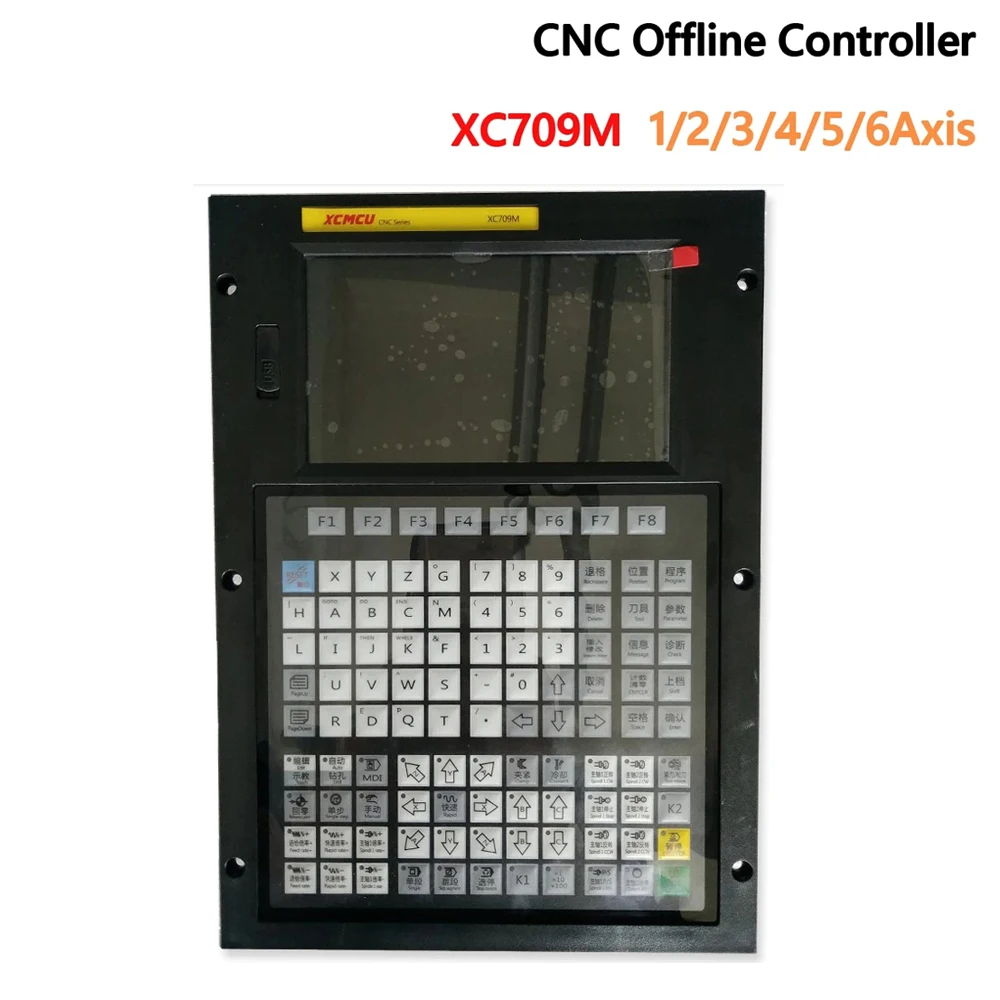

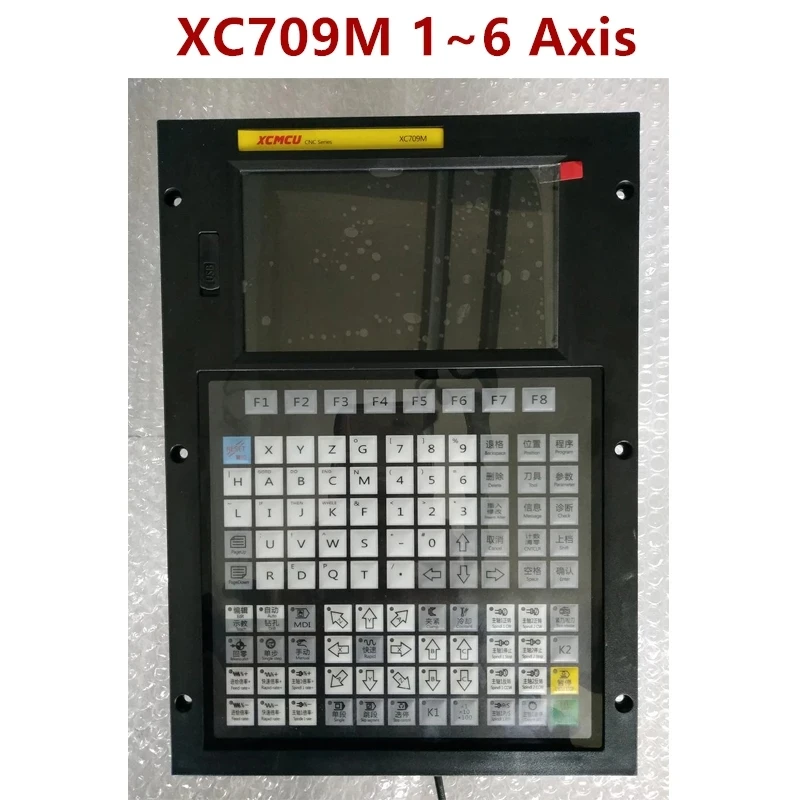

XC709M 3 ~ 6 осевой USB CNC контрольная система управления движением FANUC G-code поддержка

XC709M 3 ~ 6 осевой USB CNC контрольная система управления движением FANUC G-code поддержка

Package Included:

1 x CNC Control System

Description:

XC709D multi-function CNC system is a new generation CNC system developed by our company. Support carving, milling, drilling, and tapping. It adopts a 32-bit high-performance microprocessor, real-time multi-task control technology, and hardware interpolation technology, full linkage, high-speed small line segment look-ahead algorithm. 0.001mm interpolation accuracy, the highest speed of 30 m/min. It is the best choice for engraving machine, small machining center, CNC milling machine, and CNC drilling machine.

Comparison of XC709D, XC709M, XC809D, XC809M:

Model

XC709D

XC809D

XC709M

XC809M

Application Field

Used in engraving machines, engraving and milling machines, small machining centers

Used for drilling, tapping, and automated drilling machines.

Algorithm

Micro line segments Look-ahead Algorithm

General algorithm

Workpiece

Processing standard Workpiece

Processing non-standard Workpiece

Manual Programming

Support

Don’t support

Program exported from Computer

Support

Support

Based on32-bit microprocessor, fully linked, 0.001mm interpolation accuracy, a maximum speed of 30m/min, support direction + pulse, and quadrature pulse.

7-inch color widescreen LCD, resolution 800×480, Windows interface style. Equipped with 8 soft function keys, the operation is simple and easy to learn. Provide rich display interface such as parameter classification, alarm log, system diagnosis, etc., convenient for debugging and maintenance.

Supports international standard G instructions and is compatible with withFANUCsystem instructions.

40 kinds of G-command, support drilling cycle, and tapping cycle.

Part program full-screen editing, built-in 1G massive program space, can store N parts program.

USB interface, support disk file reading, and writing, data backup.

Input 24 points (expandable to 96), output 24 points (custom).

Operator interface language: Chinese, English, Switchable.

Uses pre-interpolation acceleration and deceleration control.

Support knife length tool compensation and radius tool compensation.

Support hand wheel trial processing to facilitate program debugging.

Support multi-level operation authority, convenient device management, and limited-time system locking function.

SupportGG, Mastercam, PowerMill, FeatureCAM, ArtCAM, JDPaint, Wentaiand other third-party software G code files.

Support self-programming tool magazine, flexible use of a variety of tool magazines.

Basic Functions

Number of control axis

 1~6 axis (X, Y, Z, A, B, C)

Number of linkage axis

 full linkage

Tool magazine

 Support, need to edit the magazine code

Spindle

 2 analog spindles, where the spindle 1 can use a digital spindle (occupying a digital axis)

Spindle monitoring

 Yes

Minimum command unit

 0.001 mm

Maximum command value

 ±99999999 × minimum command unit

Rapid feed rate

 30000 mm / min

Rapid feed rate override

 F0, 25%, 50%, 75%, 100%

Pulse mode

1: direction + pulse 2: quadrature pulse (if the driver supports, recommended, anti-interference is stronger)

Maximum frequency

 100 kHz, 200 kHz, 500 kHz can be set. (500 kHz can only be realized in all axes orthogonal output mode)

Feed rate override

 0~150%

Electronic gear ratio

 1 ~ 65535: 1 ~ 65535

Automatic acceleration and deceleration

 Yes

Positioning

 G00 (linear interpolation positioning)

Interpolation

 straight line (G01), arc (G02/G03/G12), helical interpolation

Return to the reference point

 Automatically return to the reference point (G28)

LCD

 7-inch TFT LCD screen with resolution of 800×480

MDI software key

8

Single-step to

 x1, x10, x100

Communication interface

 U disk interface

External hand wheel interface

 Yes

I/O interface

 24/24 (expandable to 96/96)

Pause (seconds)

 Yes

Quasi-stop state

 Yes

Quasi-stop

 Yes

Storage trip check

 Yes

MDI operation

 Yes, support multi-segment operation

Reset

 Yes

Jump switch

 Yes

Single-segment operation

 Yes

Program protection switch

 Yes

Self-diagnostic function

 Yes

Emergency stop

 Yes

Power

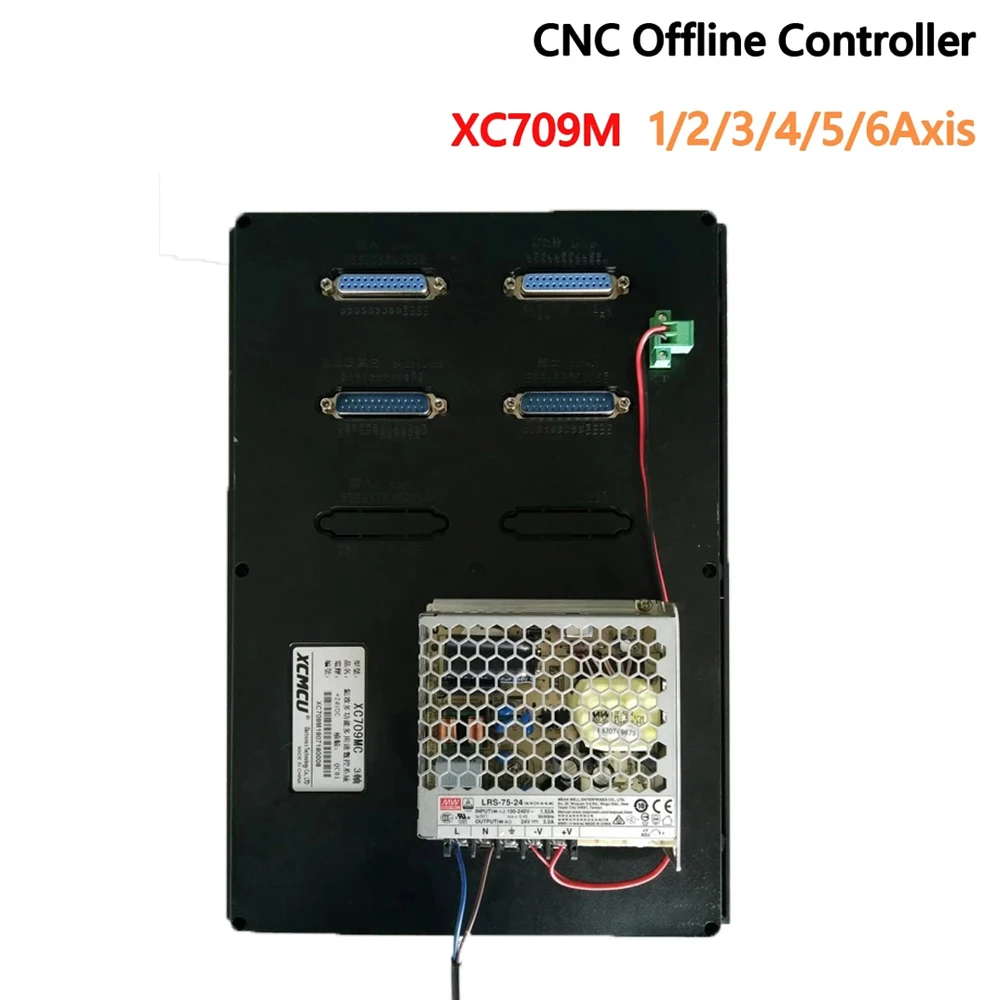

Single Phase Input 100~240V AC 1.52A 50/60 Hz±1, Output 24V DC 3.2A

Coordinate system

 Machine coordinate system (G53), workpiece coordinate system (G92, G54～G59), local coordinate system (G52), coordinate system plane designation

Automatic coordinate system setting

 Yes

Decimal point input

 Yes

Auxiliary Function

Auxiliary function

 M2 digits, M code customization, manual / MDI / automatic mode control spindle forward rotation, reverse rotation, stop; control coolant start and stop; control lubrication starts and stop, etc.

Spindle Function

Spindle function

 double spindles

Digital spindle

 Supported by spindle 1, occupies one digital axis (Z-axis does not support), and the rotation speed is more stable.

Tapping

 Support

Spindle analog output

 Yes, dual spindles

Knife Function

Tool function

 Support automatic tool change, support split centering knife, 3-point centering tool

Tool compensation memory

 -9999.999~9999.999, 99

Tool compensation

 Length compensation for each axis

Editing Operation

Editing functions

 parameters, diagnostic bitwise input, program editing, MDI multi-block execution

Storage capacity

512M

Number of stored programs

 None

Display of program name

 Chinese, English, numbers, combination

Program line lookup

 Yes

Skip the optional block

 Yes

Program switch

 Yes

Display

Display

 Chinese, English, Switchable

Processing time, number of parts display

 Yes

Spindle speed, M/S command

 Yes

Dimensions (mm)

 Dimensions (height × width × thickness) 390×253×80

Opening size (height x width)

370×228
